Product description

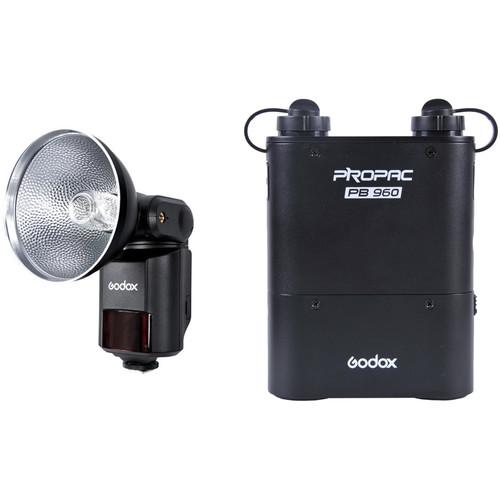

• Godox AD360 WITSTRO Portable Flash Offering plenty of light in a portable package, the AD360 WITSTRO Portable Flash from Godox features a bare-bulb design that is capable of outputting 360Ws when set to full power. When used with its included reflector, it provides beautiful directional light and has a guide number of 262' at ISO 100. Operating like most shoe-mounted speedlights, it can tilt from -15 to 90° and rotate 270° for use with bounce flash techniques. When not connected directly to the camera, this flash can be adjusted and triggered from afar via an optional FT-series remote that goes into its wireless control port. PC and 3.5mm sync sockets are also available to provide you with even more control options. This flash can be used on manual mode or be programmed to fire multiple flashes in stroboscopic mode, and can also function as an optical slave in complete synchrony with the master or while skipping a single pre-flash. An additional high-speed sync triggering mode is available for extremely quick shutter speeds, and can be used only with certain optional transceivers. The AD360 WITSTRO runs on an external PB960 lithium battery pack, which needs to be purchased separately. This power pack allows for recycling times of 0.05 to 4.5 seconds depending on your settings, and provides enough energy for 450 full-power flashes.
  • • Bare-bulb flash with maximum output of 360Ws
    • Guide number of 262' at ISO 100 when used with included reflector
    • Tilts from -15 to 90°, rotates a total of 270°
    • Wireless control port for FT series remotes, as well as PC and 3.5mm sync sockets
    • Manual, S1 slave, S2 slave, and stroboscopic modes, with the capability of functioning as an optical slave
    • High-speed sync triggering mode available when used together with some triggers such as Godox Cells II transceiver
    • Recycling times of 0.05 to 4.5 seconds depending on configuration
    • Variable power from 1/1 to 1/128th in 1/3 stop increments
    • Runs on separately available PB960 lithium battery pack, which provides enough power for 450 full-power flashes
    • Focus assist beam for poorly lit conditions
    • Includes flash tube, reflector, diffuser panel, mini stand, power cable, off-camera adapter, and a bag
• Godox PROPAC PB960 Lithium-Ion Flash Power Pack Shoot for longer while enjoying faster recycle times by picking up this PROPAC PB960 Lithium-Ion Flash Power Pack from Godox. Designed to work with most shoe-mounted flashes, this 4500mAh lithium-ion power pack will boost the performance of your speedlights and bare-bulb flashes and provide 900-1800 full-power flashes on a single charge. It also features dual power ports for powering two flashes simultaneously and will even recharge top-end units in just 1 second at full power. Additionally, it recharges in about three hours and features an LED display to alert users to current charge status and overheating warnings. And, it comes with both a belt clip and a shoulder strap for comfortable carrying.
  • The high-capacity 4500mAh Li-ion battery provides up to 900 full-power flashes with the AD180 and 1800 full-power flashes with a speedlight.
  • This unit features two output ports with anti-drop designs for connecting to multiple flashes simultaneously. Optional cables are available to ensure compatibility, and an optional Y adapter can be used to halve recycle times.
  • A standard speedlight will recycle in 1 second or less at full power.
  • LED display alerts user to current charge status and if there is a danger of overheating.
  • Recharges in approximately 3 hours.
  • Carrying options include a belt clip and a shoulder strap.

• AD360 WITSTRO Portable Flash
• Flash Tube
• Reflector
• Reflector Diffuser
• Power Cable
• Mini Stand
• Off-Camera Adapter with 1/4"-20 Mount
• Protective Bag
• Limited 1-Year Warranty

• PROPAC PB960 Lithium-Ion Flash Power Pack bubtfqxerafbyccetqbcvquwwxrxzxuc

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Godox AD360 WITSTRO Portable Flash

  Mount	Shoe
  Guide No.	262.47' / 80 m ISO 100
  Exposure Control	Manual
  Vari-Power	1/1 to 1/128
  Bounce Head	-15 to 90°
  Swivel Head	270°
  Coverage	28 mm
  Off-Camera Terminal	3.5 mm, PC
  Recycle Time	Approximately 0.05 to 4.5 Seconds
  Flash Duration	1/300 to 1/10000 sec
  Flash-Ready Indicator	Yes
  Slave Timing Modes	Instant Sync Skip Preflash
  Wireless Operation	Method: Optical Pulse Distance: Up to 49.21' / 15 m Mode: Optical Slave
  Power Source	1 x Proprietary Lithium Battery Pack
  Dimensions (W x H x D)	3.0 x 3.7 x 8.7" / 7.5 x 9.5 x 22.0 cm without flash tube and reflector
  Weight	1.72 lb / 780 g without flash tube and reflector

  Box Dimensions (LxWxH)	11.0 x 10.25 x 6.0"

• Godox PROPAC PB960 Lithium-Ion Flash Power Pack

  Chemistry	Lithium-Ion
  Capacity	4500 mAh
  Carrying Options	Belt Clip, Strap Lugs
  Charging Time	3 Hours
  Dual Flash Capability	Yes
  Battery Type	1 x Built-In
  Number of Flashes	900 to 1800
  Connector Type	Proprietary
  Output Ports	2 x Flash Power Socket
  LED Power Indicator	Multiple
  Maximum Output Voltage	11.1 VDC
  Dimensions (W x H x D)	6.3 x 5.3 x 1.9" / 159.0 x 133.5 x 49.2 mm
  Weight	1.19 lb / 540 g

  Box Dimensions (LxWxH)	10.0 x 8.3 x 2.7"
