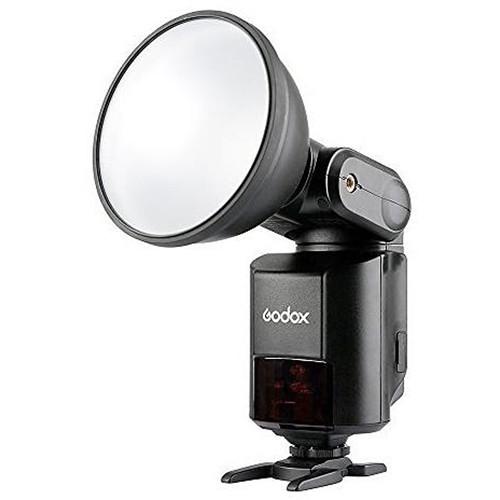

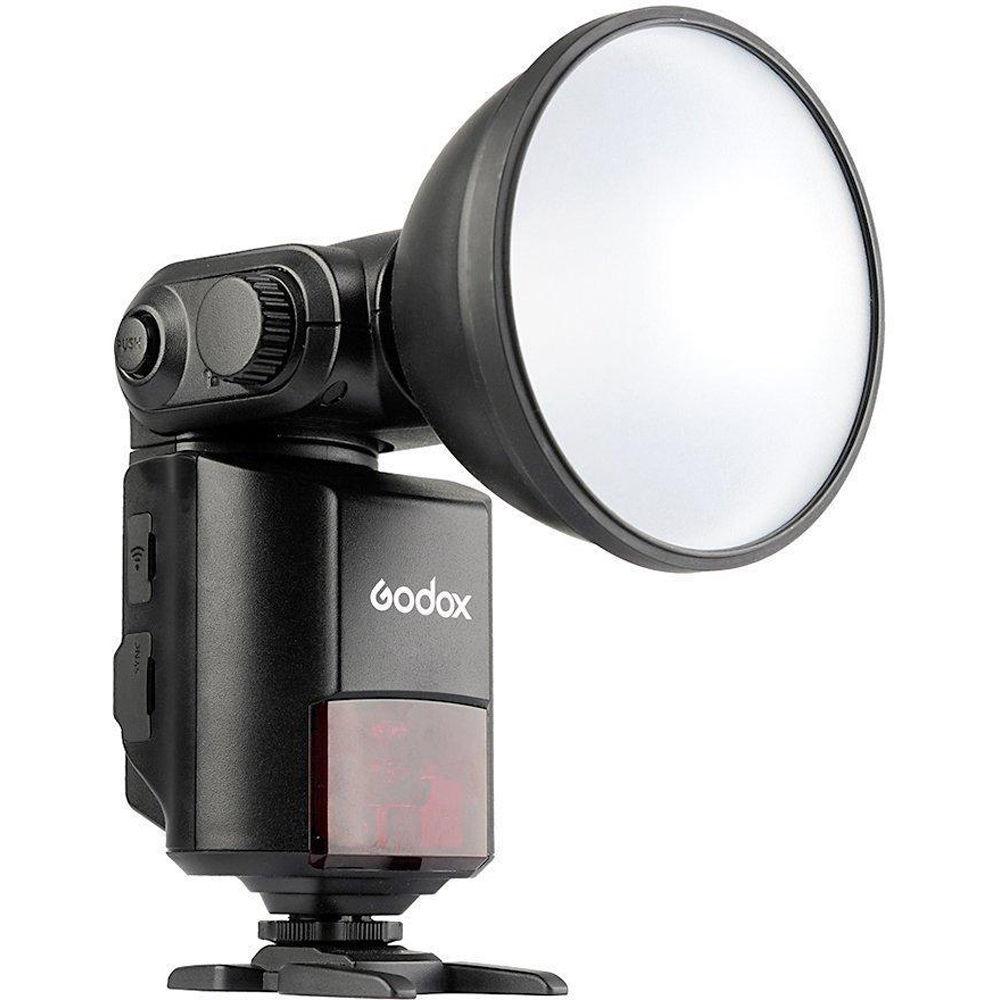

Product description A Guide to On-Camera Flash Read More Power in a portable package is the key advantage provided by the AD360II-C WITSTRO TTL Flash from Godox. Combine this with a bare-bulb design that is capable of outputting 360Ws and you will be able to easily create a beautiful 360° light source that takes very well to modifiers. Another benefit of this unit is the built-in 2.4GHz X radio system that enables reliable wireless operation and control in addition to optical master/slave functionality with complete compatibility with Canon E-TTL / E-TTL II.

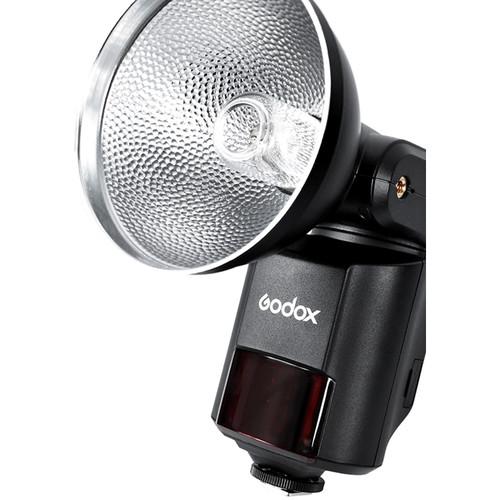

The AD360II-C is able to function much like a standard shoe-mounted flash, including the ability to tilt from -15 to 90° and rotate a total of 270° for bounce flash techniques. It also has a rated guide number of 262' at ISO 100 when using the included reflector. In order to provide this power with a recycle time of 0.05-4.5 seconds, the flash requires the use of the separately available PROPAC PB960 Lithium-Ion Flash Power Pack, which can provide enough energy for 450 full-power flashes. In addition to these capabilities, the E-TTL / E-TTL II support enables high-speed, 1st and 2nd curtain sync modes. And, the flash has a Wireless Control Port along with PC and 3.5mm sync sockets. - A bare-bulb design creates a 360° light source that is flattering and easy to use with many optional modifiers.
- The AD360II-C has an output of 360Ws, which equates to a rated guide number of 262' at ISO 100 when using the included reflector.
- Built-in 2.4GHz X radio system allows it to be set as a slave and triggered from up to 328' away by a supported X series transmitter as well as be used as a master where it can trigger other flashes from up to 230' away. This system supports both Canon and Nikon TTL systems, as an X series transmitter can trigger either a Canon-compatible or Nikon-compatible model with TTL communication, regardless of the model of transmitter used.
- Compatible with Canon E-TTL / E-TTL II, this flash is able to offer auto exposure and other advanced functions. This includes high-speed sync up to 1/8000 second and both 1st and 2nd curtain sync.

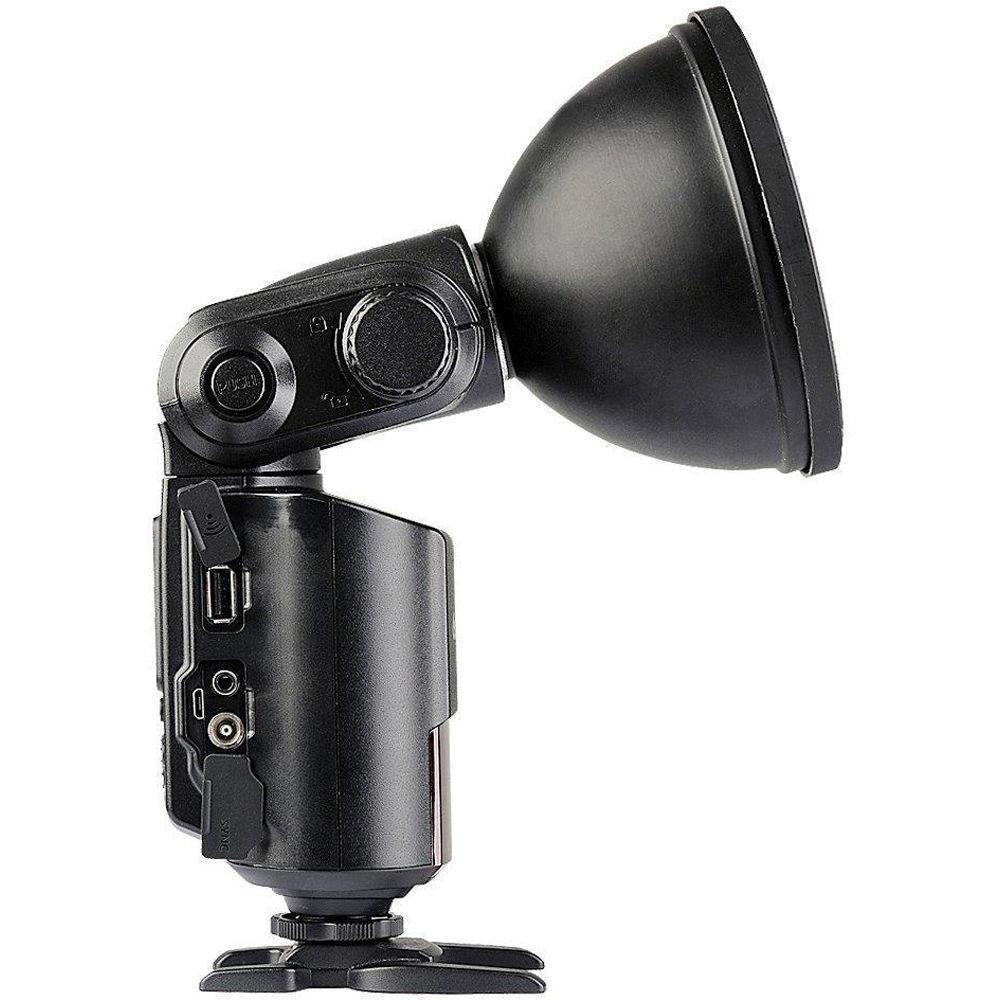

- The flash head can tilt from -15 to 90° and rotate 270°.
- Manual power control is available from 1/1 to 1/128.
- The AD360II-C is able to function as an optical master or slave with full TTL functionality.

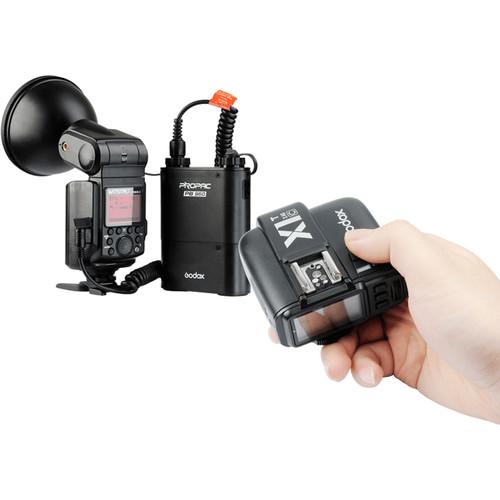

- Powered by the separately available PROPAC PB960 power pack, this flash offers a recycle time of just 0.05-4.5 seconds.
- A Wireless Control Port supports to use of the FT-16 system for wireless manual power control via a compatible trigger.

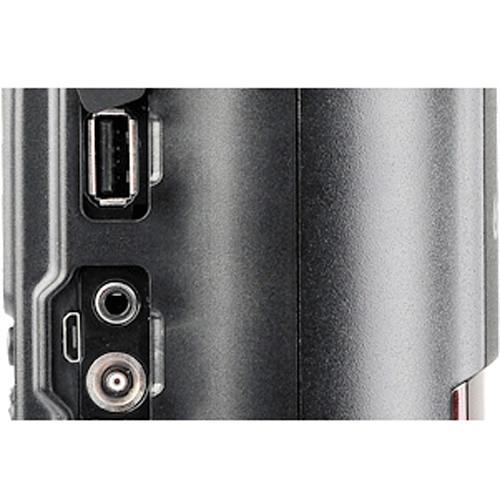

- Wired sync options include 3.5mm and PC ports.
- A micro-USB port is available for future firmware updates.
In the Box Godox AD360II-C WITSTRO TTL Portable Flash for Canon Cameras Flash Tube Reflector Reflector Diffuser Power Cable Mini Stand Off-Camera Adapter Protective Bag Limited 1-Year Warranty User Manual PDF 15.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox AD360II-C WITSTRO TTL Portable Flash for Canon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox AD360II-C Specs | Mount | Shoe | | Guide No. | 262.47' / 80 m ISO 100 | | Exposure Control | E-TTL / E-TTL II, Manual | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -15 to 90° | | Swivel Head | 270° | | Zoom Head | None | | Off-Camera Terminal | 3.5 mm, PC | | Recycle Time | Approximately 0.05 to 4.5 Seconds | | Flash Duration | 1/220 to 1/10000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: RF
Distance: Up to 229.66' / 70 m
Mode: Master
Method: RF
Distance: Up to 328.08' / 100 m
Mode: Slave
Method: Optical Pulse
Distance: Up to 9.84' / 3 m
Mode: Master
Method: Optical Pulse
Distance: Up to 49.21' / 15 m
Mode: Slave | | Wireless Communication Channels | 32 Channels | | Wireless Groups | 3 Groups | | Dimensions (W x H x D) | 3.0 x 3.7 x 8.7" / 75.0 x 95.0 x 220.0 mm | | Weight | 1.76 lb / 800 g without flash tube and reflector | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 11.2 x 10.2 x 6.2" |
