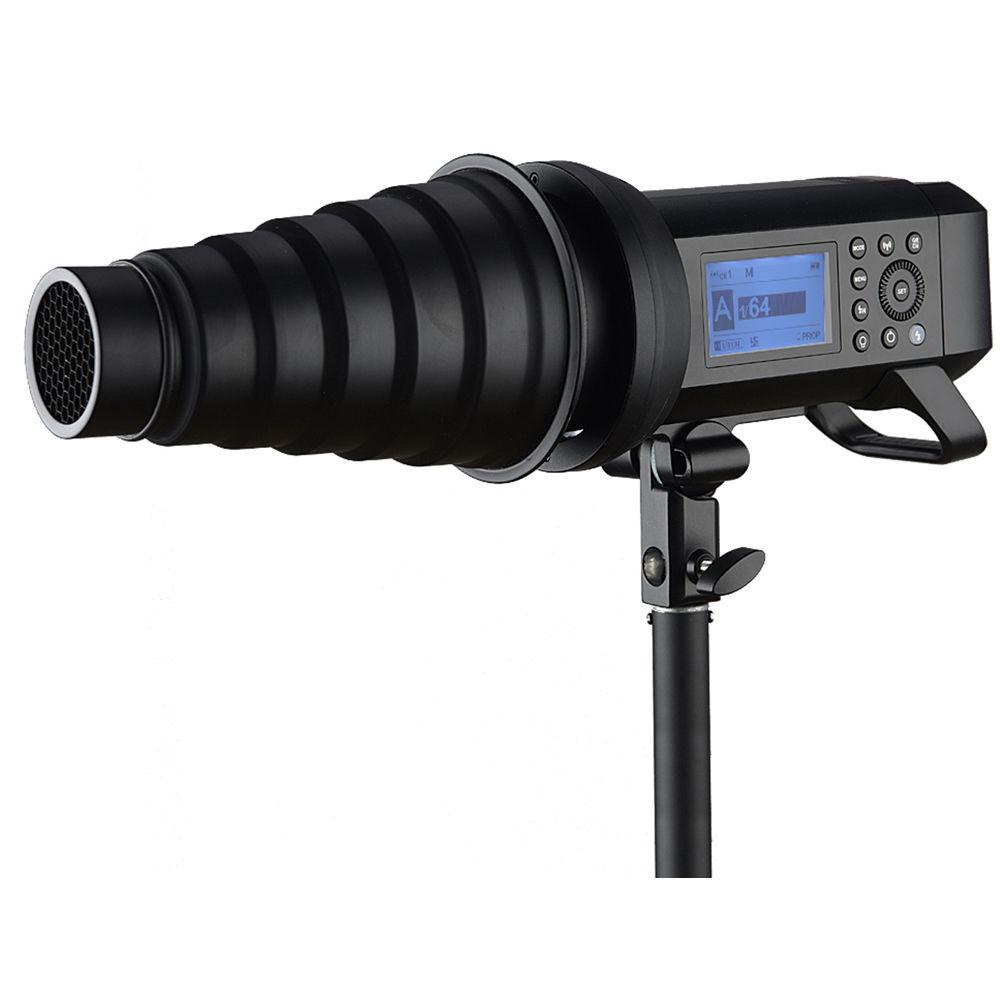

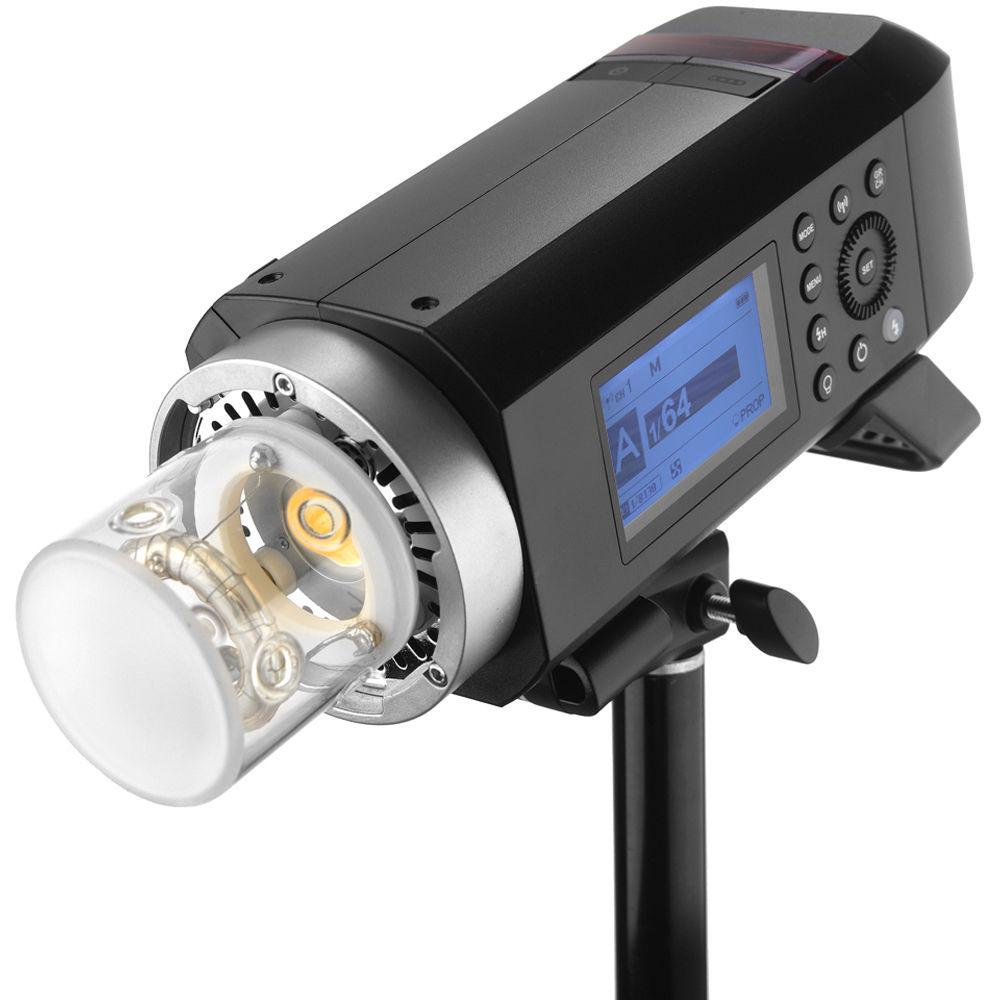

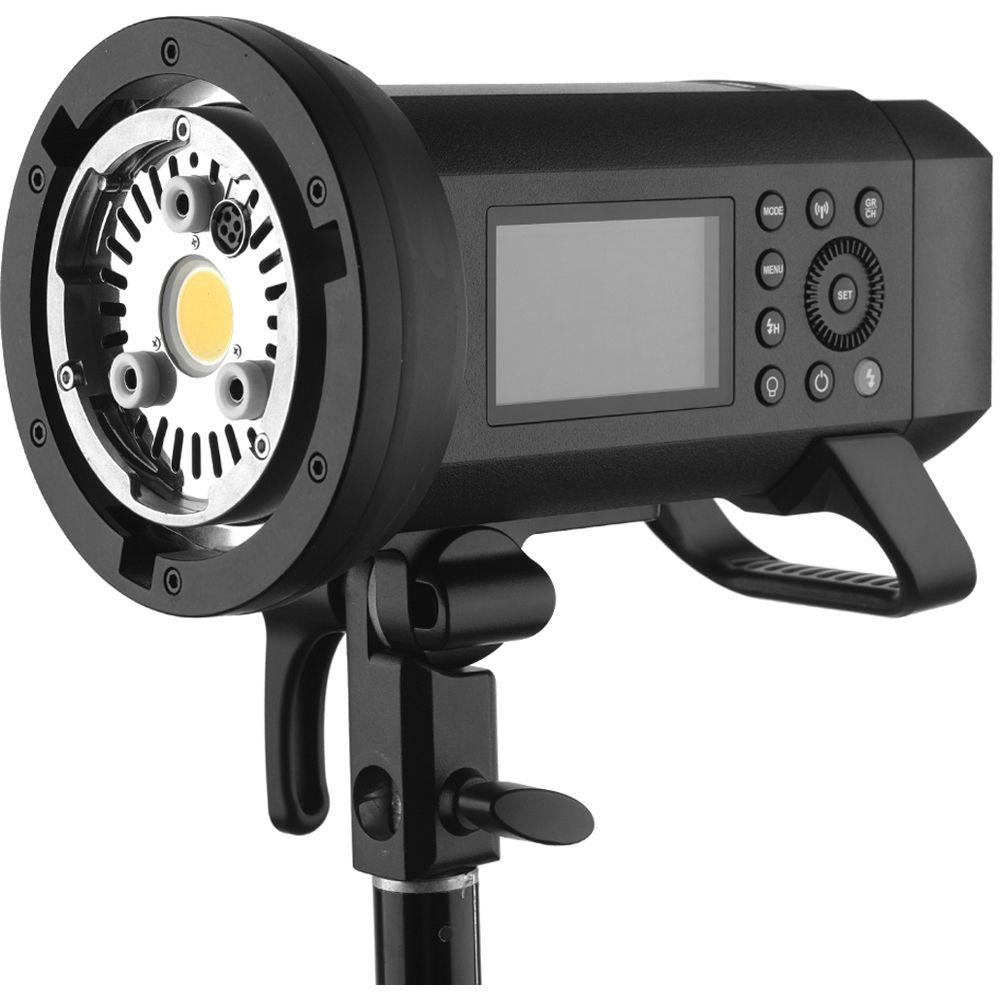

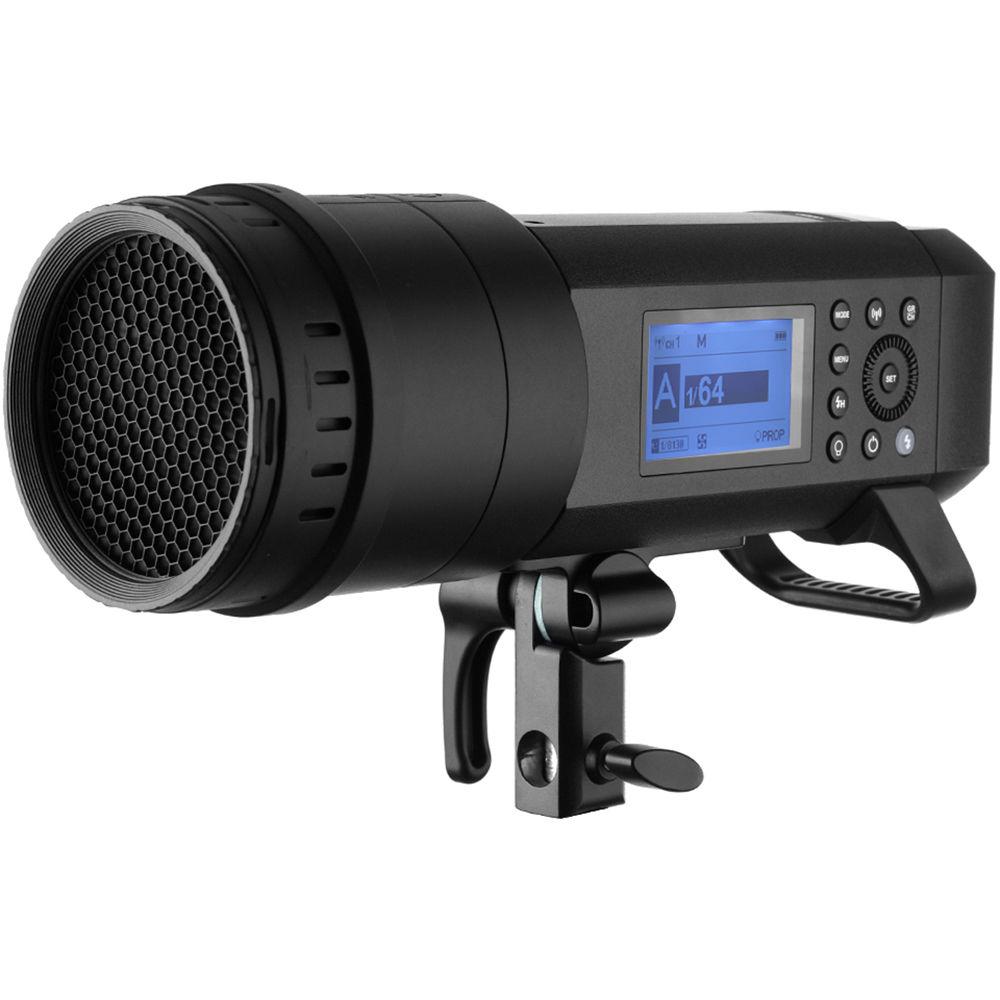

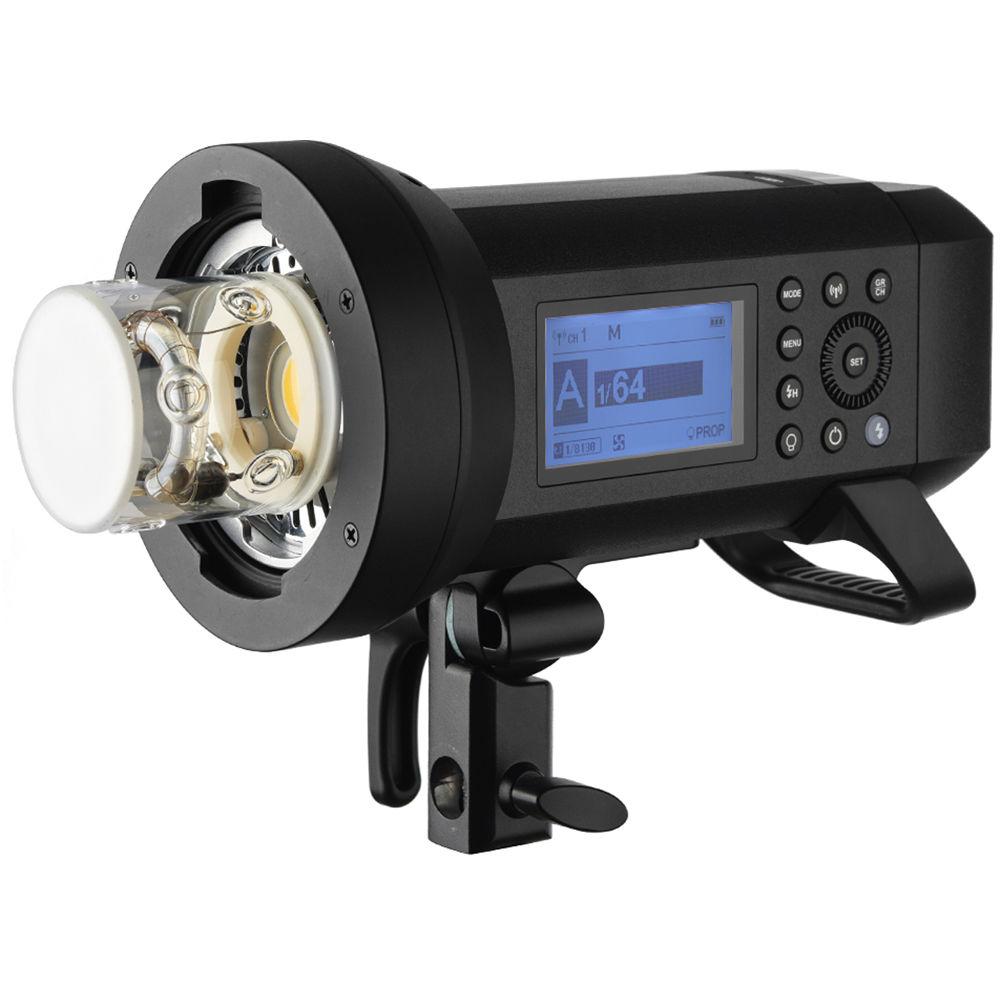

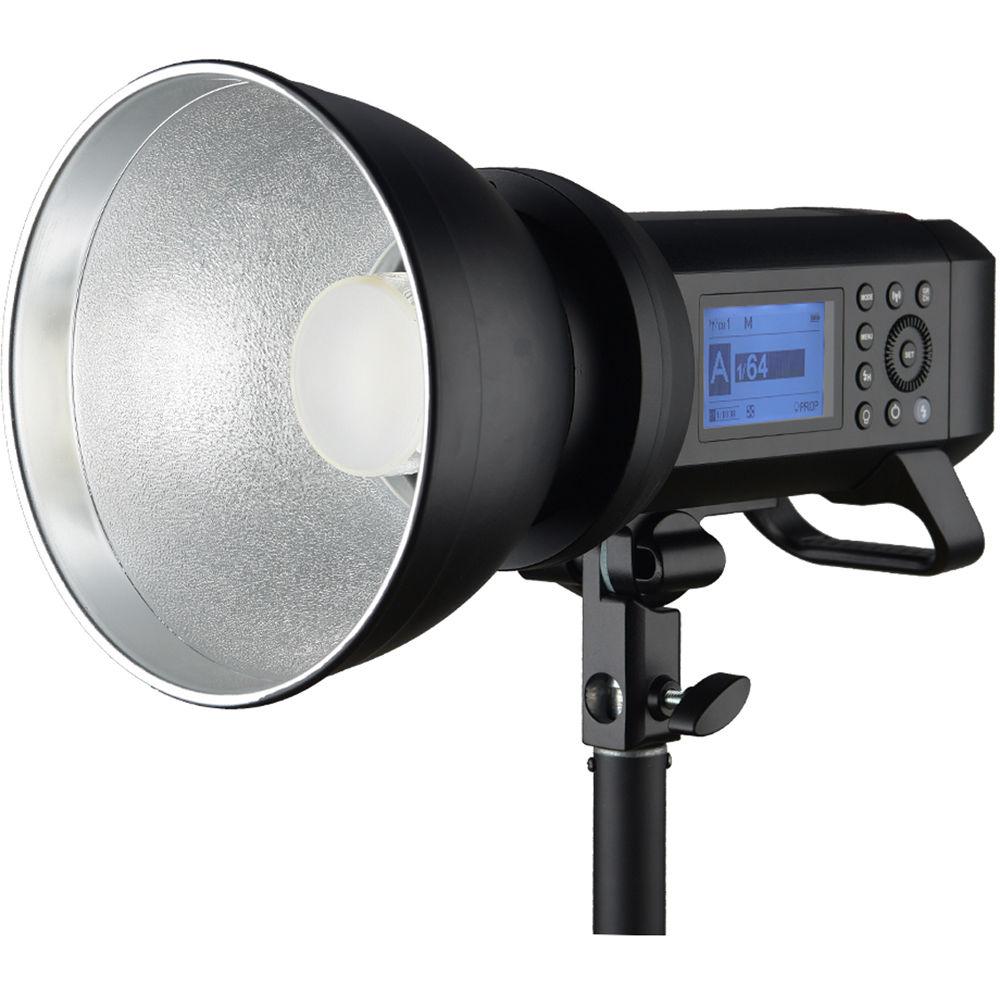

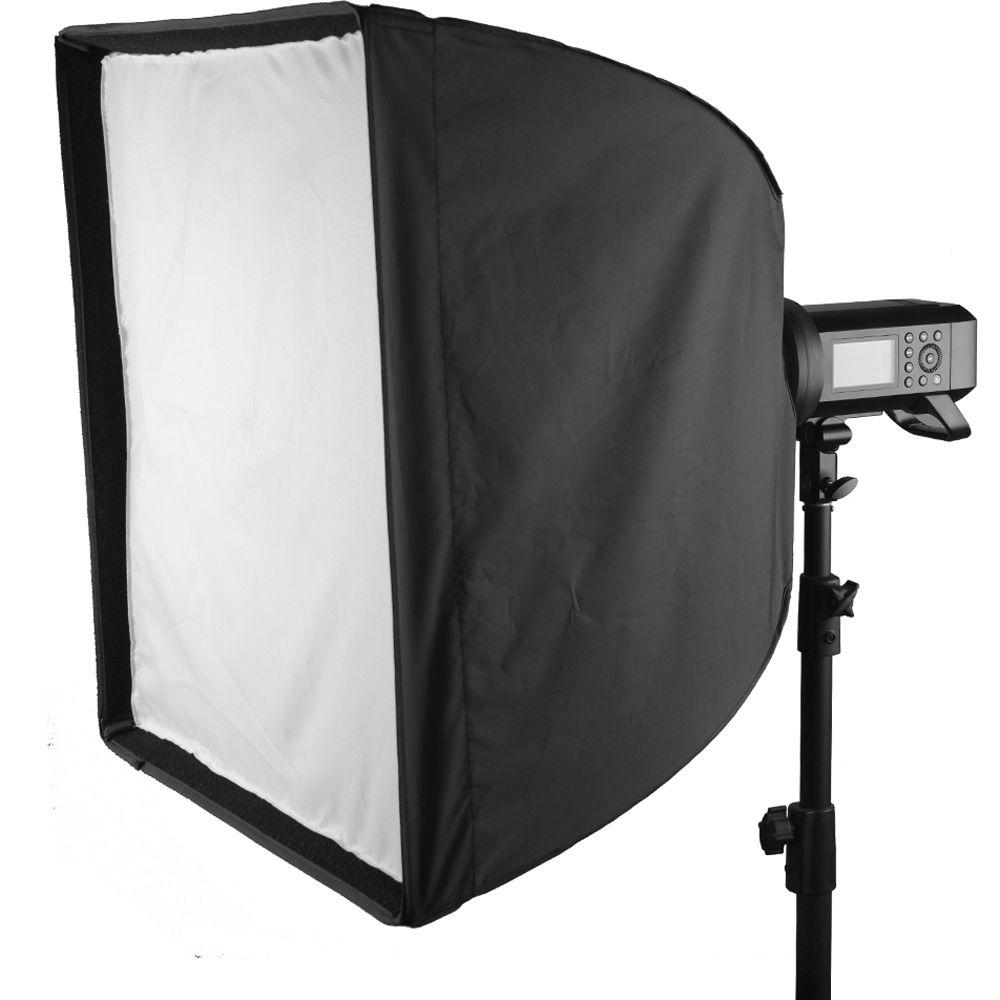

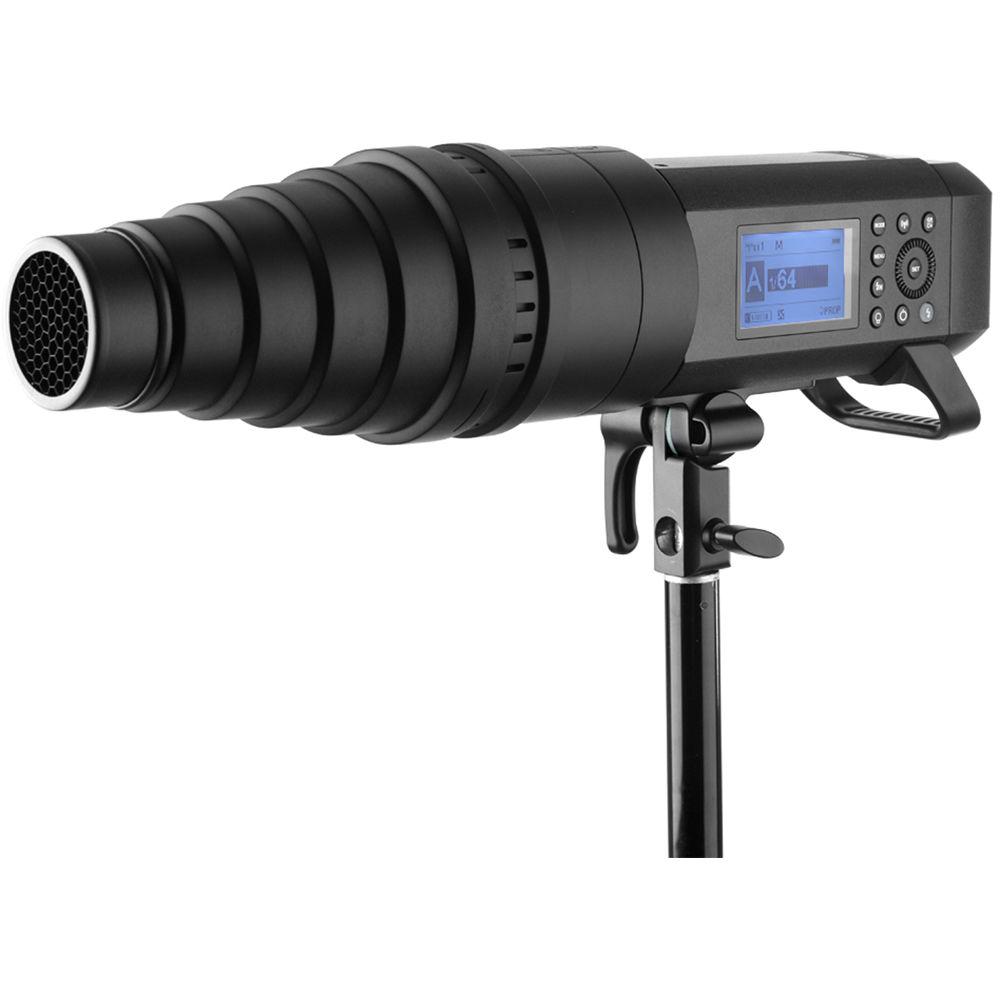

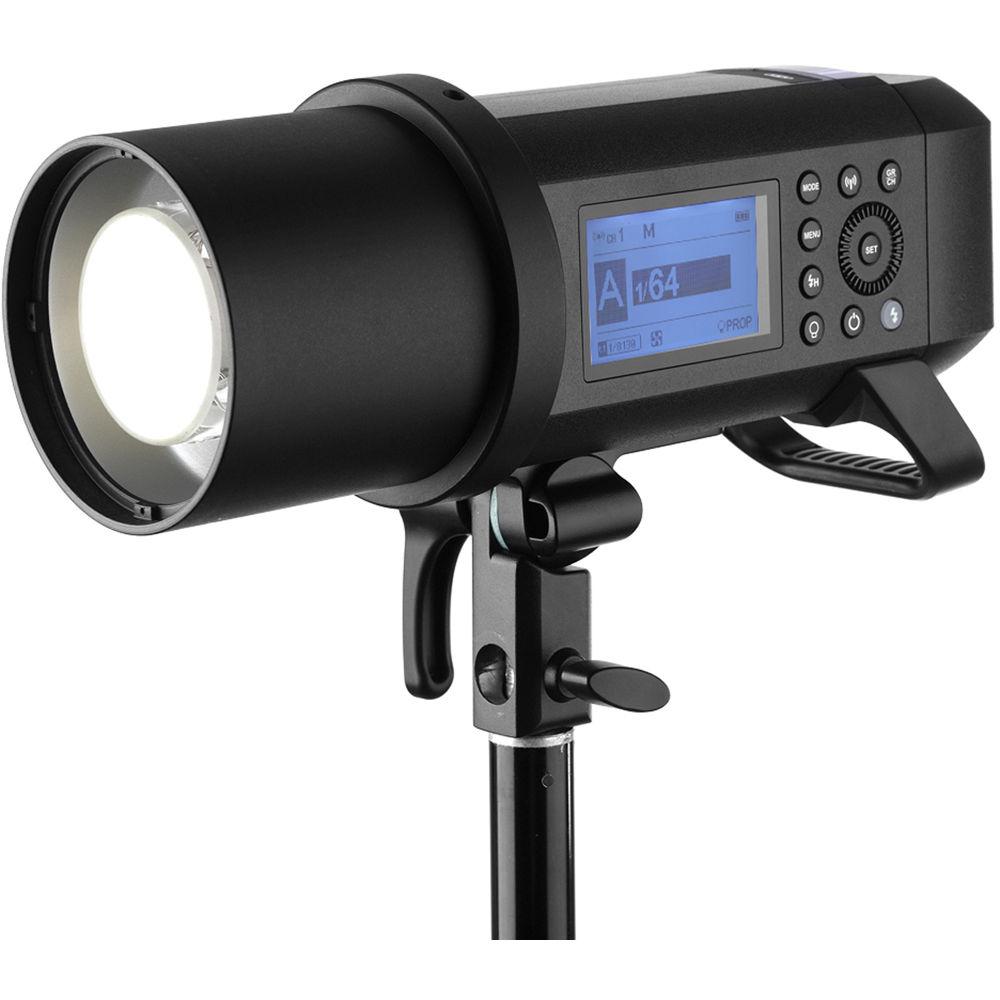

User Manual for Godox AD400Pro Witstro All-In-One Outdoor Flash Click to enlarge the picture
Contents of the user manual for the Godox AD400Pro Witstro All-In-One Outdoor Flash
- Product category: Monolights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox Monolights
 |
User manual for the Godox AD400Pro Witstro All-In-One Outdoor Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|
Product description Featuring a 2.4 GHz wireless X system with a range of up to 328', the AD400Pro Witstro All-In-One Outdoor Flash from Godox is a versatile tool compatible with several TTL systems including Canon, Nikon, Sony, Fujifilm, Olympus, and Panasonic options. It offers up to 400Ws with nine steps of output power, ranging from 1/1 to 1/256, and comes with a powerful 21.6V/2600mAh lithium-ion battery pack that provides up to 390 full-power flashes in outdoor situations and location shooting. Alternatively, you can run the monolight on AC power with an optional adapter. The AD400Pro Witstro features a high-speed sync mode that works with shutter speeds up to 1/8000 second, offering flash durations from 1/240 to 1/12,820 second. Another unique setting is its Stable Color Temperature Mode, which tightly controls color to keep temperature changes within ±75K across the entire power range. Despite these impressive characteristics, it manages to keep recycling times low at 0.01-0.9 seconds to capture peak action and every fleeting gesture. A 30W LED modeling lamp is onboard to help preview how the light is falling on your subject. -
- 2.4 GHz wireless system with a range of 328' (100m), featuring five controllable slave groups and 32 channels
- Removable handle and stand mount for space-saving packing
- Compatible with Nikon, Canon, Fujifilm, Sony, Olympus, and Panasonic TTL systems
- Guide number of 236' (72m) at ISO 100
- Can work as an optical slave with S1 and S2 modes
- Color temperature of 5600K (±200K)
- Bowens front accessory mount
- 3.5mm sync cord slot for direct connection, wireless control port, and USB Type-C port for firmware upgrades
- First curtain and second curtain sync modes
- Dot-matrix LCD display for on-board control
- Bowens-type mount for use with compatible accessories
In the Box Godox AD400Pro Witstro All-In-One Outdoor Flash Li-Ion Battery Battery Charger Reflector Flash Tube Power Cord Bowens Mount Adapter Ring Wrench Carry Bag Limited 2-Year Warranty User Manual PDF 11.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox AD400Pro Witstro All-In-One Outdoor Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox AD400Pro Specs | | | Maximum Power | 400 Ws | | Power Control | 9 Stops in 1/3-Stop Increments | | Guide Number | 236.22' / 72 m at ISO100 with Reflector | | Flash Duration | 1/240 to 1/12,820 Sec | | Recycle Time | 0.01 to 0.9 Sec (Full Power) | | Burst Rate | 100 fps | | Color Temperature | 5600K ± 200K | | Flash Ready Indicator | Audio | | Accessory Fitting Type | Bowens S Type | | | | Type | LED | | Wattage | 30 W | | Color Temperature | 4800K | | | | Sync Type | Button, Cable, Optical, Radio | | Sync Speed | 1/8000 Sec (High-Speed) | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 32 / 5 | | Wireless Range | 328.1' / 100 m (Radio) | | Interface | USB Type-C | | Delay Range | 0.01 to 30 Sec | | | | Power Source | AC Adapter, External Battery | | | | Battery Chemistry | Lithium-Ion | | Maximum Output Voltage | 21.6 VDC | | Capacity (mAh) | 2600 mAh | | Flashes Per Charge | 390 Flashes (Full Power) | | | | Display | LCD | | Mount | 5/8" / 16 mm Receptacle | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 4.0 x W: 5.0 x L: 8.7" / H: 102.0 x W: 128.0 x L: 220.0 mm, Including Battery Without Flash Tube and Reflector | | Weight | 4.63 lb / 2.1 kg, Including Battery Without Flash Tube and Reflector | | | | Package Weight | 9.53 lb | | Box Dimensions (LxWxH) | 14.75 x 12.0 x 6.75" |
