User manual

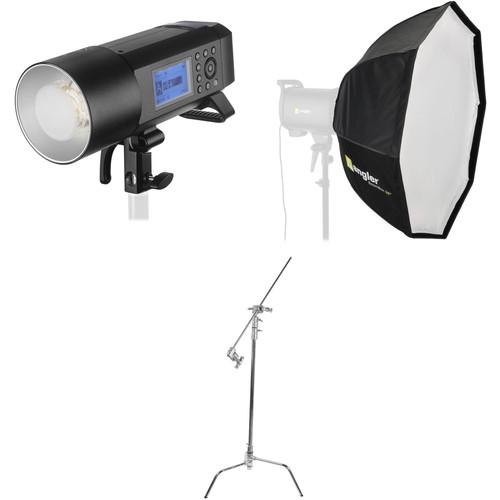

Godox AD400Pro Witstro Battery-Powered Monolight Kit

User Manual for Godox AD400Pro Witstro Battery-Powered Monolight Kit with Softbox and C-Stand

• Product category: Monolights Godox
• Brand: Godox
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Godox Monolights

Product description

• Godox AD400Pro Witstro All-In-One Outdoor Flash Featuring a 2.4 GHz wireless X system with a range of up to 328', the AD400Pro Witstro All-In-One Outdoor Flash from Godox is a versatile tool compatible with several TTL systems including Canon, Nikon, Sony, Fujifilm, Olympus, and Panasonic options. It offers up to 400Ws with nine steps of output power, ranging from 1/1 to 1/256, and comes with a powerful 21.6V/2600mAh lithium-ion battery pack that provides up to 390 full-power flashes in outdoor situations and location shooting. Alternatively, you can run the monolight on AC power with an optional adapter. The AD400Pro Witstro features a high-speed sync mode that works with shutter speeds up to 1/8000 second, offering flash durations from 1/240 to 1/12,820 second. Another unique setting is its Stable Color Temperature Mode, which tightly controls color to keep temperature changes within ±75K across the entire power range. Despite these impressive characteristics, it manages to keep recycling times low at 0.01-0.9 seconds to capture peak action and every fleeting gesture. A 30W LED modeling lamp is onboard to help preview how the light is falling on your subject.
  • • 2.4 GHz wireless system with a range of 328' (100m), featuring five controllable slave groups and 32 channels
    • Removable handle and stand mount for space-saving packing
    • Compatible with Nikon, Canon, Fujifilm, Sony, Olympus, and Panasonic TTL systems
    • Guide number of 236' (72m) at ISO 100
    • Can work as an optical slave with S1 and S2 modes
    • Color temperature of 5600K (±200K)
    • Bowens front accessory mount
    • 3.5mm sync cord slot for direct connection, wireless control port, and USB Type-C port for firmware upgrades
    • First curtain and second curtain sync modes
    • Dot-matrix LCD display for on-board control
    • Bowens-type mount for use with compatible accessories
  • Angler BoomBox Octagonal Softbox with Bowens Mount (36") Designed for monolights and flash heads with the popular Bowens front accessory mount, the octagonal 36" BoomBox with Bowens Mount from Angler presents an ideal opportunity to light your subject with the type of softbox that's a favorite of portrait and fashion photographers alike. The BoomBox features an umbrella-like action that permits set up and break down in seconds. Sturdily constructed, the softbox employs an integrated aluminum Bowens speed ring and support rods that are attached to the umbrella mechanism to keep the softbox taut. In addition, several other adapter rings are also available, to allow the BoomBox to be used with other type mounts. One of the most valuable features of the BoomBox is its removable, internal deflector which disperses the light toward the outer part of the softbox, defeating hot spots and enabling even output from edge to edge, with a quality of light reminiscent of a beauty dish. The BoomBox has both inner and front removable diffusers. You can use them all for extra-soft light or in any combination to vary the contrast and degree of softness. Yet another asset is the BoomBox's reflective, silver interior which maximizes your flash head's output. Angler includes a carry bag for storage and transport.
    Opens Like an Umbrella
    • The BoomBox features a one-piece design that opens and closes in seconds, like an umbrella.
    Deflector Plate
    • The removable deflector directs the light toward the outer edges of the softbox, defeating hot spots and providing a quality of light similar to a beauty dish.
    Sturdy Construction
    • The BoomBox features an aluminum speedring and support rods that are attached to the umbrella mechanism for a taut fabric fit when it's open.
    Silver Interior and Soft Diffuser
    • The silver interior maximizes the output of your flash head, while the included diffusers modify contrast and the degree of softness.
    UPC: 847628007260
  • Impact Turtle Base C-Stand Kit - 10.75' (Chrome) This Impact Master Century C Stand Kit (10.75') is comprised of a C-stand, 2.5" grip head and 40" extension arm. The stand features a patented locking mechanism that allows the legs to swing out and lock into place for easy setup and collapse flat for storage. The included extension grip arm fits neatly into the stand's removable 2.5" grip head, allowing you to offset the stand and cantilever flags, gobos or lights out of the way of the action. The stand has a low center of gravity which allows mounting of heavy equipment without tipping. The legs are perfectly shaped for saddlebag-type sandbags. The kit is also often used as a short boom.For complete specs on the items included in this kit please click on the links below:
    • Fold-away, twist and release locking legs.
    • Durable finish resists all weather conditions.
    • Innovative design on the Century Stand base allows individual legs to be set at any angle, and can be positioned in locations not possible with classic stands.
    • Ergonomic "T" shaped handles are "captive" -- they do not come off of the stand when unscrewed, preventing loss.
    • Each riser section has an external rubber gasket, which protects your equipment and fingers from sudden drops in stand elevation.
    UPC: 847628012035
  In the Box
  • AD400Pro Witstro All-In-One Outdoor Flash casqqzawywyz
  • Li-Ion Battery
  • Battery Charger
  • Reflector
  • Flash Tube
  • Power Cord
  • Bowens Mount Adapter Ring
  • Wrench
  • Carry Bag
  • Limited 2-Year Warranty
  • Angler - BoomBox Octagonal Softbox with Bowens Mount (36")
  • Impact - Turtle Base C-Stand Kit - 10.75' (Chrome)
  Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Godox AD400Pro Witstro All-In-One Outdoor Flash

  Maximum Power	400 Ws
  Power Control	9 Stops in 1/3-Stop Increments
  Guide Number	236.22' / 72 m at ISO100 with Reflector
  Flash Duration	1/240 to 1/12,820 Sec
  Recycle Time	0.01 to 0.9 Sec (Full Power)
  Burst Rate	100 fps
  Color Temperature	5600K ± 200K
  Flash Ready Indicator	Audio
  Accessory Fitting Type	Bowens S Type

  Type	LED
  Wattage	30 W
  Color Temperature	4800K

  Sync Type	Button, Cable, Optical, Radio
  Sync Speed	1/8000 Sec (High-Speed)
  Wireless Frequency Bands	2.4 GHz
  Wireless Channels / Groups	32 / 5
  Wireless Range	328.1' / 100 m (Radio)
  Interface	USB Type-C
  Delay Range	0.01 to 30 Sec

  Power Source	AC Adapter, External Battery

  Battery Chemistry	Lithium-Ion
  Maximum Output Voltage	21.6 VDC
  Capacity (mAh)	2600 mAh
  Flashes Per Charge	390 Flashes (Full Power)

  Display	LCD
  Mount	5/8" / 16 mm Receptacle
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 4.0 x W: 5.0 x L: 8.7" / H: 102.0 x W: 128.0 x L: 220.0 mm, Including Battery Without Flash Tube and Reflector
  Weight	4.63 lb / 2.1 kg, Including Battery Without Flash Tube and Reflector

  Box Dimensions (LxWxH)	14.75 x 12.0 x 6.75"

• Angler BoomBox Octagonal Softbox with Bowens Mount (36")

  Shape	Octagon
  Interior	Silver
  Requires Speed Ring	No Included Integrated Bowens Speedring
  Accepts Grids	Yes
  Maximum Wattage	No Maximum
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Material	Aluminum
