User Manual for Godox AD600B Witstro Battery-Powered Monolight Kit with Softbox and C-Stand Click to enlarge the picture
Contents of the user manual for the Godox AD600B Witstro Battery-Powered Monolight Kit
- Product category: Monolights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox Monolights
|
User manual for the Godox AD600B Witstro Battery-Powered Monolight Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

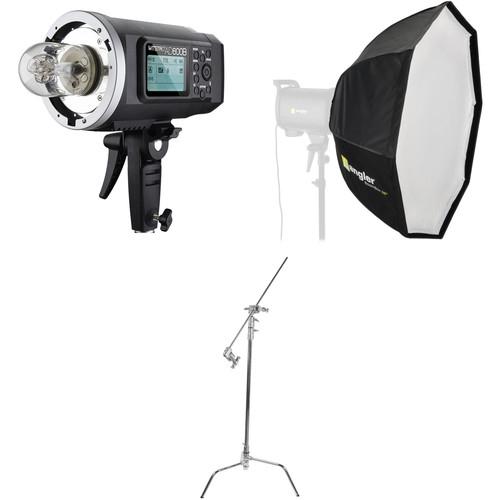

Product description has put together this Godox AD600B Witstro Battery-Powered Monolight Kit with Softbox and C-Stand for photographers who want to take studio-quality lighting on the road with the added freedom of battery power when AC current is unavailable. The kit includes an AD600B 600Ws Witstro Monolight with a 500 full-power flash capacity and a 36" Octagonal Softbox that opens and closes speedily like an umbrella. The kit also includes a 10.75' C-stand with a 40" extension arm and an attached 2.5" grip head for precise placement. - Godox AD600B Witstro TTL All-In-One Outdoor Flash The AD600B Witstro TTL All-In-One Outdoor Flash from Godox is a versatile tool compatible with several TTL systems, including Canon E-TTL II, Nikon i-TTL, Sony, and Panasonic. It offers up to 600Ws with nine steps of output power, ranging from 1/1 to 1/256, and comes with a powerful 11.1V /8700mAh lithium-ion battery pack that provides up to 500 full-power flashes. Alternatively, you can run the monolight on AC power with an optional adapter for situations where portability is not a concern. A useful and interesting feature is its dual-head connection option. Two AD600 flash heads can be mounted to a separately purchased H1200 portable flash head to jack up the power to 1200Ws. The AD600B features a high-speed sync mode that works with shutter speeds up to 1/8000 second to control background light intensity, and offers flash durations from 1/220 to 1/10,000 second for stopping action. Part of Godox's wireless system, the AD600B has an onboard 2.4 GHz X System that allows wireless triggering at distances up to 262' with the purchase of a Godox transmitter. The flash head has a Bowens-type front accessory mount that not only makes it compatible with Godox accessories, but also with light shapers from the many manufacturers that use this popular mount.
-
- 2.4 GHz wireless system with a range of 262' (80m), featuring five controllable slave groups and 32 channels
- Guide number of 285' at ISO 100
- Can work as an optical slave with S1 and S2 modes
- Color temperature of 5600K (±200K)
- 3.5mm sync cord slot for direct connection, wireless control port, and USB port for firmware upgrades
- First curtain and second curtain sync modes
- Dot-matrix LCD display for on-board control
- Bowens-type mount for use with compatible accessories
- Angler BoomBox Octagonal Softbox with Bowens Mount (36") Designed for monolights and flash heads with the popular Bowens front accessory mount, the octagonal 36" BoomBox with Bowens Mount from Angler presents an ideal opportunity to light your subject with the type of softbox that's a favorite of portrait and fashion photographers alike. The BoomBox features an umbrella-like action that permits set up and break down in seconds. Sturdily constructed, the softbox employs an integrated aluminum Bowens speed ring and support rods that are attached to the umbrella mechanism to keep the softbox taut. In addition, several other adapter rings are also available, to allow the BoomBox to be used with other type mounts. One of the most valuable features of the BoomBox is its removable, internal deflector which disperses the light toward the outer part of the softbox, defeating hot spots and enabling even output from edge to edge, with a quality of light reminiscent of a beauty dish. The BoomBox has both inner and front removable diffusers. You can use them all for extra-soft light or in any combination to vary the contrast and degree of softness. Yet another asset is the BoomBox's reflective, silver interior which maximizes your flash head's output. Angler includes a carry bag for storage and transport.
- Opens Like an Umbrella
- The BoomBox features a one-piece design that opens and closes in seconds, like an umbrella.
- Deflector Plate
- The removable deflector directs the light toward the outer edges of the softbox, defeating hot spots and providing a quality of light similar to a beauty dish.
- Sturdy Construction
- The BoomBox features an aluminum speedring and support rods that are attached to the umbrella mechanism for a taut fabric fit when it's open.
- Silver Interior and Soft Diffuser
- The silver interior maximizes the output of your flash head, while the included diffusers modify contrast and the degree of softness.
UPC: 847628007260 - Impact Turtle Base C-Stand Kit - 10.75' (Chrome) This Impact Master Century C Stand Kit (10.75') is comprised of a C-stand, 2.5" grip head and 40" extension arm. The stand features a patented locking mechanism that allows the legs to swing out and lock into place for easy setup and collapse flat for storage. The included extension grip arm fits neatly into the stand's removable 2.5" grip head, allowing you to offset the stand and cantilever flags, gobos or lights out of the way of the action. The stand has a low center of gravity which allows mounting of heavy equipment without tipping. The legs are perfectly shaped for saddlebag-type sandbags. The kit is also often used as a short boom.For complete specs on the items included in this kit please click on the links below:
- Fold-away, twist and release locking legs.
- Durable finish resists all weather conditions.
- Innovative design on the Century Stand base allows individual legs to be set at any angle, and can be positioned in locations not possible with classic stands.
- Ergonomic "T" shaped handles are "captive" -- they do not come off of the stand when unscrewed, preventing loss.
- Each riser section has an external rubber gasket, which protects your equipment and fingers from sudden drops in stand elevation.
UPC: 847628012035 In the Box - AD600B Witstro TTL All-In-One Outdoor Flash fuqqbyetvuvvbdyzsdtcaxreevdb
- Witstro WB87 Battery Pack
- Charger and Cable
- Plastic Protective Cover
- Limited 1-Year Warranty
- Angler - BoomBox Octagonal Softbox with Bowens Mount (36")
- Impact - Turtle Base C-Stand Kit - 10.75' (Chrome)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox AD600B Witstro Battery-Powered Monolight Kit with Softbox and C-Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Godox AD600B Witstro TTL All-In-One Outdoor Flash
| Maximum Power | 600 Ws | Power Control | 9 Stops | Guide Number | 285' / 87 m at ISO100 | Flash Duration | 1/10,000 to 1/220 Sec | Recycle Time | 0.01 to 2.5 Sec () | Color Temperature | 5600K ± 200K | Accessory Fitting Type | Bowens S Type | | Sync Type | Radio | Wireless Frequency Bands | 2.4 GHz | Wireless Channels / Groups | 32 / 5 | Wireless Range | 262.5' / 80 m (Radio) | Interface | Micro-USB, PC Sync (3.5 mm) | Delay Range | 0.01 to 30 Sec | | Battery Chemistry | Lithium-Ion | Maximum Output Voltage | 11.1 VDC | Capacity (mAh) | 8700 mAh | Flashes Per Charge | 500 Flashes | | Display | LCD | Fan Cooled | Yes | Dimensions | H: 8.6 x W: 4.9 x L: 9.6" / H: 22.0 x W: 12.5 x L: 24.5 cm, Including Battery | Weight | 5.86 lb / 2.66 kg, Including Battery | | Box Dimensions (LxWxH) | 14.8 x 9.5 x 8.6" | - Angler BoomBox Octagonal Softbox with Bowens Mount (36")
Shape | Octagon | Interior | Silver | Requires Speed Ring | No Included Integrated Bowens Speedring | Accepts Grids | Yes | Maximum Wattage | No Maximum | Removable Front Face | Yes | Removable Interior Baffle | Yes | Material | Aluminum | Circular Dimensions |
