User Manual for Godox AD600BM Witstro Manual All-In-One Outdoor Flash Click to enlarge the picture
Contents of the user manual for the Godox AD600BM Witstro Manual All-In-One Outdoor
- Product category: Monolights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox Monolights
 |
User manual for the Godox AD600BM Witstro Manual All-In-One Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

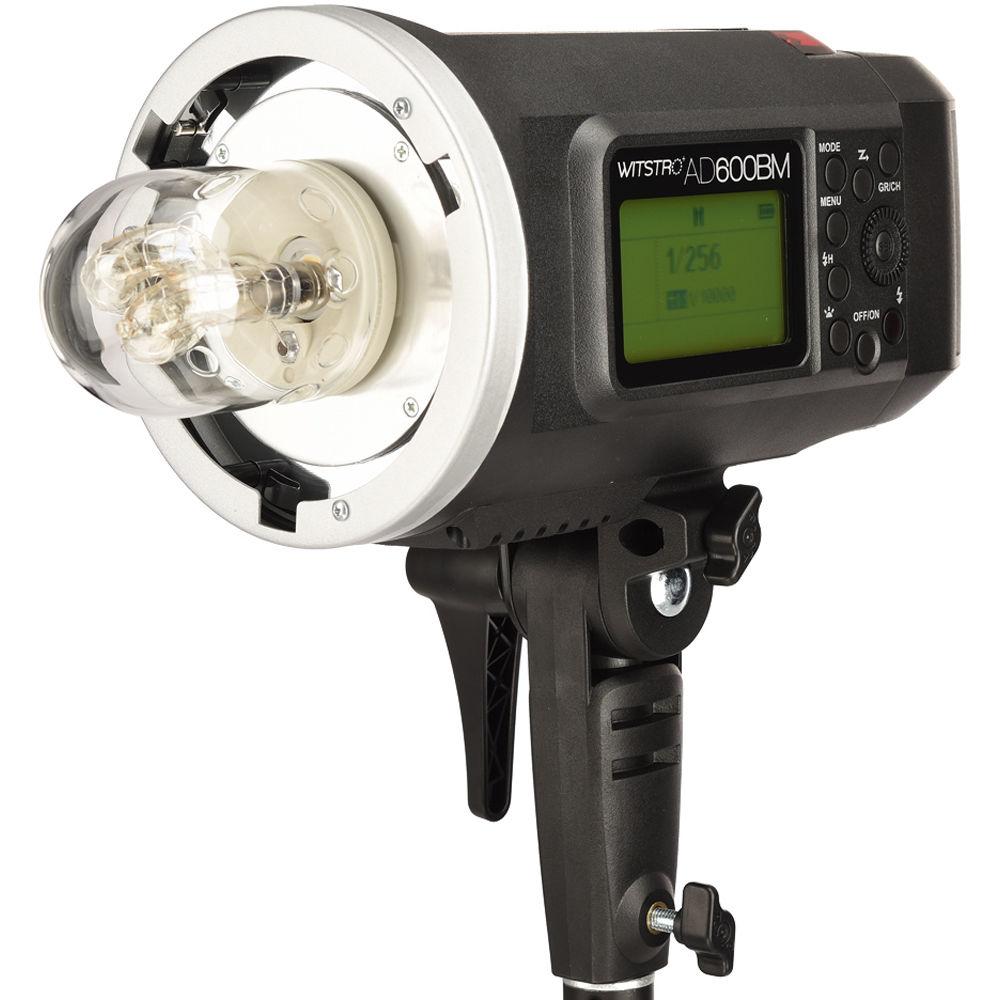

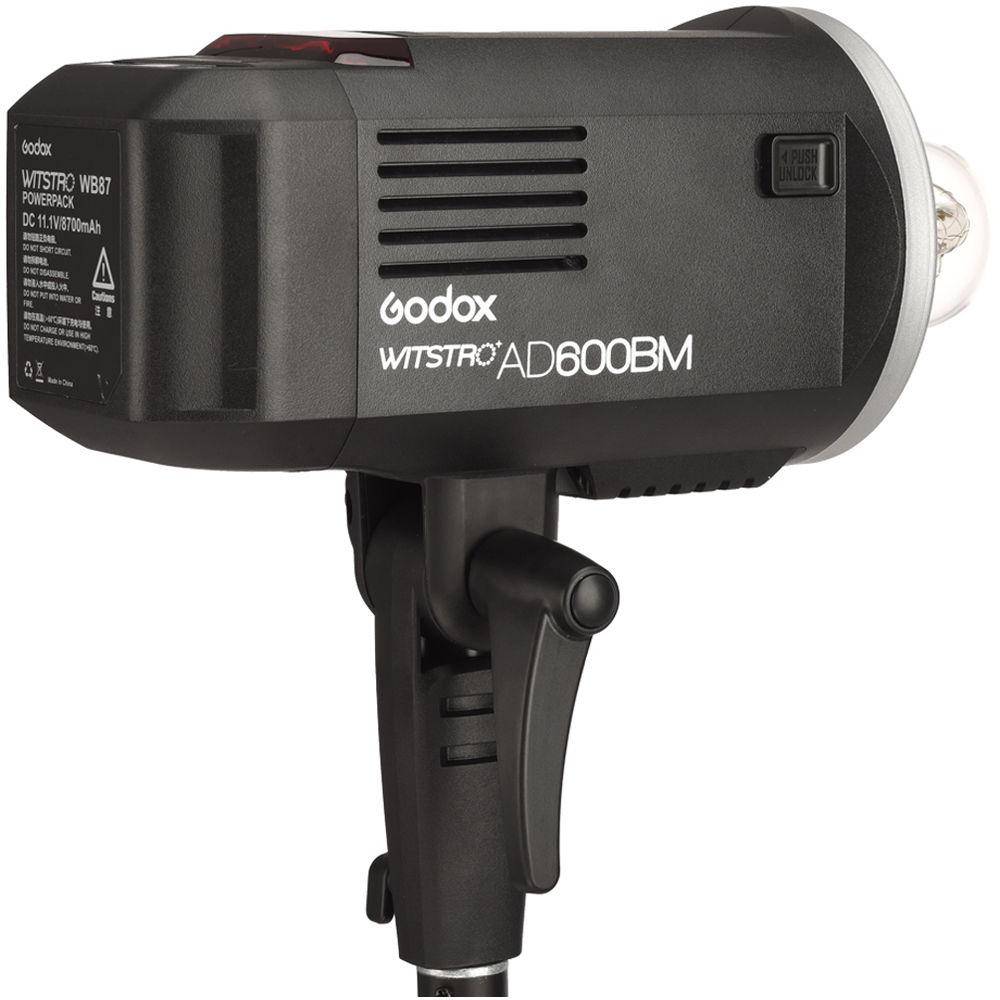

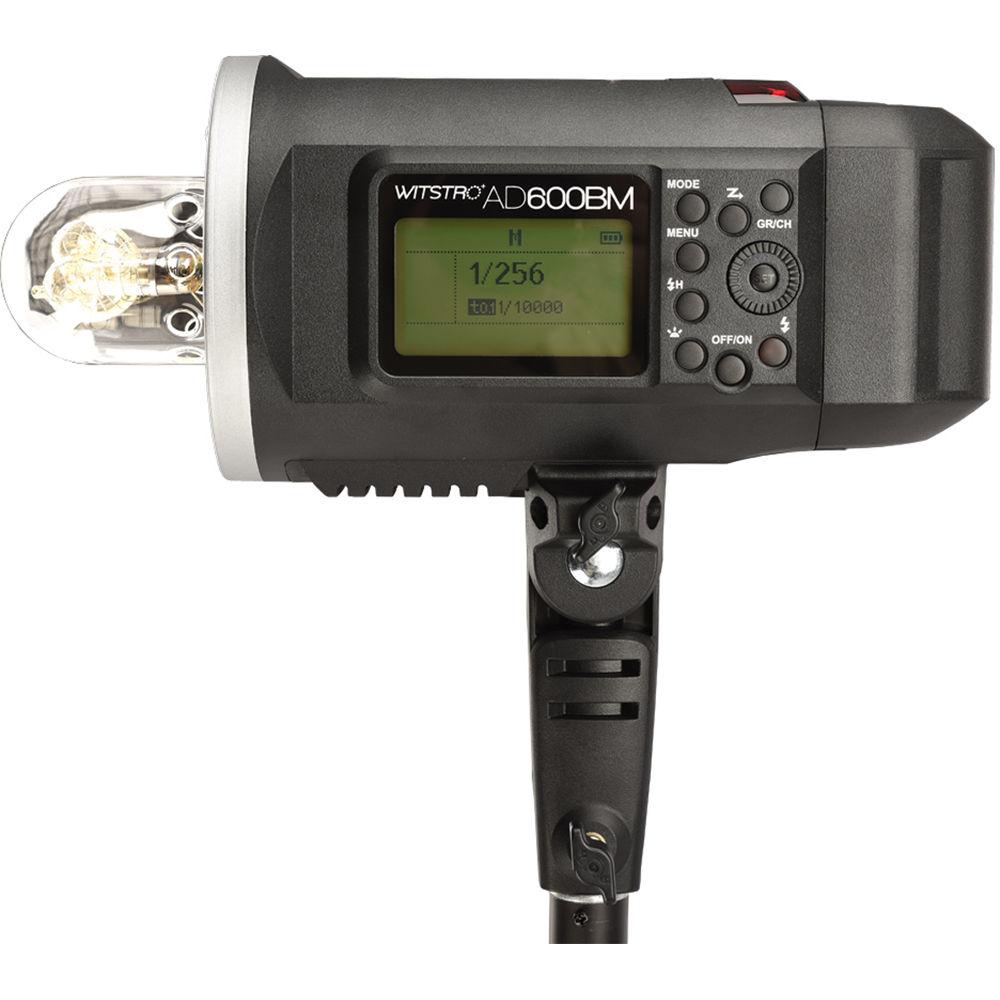

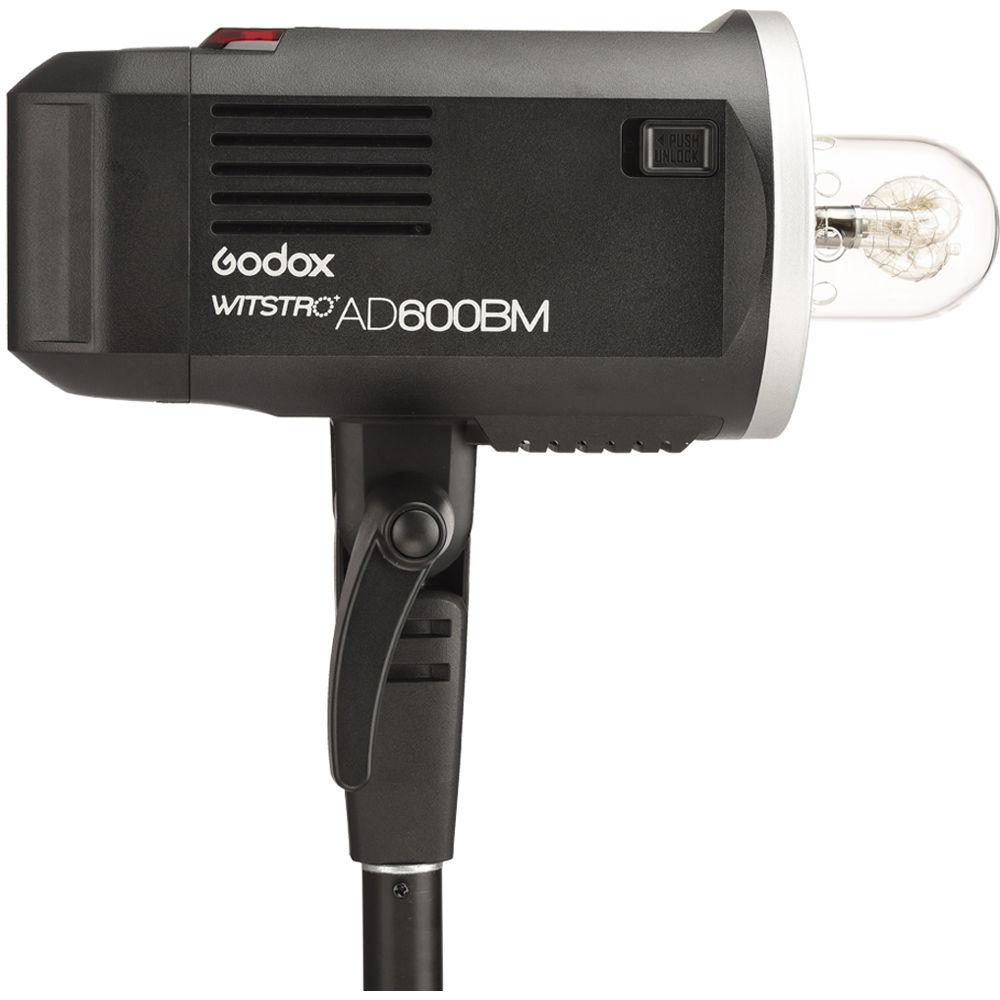

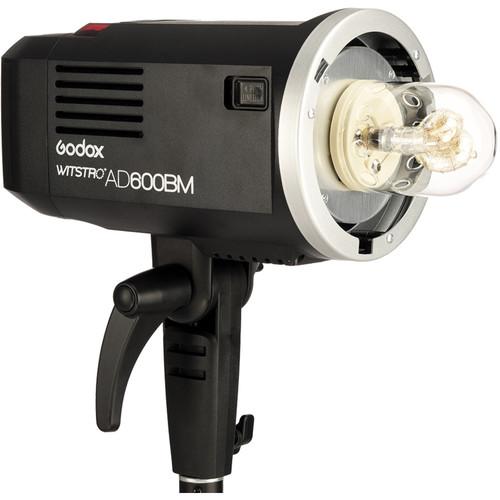

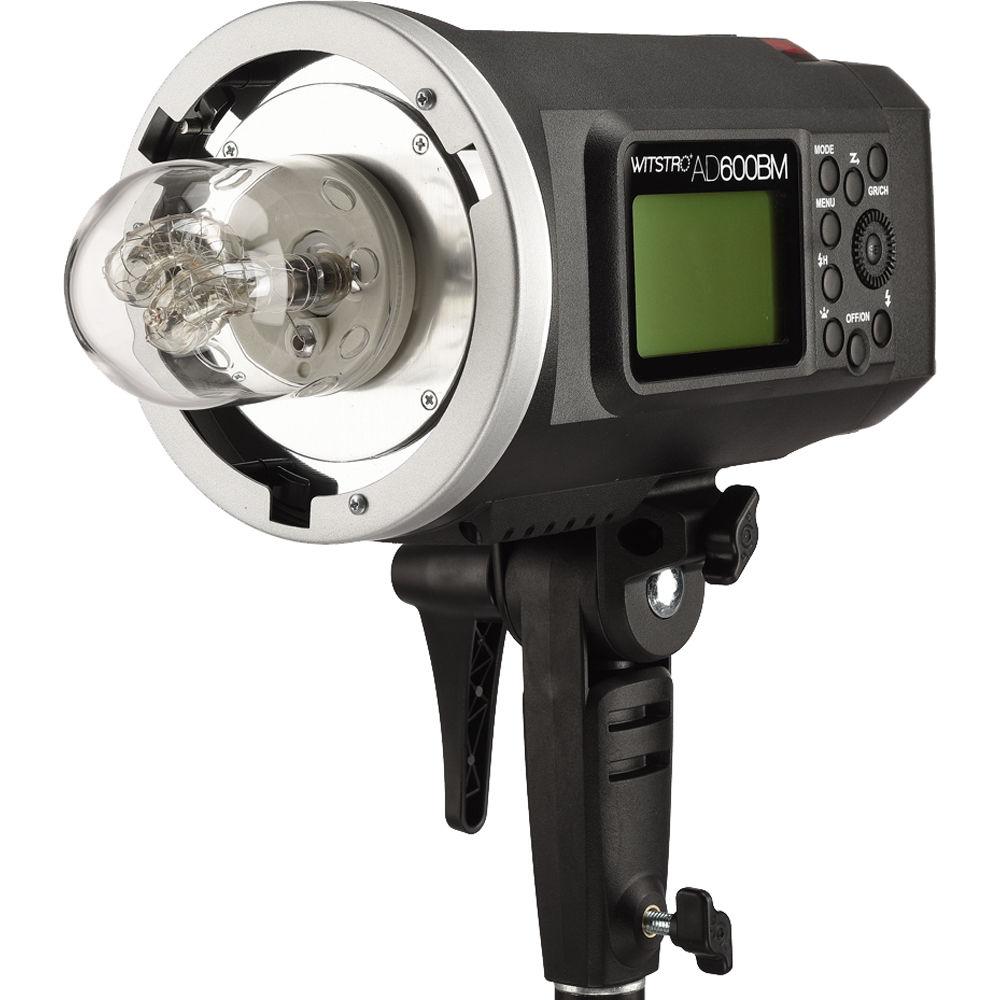

Product description The AD600BM Witstro Manual All-In-One Outdoor Flash from Godox is basically a manual version of the AD600 and AD600Pro for those who don't require the TTL function of those two flash heads. This versatile light offers 600Ws with nine steps of output, ranging from 1/1 to 1/256, and comes with a powerful 11.1V/8700mAh lithium-ion battery pack that provides up to 500 full-power flashes, while maintaining a steady 5600K color temperature regardless of the power level. Alternatively, you can run the monolight on AC power with an optional adapter for situations where portability is not a concern. The AD600BM features a high-speed sync mode that works with shutter speeds up to 1/8000 second to control background light intensity, and offers flash durations from 1/220 to 1/10,000 second for stopping action. Part of Godox's wireless system, the AD600BM has an onboard 2.4 GHz X System that allows wireless triggering at distances up to 262' with the purchase of a Godox transmitter. The flash head has a Bowens-type front accessory mount that not only makes it compatible with Godox accessories, but also with light shapers from the many manufacturers that use this popular mount. -
- 2.4 GHz wireless system with a range of 262' (80m), featuring five controllable slave groups and 32 channels
- Guide number of 285' at ISO 100
- Can work as an optical slave with S1 and S2 modes
- Color temperature of 5600K (±200K)
- 3.5mm sync cord slot for direct connection, wireless control port, and USB port for firmware upgrades
- First curtain and second curtain sync modes
- Dot-matrix LCD display for on-board control
- Bowens-type mount for use with compatible accessories
In the Box Godox AD600BM Witstro Manual All-In-One Outdoor Flash Witstro WB87 Battery Pack Charger and Cable Plastic Protective Cover Limited 1-Year Warranty User Manual PDF 5.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox AD600BM Witstro Manual All-In-One Outdoor Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox AD600BM Specs | | | Maximum Power | 600 Ws | | Power Control | 9 Stops | | Guide Number | 285' / 87 m at ISO100 | | Flash Duration | 1/10,000 to 1/220 Sec | | Recycle Time | 0.01 to 2.5 Sec () | | Color Temperature | 5600K ± 200K | | Accessory Fitting Type | Bowens S Type | | | | Sync Type | Radio | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 32 / 5 | | Wireless Range | 262.5' / 80 m (Radio) | | Interface | Micro-USB, PC Sync (3.5 mm) | | Delay Range | 0.01 to 30 Sec | | | | Battery Chemistry | Lithium-Ion | | Maximum Output Voltage | 11.1 VDC | | Capacity (mAh) | 8700 mAh | | Flashes Per Charge | 500 Flashes | | | | Display | LCD | | Fan Cooled | Yes | | Dimensions | H: 8.6 x W: 4.9 x L: 9.6" / H: 22.0 x W: 12.5 x L: 24.5 cm, Including Battery | | Weight | 5.86 lb / 2.66 kg, Including Battery | | | | Package Weight | 8.225 lb | | Box Dimensions (LxWxH) | 14.8 x 8.4 x 7.9" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
