User Manual for Godox AD600Pro Witstro All-In-One Outdoor Flash Click to enlarge the picture
Contents of the user manual for the Godox AD600Pro Witstro All-In-One Outdoor Flash
- Product category: Monolights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox Monolights
 |
User manual for the Godox AD600Pro Witstro All-In-One Outdoor Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

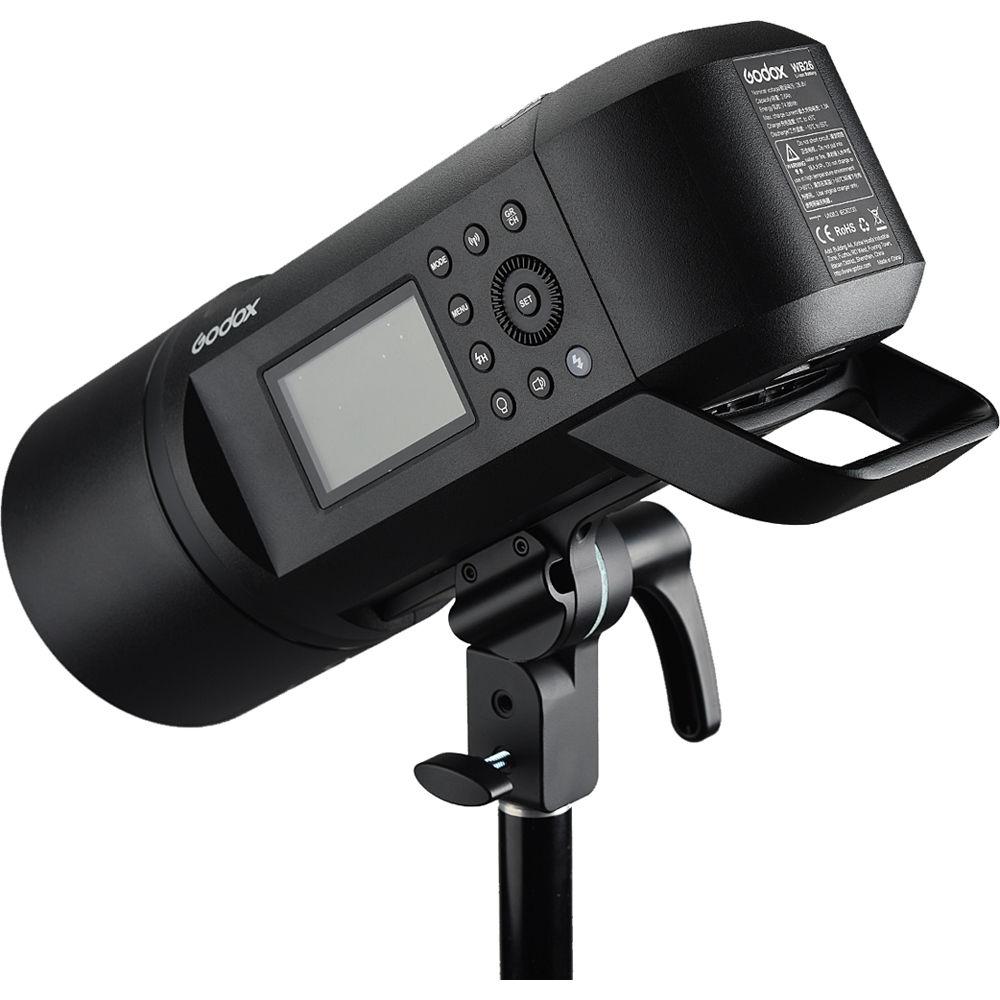

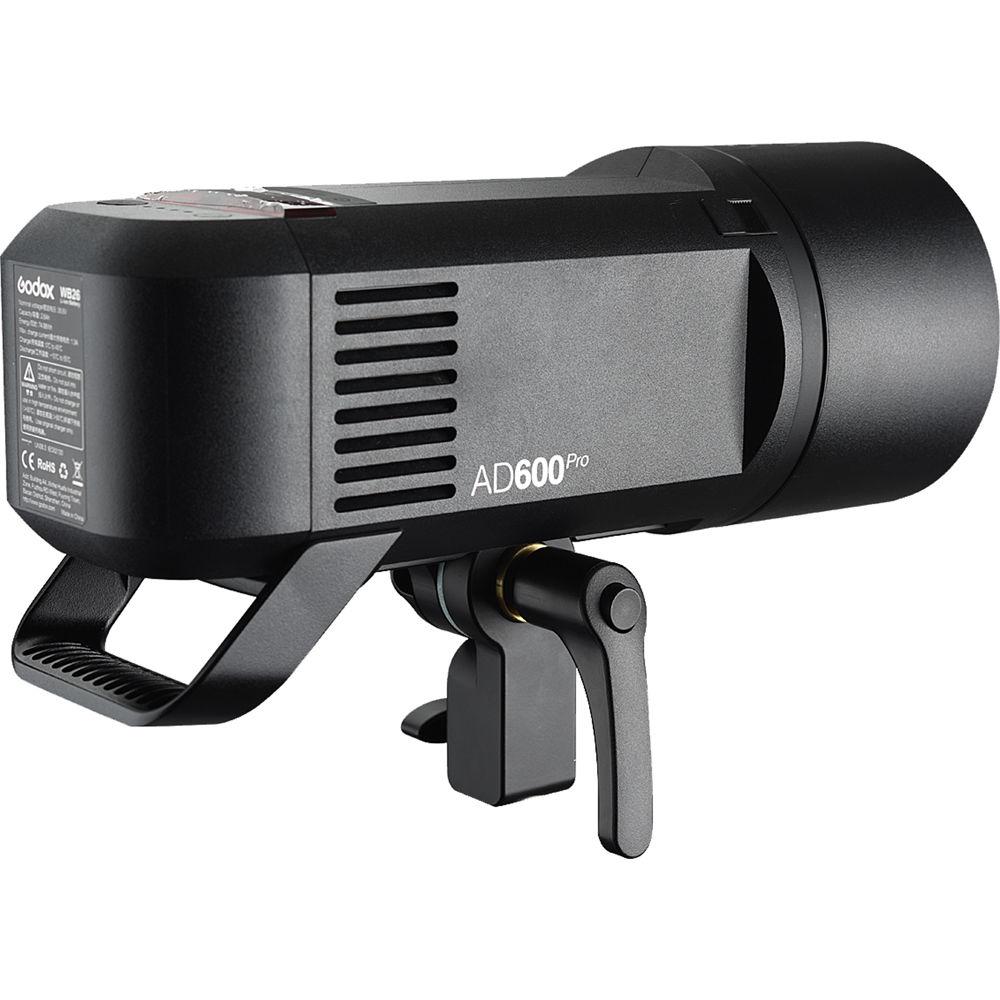

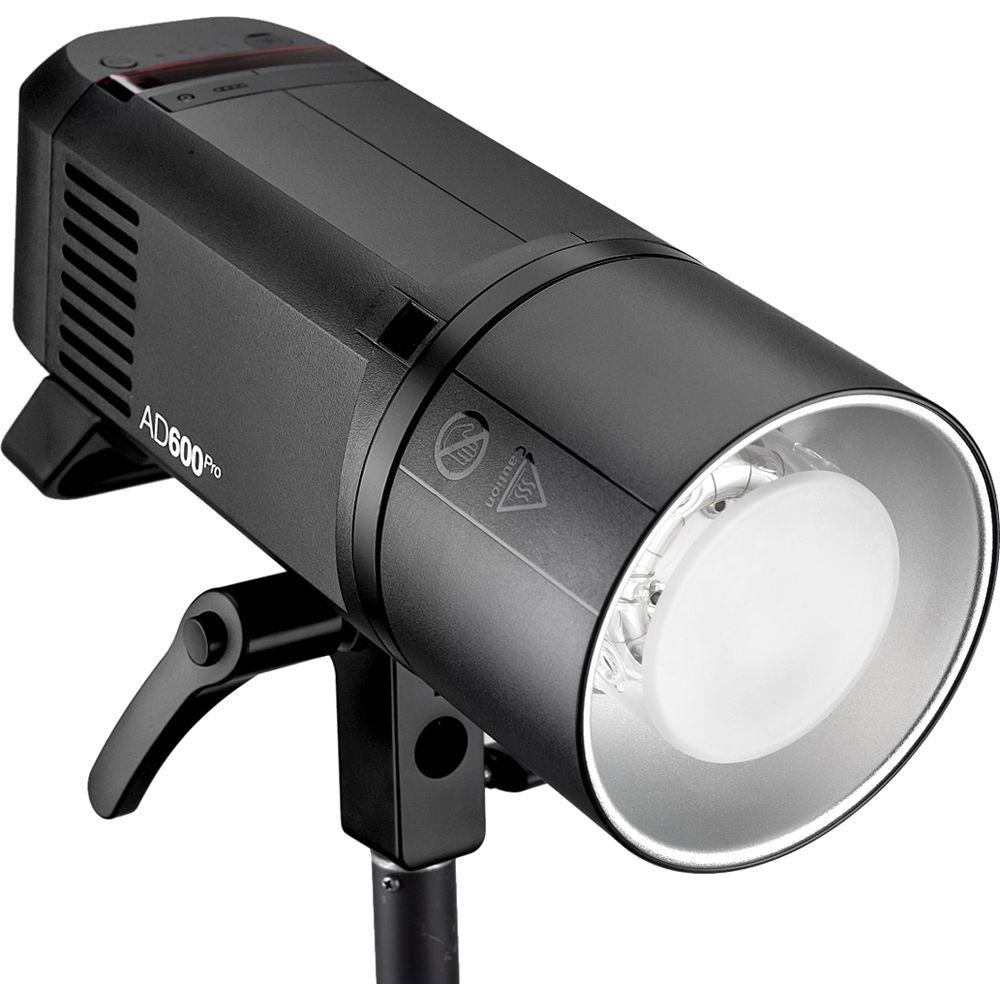

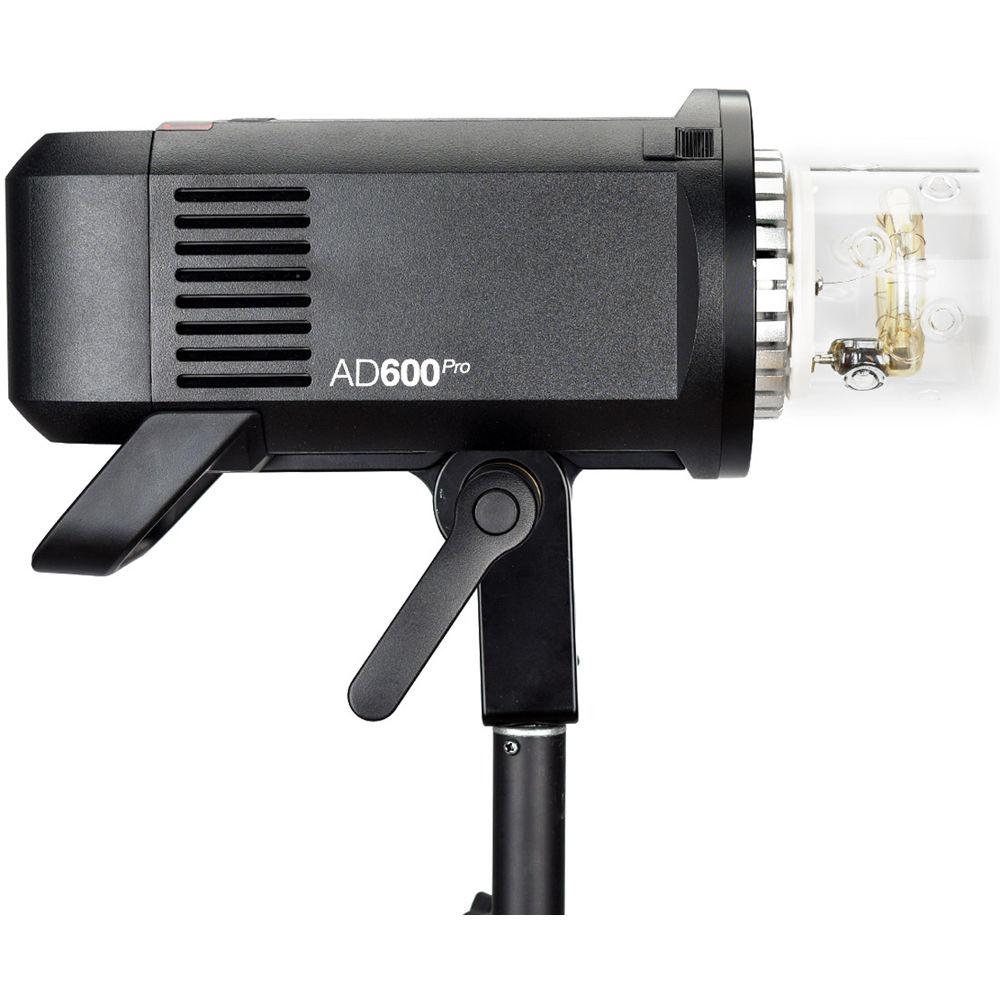

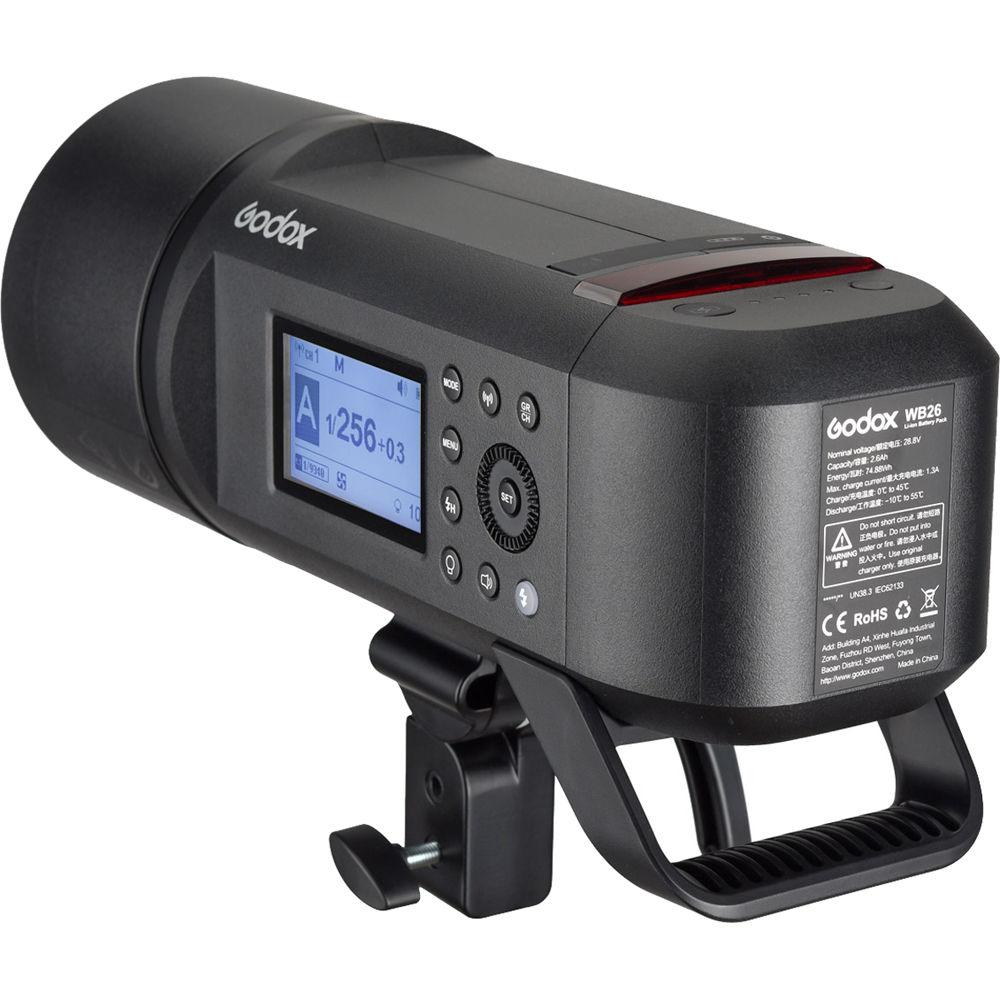

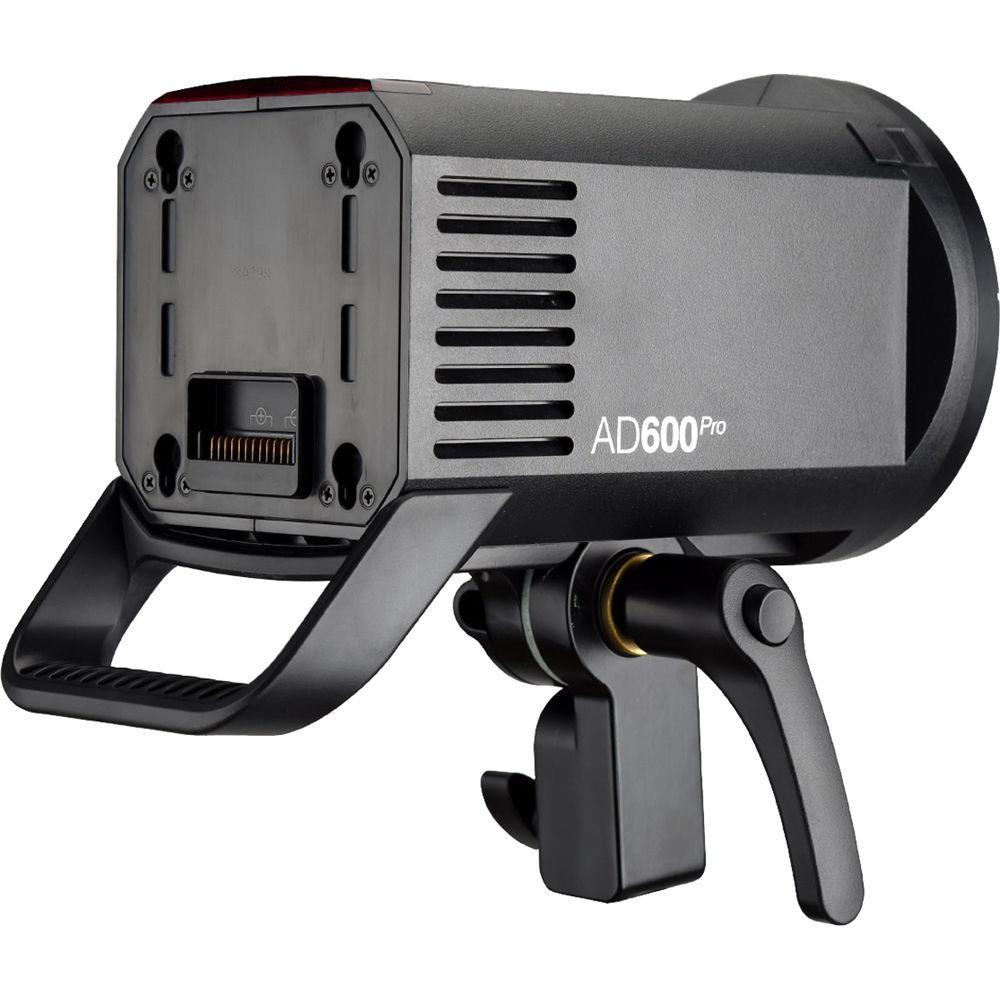

Product description CES 2018: Godox Introduces the AD600Pro AC/DC Monolight Read More Featuring a 2.4 GHz wireless X system with a range of up to 328', the AD600Pro Witstro All-In-One Outdoor Flash from Godox is a versatile tool compatible with several TTL systems including Canon, Nikon, Sony, Fujifilm, Olympus, and Panasonic options. It offers up to 600Ws with nine steps of output power, ranging from 1/1 to 1/256, and comes with a powerful 28.8V/2600mAh lithium-ion battery pack that provides up to 360 full-power flashes in outdoor situations and location shooting. Alternatively, you can run the monolight on AC power with an optional adapter. The AD600Pro Witstro features a high-speed sync mode that works with shutter speeds up to 1/8000 seconds, offering flash durations from 1/220 to 1/10,100 seconds. Another unique setting is its Stable color temperature mode, which tightly controls color to keep temperature changes within ±75K across the entire power range. Despite these impressive characteristics, it manages to keep recycling times low at 0.01-0.9 seconds for fast and reliable use, and is capable of 12 continuous pops at 1/16 power output. Finally, a 38W modeling lamp is available to help aid composition. -
- 2.4 GHz wireless system with a range of 328' (100m), featuring five controllable slave groups and 32 channels
- Guide number of 285' (87m) at ISO 100
- Can work as an optical slave with S1 and S2 modes
- Color temperature of 5600K (±200K)
- 3.5mm sync cord slot for direct connection, wireless control port, and USB Type-C port for firmware upgrades
- First curtain and second curtain sync modes
- Dot-matrix LCD display for on-board control
- Bowens-type mount for use with compatible accessories
In the Box Godox AD600Pro Witstro All-In-One Outdoor Flash Reflector for AD600Pro Flash WB26 Rechargeable Lithium-Ion Battery Pack for AD600Pro Flash (28.8V, 2600mAh) C26 Battery Charger for AD600Pro Flash Flash Tube for AD600Pro Flash Limited 3-Year Warranty User Manual PDF 10.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox AD600Pro Witstro All-In-One Outdoor Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox AD600Pro Specs | | | Maximum Power | 600 Ws | | Power Control | 9 Stops | | Guide Number | 285' / 87 m at ISO100 | | Flash Duration | 1/10,000 to 1/220 Sec | | Recycle Time | 0.01 to 0.9 Sec () | | Color Temperature | 5600K ± 200K | | Accessory Fitting Type | Bowens S Type | | | | Type | LED | | Wattage | 38 W | | Color Temperature | 4800K | | | | Sync Type | Radio | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 32 / 5 | | Wireless Range | 328' / 100 m (Radio) | | Interface | PC Sync (3.5 mm), USB Type-C | | Delay Range | 0.01 to 30 Sec | | | | Battery Chemistry | Lithium-Ion | | Maximum Output Voltage | 28.8 VDC | | Capacity (mAh) | 2600 mAh | | Flashes Per Charge | 360 Flashes | | | | Display | LCD | | Fan Cooled | Yes | | Dimensions | H: 9.6 x W: 4.9 x L: 9.8" / H: 24.5 x W: 12.5 x L: 25.0 cm, Including Battery | | Weight | 6.6 lb / 3 kg, Including Battery | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 12.75 x 9.5 x 8.0" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
