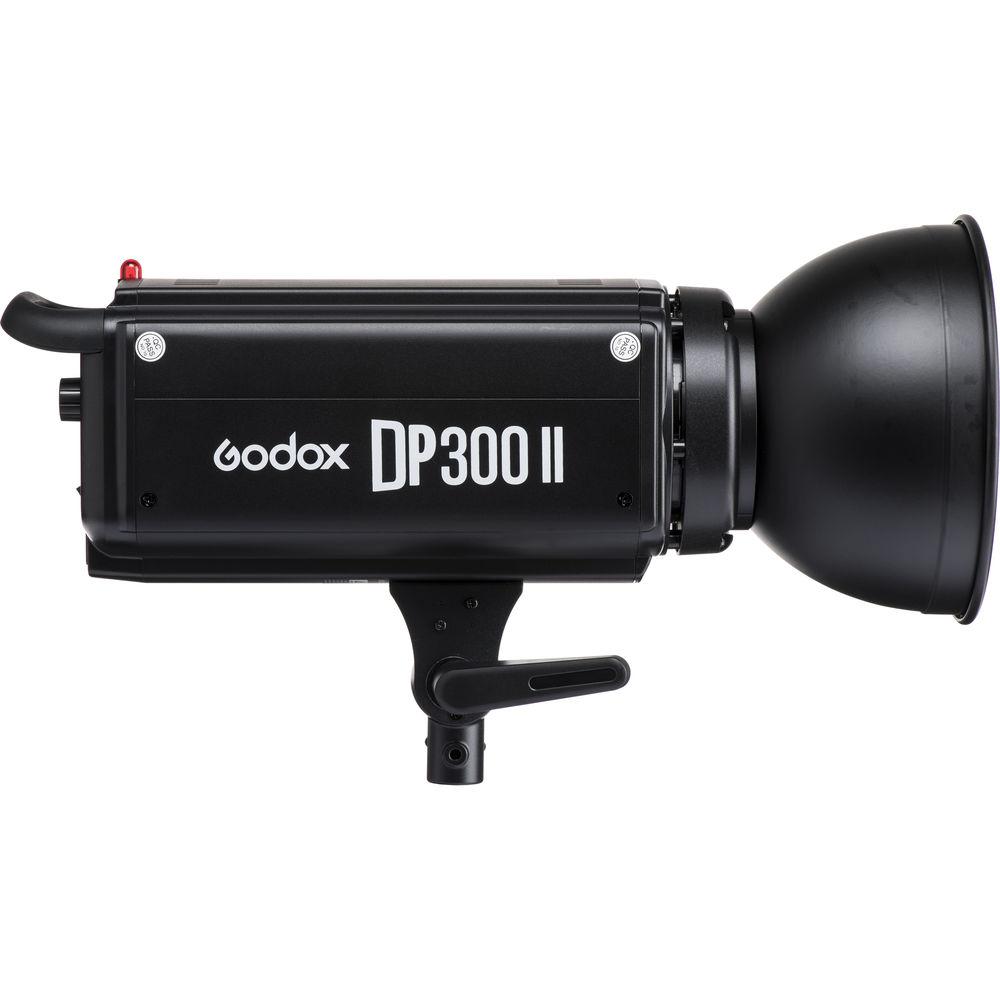

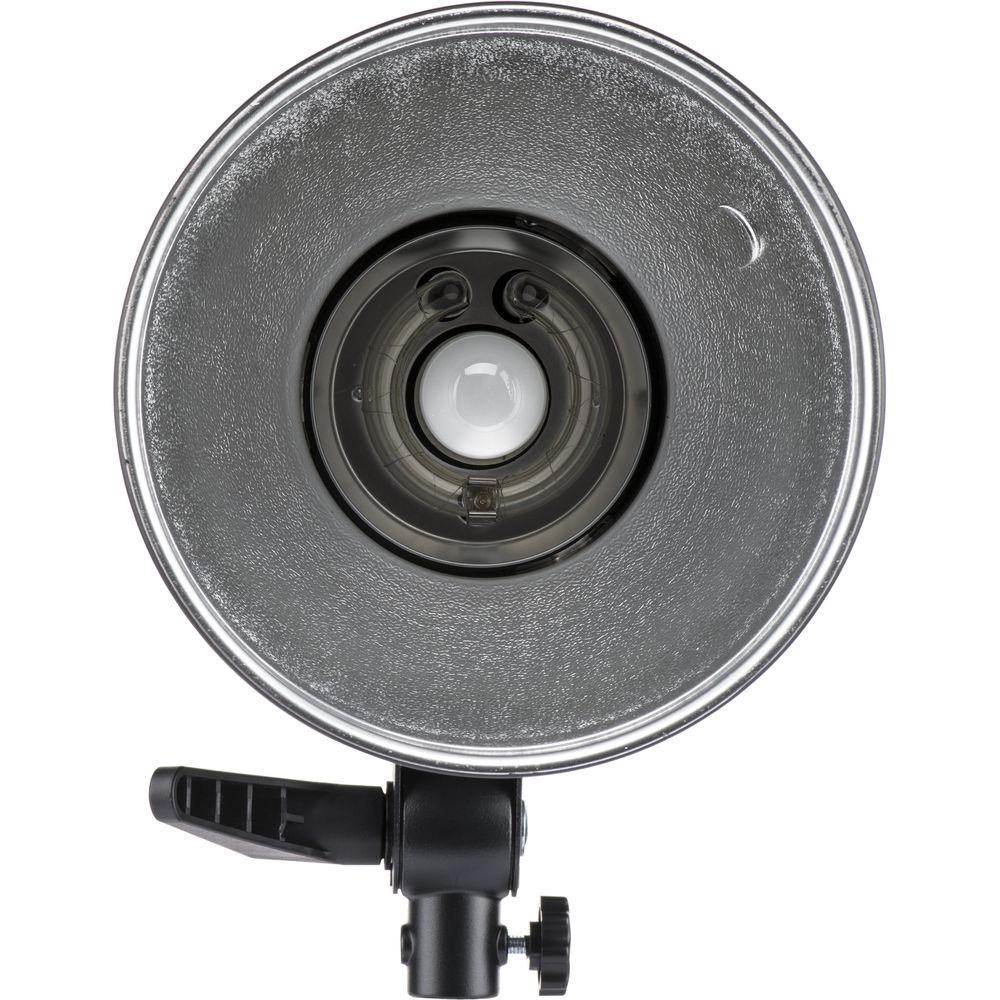

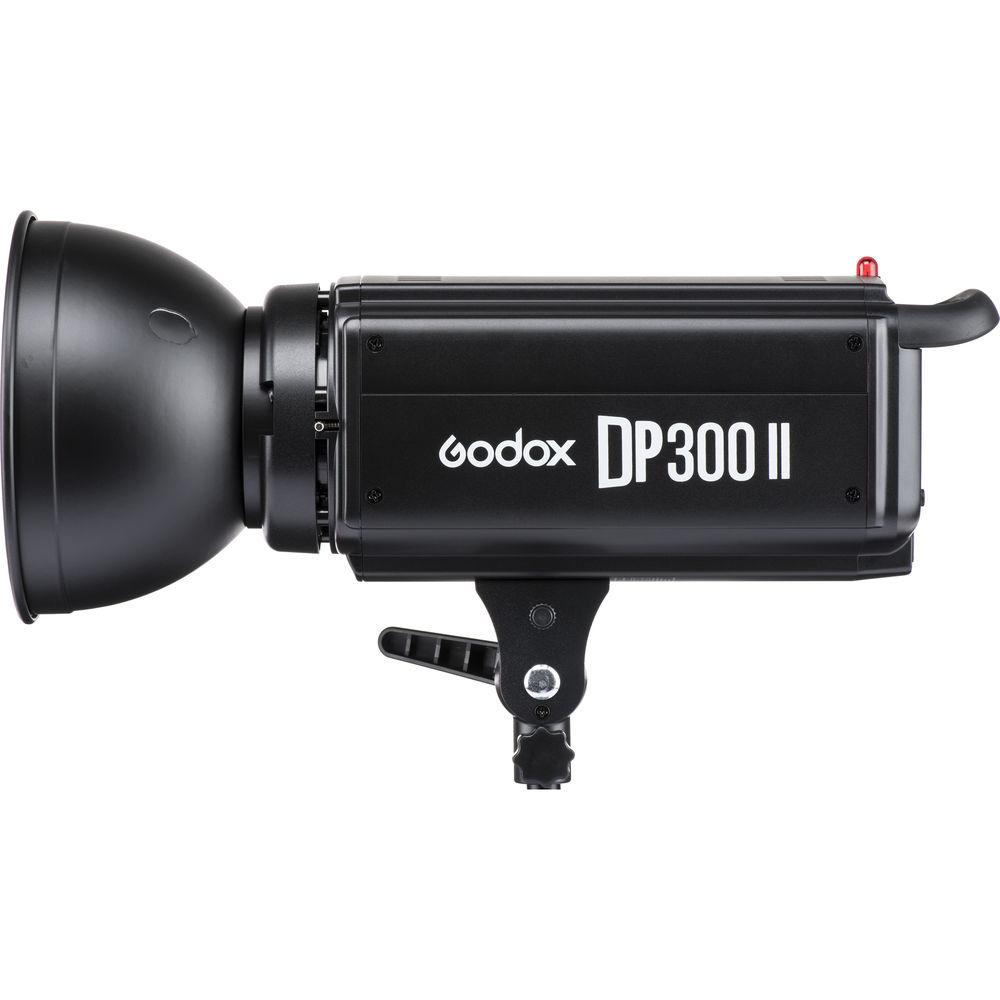

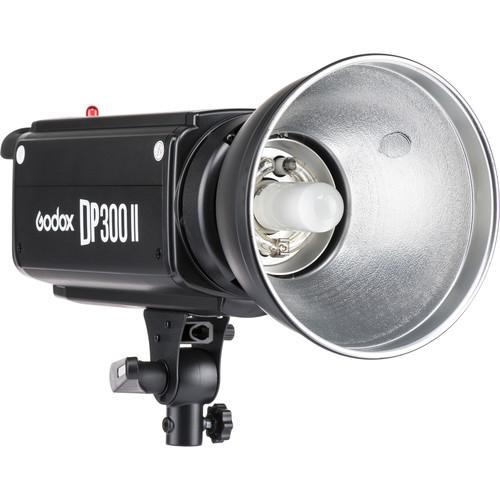

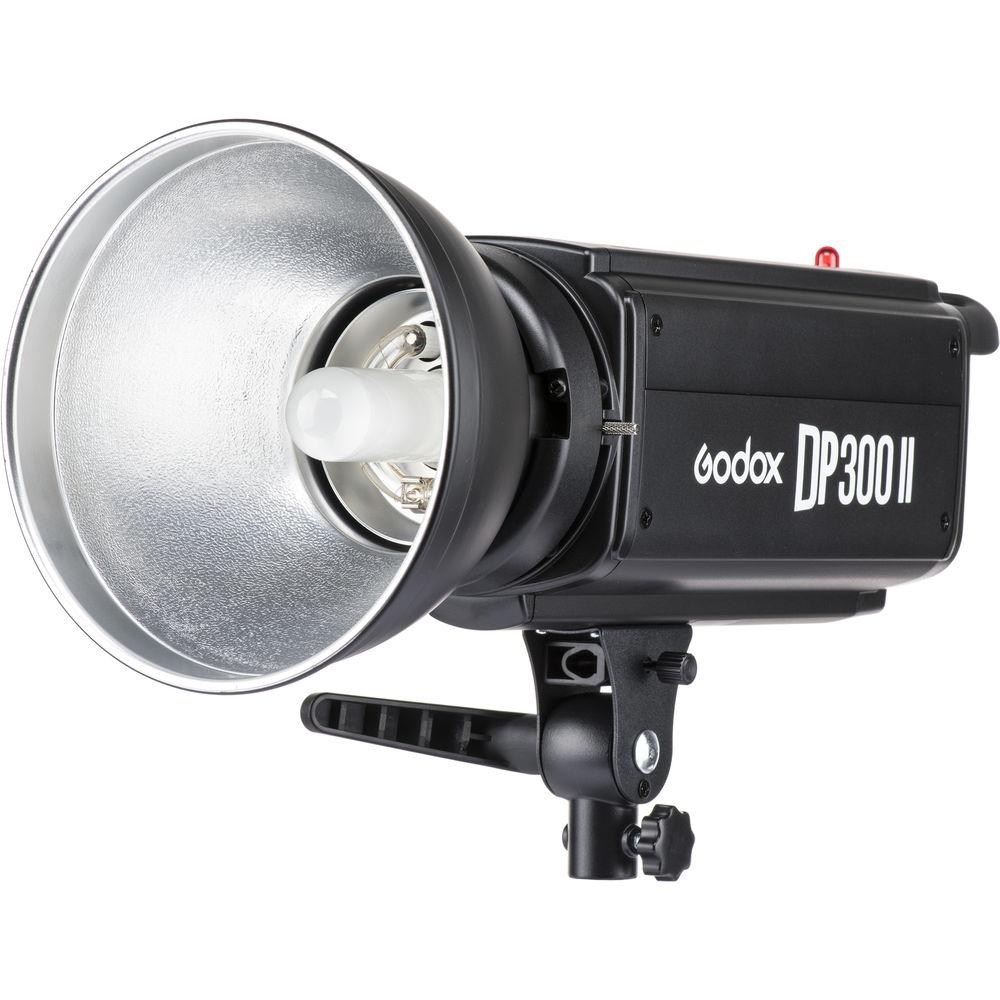

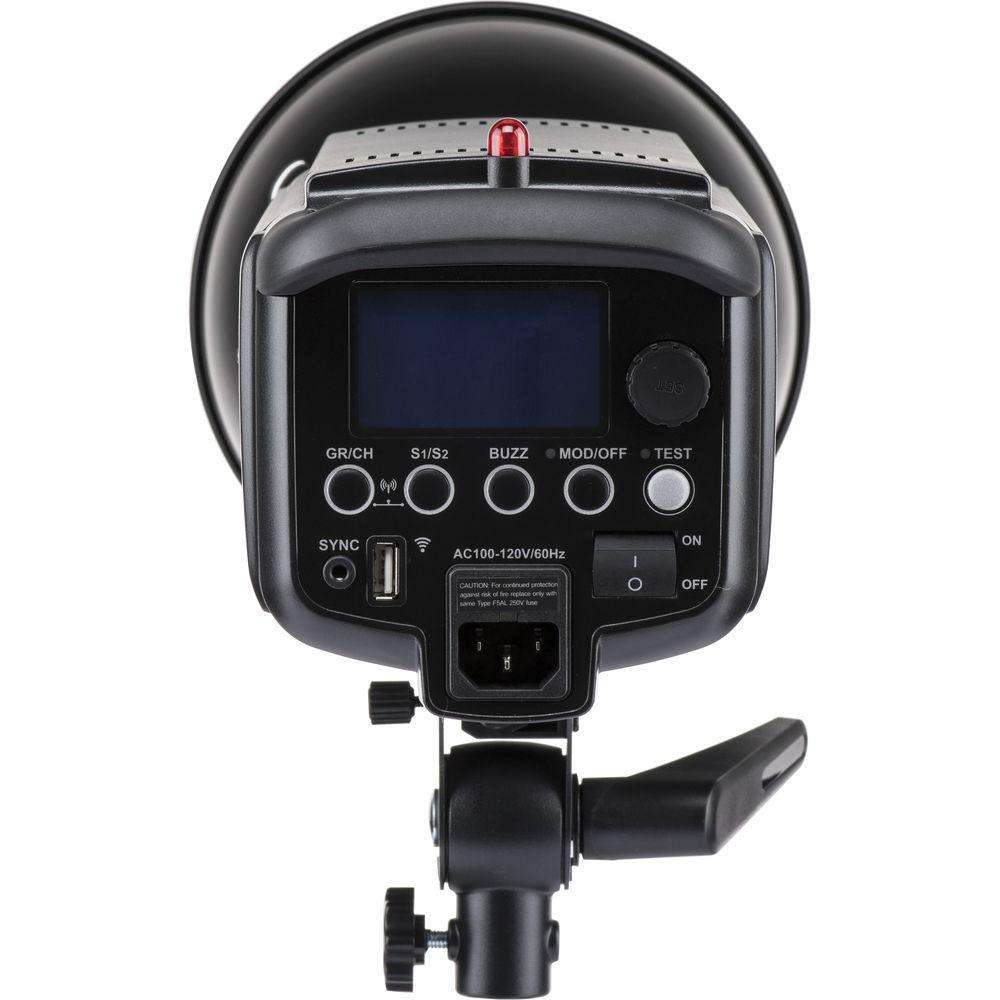

Product description The DP300II Flash Head from Godox is a full-featured 300Ws monolight with several professional and convenience features. The head has a color temperature of 5600K, a recycle time of 0.3-1.2 sec, and flash durations from 1/800 to an action-stopping 1/2000 sec. Power is variable from 1/16 to full power, while the DP300II's 150W modeling can be set to a percentage or proportional to the flash power to allow you to accurately preview your final shot. All of these functions can not only be made manually on the unit, but also wirelessly via the head's built-in Wireless X System receiver. Remote operation requires separate purchase of a transmitter. The XT16 and FT-16 remote controls provide wireless control of power, modeling light, and ready beep signal, while the X1 TTL trigger provides all of those plus TTL exposure technology. The DP300II has a Bowens front accessory mount that makes it compatible not only with Godox light shapers, but with those made by the many manufacturers who use this mount.
With built-in Godox wireless X system, DPII-series studio flashes offer build quality, fine control on flash power, and stable flash output. Additionally, they fit a wide-range light shaping accessories in the market. - Benefits
-
- Built-in wireless system to control flash power, On/Off, modeling lamp, and beep indicator (requires optional transmitter)
- 1/16-1/1 Flash power control
- 150W modeling lamp
- Bowens front accessory mount
- Anti preflash (for single preflash cameras)
- Auto recovery of adjusted settings after restart

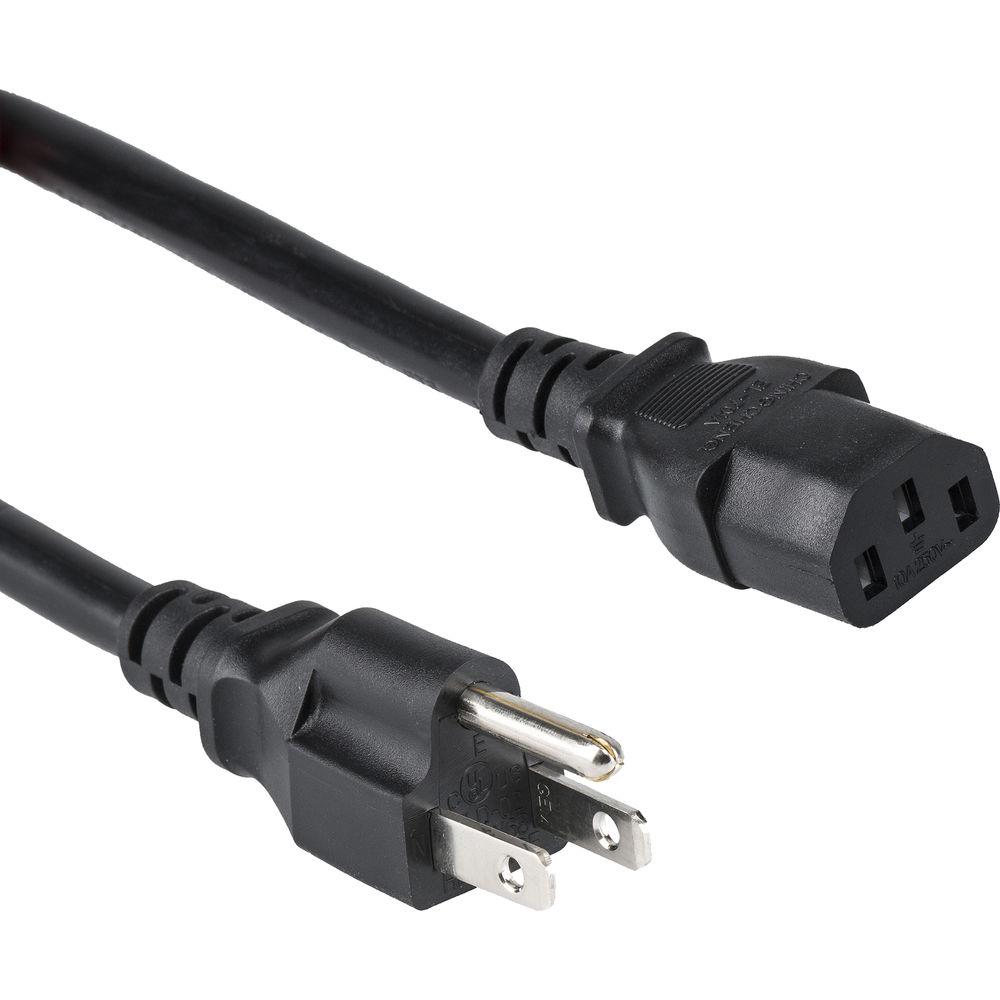

In the Box Godox DP300II Flash Head Power Cable Modeling Lamp Lamp Cover (Protector) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox DP300II Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox DP300II Specs | | | Maximum Power | 300 Ws | | Guide Number | 190.3' / 58 m at ISO100 | | Flash Duration | 1/2000 to 1/800 Sec | | Recycle Time | 0.3 to 1.2 Sec () | | Color Temperature | 5600K ± 200K | | Flash Ready Indicator | Audio, Visual | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 150 W | | Control Modes | Free Set, Off, Proportional | | | | Sync Type | Optical, Radio | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 32 / 16 | | | | AC Input Voltage | 100to120 VAC, 60 Hz | | Fuse | 5 A | | | | Display | None | | Fan Cooled | No | | Dimensions | H: 8.5 x W: 5.0 x L: 16.5" / H: 21.5 x W: 12.5 x L: 42.0 cm, Including Handle and Modeling Light | | Weight | 5.7 lb / 2.59 kg | | | | Package Weight | 8.65 lb | | Box Dimensions (LxWxH) | 18.5 x 10.22 x 9.0" |
