User Manual for Godox E300 Flash Head Click to enlarge the picture
Contents of the user manual for the Godox E300 Flash Head
- Product category: Monolights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox Monolights
 |
User manual for the Godox E300 Flash Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

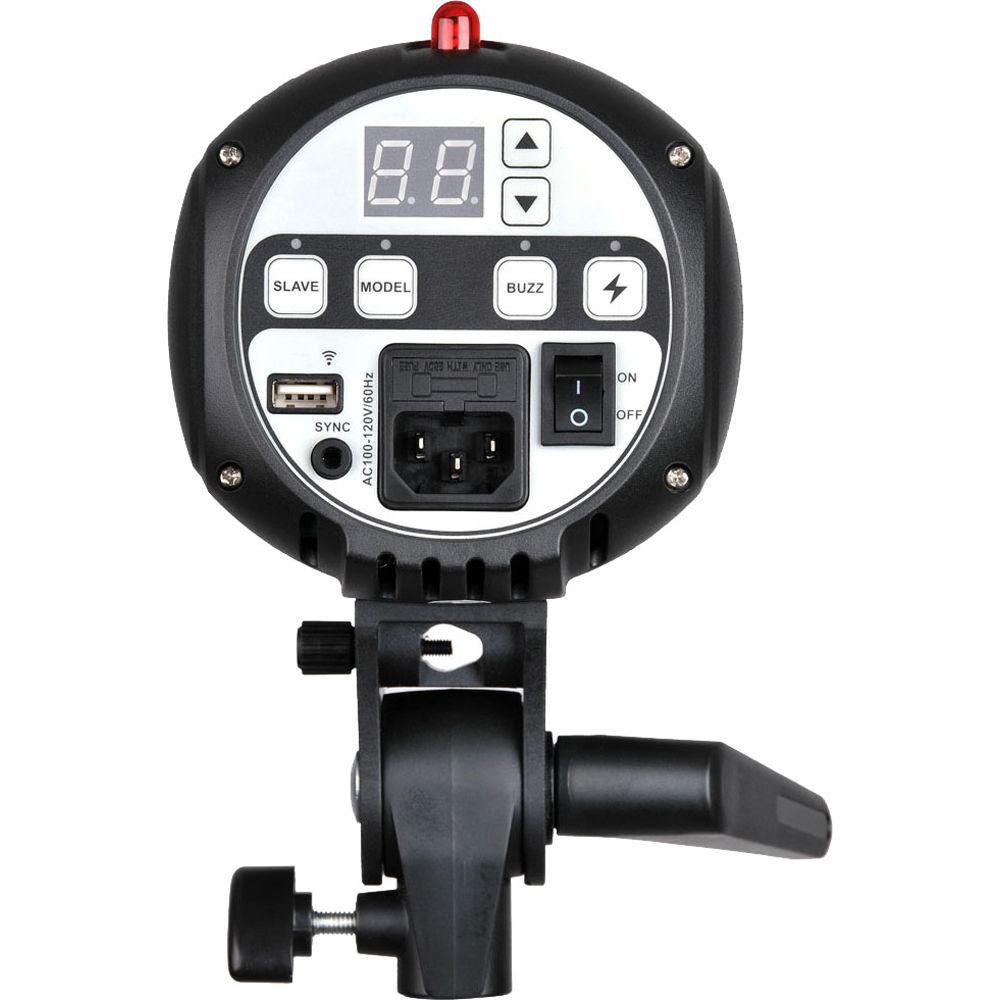

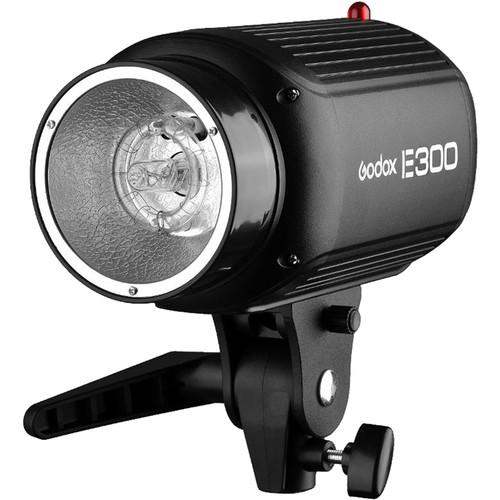

Product description With a guide number of 190', the E300 Flash Head from Godox is a 5600K daylight-balanced flash source with solid core features at an affordable price point. The head features 0.4 to 2.5 sec recycling with flash durations as short as 1/2000 sec. Power is variable over 3 stops from 1/8 to full power, while the 150W modeling has 9 levels of dimming. Settings are indicated on the rear digital screen and adjustable via padded push buttons that are a pleasure to use. Triggering options include sync cord, test button, and slave triggering. Wireless control is available with separate purchase of the FT-16 radio system. The head also has an anti-preflash function that makes it easy to work with point-and-shoot and other cameras that employ preflash. At just 3.3 lb, it's easy to assemble a kit with 2 or more E300s without lugging a heavy case around. The light has a tilting stand mount with an umbrella channel and runs on 100 to 120 VAC mains power. - Benefits
-
- Precise output displayed on LED panel, 20 steps from 1.0 to 3.0 in 0.1 increments
- Use optional FT-16 trigger to control the flash power ratio, modeling lamp and buzzer, as well as flash triggering
- 150W modeling lamp adjusts in 9 power levels
- Outstanding output stability, no more than 2% shift at the same output
- Anti-preflash function enables synchronization with cameras that have a one-preflash firing system
- Auto memory and recovery of adjusted panel settings
In the Box Godox E300 Flash Head Limited 1-Year Warranty User Manual PDF 3.6mbcyutbeszry Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox E300 Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox E300 Specs | | | Maximum Power | 300 Ws | | Power Control | 3 Stops | | Guide Number | 190' / 58 m at ISO100 | | Flash Duration | 1/2000 to 1/800 Sec | | Recycle Time | 0.4 to 2.5 Sec () | | Color Temperature | 5600K ± 200K | | Flash Ready Indicator | Audio | | Reflector | Fixed | | | | Type | Tungsten | | Wattage | 150 W | | | | Sync Type | Button, Cable, Optical, Radio | | | | AC Input Voltage | 100to120 VAC, 60 Hz | | Circuit Protection | Fuse | | Fuse | 5 A | | | | Display | None | | Fan Cooled | No | | Dimensions | H: 7.9 x W: 4.6 x L: 8.0" / H: 20.0 x W: 11.8 x L: 20.3 cm, Including Handle and Modeling Light | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 3.975 lb | | Box Dimensions (LxWxH) | 9.85 x 8.7 x 7.25" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
