User Manual for Godox Gemini GS400II 400Ws Monolight Click to enlarge the picture
Contents of the user manual for the Godox Gemini GS400II 400Ws Monolight
- Product category: Monolights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox Monolights
 |
User manual for the Godox Gemini GS400II 400Ws Monolight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

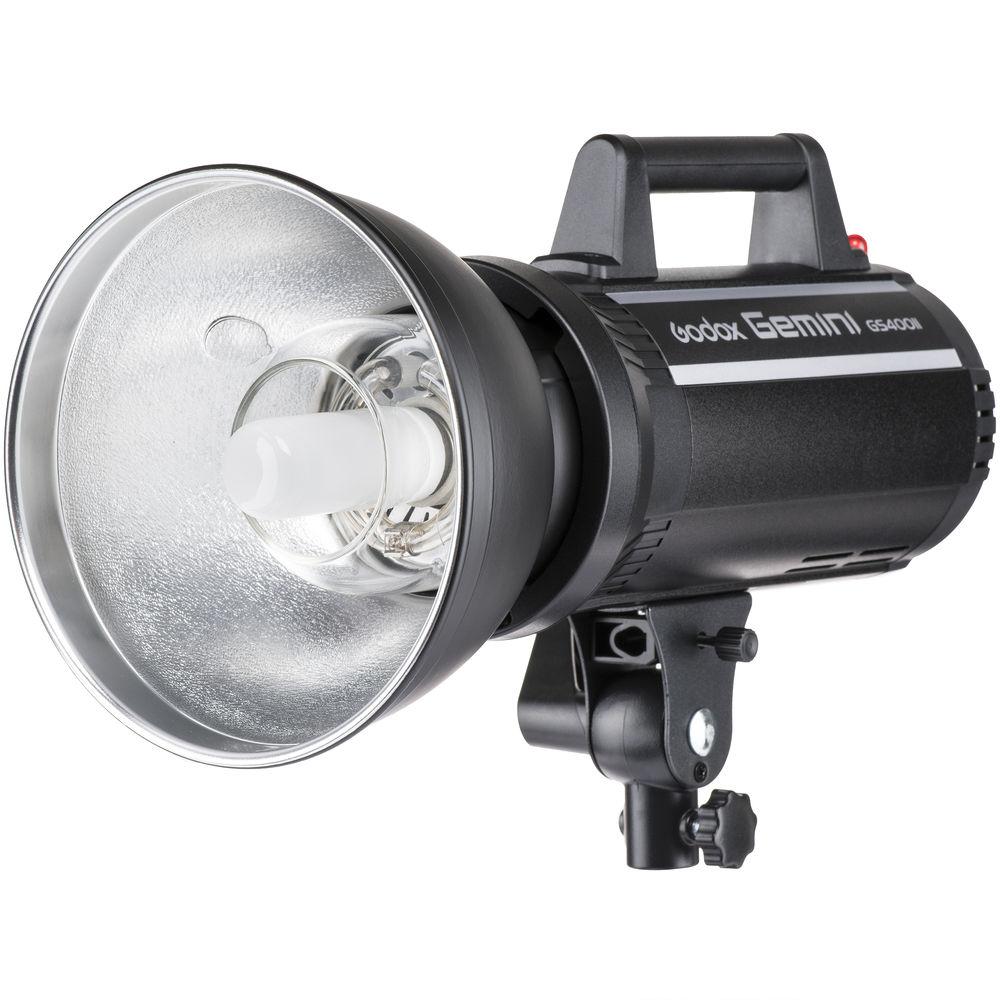

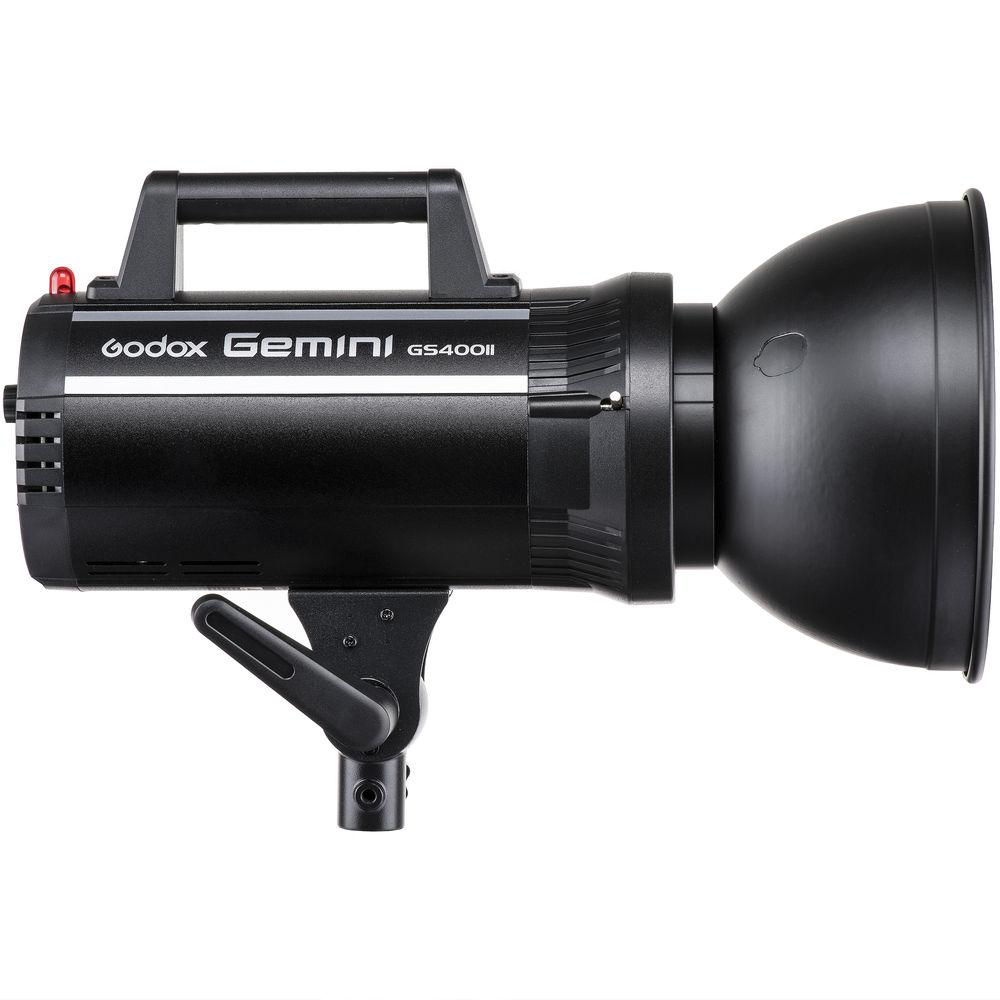

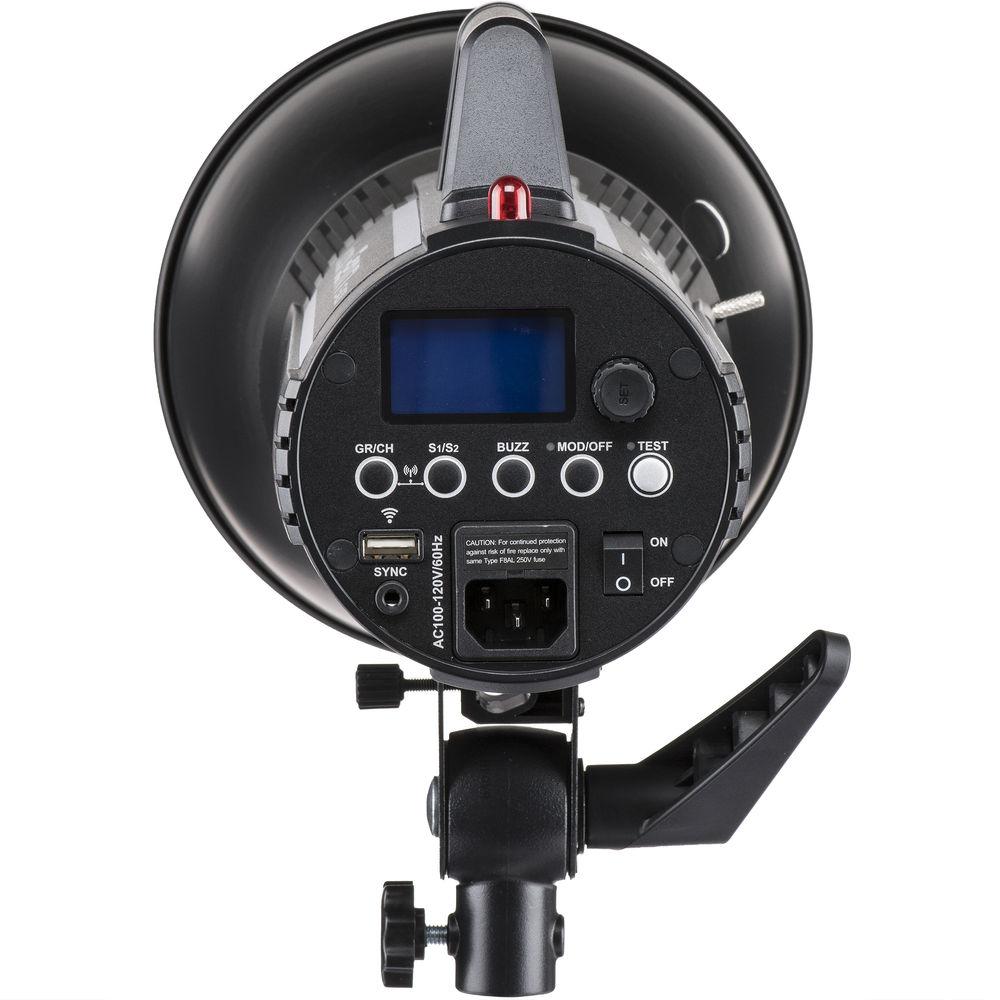

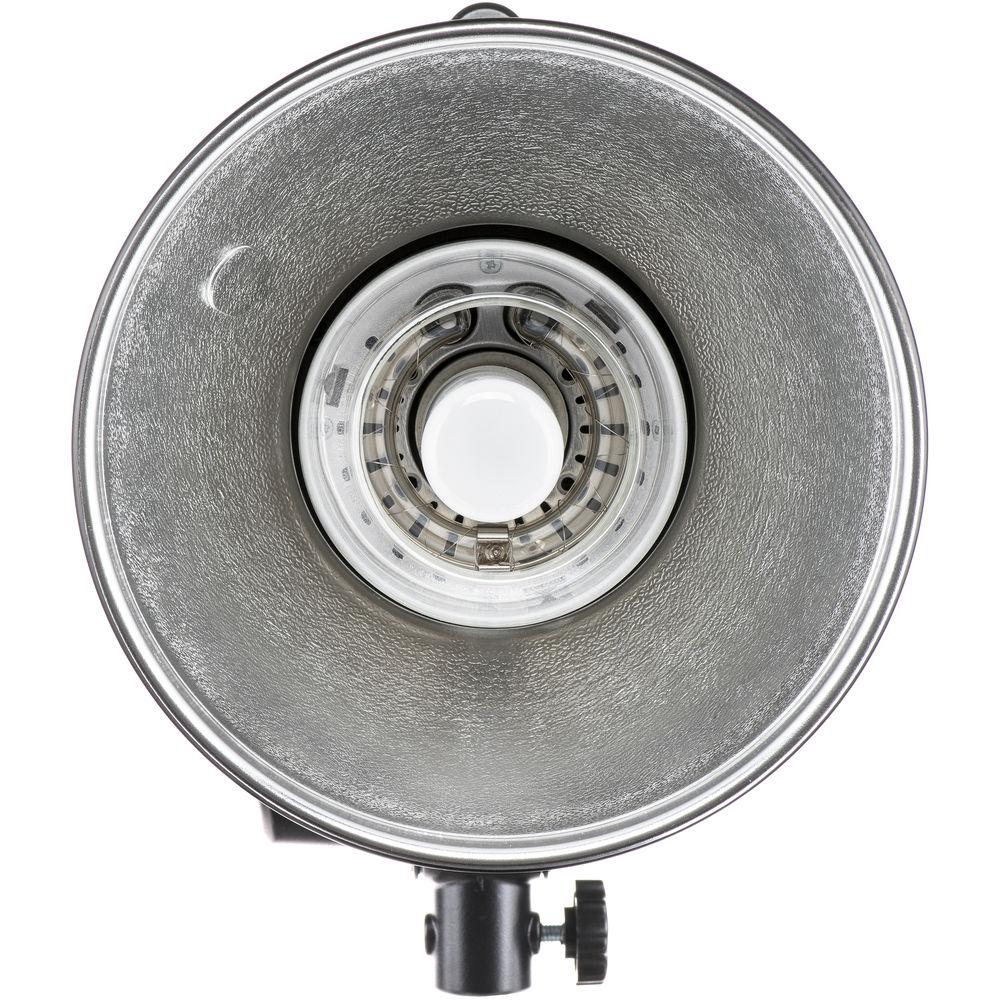

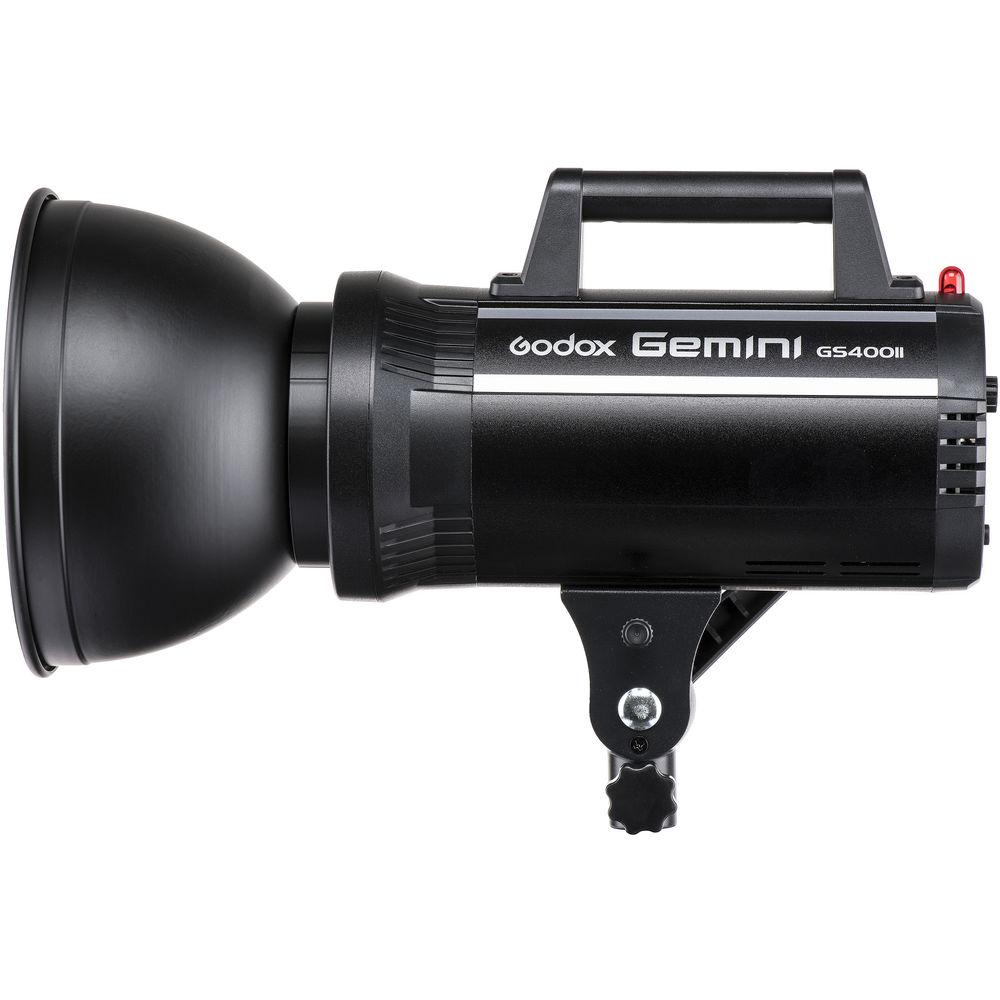

Product description The GS400II 400Ws Monolight from Godox is a versatile flash head with solid core and convenience features. The strobe has power that's variable from 1/32 to 1/1 and recycling times from 0.3 - 1.5 sec. The 150W modeling light can be set to Proportional to mimic the effects of the flash's power setting for pre-visualizing your photo, or it can be adjusted from 5 - 100% output. Both the power and the modeling light can be adjusted remotely with the separate purchase of a transmitter, since the head has a built-in 2.4 GHz wireless receiver. The optional XT16 or FT-16 transmitter will give you triggering and control of the flash head's functions while the X1 TTL, as its name denotes, adds TTL exposure functionality to the system. Settings are visible on the flash head's digital readout. The GS400II has a Bowens front accessory mount that allows it to use not only Godox modifiers, but also accessories from the many manufacturers that use this popular mount. The GS400II ships with a tilting umbrella bracket, standard reflector, glass protection dome, and a lamp cover. - Benefits
-
- Built-in Godox 2.4 GHz wireless X system
- Wireless power control and flash triggering
- 0.3 - 1.5 sec recycle time and 1/2000 - 1/800 sec. flash duration
- Output variable from 1/32 to 1/1 in 50 step increments
- 150W modeling lamp adjusts from 5-100%
- Popular Bowens mount for light shapers
- Anti-pre-flash function allows sync with cameras that have a one-pre-flash firing system
Auto recover the adjusted setting after a restart - Built-In Godox 2.4 GHz Wireless X System
-
- Use X1 TTL wireless flash trigger or XT16 or FT-16 remote controls for wireless function adjustments
- Wireless system has 32 channels and can handle 16 groups of flashes
- 3 Modeling light modes: Off, Proportional and Percentage (5-100%)
- Adjustable power level, modeling light, and full recycling beep indicator
- Use in combination with any flash with built-in Godox Wireless X System

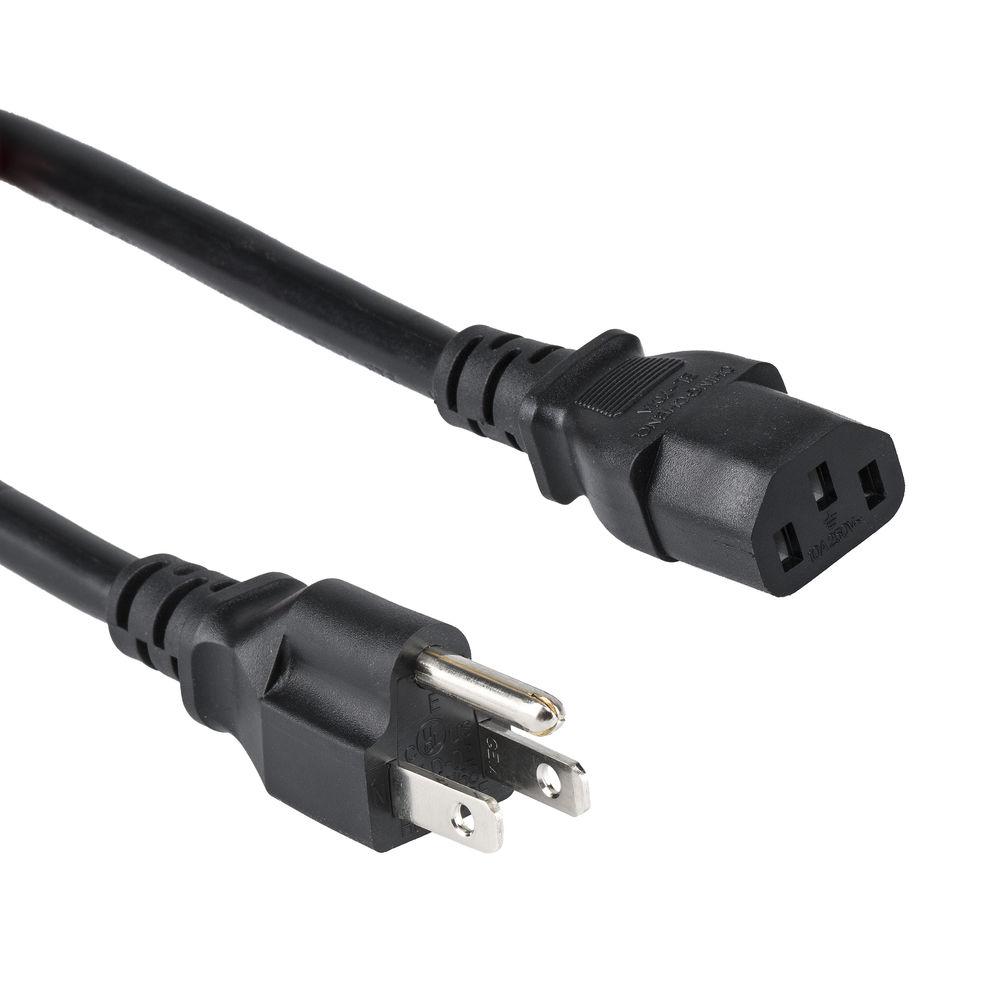

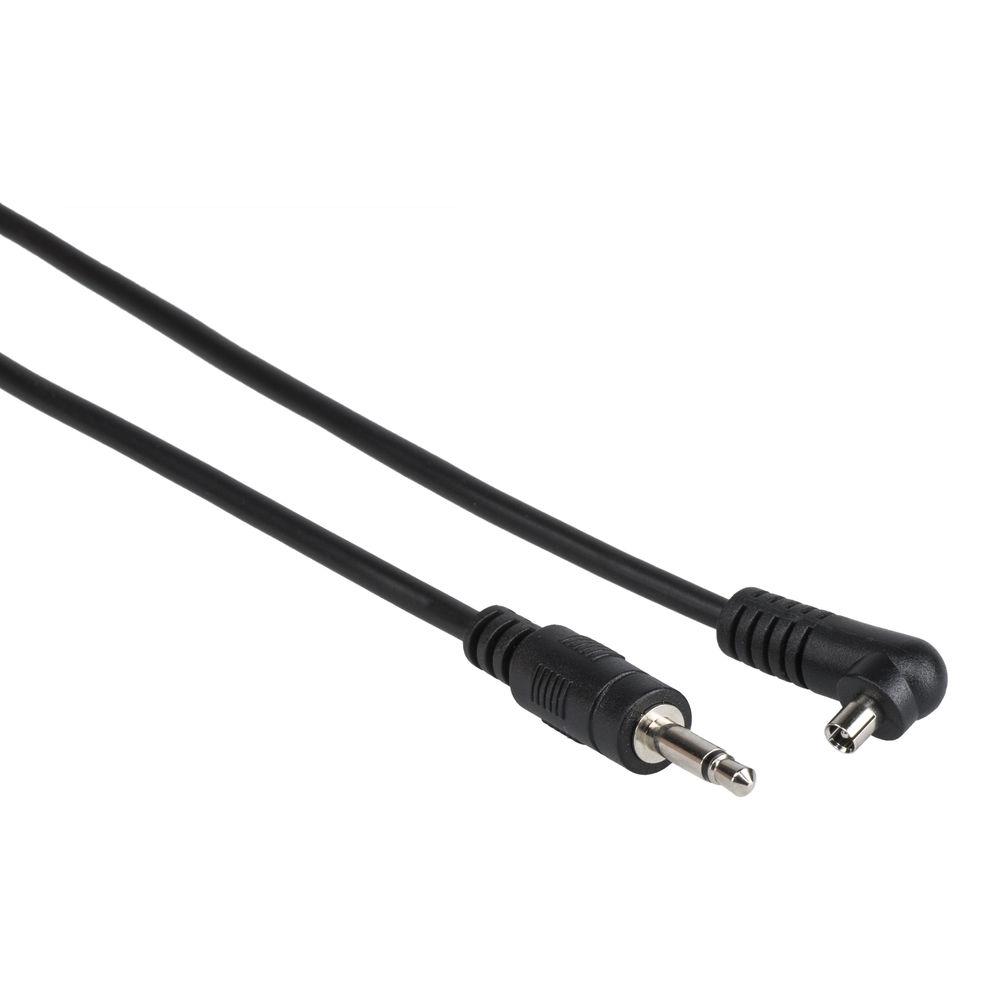

In the Box Godox Gemini GS400II 400Ws Monolight Flash Head Power Cable Standard Reflector Lamp Cover Glass Protection Cover Modeling Lamp Limited 1-Year Warranty User Manual PDF 3.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox Gemini GS400II 400Ws Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox GS400II Specs | | | Maximum Power | 400 Ws | | Guide Number | 213' / 65 m at ISO100 | | Flash Duration | 1/2000 to 1/800 Sec | | Recycle Time | 0.3 to 1.5 Sec () | | Color Temperature | 5600K ± 200K | | Flash Ready Indicator | Audio, Visual | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 150 W | | Control Modes | Free Set, Off, Proportional | | | | Sync Type | Button, Cable, Optical, Radio | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 32 / 16 | | Sync Voltage | 5 V | | | | AC Input Voltage | 110to120 VAC, 60 Hz | | Current | 8 A (Operating) | | Fuse | 5 A | | | | Display | None | | Dimensions | H: 8.6 x W: 4.5 x L: 13.4" / H: 21.9 x W: 11.4 x L: 34.0 cm, Including Cap and Handle | | Weight | 4.6 lb / 2.1 kg | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 17.6 x 10.7 x 8.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
