User Manual for Godox LED500C Bi-Color LED Video Light Click to enlarge the picture
Contents of the user manual for the Godox LED500C Bi-Color LED Video Light
- Product category: LED Lights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox LED Lights
 |
User manual for the Godox LED500C Bi-Color LED Video Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

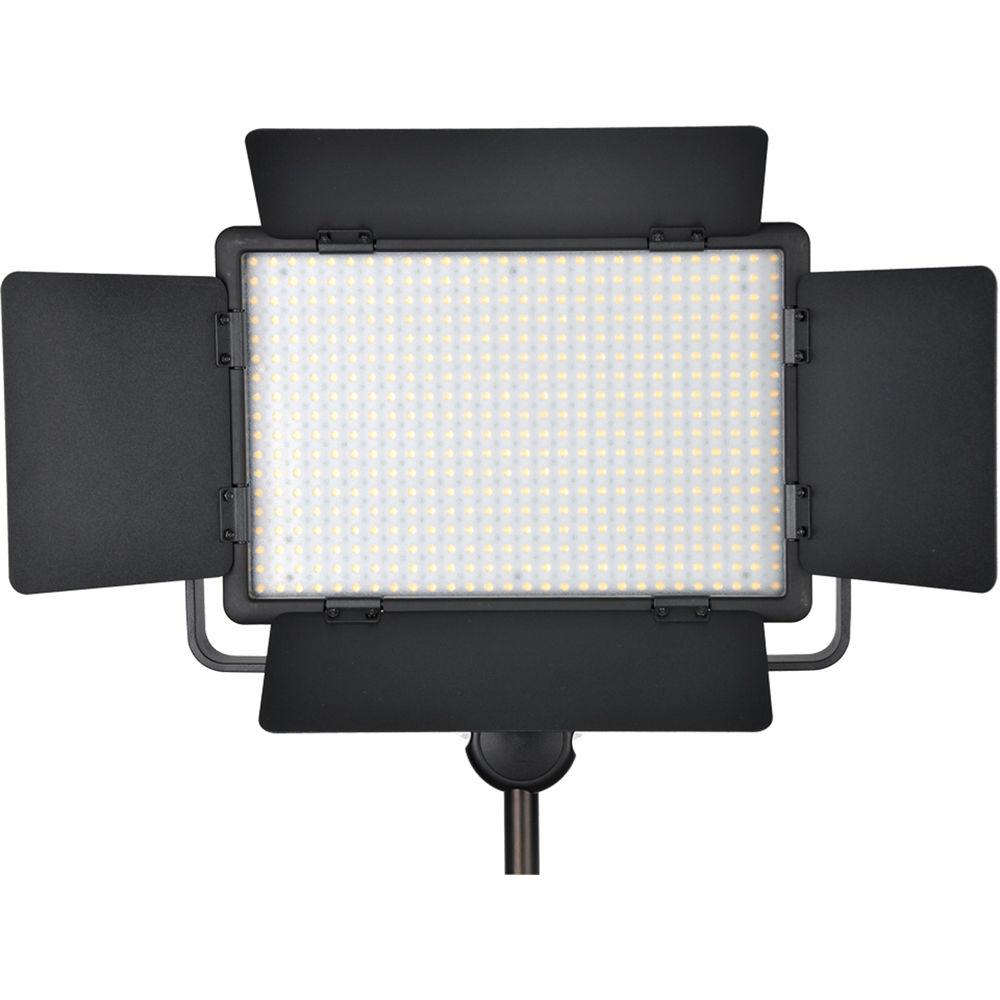

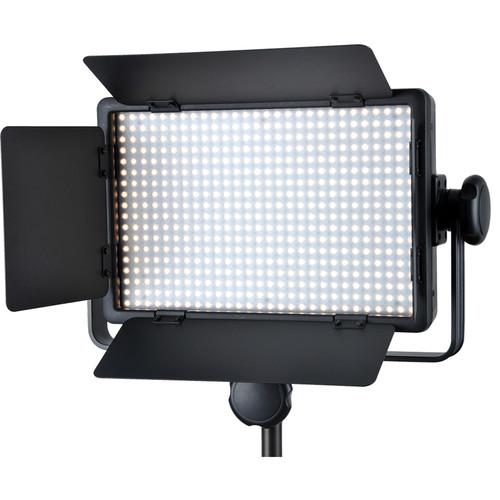

Product description Designed to be portable yet versatile, the LED500C Bi-Color LED Video Light from Godox provides a smooth and soft light that is well-suited for video use. It is a bi-color light that enables you to adjust the color temperature from 3300K to 5600K, with a variance of ±300K depending on your settings. The light can be dimmed from 25 to 100% throughout most of its color temperature range, but can go as low as 10% when it is set to full tungsten or full daylight. Adjustments can be made either on the on-board LCD via two buttons and a dial or with an included wireless remote that works at distances of up to 65.6'. The LED500C is rated for output up to 2900 lux at 3.3' and 4200K, drawing a maximum of 32W of power during use. Used for support is a yoke with a standard light stand receiver and locking knob, and the design also incorporates a built-in filter slot for easy light manipulation. For powering the panel, an AC adapter is included for connecting to a wall socket, while those looking to take the light outdoors can run it on two optional Sony L-series batteries. The remote control requires two 3.0V AAA batteries, which must also be purchased separately. -
- Portable LED panel outputs up to 32W of power, rated for 2900 lux at 3.3' and 4200K
- Bi-color with a range from 3300K to 5600K, so you can match it to both daylight and tungsten light sources
- Brightness can be dimmed from 10 to 100% when set to either 3300K or 5600K, and from 25 to 100% throughout the rest of the range
- Remote control allows for easy wireless adjustments, runs on two AAA batteries and works up to 65.6' away
- 433 MHz wireless system with 16 channels in 6 groups

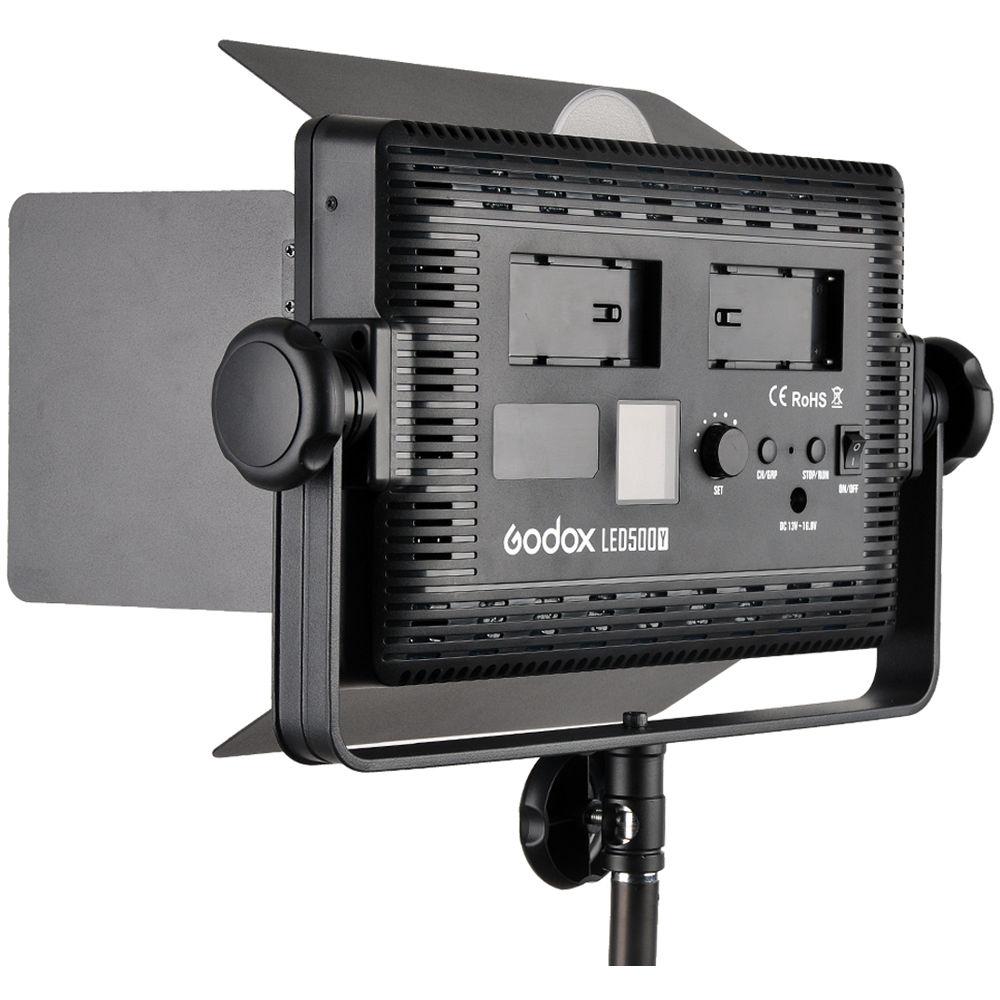

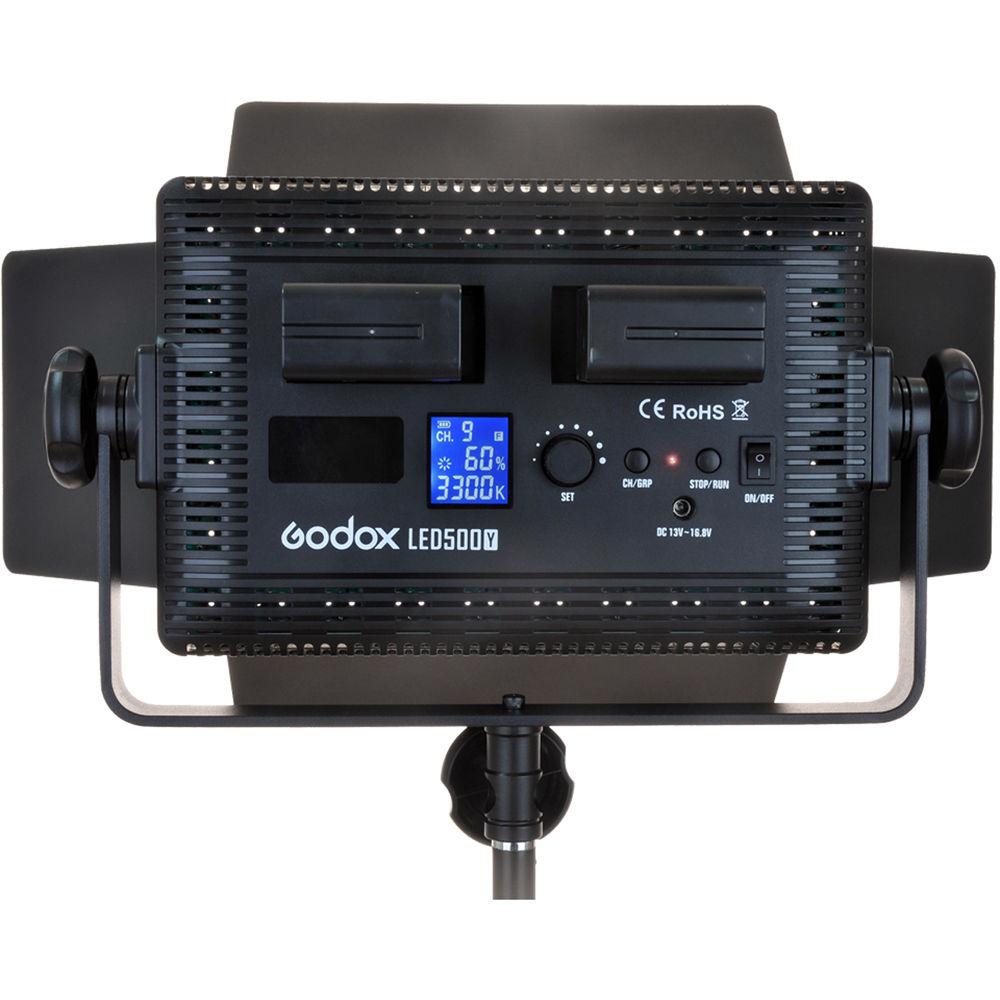

- On-board control via dial and two buttons, with an LCD screen for viewing settings
- Yoke is compatible with most light stands and offers tightening knob for a secure fit

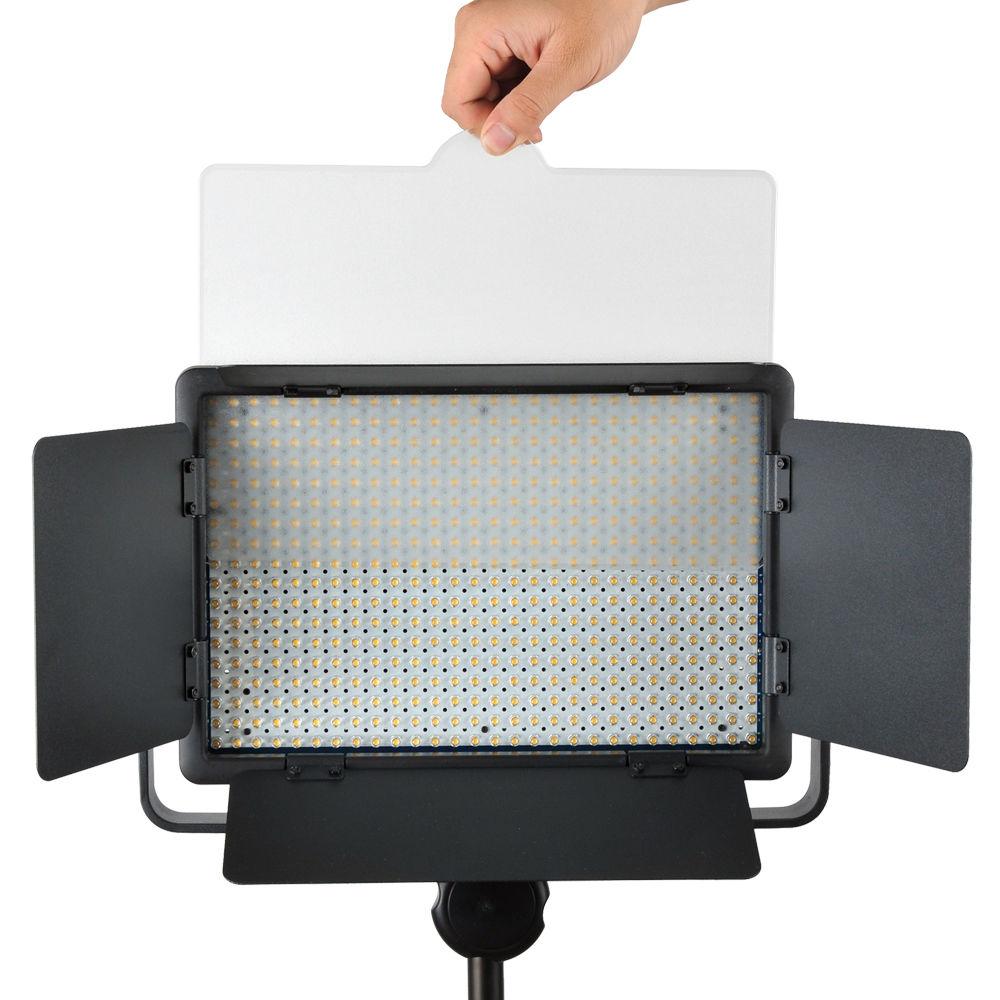

- Built-in filter slot for use with included diffusion filter

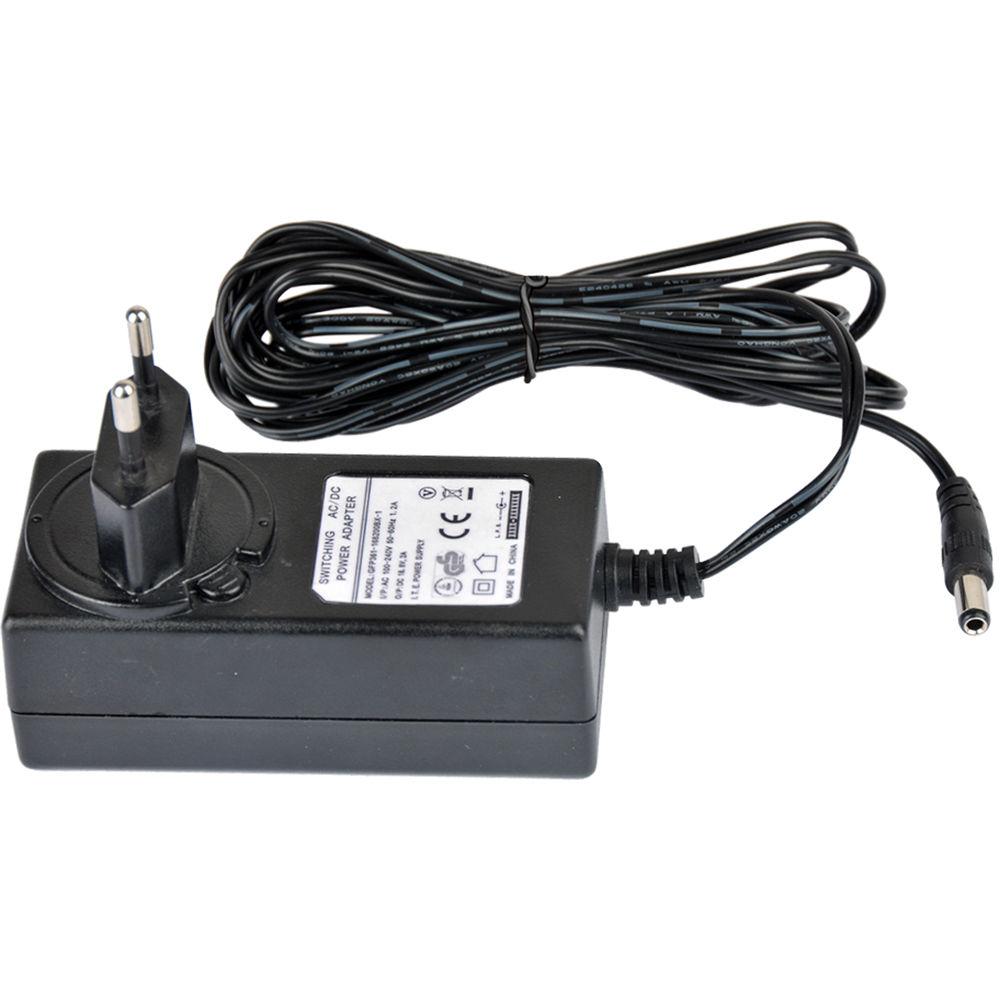

- AC adapter included for wired use with a power outlet

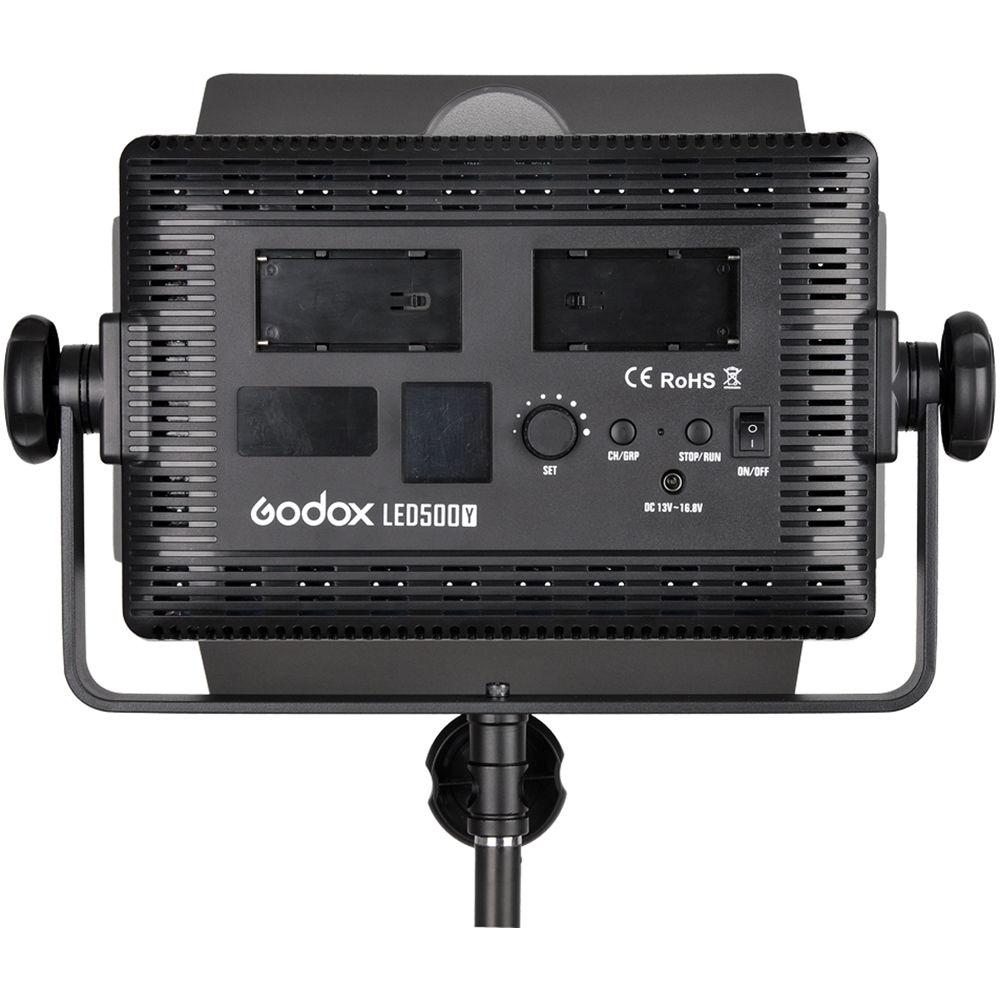

- Battery plate accepts two optional Sony L-series batteries, ideal for portable operation
In the Box Godox LED500C Bi-Color LED Video Light RC-A5 Remote Control Yoke Diffusion Filter Power Adapter Limited 1-Year Warranty User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox LED500C Bi-Color LED Video Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox LED500 Specs | | | Color Temperature | 3300 to 5600K ± 300K | | Dimming | Yes, 10 to 100% | | Display | LCD | | Photometrics | 3300K:
134.7 fc / 1450 lux at 3.3' / 1 m
4200K:
269.4 fc / 2900 lux at 3.3' / 1 m
5600K:
134.7 fc / 1450 lux at 3.3' / 1 m | | Number of LEDs | 252 (Daylight)
252 (Tungsten) | | Fixture Dimensions | 15.4 x 11.8 x 2.4" / 39.0 x 30.0 x 6.0 cm | | Fixture Weight | 3.17 lb / 1.44 kg | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | Power Input Connector | Barrel | | DMX Connector | None | | | | Fixture Mount | 5/8" Receiver | | | | Remote Control Type | Proprietary Wireless | | Wireless Range | 65.6' / 20 m | | Wireless Channels / Groups | 16 / 6 | | | | Power Source | AC Adapter | | Max Power Consumption | 32 W | | Power Pass-Thru | No | | | | Certifications | CE, RoHS, as per Manufacturer | | Operating Temperature | 14 to 122°F / -10 to 50°C | | | | Package Weight | 5.165 lb | | Box Dimensions (LxWxH) | 17.45 x 12.6 x 4.85" |
