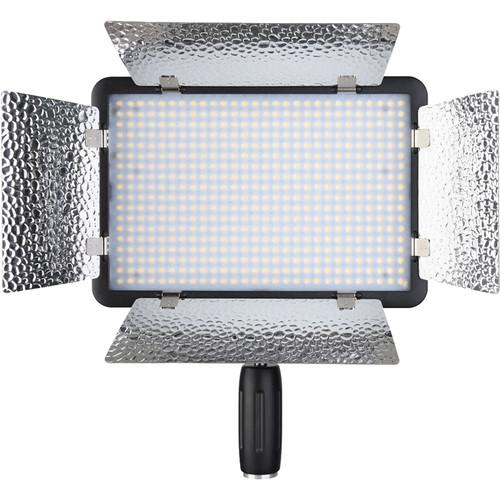

User Manual for Godox LED500LR Video Light Click to enlarge the picture
Contents of the user manual for the Godox LED500LR Video Light
- Product category: LED Lights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox LED Lights
 |
User manual for the Godox LED500LR Video Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

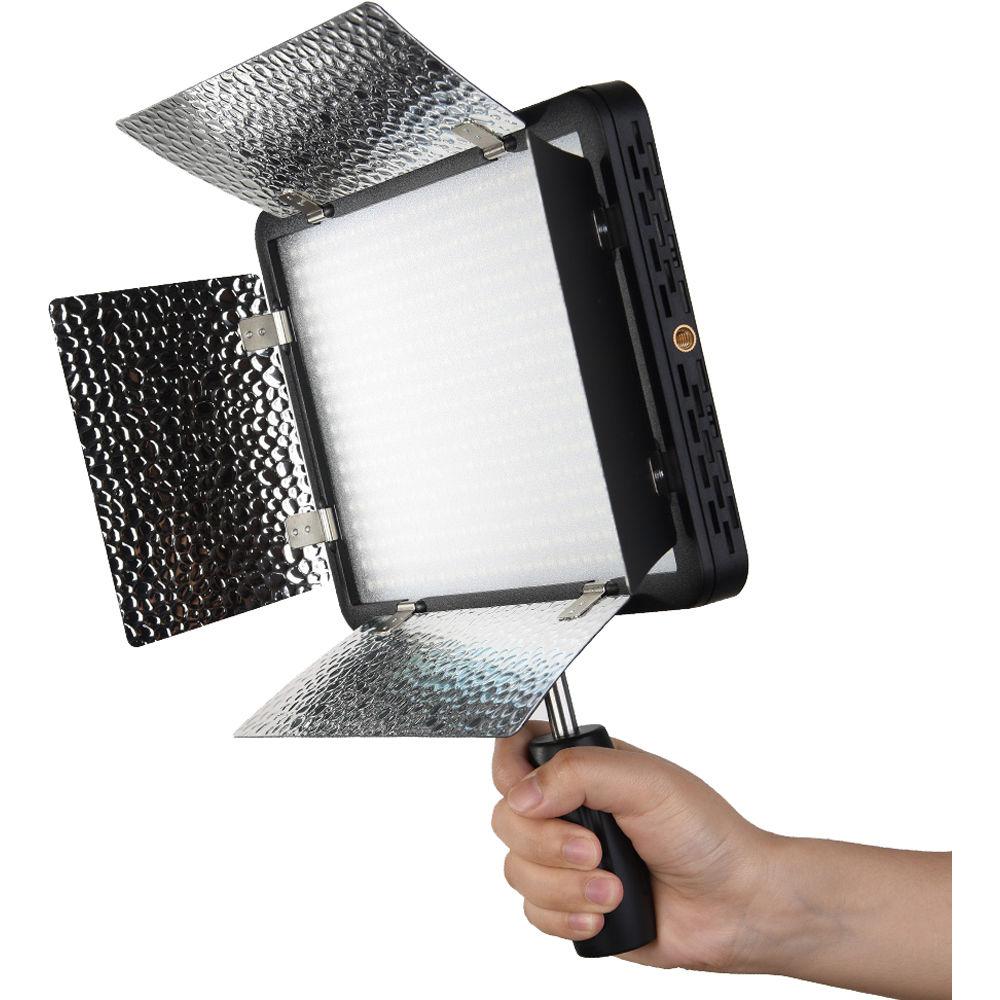

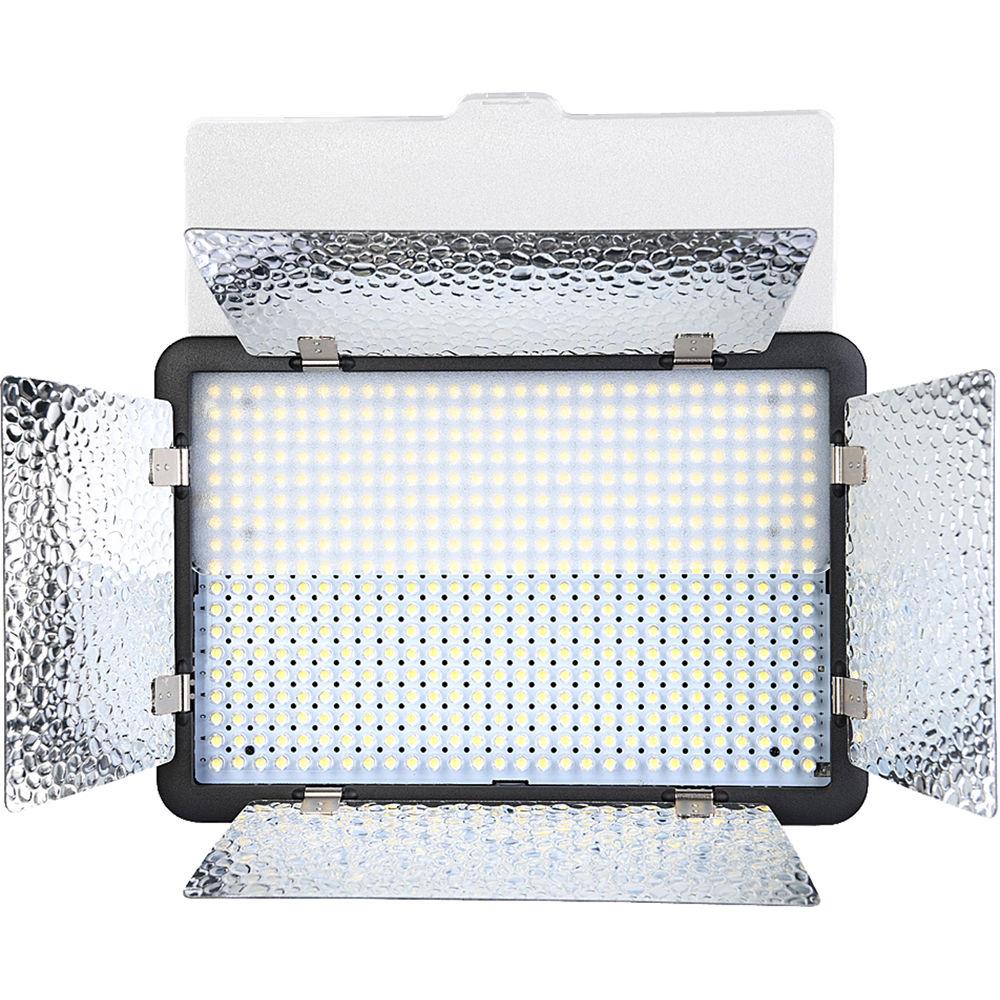

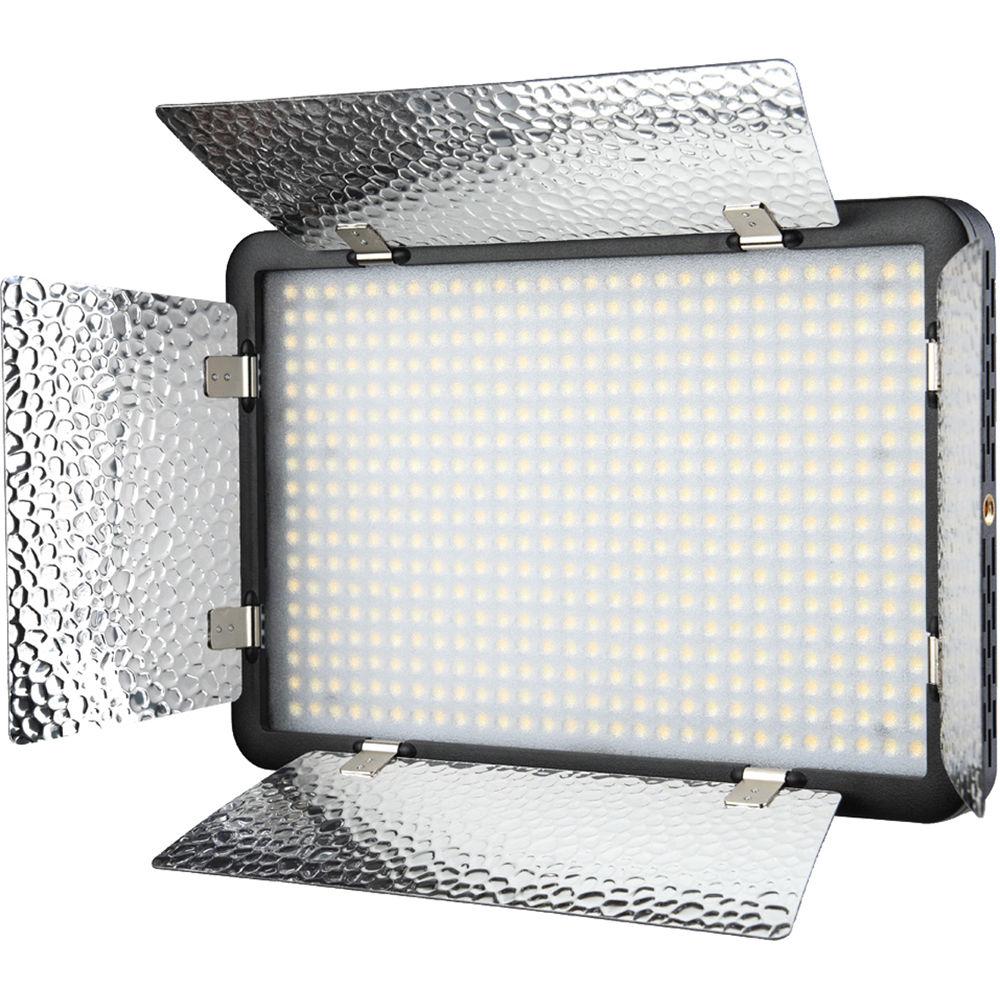

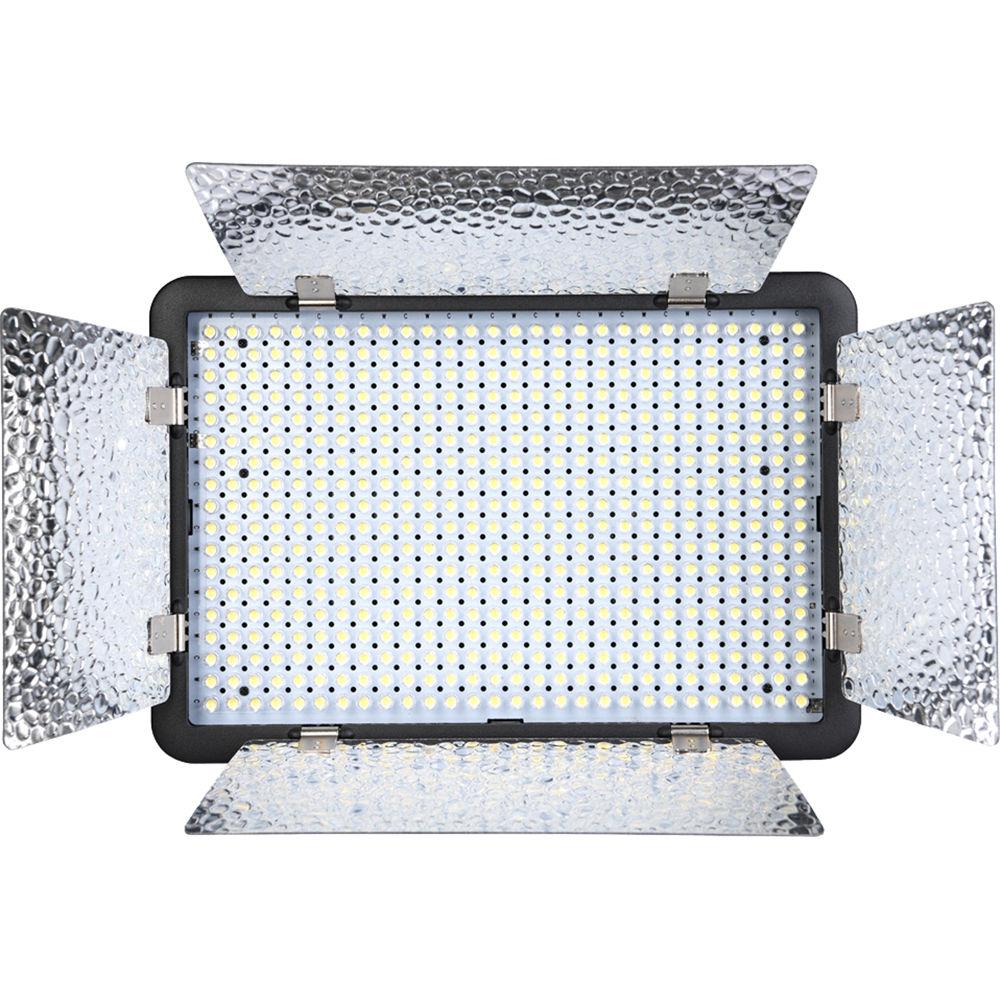

Product description Portable and versatile, the Bi-Color LED500LR Video Light from Godox provides a powerful, even beam of light in a small form factor. The light has a color range of 3300 to 5600K ±300K and, depending on settings, controllable brightness from 10 to 100%. Settings and other adjustments can be made on the light itself through the control panel or on an included wireless remote that works at distances up to 65.6'.The LED500LR is rated for output up to 2900 lux at 4200K and 1450 lux at both 3300 and 5600K at 3.3', drawing a maximum of 32W of power during use. The light has a built-in filter slot for light manipulation and also comes with a handle for handheld use. Power for the panel comes from either two Sony L-series batteries (not included) or via the included DC power adapter. -
- Portable LED panel outputs up to 32W of power, rated for 2900 lux at 4200K and 1450 lux at both 3300 and 5600K at 3.3'
- Color temperature of 3300 to 5600K ±300K
- Brightness can be dimmed from 10 to 100% depending on settings

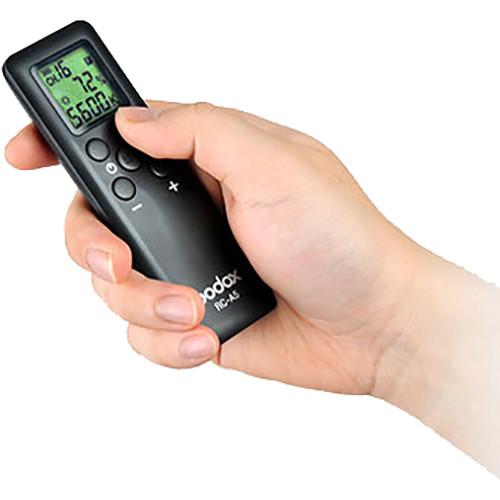

- Remote control allows for easy wireless adjustments, runs on two AAA batteries and works up to 65.6' away
- 433 MHz wireless system with 16 channels in 6 groups

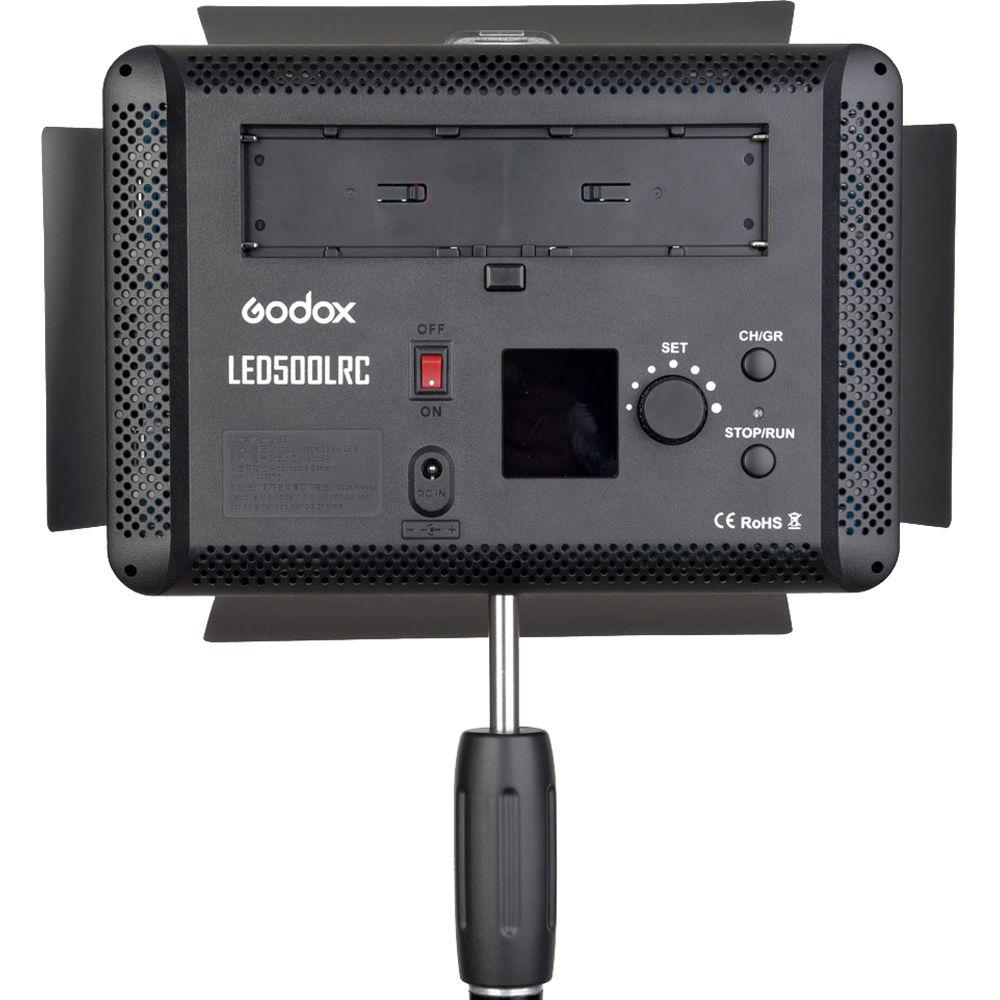

- On-board control via dial and two buttons, with an LCD screen for viewing settings

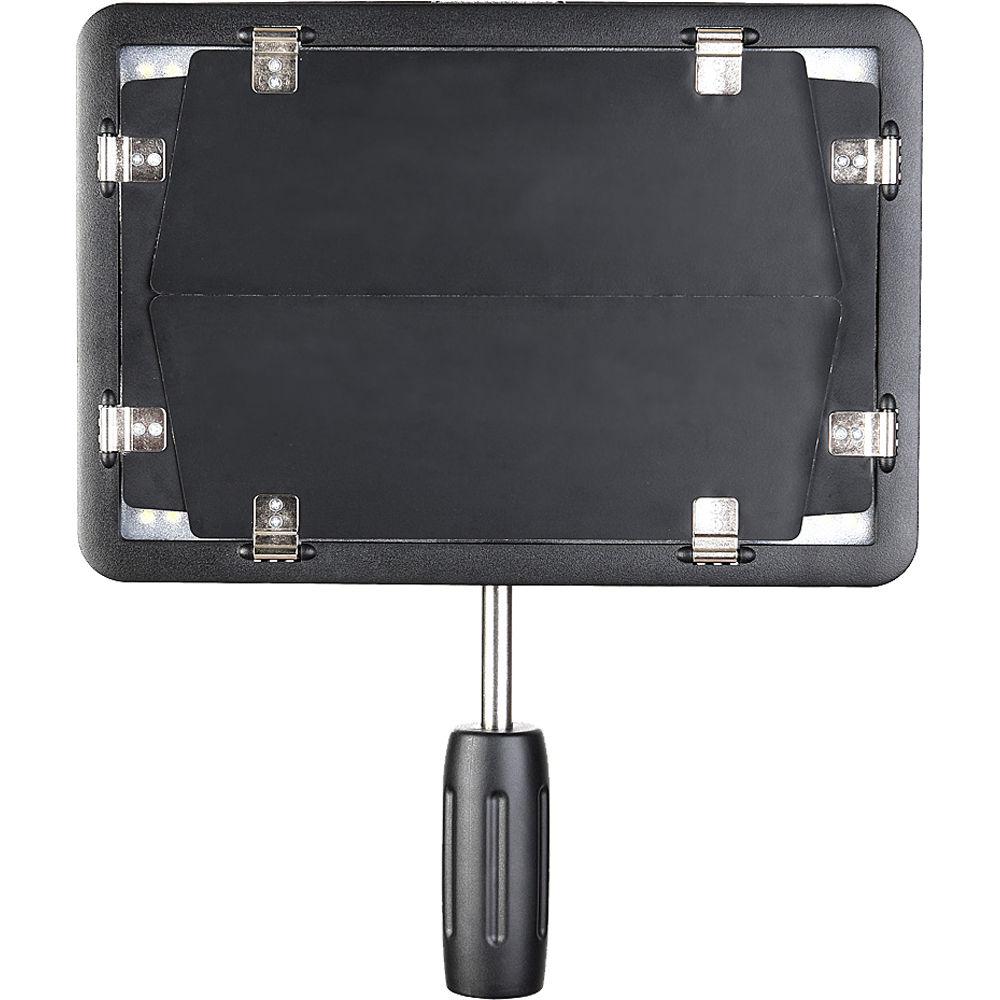

- Built-in filter slot for use with included diffusion filter
- AC adapter included for wired use with a power outlet

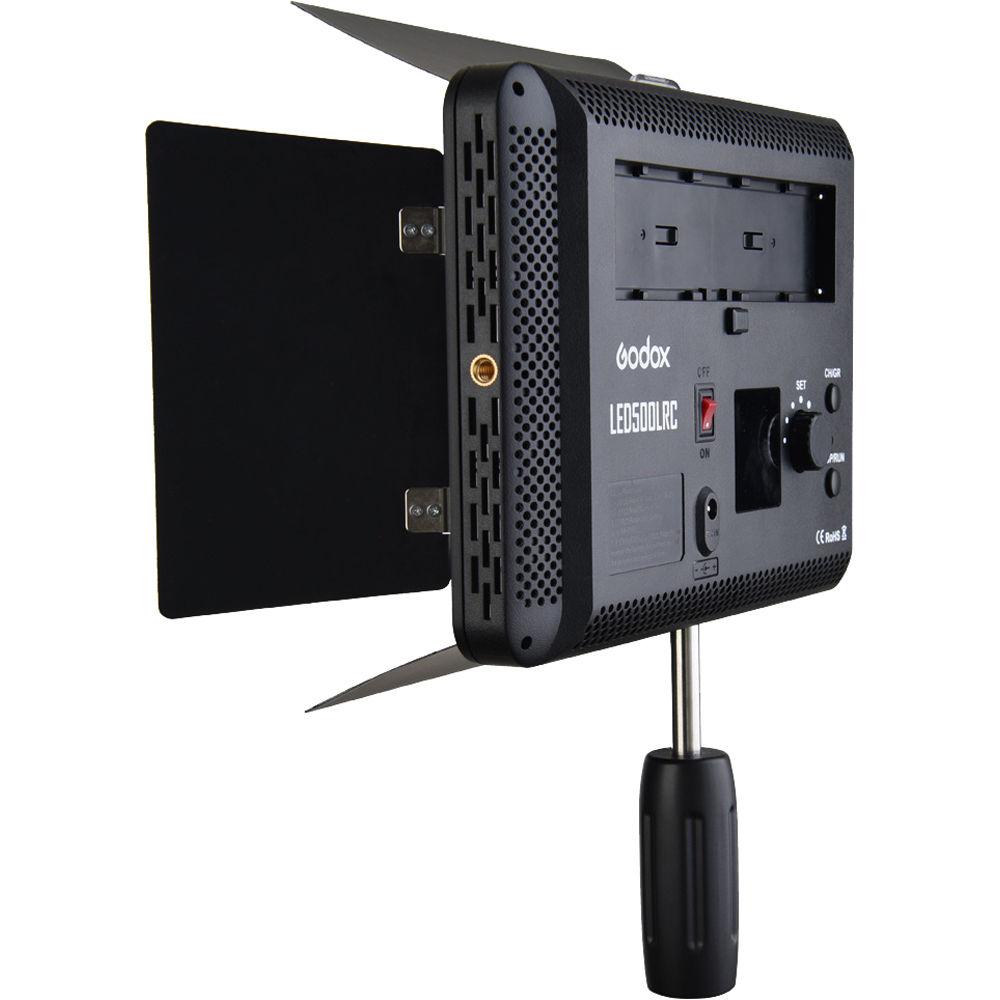

- Battery plate accepts two optional Sony L-series batteries, ideal for portable operation
In the Box Godox LED500LR Video Light (Bi-Color) Remote Control Power Adapter Diffusion Filter Handle Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox LED500LR Video Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox LED500LR Specs | | | Color Temperature | 3300 to 5600K ± 300K | | Dimming | Yes, 10 to 100% | | Display | LCD | | Number of LEDs | 252 (Daylight)
252 (Tungsten) | | Fixture Dimensions | Overall: 9.8 x 6.7 x 1.8" / 250.0 x 170.0 x 45.0 mm | | Fixture Weight | 1.36 lb / 620 g | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | Power Input Connector | Barrel | | | | Fixture Mount | None | | Mount via Included Adapter | 5/8" Receiver | | | | Remote Control Type | Proprietary Wireless | | Wireless Range | 65.6' / 20 m | | Wireless Channels / Groups | 16 / 6 | | | | DC Input Power | 13 to 16.8 VDC | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | | | Package Weight | 3.065 lb | | Box Dimensions (LxWxH) | 11.65 x 10.85 x 2.2" |
