User Manual for Godox QS600II Flash Head Click to enlarge the picture
Contents of the user manual for the Godox QS600II Flash Head
- Product category: Monolights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox Monolights
 |
User manual for the Godox QS600II Flash Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

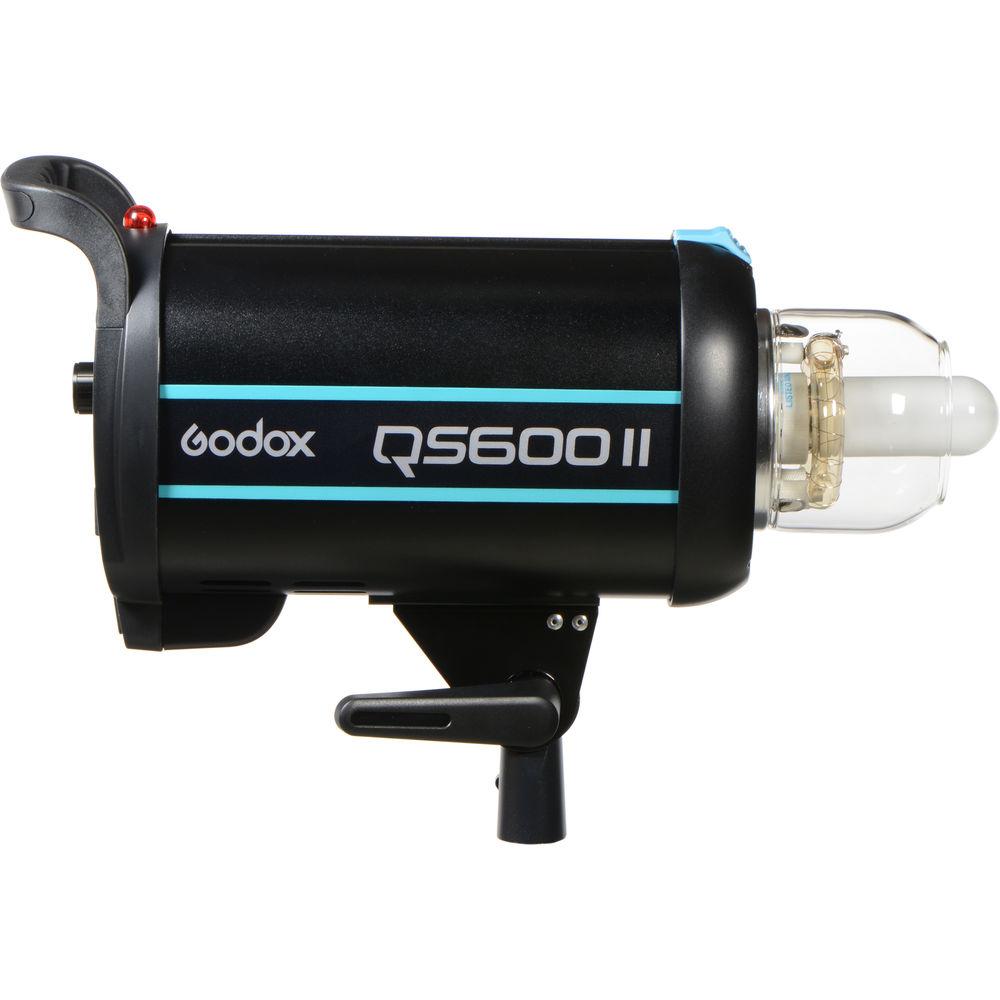

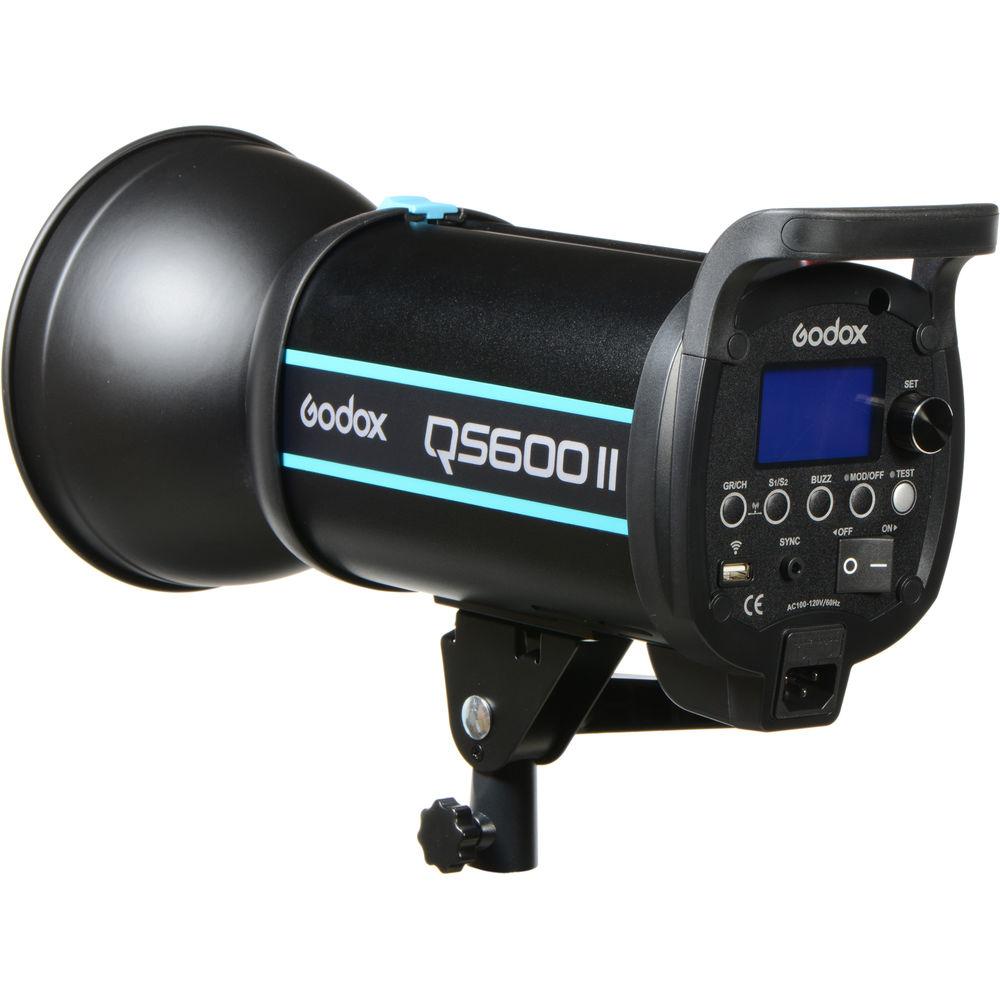

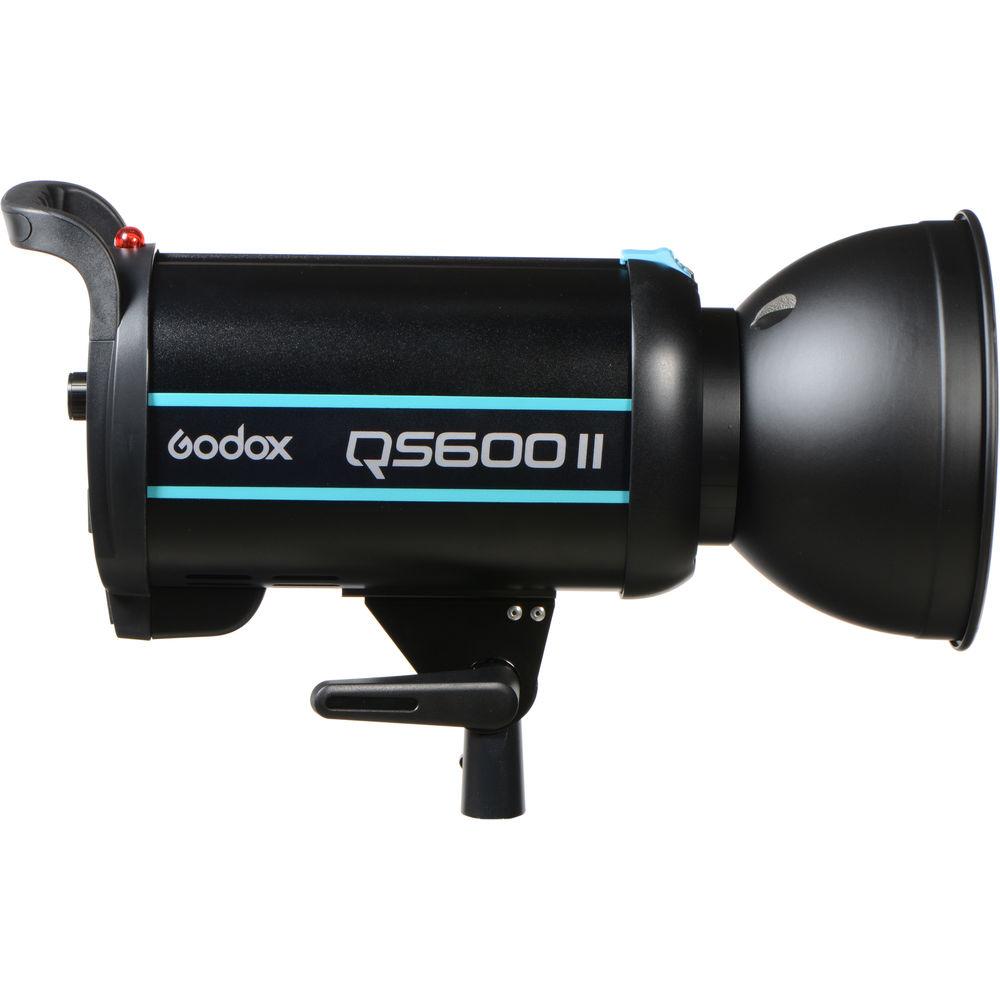

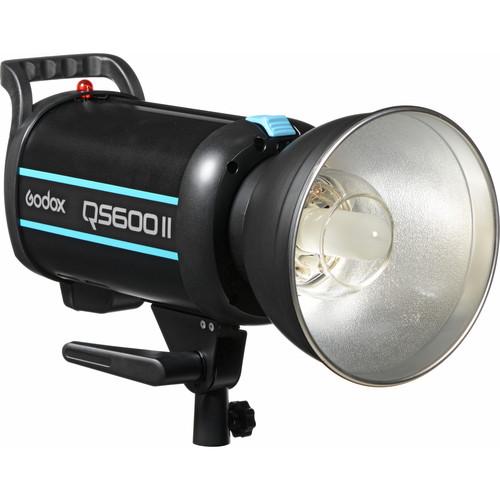

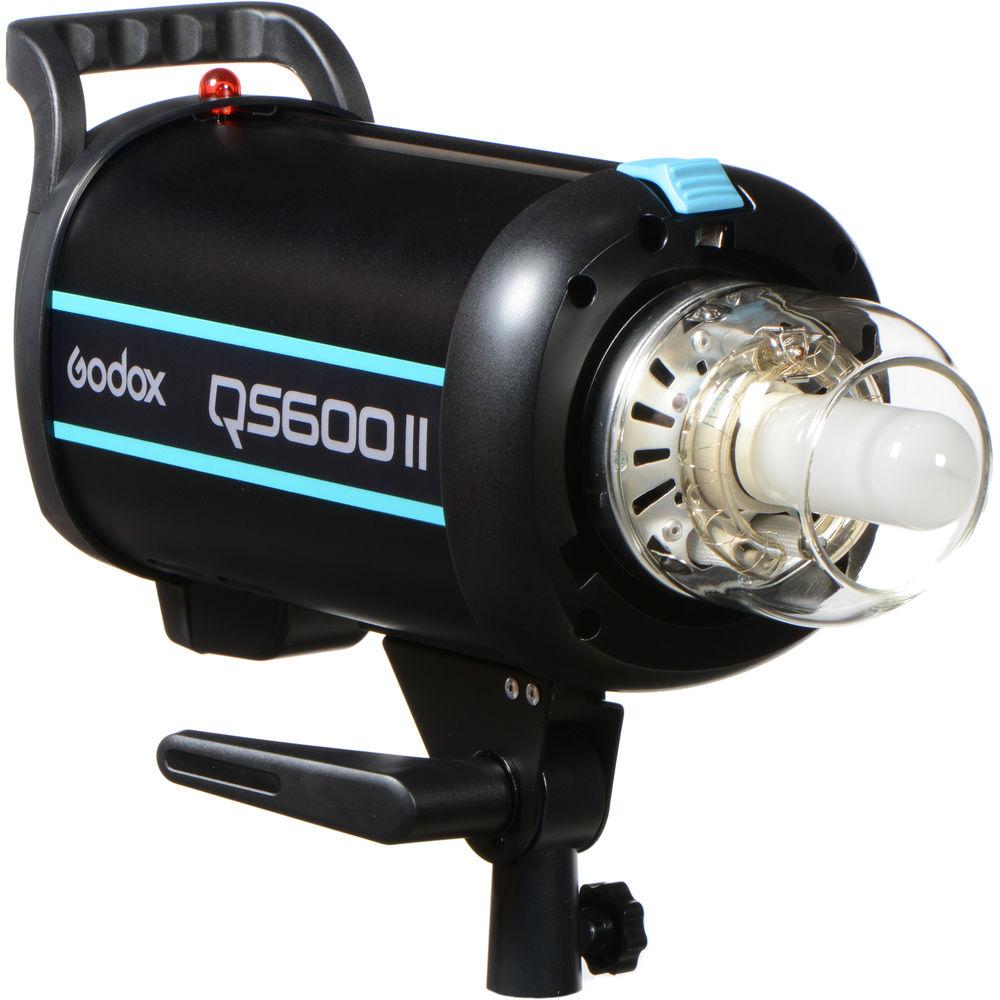

Product description Feature-Rich and Affordable: The Godox QSII-Series Flashes Read More sscauxxdtcvczffdcexarbu With a guide number of 249', the QS600II Flash Head from Godox is a 5600K daylight-balanced flash source with sophisticated core and convenience features at an affordable price point. The head features 0.3-1.5 sec. recycling with flash durations as short as 1/2000 sec. Power is variable from 1/32 to full power, adjustable in 50 steps, while the 150W modeling light has a Proportional mode to aid in light placement and a Percentage mode that adjusts brightness from 5 to 100%. Settings are accessed via rear panel push buttons and displayed on the easy-to-read LCD screen. Triggering options include sync cord, test button, and slave triggering. The QS600II has a built-in 32-channel X1 radio system, making wireless function control possible with separate purchase of the XT16, FT16 or X1 transmitter. The head also has an anti-pre-flash function that makes it easy to work with point-and-shoot and other cameras that employ pre-flash. The QS600II weighs in at 6.4 lb, making it easy to assemble a kit with 2 or more heads without having to lug a heavy case around. The QS600II has a Bowens front accessory mount allowing it to use Godox modifiers as well as accessories from the many manufacturers that use this system. The head has a tilting stand mount and runs on 100 to 120 VAC mains power. - Built-In 2.4 GHz Wireless X System
- Use TTL wireless trigger X1 as well as power remotes XT16 or FT16 to wirelessly control the head's power, modeling light, triggering, and more. The system has 32 radio channels and 16 groups.
- Fast Recycling and Flash Duration
- The QSII series features 0.3 to 1.5 sec recycling and 1/800 to 1/2000 sec flash durations.
- Precise Power Adjustment
-
- Power can be adjusted from 1/32 to 1/1 (6 stops) in 50 steps in 0.1 increments
- The 150 W modeling light has 3 modes: Off, Proportional, and Percentage (5 to 100%)
- Slave Trigger Modes
- The flash head has Off, S1, and S2 slave trigger modes. The head can sync with cameras that fire one pre-flash.

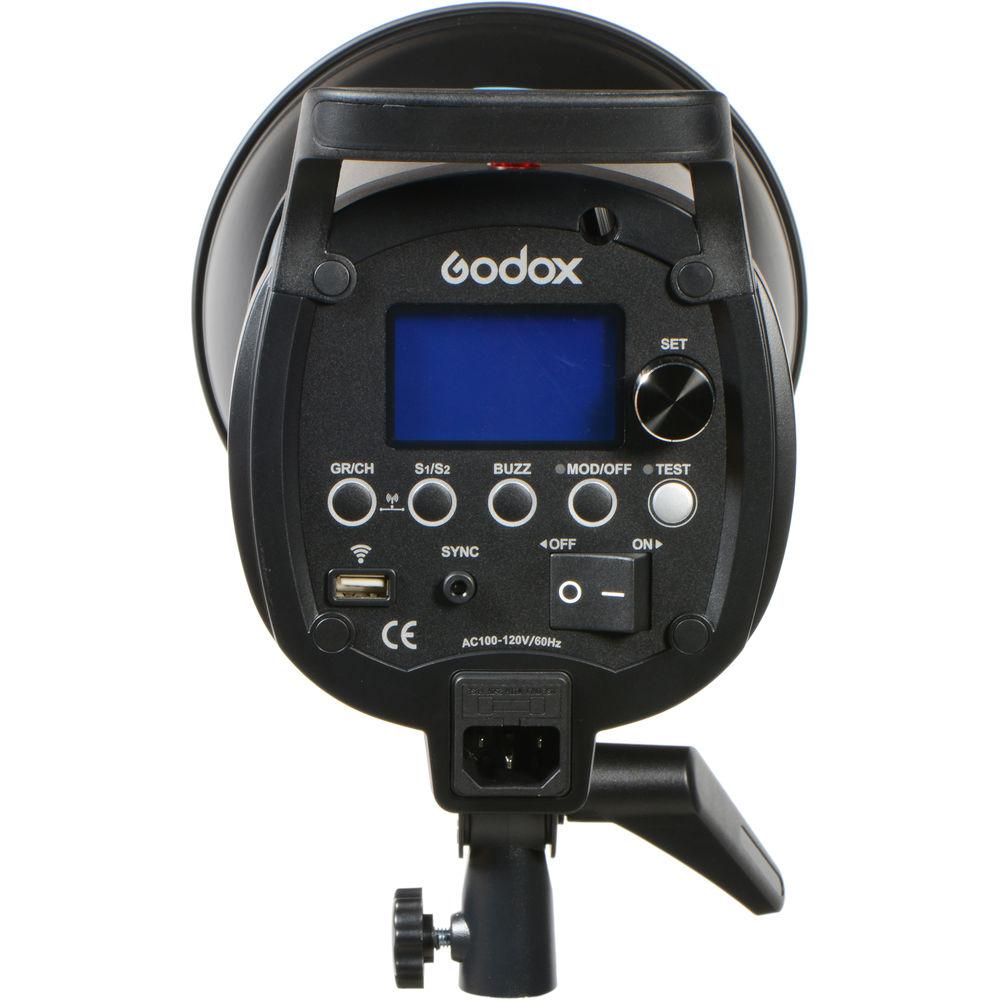

- Easy Operation
-
- Keyboard and multi-function buttons
- Easily read LCD screen displays settings and functions
- Safe and Reliable
- Glass flash tube and modeling light cover and precise power isolation.
In the Box Godox QS600II Flash Head Limited 1-Year Warranty User Manual PDF 4.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox QS600II Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox QS600II Specs | | | Maximum Power | 600 Ws | | Power Control | 6 Stops in 1/10-Stop Increments | | Guide Number | 249' / 76 m at ISO100 with Reflector | | Flash Duration | 1/2000 to 1/800 Sec | | Recycle Time | 0.3 to 1.5 Sec () | | Color Temperature | 5600K ± 200K | | Flash Ready Indicator | Audio | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 150 W | | Control Modes | Free Set, Off, Proportional | | | | Sync Type | Button, Cable, Optical, Radio | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 32 / 16 | | | | AC Input Voltage | 100to120 VAC, 60 Hz | | Fuse | 8 A | | | | Display | None | | Fan Cooled | No | | Dimensions | H: 10.2 x W: 5.5 x L: 20.1" / H: 26.0 x W: 14.0 x L: 51.1 cm, Including Cap and Handle | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 10.9 lb | | Box Dimensions (LxWxH) | 18.7 x 10.9 x 8.9" |
