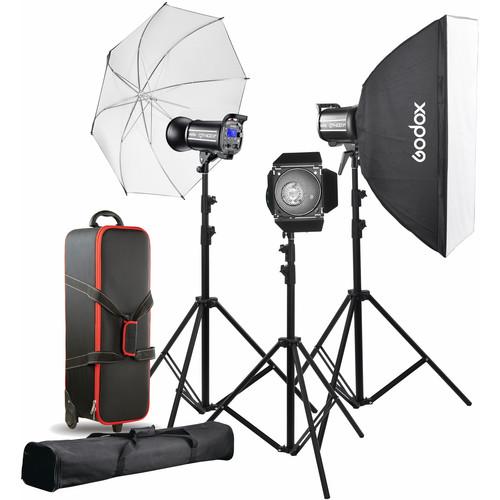

Godox QT400II 3-Light Studio Flash Kit

User Manual for Godox QT400II 3-Light Studio Flash Kit

• Product category: Monolights Godox
• Brand: Godox
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Godox Monolights

Product description

• QT400IIM Flash Head Built for speed, the QT400IIM Flash Head from Godox is a 5600K daylight-balanced flash source with sophisticated core and convenience features and the kind of technology and flexibility that is the hallmark of advanced equipment. The head features 0.05-0.7 sec recycling with flash durations as short as 1/22,988 sec. The QT400IIM offers power that's variable from 1/128 to full power, while the 150W modeling light's output is variable as well. Settings are accessed via rear panel push buttons and displayed on the easy-to-read LCD screen. The head has several flash modes for performance options. Ideal for most shooting situations, Stable Color Mode prioritizes precise 5600K color rendition. High-Speed Mode favors short t0.1 flash durations for ultra-sharp capture of peak action in sports or for creative studio work like freezing splashes or water droplets. The QT400IIM also supports High-Speed Sync enabling the use of shutter speeds as short as 1/8000 sec allowing you to use wider apertures and other creative effects.The QT400IIM has built-in 2.4 GHz 32-channel wireless X technology. Using an optional XT16, FT16, XT32, or X1 transmitter you can control selection of HSS and High-Speed modes, modeling light modes, remote triggering and more at distances up to 164'. The head also has S1/S2 slave triggering that makes it easy to work cameras that employ pre-flash. The QT400IIM weighs in at 6.5 lb, making it possible to assemble a kit with 2 or more heads without having to lug a heavy case around. The QT400IIM has a Bowens front accessory mount allowing it to use Godox modifiers as well as accessories from the many manufacturers that use this system. The head has a tilting stand mount and runs on 100 to 120 VAC mains power.
  Multiple Flash Modes and Precise Color Temperature
  • Stable Color Mode maintains color temperature at 5600K (+/-200K). Ideal choice for standard photography
  • High-Speed Flash Mode favors short flash durations over color fidelity which ranges from 5400 to 9000K
  • High-Speed Sync Mode allows you to shoot at sync speeds as short as 1/8000 sec for wide aperture use or creative effects
  Fast Recycling and Short Flash Durations
  • Fast recycling and short flash durations make sure you freeze action without missing the peak moment
  Built-in 2.4 GHz Wireless X System
  • Use a Godox transmitter to control the head's power, modeling light, triggering and more. The system has 32 radio channels and 16 groups.
  Precise Power Adjustment
  • Power can be adjusted from 1/128 to 1/1
  Slave Trigger Modes
  • The flash head has S1 and S2 slave trigger modes.
  Easy Operation
  • Keyboard and multi-function buttons
  • Easily read LCD screen displays settings and functions
• XTR16 Wireless Power-Control Flash Trigger Transmitter The brain of the Godox wireless power control system, the shoe-mounted XT16 Wireless Power-Control Flash Trigger Transmitter provides remote triggering as well as up to eight stops of wireless power control for select flashes equipped with the XTR16 receiver. It features a reliable 2.4 GHz radio system with an impressive range of 328' along with a choice of 16 channels. Users can sync at speeds up to 1/250 second and there are multiple power control settings for working with speedlights or studio flashes. Additionally, it runs on two easy-to-find AA batteries.
  Compatible Flashes
  • Godox: Wistro, Quicker, Quicker D, QT, QS, Gemini GT, Gemini GS, DE, and DP series
• Reflector Umbrella (33", Black/White) This 33" diameter Reflector Umbrella from Godox is a simple light modifier that is well suited for portrait shots and product photography. It is black on the outside and white on the inside.
• CB-06 Hard Carrying Case with Wheels With dimensions of 37.0 x 13.4 x 9.8", the CB-06 Hard Carrying Case with Wheels from Godox can hold a three-light kit with accessories, making it ideal for Gemini GT and GS series equipment. It has a similar design to that of travel suitcases, with inline skate wheels and a top handle that allow you to easily roll the bag along in smooth surfaces. For short distances, straps on each side of the bag can be connected via a detachable grip for simple hand carrying.The case offers a spacious main compartment for holding most of the equipment, which closes via zippers to ensure everything stays safely inside. It features a zippered pocket on the interior of the lid for small accessories, as well as an external pocket that gives you easy access to everyday items. Finally, a clear window on the front of the bag allows you to insert a tag with your name or phone number for easy identification when travelling.
  • • Hard case with dimensions of 37.0 x 13.4 x 9.8", can hold a three-light kit
    • Designed for the Gemini GT and GS series lights
    • Spacious main compartment with zipper closure
    • Zippered pocket on the interior of the lid for small accessories
    • External pocket with flap for holding everyday items that need quick and easy access
    • Top handle and two inline wheels allow you to easily roll the bag during travel
    • Carrying straps on either side connect via a grip for short-distance transport
    • Clear window on bag exterior allows you to insert a name or phone tag in case it gets lost
• CB-03 Light Stand and Tripod Carrying Bag (Black, 40.9") Store, transport, and protect photo gear under 40.9" long with the black CB-03 Light Stand and Tripod Carrying Bag from Godox. The bag features zipper closure, dual, connecting top strap handles, and nylon construction.

• Standard Reflector

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Softbox: 31.5 x 47.2"
• 3 x Light Stands
• Barndoor Set
• Standard Reflector
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• QT400IIM Flash Head

  Maximum Power	400 Ws
  Guide Number	213' / 65 m at ISO100 with Reflector
  Flash Duration	t.1: 1/22,988 to 1/192 Sec
  Recycle Time	0.05 to 0.7 Sec ()
  Color Temperature	5600K ± 200K
  Flash Ready Indicator	Audio
  Reflector	Changeable
  Accessory Fitting Type	Bowens S Type

  Type	Tungsten
  Wattage	150 W

  Sync Type	Button, Cable, Radio
  Sync Speed	1/1/8000 Sec (High-Speed)
  Wireless Frequency Bands	2.4 GHz
  Wireless Channels / Groups	32 / 16
  Wireless Range	164' / 50 m (Radio)
  Interface	1/4" Sync
  Delay Range	0.01 to 30 Sec

  AC Input Voltage	110 VAC, 60 Hz

  Display	LCD
  Fan Cooled	Yes
  Dimensions	H: 9.0 x W: 5.5 x L: 16.0" / H: 23.0 x W: 14.0 x L: 41.0 cm, Including Cap and Handle
  Weight	6.5 lb / 2.96 kg

  Box Dimensions (LxWxH)	18.7 x 10.8 x 8.8"

• XTR16 Wireless Power-Control Flash Trigger Transmitter

  Channels	16
  Wireless Range	328' / 100 m
  Radio Frequency	2.4 GHz

  Sync Speed	1/250 Sec

  Bottom Mount	Hot Foot

  Battery Type	2 x AA

  Dimensions	3.8 x 2 x 1.5" / 97.6 x 49.9 x 37 mm (Transmitter)
  Weight	2.1 oz / 60 g

  Box Dimensions (LxWxH)	8.0 x 5.5 x 2.0"

• Reflector Umbrella (33", Black/White)

  Size	33.0" / 83.8 cm
  Interior	White
  Exterior	Black

  Box Dimensions (LxWxH)	15.0 x 3.0 x 3.0"

• CB-06 Hard Carrying Case with Wheels

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap 1 x Top Handle
  Casters	2
  Exterior Dimensions (W x H x D)	37 x 13.4 x 9.8" / 94 x 34 x 25 cm

  Box Dimensions (LxWxH)	41.0 x 16.0 x 13.0"

• CB-03 Light Stand and Tripod Carrying Bag (Black, 40.9")

  Material	Nylon
  Type of Closure	Zipper
  Carrying/Transport Options	Dual, connecting top strap handles
  Dimensions	40.9 x 7.5 x 5.9" / 104.0 x 19.0 x 15.0 cm
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	8.0 x 4.7 x 0.2"
