User Manual for Godox QT400IIM Flash Head Click to enlarge the picture
Contents of the user manual for the Godox QT400IIM Flash Head
- Product category: Monolights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox Monolights
 |
User manual for the Godox QT400IIM Flash Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

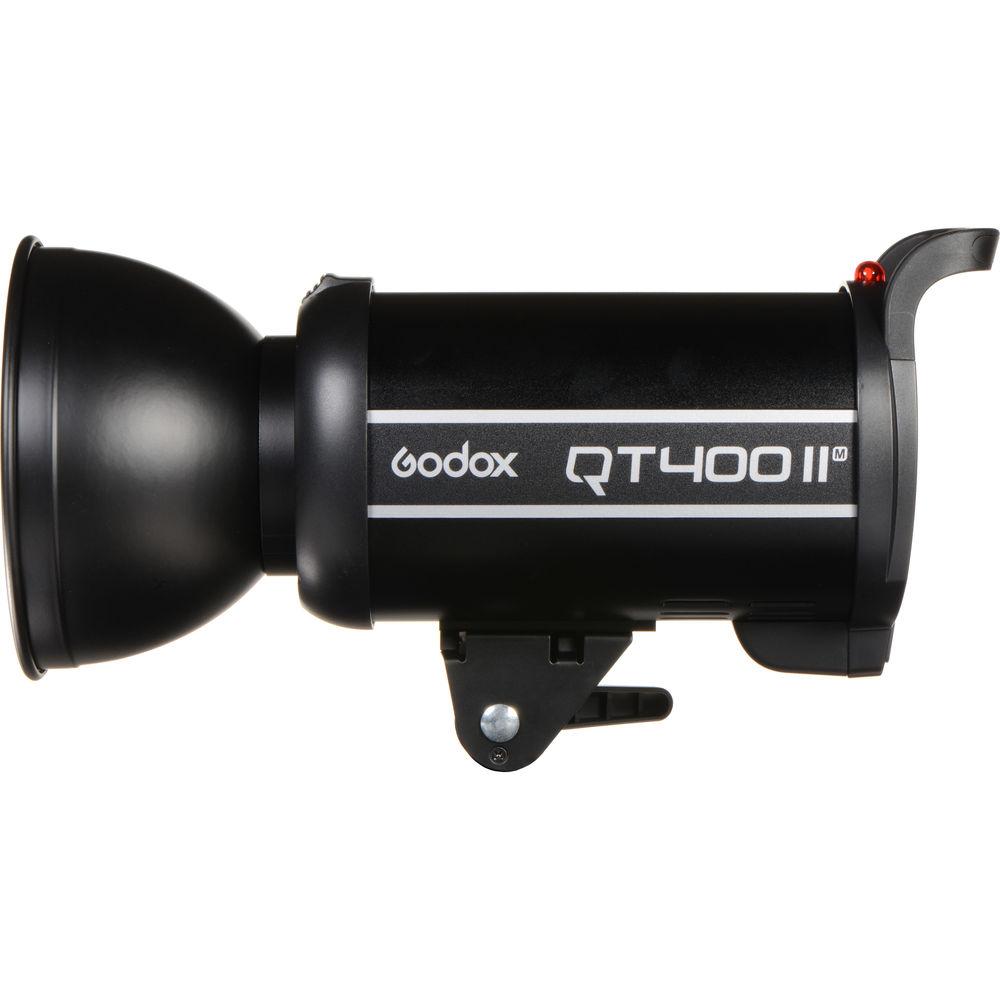

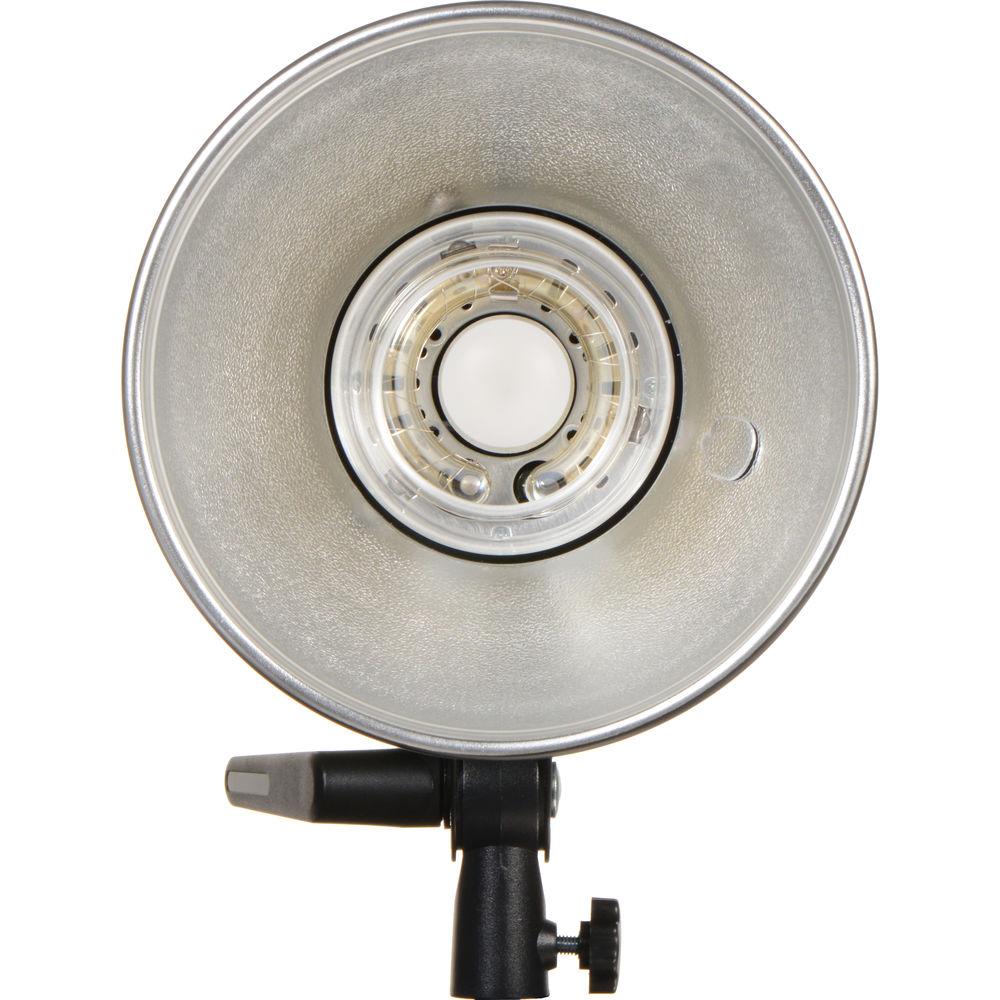

Product description Built for speed, the QT400IIM Flash Head from Godox is a 5600K daylight-balanced flash source with sophisticated core and convenience features and the kind of technology and flexibility that is the hallmark of advanced equipment. The head features 0.05-0.7 sec recycling with flash durations as short as 1/22,988 sec. The QT400IIM offers power that's variable from 1/128 to full power, while the 150W modeling light's output is variable as well. Settings are accessed via rear panel push buttons and displayed on the easy-to-read LCD screen. The head has several flash modes for performance options. Ideal for most shooting situations, Stable Color Mode prioritizes precise 5600K color rendition. High-Speed Mode favors short t0.1 flash durations for ultra-sharp capture of peak action in sports or for creative studio work like freezing splashes or water droplets. The QT400IIM also supports High-Speed Sync enabling the use of shutter speeds as short as 1/8000 sec allowing you to use wider apertures and other creative effects.The QT400IIM has built-in 2.4 GHz 32-channel wireless X technology. Using an optional XT16, FT16, XT32, or X1 transmitter you can control selection of HSS and High-Speed modes, modeling light modes, remote triggering and more at distances up to 164'. The head also has S1/S2 slave triggering that makes it easy to work cameras that employ pre-flash. The QT400IIM weighs in at 6.5 lb, making it possible to assemble a kit with 2 or more heads without having to lug a heavy case around. The QT400IIM has a Bowens front accessory mount allowing it to use Godox modifiers as well as accessories from the many manufacturers that use this system. The head has a tilting stand mount and runs on 100 to 120 VAC mains power. - Multiple Flash Modes and Precise Color Temperature
-
- Stable Color Mode maintains color temperature at 5600K (+/-200K). Ideal choice for standard photography
- High-Speed Flash Mode favors short flash durations over color fidelity which ranges from 5400 to 9000K
- High-Speed Sync Mode allows you to shoot at sync speeds as short as 1/8000 sec for wide aperture use or creative effects
- Fast Recycling and Short Flash Durations
- Fast recycling and short flash durations make sure you freeze action without missing the peak moment
- Built-in 2.4 GHz Wireless X System
- Use a Godox transmitter to control the head's power, modeling light, triggering and more. The system has 32 radio channels and 16 groups.
- Precise Power Adjustment
- Power can be adjusted from 1/128 to 1/1
- Slave Trigger Modes
- The flash head has S1 and S2 slave trigger modes.

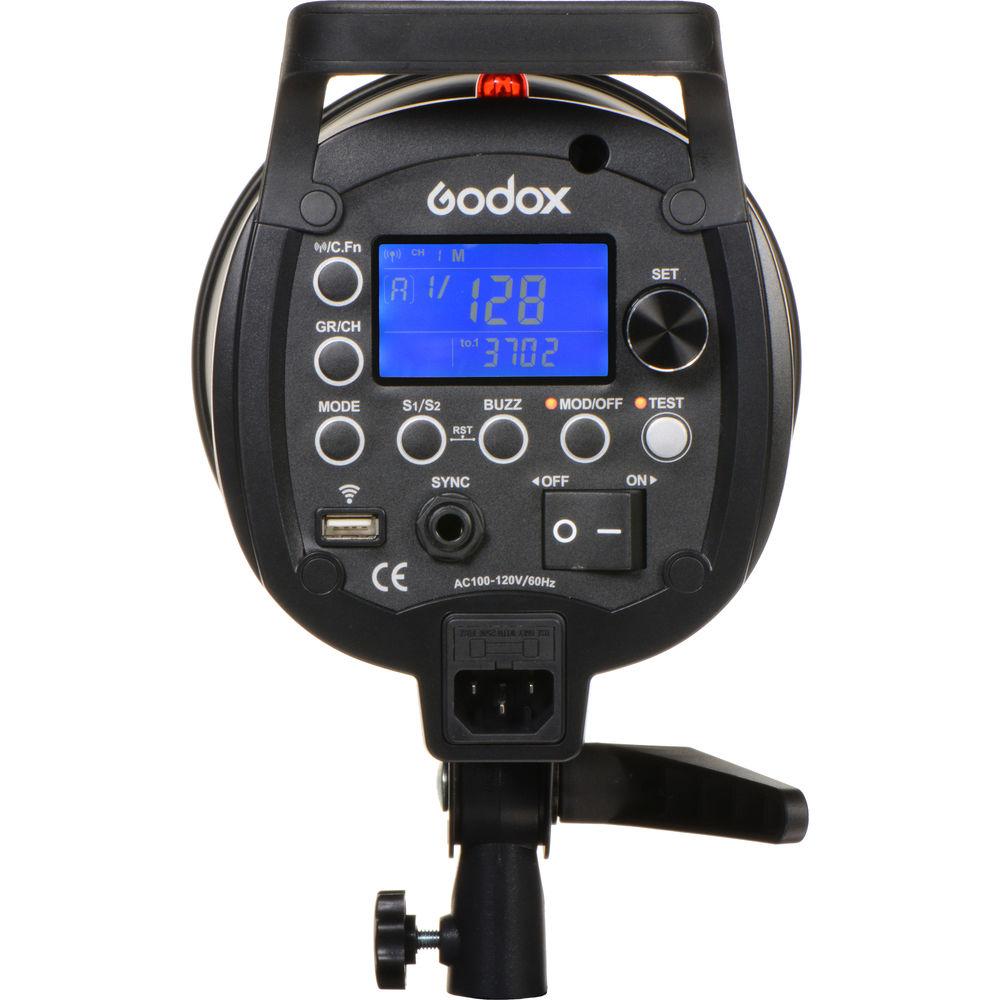

- Easy Operation
-
- Keyboard and multi-function buttons
- Easily read LCD screen displays settings and functions
In the Box Godox QT400IIM Flash Head Standard Reflector Limited 1-Year Warranty User Manual PDF 6.3mbvquzwsrtwwzwyredudvr Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox QT400IIM Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox QT400IIM Specs | | | Maximum Power | 400 Ws | | Guide Number | 213' / 65 m at ISO100 with Reflector | | Flash Duration | t.1: 1/22,988 to 1/192 Sec | | Recycle Time | 0.05 to 0.7 Sec () | | Color Temperature | 5600K ± 200K | | Flash Ready Indicator | Audio | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 150 W | | | | Sync Type | Button, Cable, Radio | | Sync Speed | 1/1/8000 Sec (High-Speed) | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 32 / 16 | | Wireless Range | 164' / 50 m (Radio) | | Interface | 1/4" Sync | | Delay Range | 0.01 to 30 Sec | | | | AC Input Voltage | 110 VAC, 60 Hz | | | | Display | LCD | | Fan Cooled | Yes | | Dimensions | H: 9.0 x W: 5.5 x L: 16.0" / H: 23.0 x W: 14.0 x L: 41.0 cm, Including Cap and Handle | | Weight | 6.5 lb / 2.96 kg | | | | Package Weight | 10.55 lb | | Box Dimensions (LxWxH) | 18.7 x 10.8 x 8.8" |
