User Manual for Godox SK400II Studio Strobe Click to enlarge the picture
Contents of the user manual for the Godox SK400II Studio Strobe
- Product category: Monolights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox Monolights
 |
User manual for the Godox SK400II Studio Strobe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

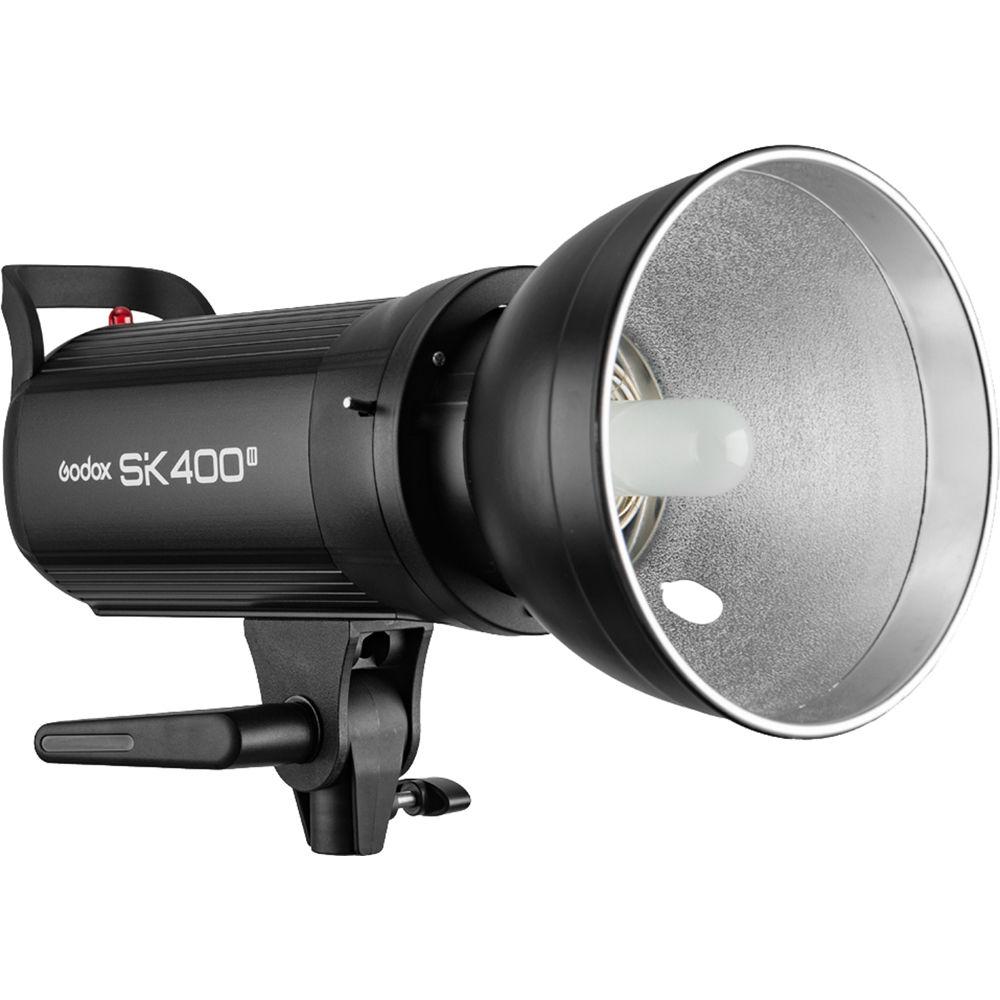

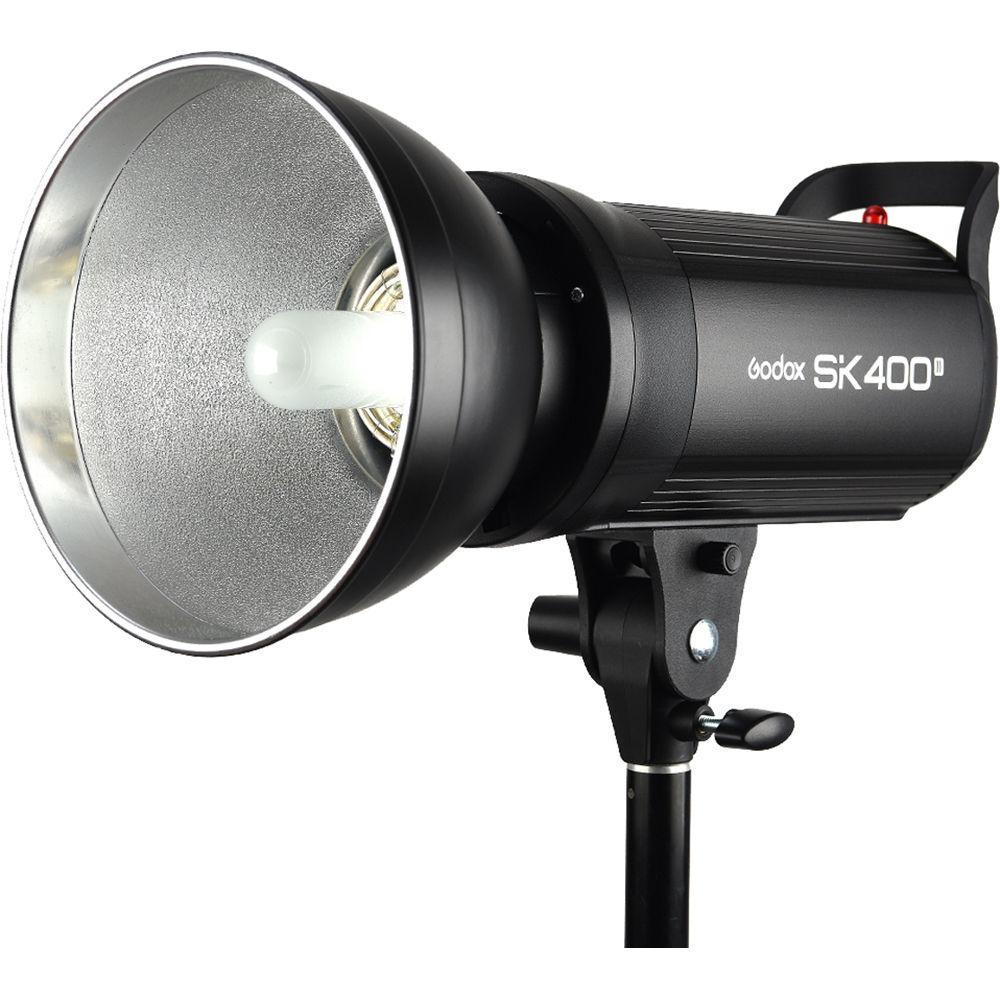

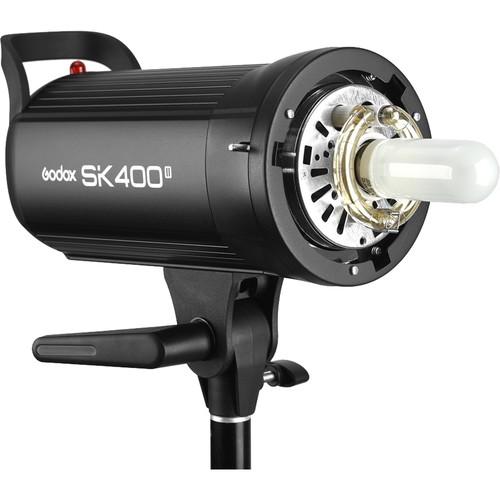

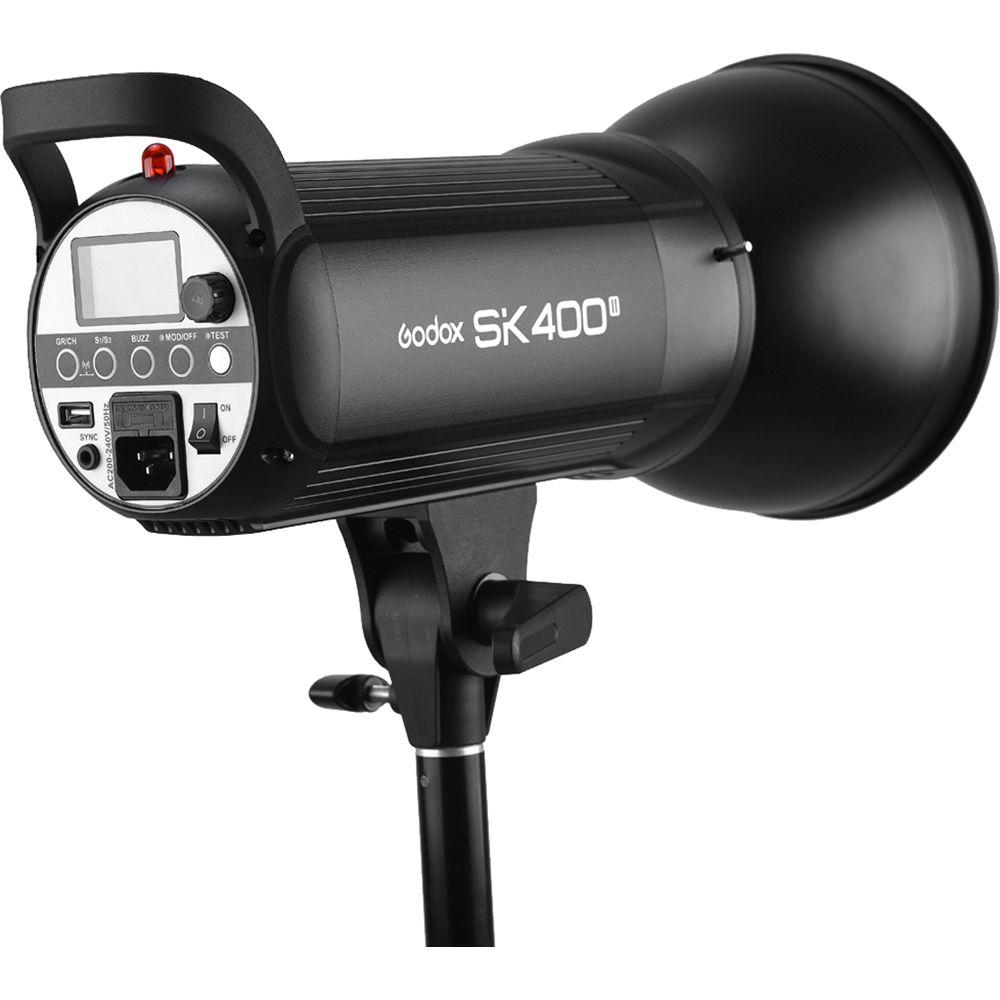

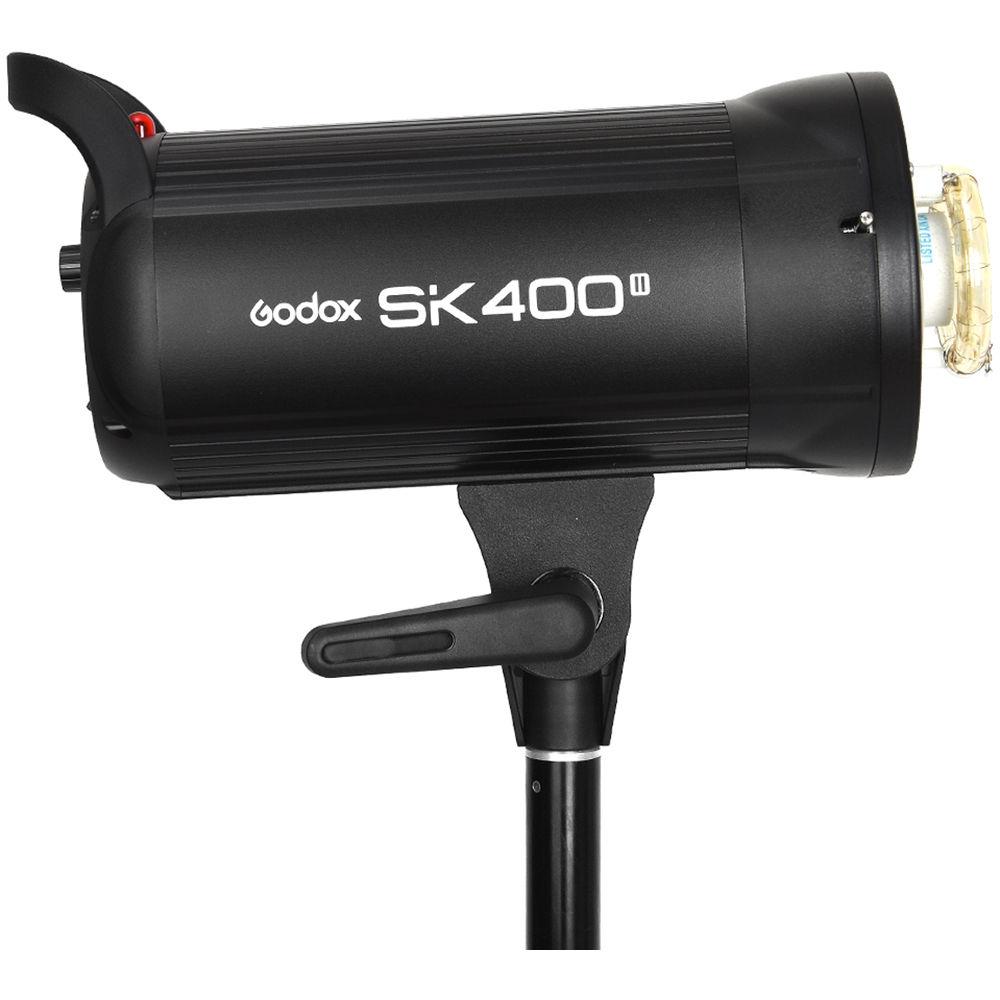

Product description With a guide number of 213, the SK400II Studio Strobe from Godox is a 5600K daylight-balanced flash source that offers solid core and convenience features at a budget-friendly price point. The head features a 0.4-3 sec recycling time with flash durations as short as 1/2000 sec. Power is variable from 1/16 to full power, adjustable in 40 steps, while the 150W modeling light has a Proportional mode to allow you to preview your lighting effects and a Percentage mode that adjusts brightness from 5 to 100%. Settings are accessed via rear panel push buttons and displayed on the easy-to-read LCD screen. Triggering options include sync cord, test button, and slave triggering. The SK400II has a built-in 32-channel X1 radio system, making wireless function control possible with separate purchase of the XT16, FT16 or X1 TTL transmitter. The head also has an anti-pre-flash function that makes it easy to work with point-and-shoot and other cameras that employ pre-flash. The SK400II weighs in at 4.6 lb, encouraging the assembly of a kit with two or more heads without having to lug a heavy case around. The SK400II has a Bowens front accessory mount, allowing it to use Godox modifiers as well as accessories from the many manufacturers that use this system. The head has a tilting stand mount and runs on 100 to 120 VAC mains power. - Built-In 2.4 GHz Wireless X System
- Use TTL wireless trigger X1 as well as power remotes XT16 or FT16 to wirelessly control the head's power, modeling light, triggering, and more. The system has 32 radio channels and 16 groups.
- Fast Recycling and Flash Duration
- The SK400II features 0.4-3 sec recycling and 1/800 to 1/2000 sec flash durations.
- Precise Power Adjustment
- Power can be adjusted from 1/16 to 1/1 in 40 steps. The 150W modeling light has 3 modes: Off, Proportional, and Percentage (5 to 100%)

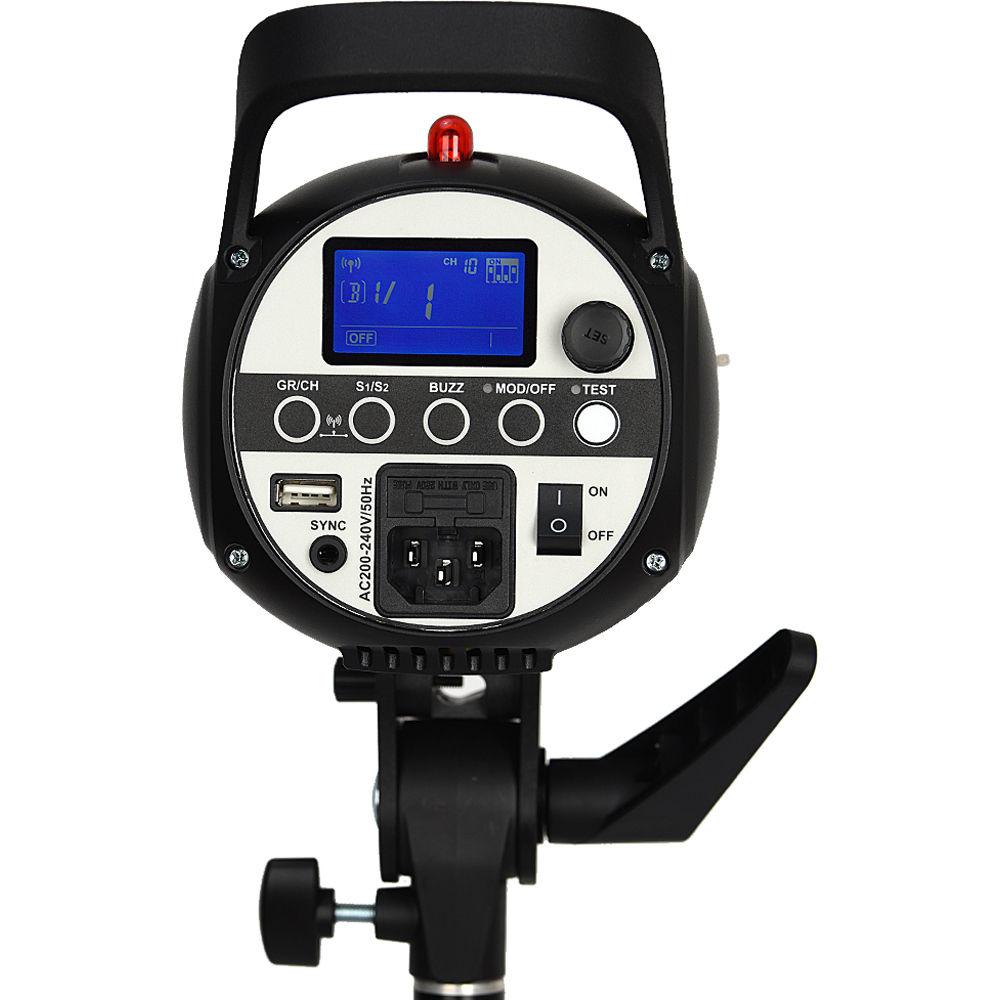

- Interface
- Keyboard and multi-function buttons. The LCD screen displays settings and functions.
In the Box Godox SK400II Studio Strobe Flash Head Power Cable Modeling Lamp Lamp Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox SK400II Studio Strobe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox SK400II Specs | | | Maximum Power | 400 Ws | | Guide Number | 213' / 65 m at ISO100 | | Flash Duration | 1/2000 to 1/800 Sec | | Recycle Time | 0.4 to 3 Sec () | | Color Temperature | 5600K ± 200K | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 150 W | | Control Modes | Free Set, Off, Proportional | | | | Sync Type | Button, Cable, Optical, Radio | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 32 / 16 | | | | AC Input Voltage | 100to120 VAC, 60 Hz | | Fuse | 5 A | | | | Display | LCD | | Fan Cooled | No | | Dimensions | H: 9.1 x W: 5.0 x L: 15.0" / H: 23.2 x W: 12.7 x L: 38.0 cm, Including Handle and Modeling Light | | Weight | 4.6 lb / 2.1 kg | | | | Package Weight | 7.55 lb | | Box Dimensions (LxWxH) | 17.5 x 10.6 x 8.8" |
