User Manual for Godox SL-150 LED Video Light Click to enlarge the picture
Contents of the user manual for the Godox SL-150 LED Video Light
- Product category: LED Lights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox LED Lights
 |
User manual for the Godox SL-150 LED Video Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

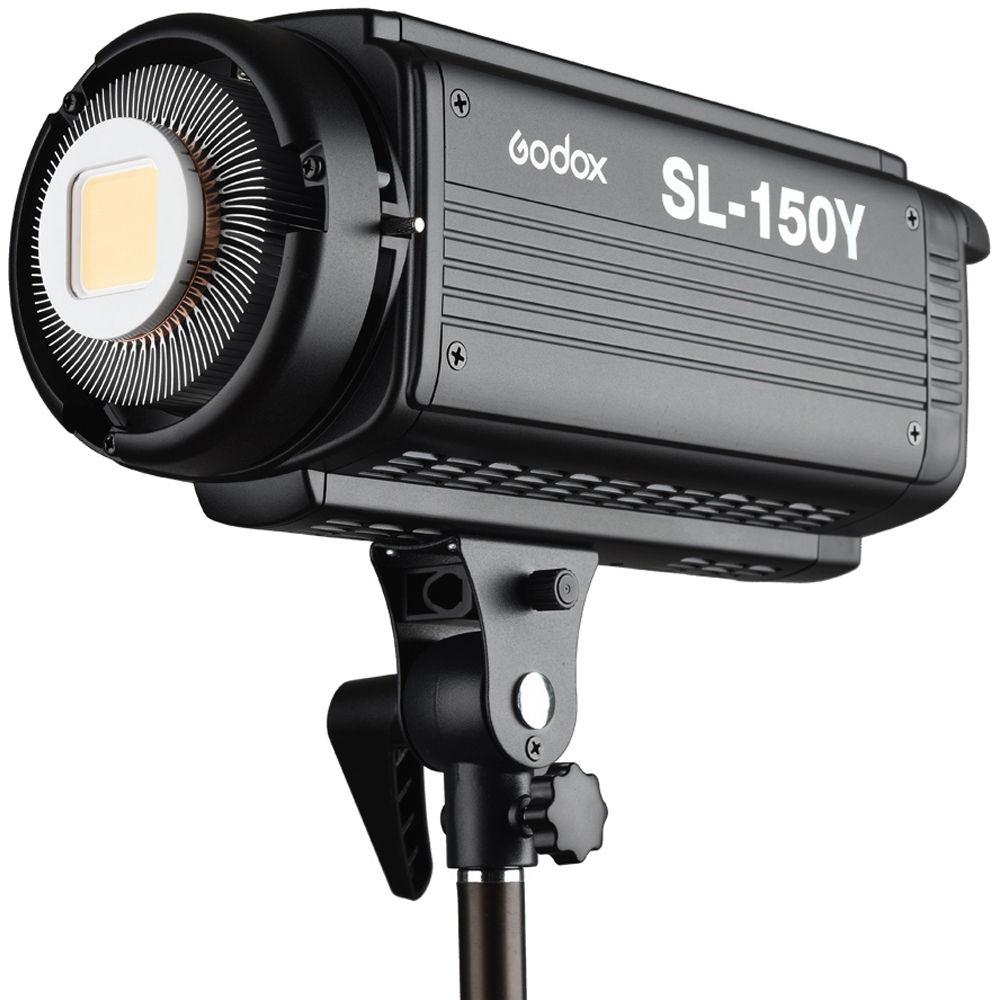

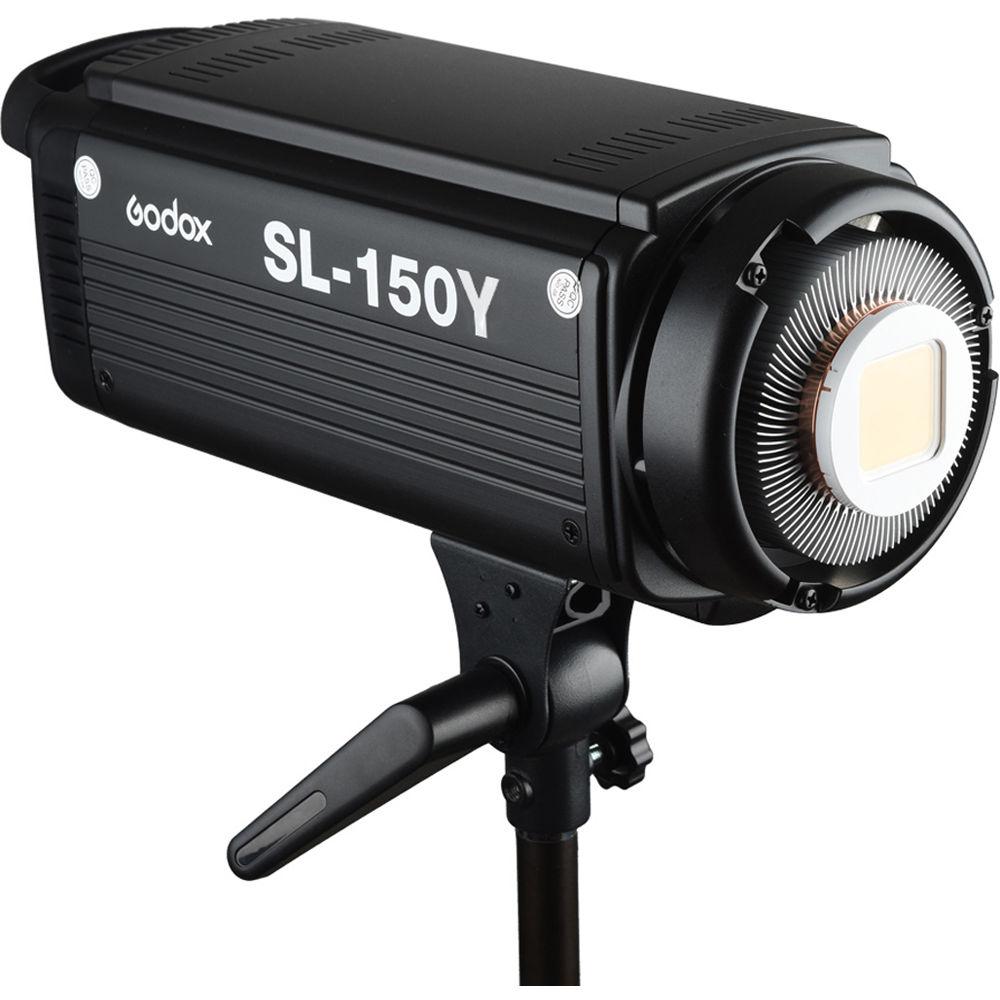

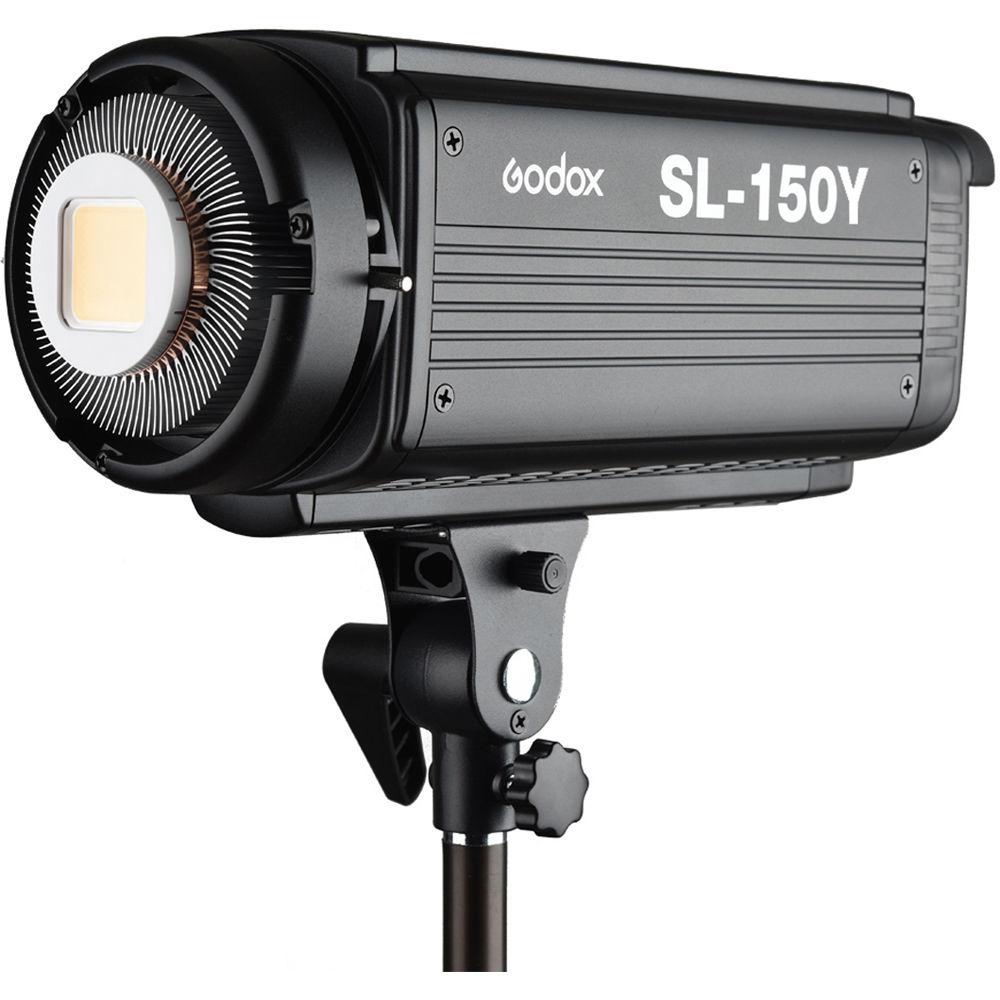

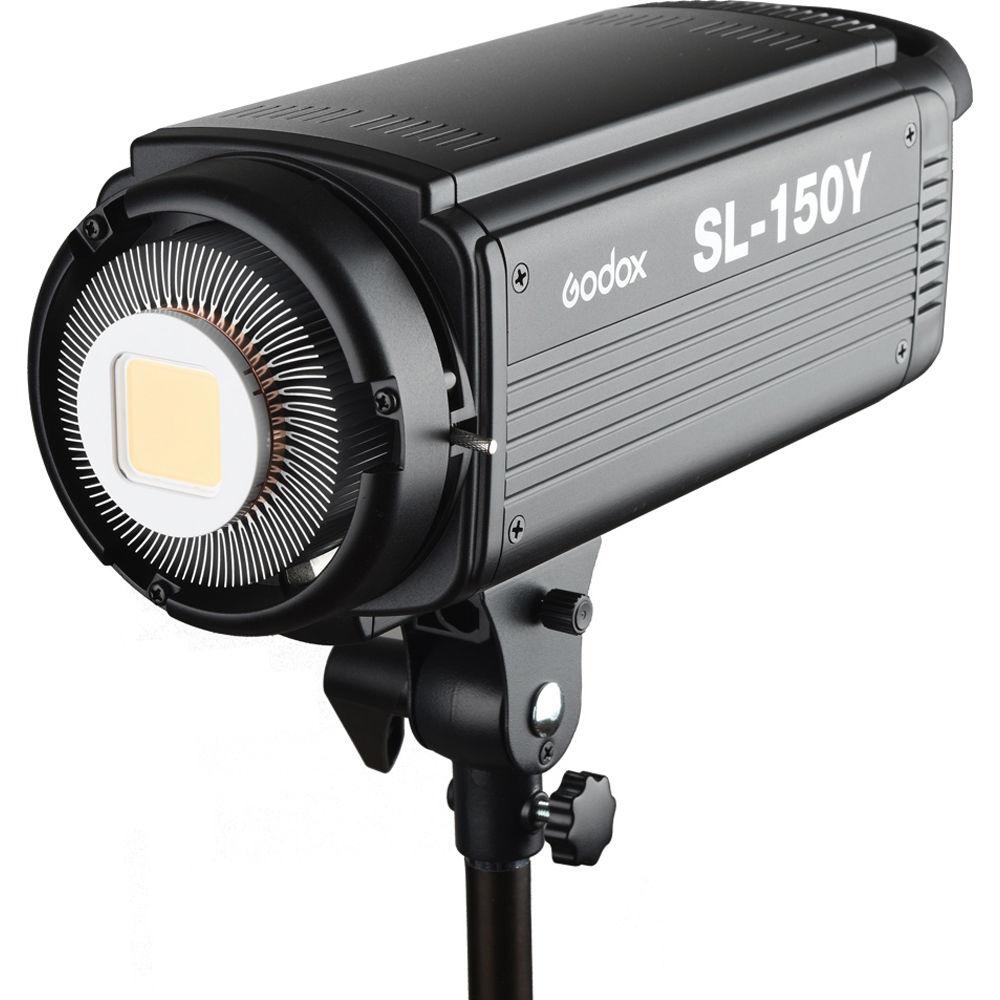

Product description A versatile constant light source well-suited for video work, this SL-150 LED Light from Godox is a tungsten-balanced, 3300K light featuring a COB (chip on board) LED for high brightness and color accuracy. The intuitive design of the light incorporates a rear LCD monitor and dial for 10-100% dimming adjustment, and a dedicated wireless remote is also included for brightness control as well as for grouping lights in multiple light configurations. Also, to help ensure consistent and continuous use, a heatsink and built-in fan are featured to help regulate temperature along with a specialized temperature control function to protect the LED itself. The light is also configured to accept Bowens S-mount light modifiers and accessories, such as the included reflector, and the LED also has a clear cover over it for additional protection. - Tungsten-balanced light has a color temperature of 3300K.
- The 150W COB LED offers a high output along with color-accurate rendering and dimming control from 10-100%.

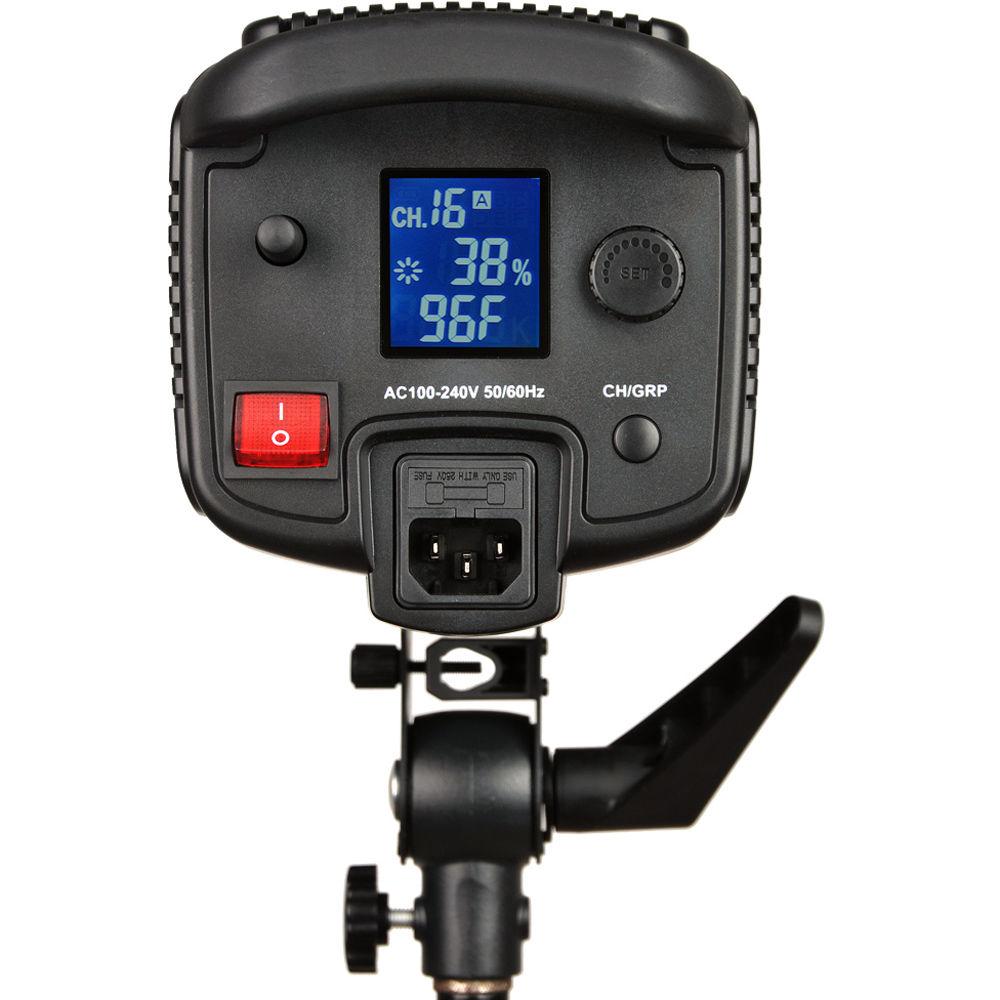

- On-board brightness adjustment is available using the rear dial and LCD.
- Included RC-A5 remote control offers wireless dimming control as well as the ability to work with six lighting groups and 16 channels. This 433 MHz remote runs on three separate AAA batteries and has a wireless range of approximately 65.6'.

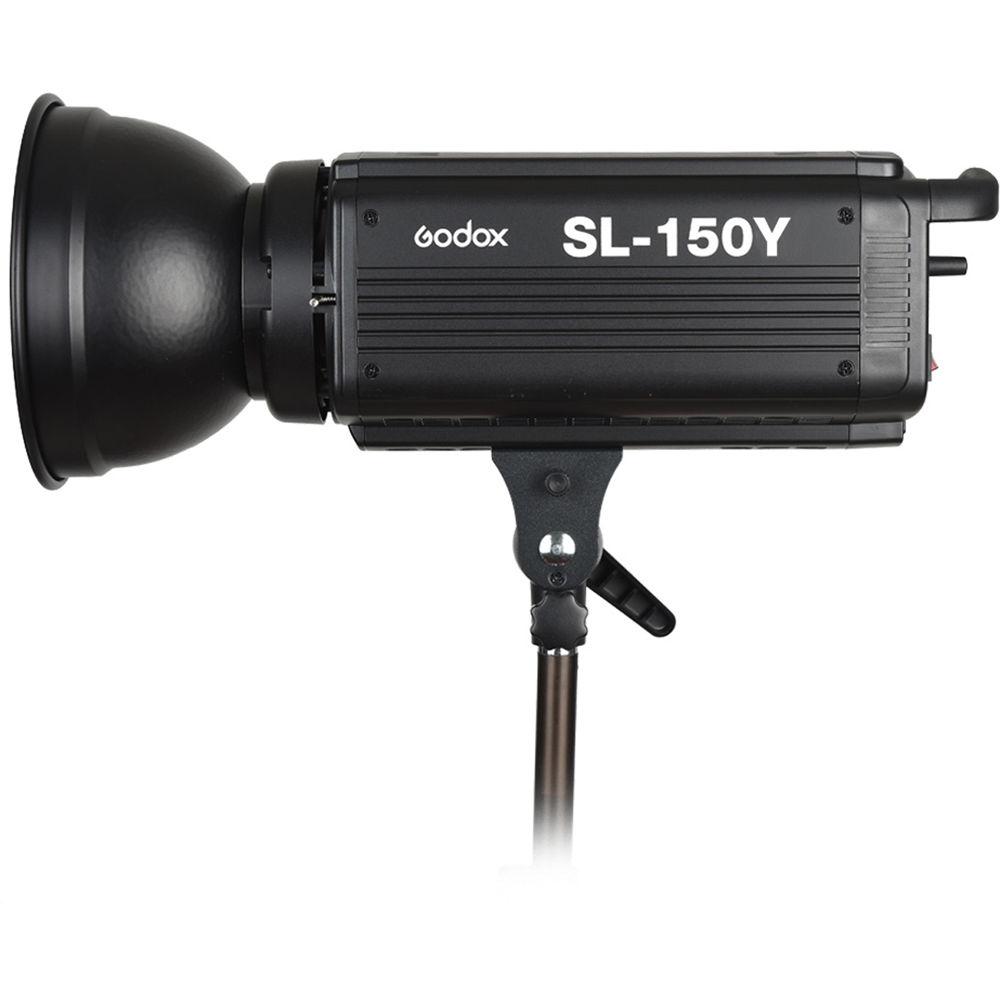

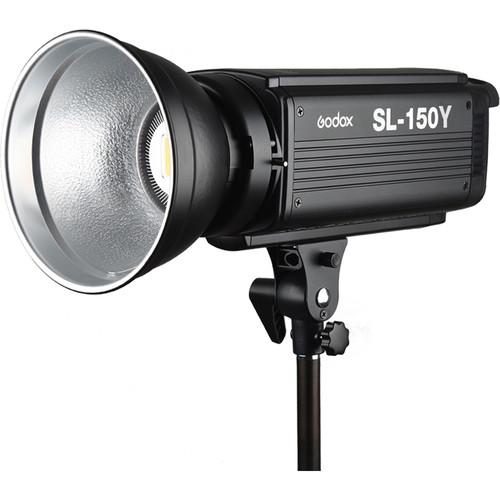

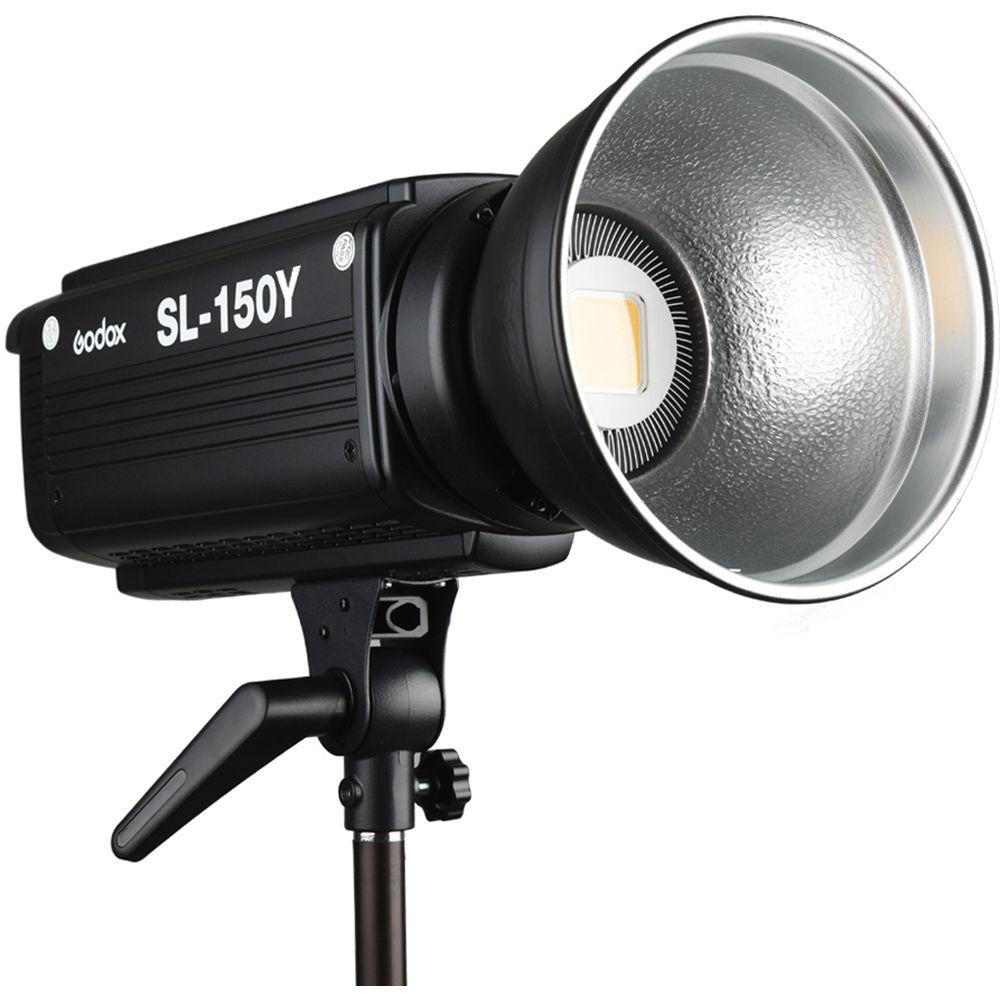

- Bowens S-mount is compatible with a variety of light modifiers and accessories, such as the included reflector for producing a broad, even, and neutral light quality.
- Integrated heatsink, built-in fan, and temperature control function help keep the light running cool for safe and consistent use. The temperature of the fixture itself can also be monitored, in Fahrenheit or Celsius, on the rear LCD.
- Runs on 100-240 VAC power for use worldwide.
In the Box Godox SL-150 LED Video Light (Tungsten-Balanced) Reflector RC-A5 Remote Control Lamp Cover Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox SL-150 LED Video Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox SL-150Y Specs | | | Color Temperature | 3300K ± 200K | | Color Accuracy Standard | CRI 93
TLCI 95 | | Cooling System | Fan/Passive Combo | | Dimming | Yes, 10 to 100% | | Display | LCD | | Lumens | 16000 | | Photometrics | 668.9 fc / 7200 lux at 3.3' / 1 m | | Fixture Dimensions | 13.4 x 9.1 x 5.1" / 34.0 x 23.0 x 13.0 cm | | Fixture Weight | 5.27 lb / 2.39 kg | | | | Battery Plate | None | | Power Input Connector | Proprietary | | DMX Connector | None | | | | Reflector Mount | Bowens S-Type | | | | Fixture Mount | 5/8" Receiver | | | | Remote Control Type | Proprietary Wireless | | Wireless Range | 65.6' / 20 m | | Wireless Channels / Groups | 16 / 6 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 150 W | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | | | Package Weight | 8.25 lb | | Box Dimensions (LxWxH) | 18.3 x 10.3 x 9.0" |
