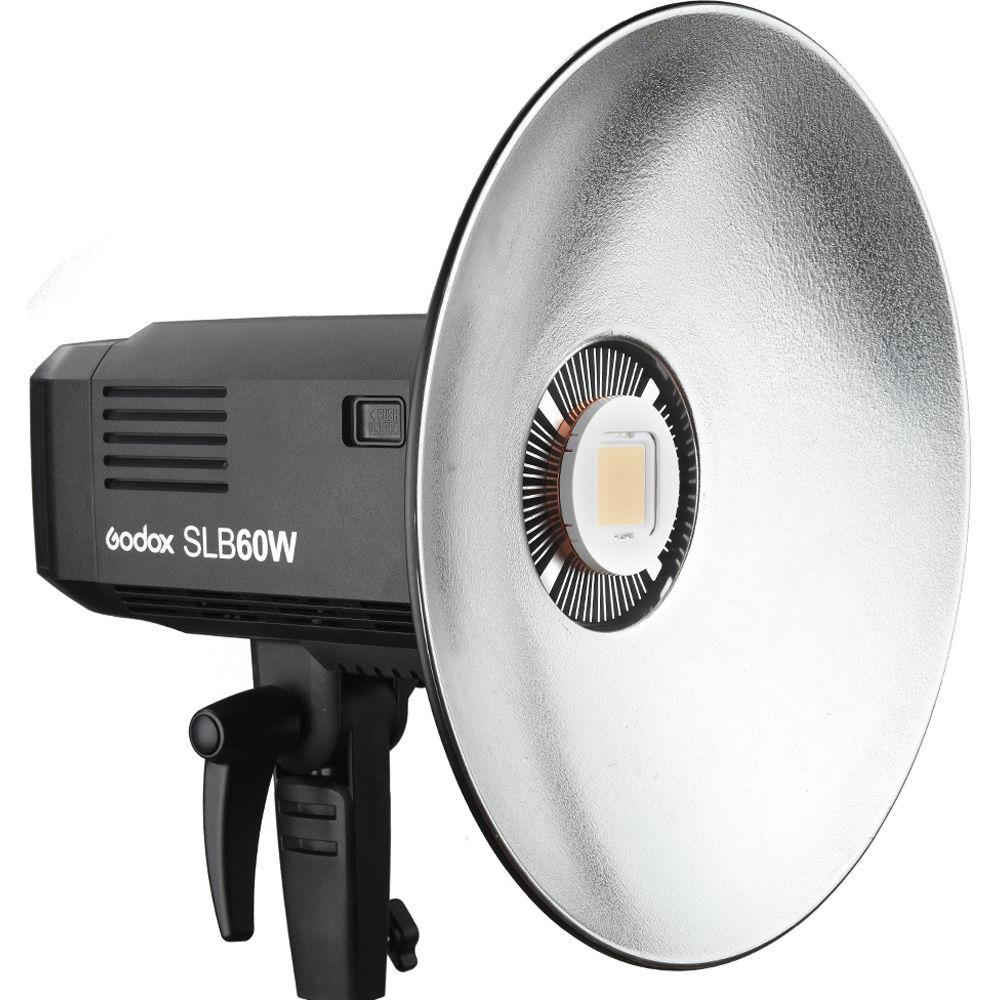

User Manual for Godox SLB60W LED Video Light Click to enlarge the picture
Contents of the user manual for the Godox SLB60W LED Video Light
- Product category: LED Lights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox LED Lights
 |
User manual for the Godox SLB60W LED Video Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

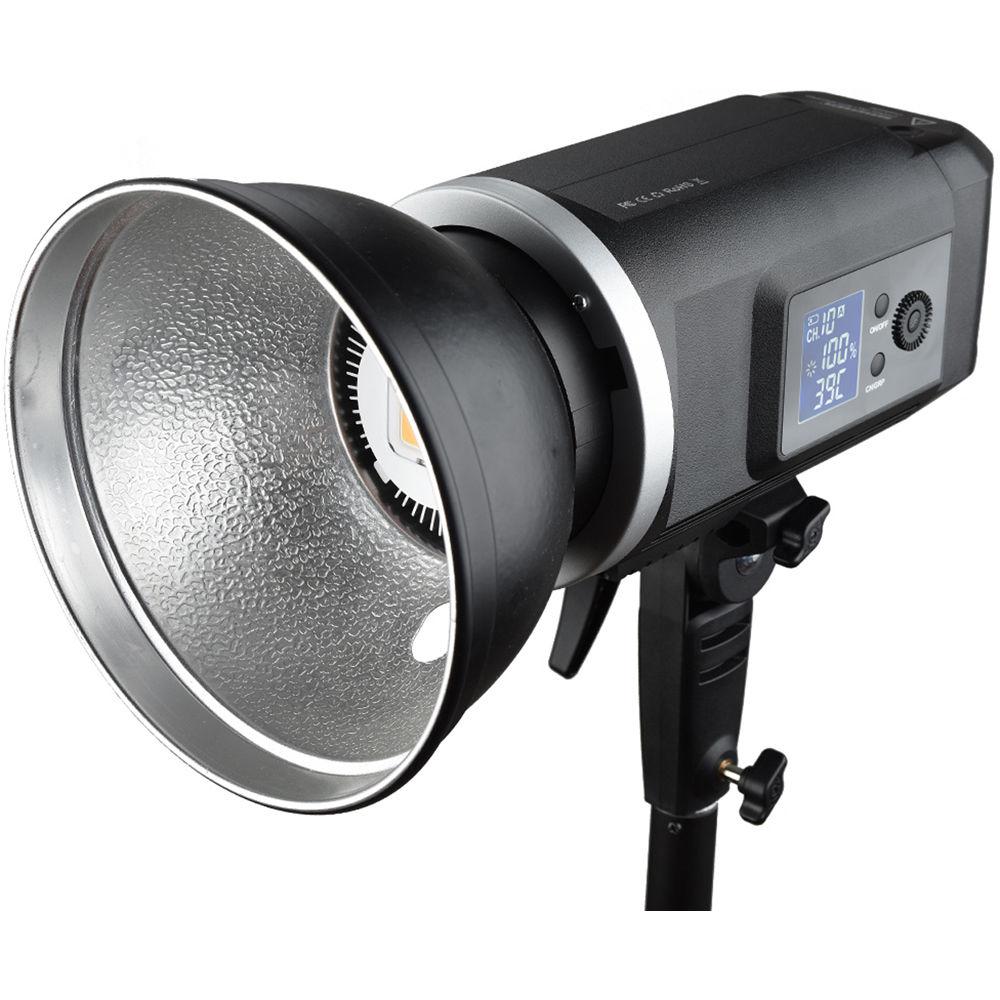

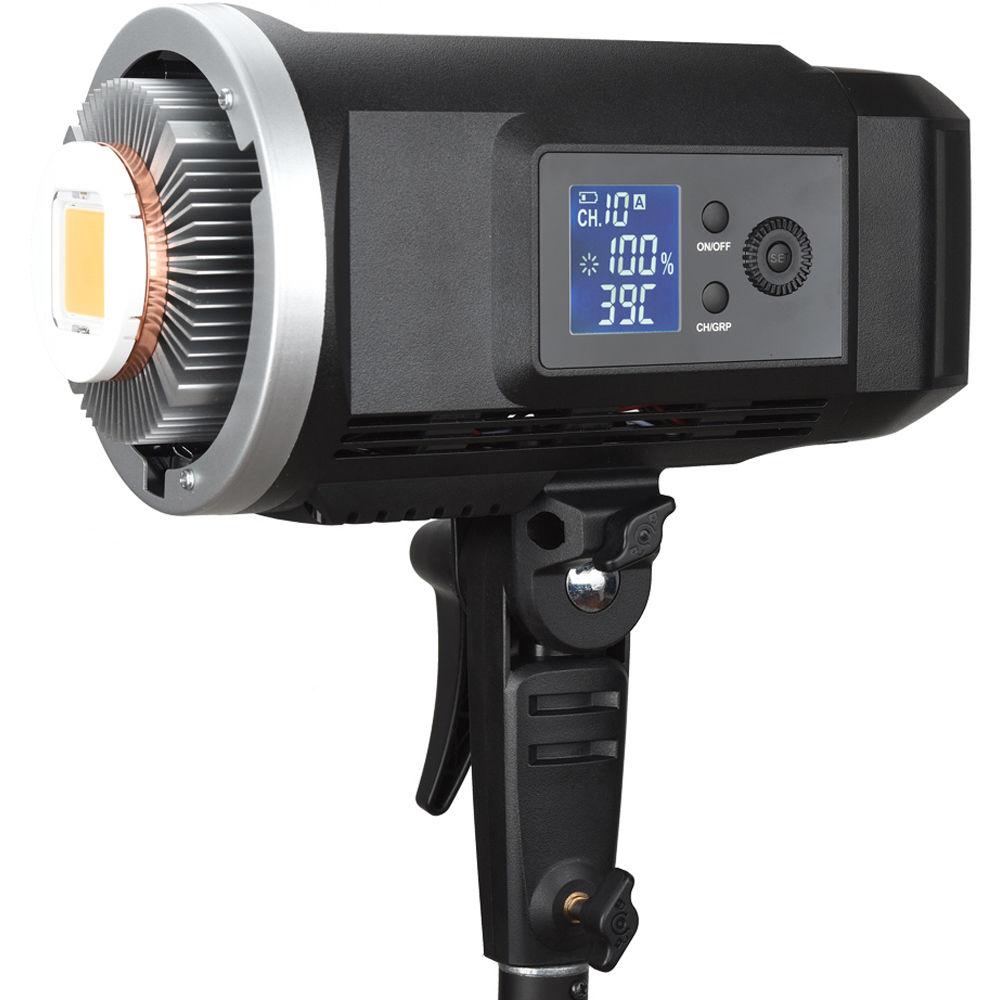

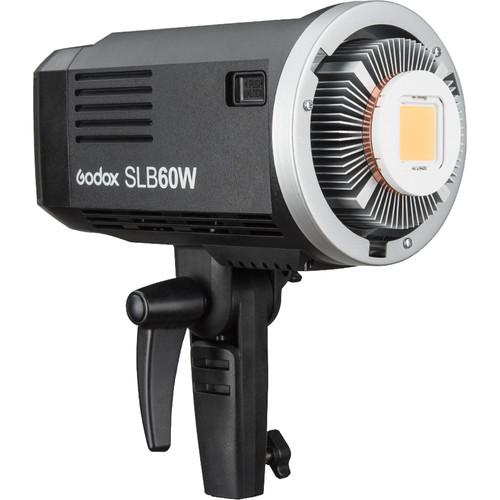

Product description Made for shooting in the field without access to AC power, the SLB60W LED Video Light from Godox is a battery-powered LED fixture with a 9.7 x 4.7 x 5" monolight form factor. The SLB60W has a color temperature of 5600K, making it ideal for seamless blending with other daylight-balanced fixtures, shooting outdoors or in venues with large windows. CRI/TLCI ratings are 93 and 95, indicating an accurate rendition of color. With a built-in, 16 channel, 6 group receiver running on the 433 MHz frequency, the SLB60W is dimmable from 10 - 100% locally on the fixture, but also at distances up to 65.6' thanks to the inclusion of a wireless remote. The remote gives you control over both light intensity and channel and group selection. The SLB60W's lithium-ion battery will give you 60 minutes of run time on a full charge and you can charge a spare while shooting with a topped-up battery. There's also an optional AC power source for shooting in the studio or in places with available mains power. The SLB60W is stand mountable and has a Bowens front accessory mount, making it compatible with accessories from the many manufacturers who use this popular mount. - Benefits
-
- 60W LEDs offer high brightness
- The CRI is over 93, indicating accurate rendition of color
- Wireless adjustment of brightness
- 433 MHz remote frequency, 16 channels, 6 groups

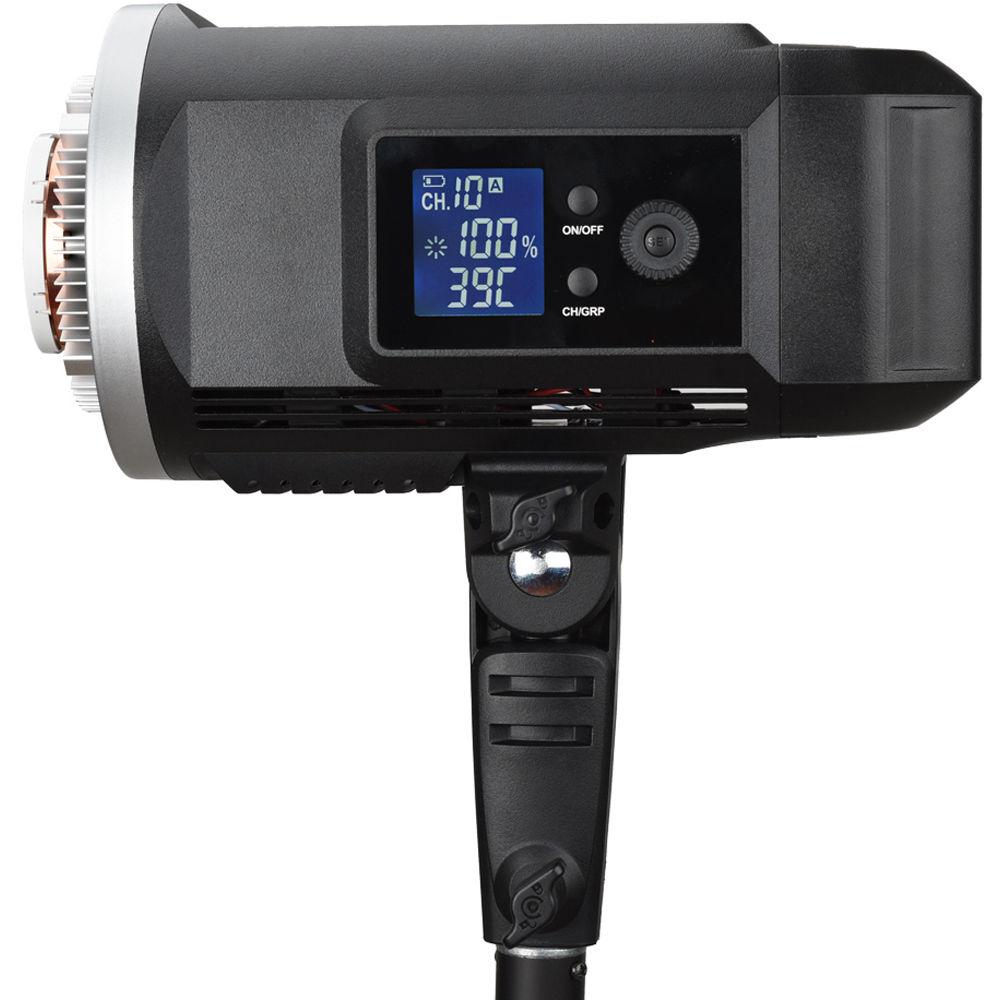

- Large LCD panel. Settings auto-saved
- Temperature control prevents overheating
- Cover protects LEDs
- Small, light, and portable
- Effective heat dissipation with heat sink and fan

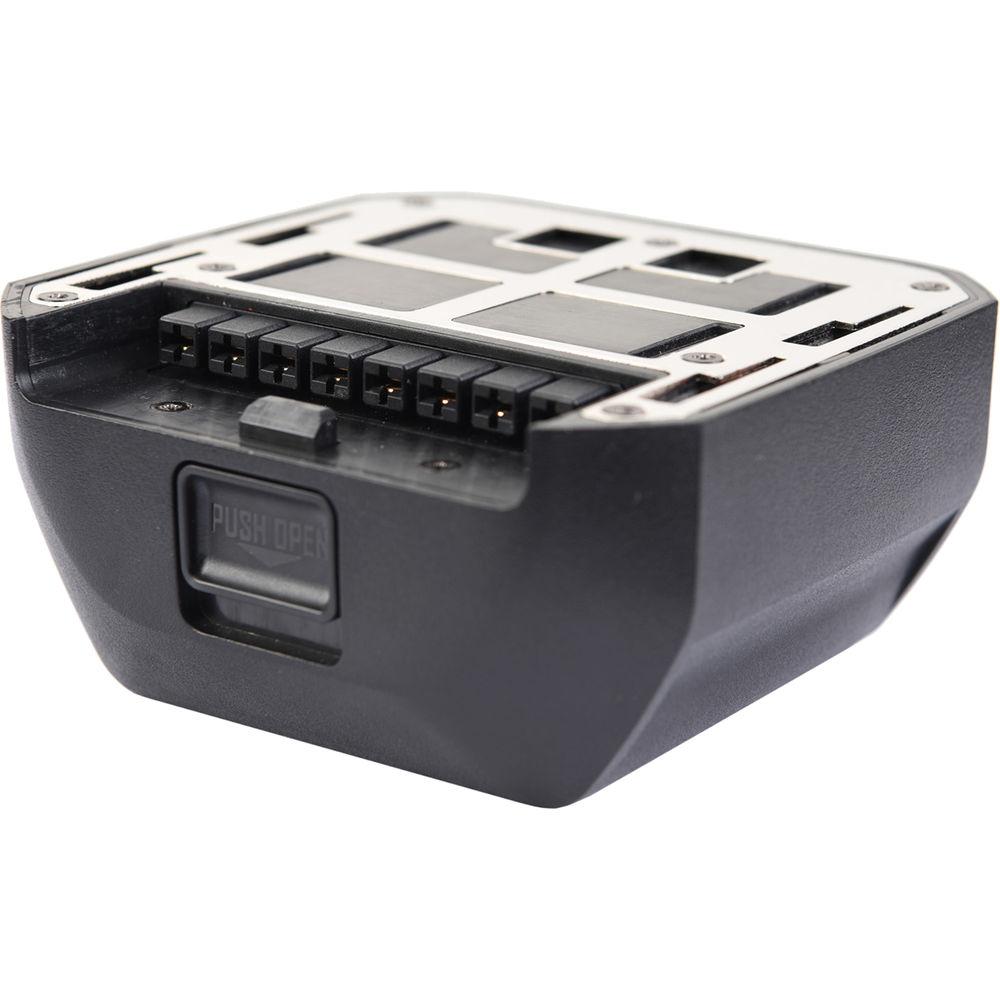

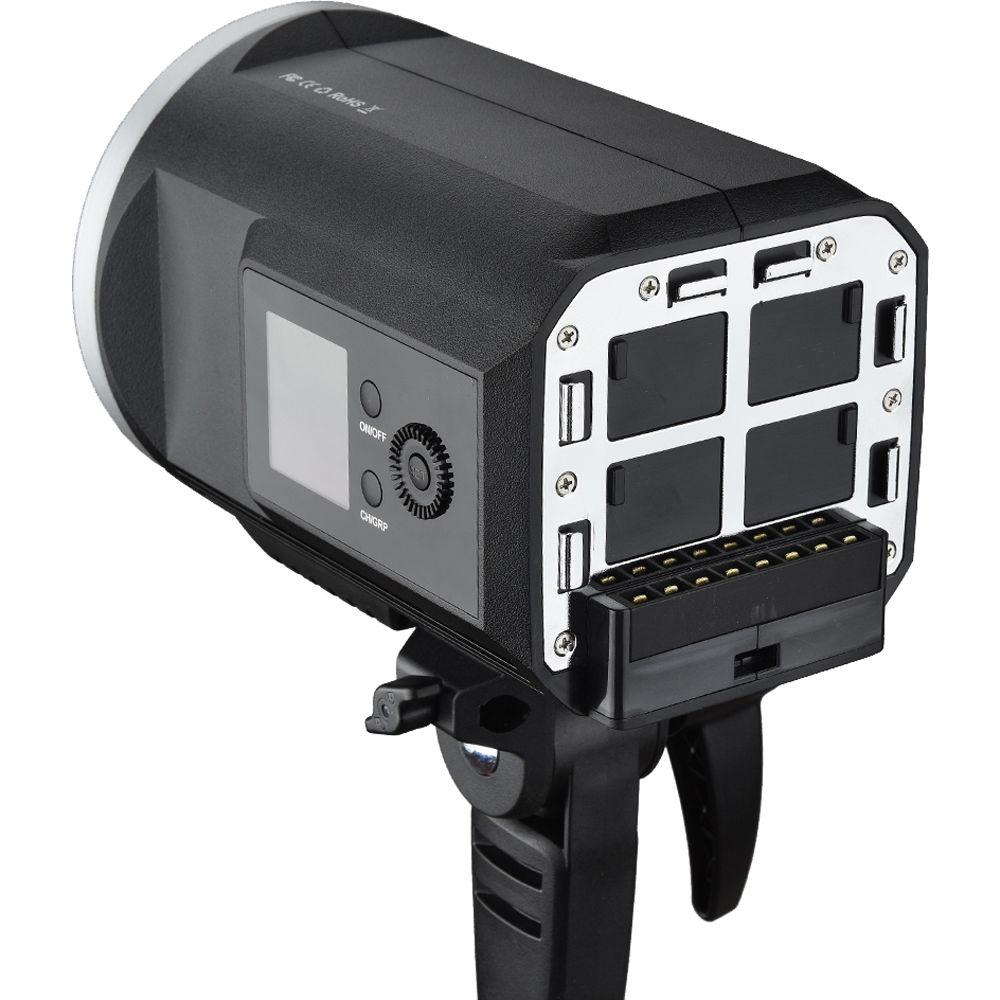

- 60 Minute run time with removable battery
- Optional AC power source

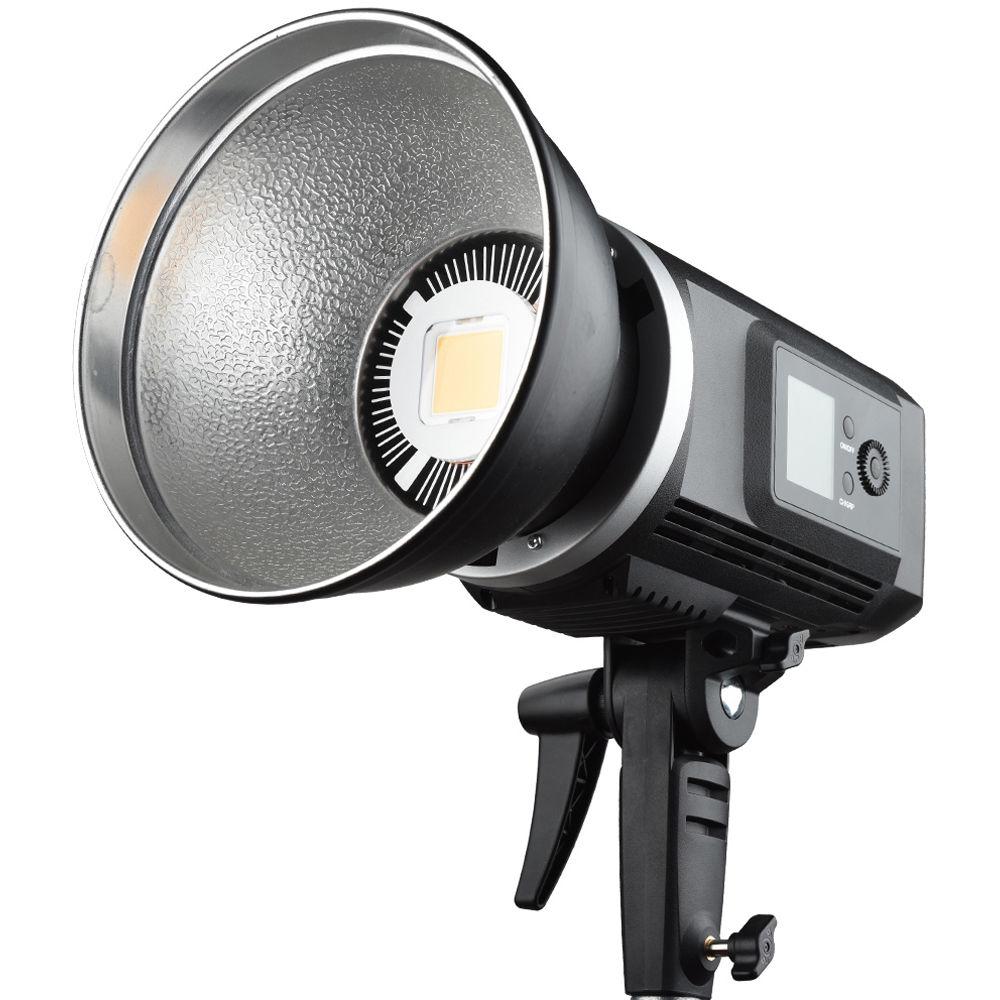

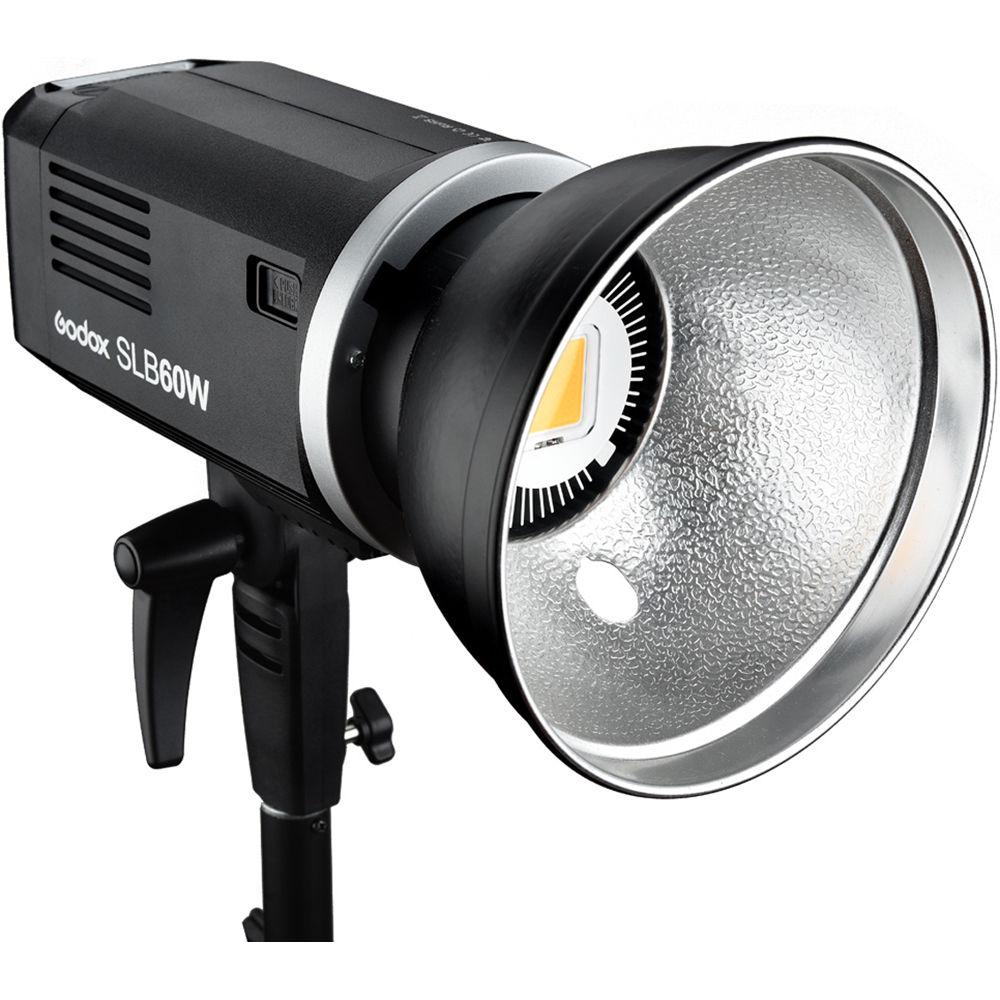

In the Box Godox SLB60W LED Video Light Reflector Remote Control Lamp Cover Power Cord Battery Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox SLB60W LED Video Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox SLB60W Specs | | | Rating | 60 W | | Color Range | 5600 ± 200K | | Luminance | 4100 lux at 3.3' (1.0 m), maximum | | Luminous Flux | 4500 (maximum) | | Color Rendering Index | >93 | | TLCI | >95 (Qa) | | R9 Index | >80 | | Operating Voltage | Optional AC Adapter: 100 to 240 VAC, 50/60 Hz
Included Removable Battery: 11.1 V, 8700 mAH | | Dimming | 10 - 100% | | Power Cable | Included, proprietary | | Battery | Lithium-ion battery | | Mount | Not specified by the manufacturer | | Temperature | Operating: 14 to 122°F (-10 to 50°C)
Safe: ≤158°F (≤70°C) | | Dimensions | Excluding the lamp cover: 9.7 x 4.7 x 5.0" (24.6 x 12 x 12.6 cm) | | Weight | 4.4 lb (2.0 kg) | | | | Operating Frequency | 433 MHz | | Operating Distance | 65.6' (20 m) | | Channels | 16 | | Groups | 6 (A, B, C, D, E, F) | | Wireless Frequency | 433 MHz | | Power Supply | 3.0 V via 2 x AAA batteries (not included) | | Standby Time | Over 1 year | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | 4.7 x 1.5 x 0.6" (120 x 38 x 15 mm) | | Weight | 1.1 oz (30 g) | | | | Package Weight | 6.96 lb | | Box Dimensions (LxWxH) | 14.85 x 9.35 x 8.7" |
