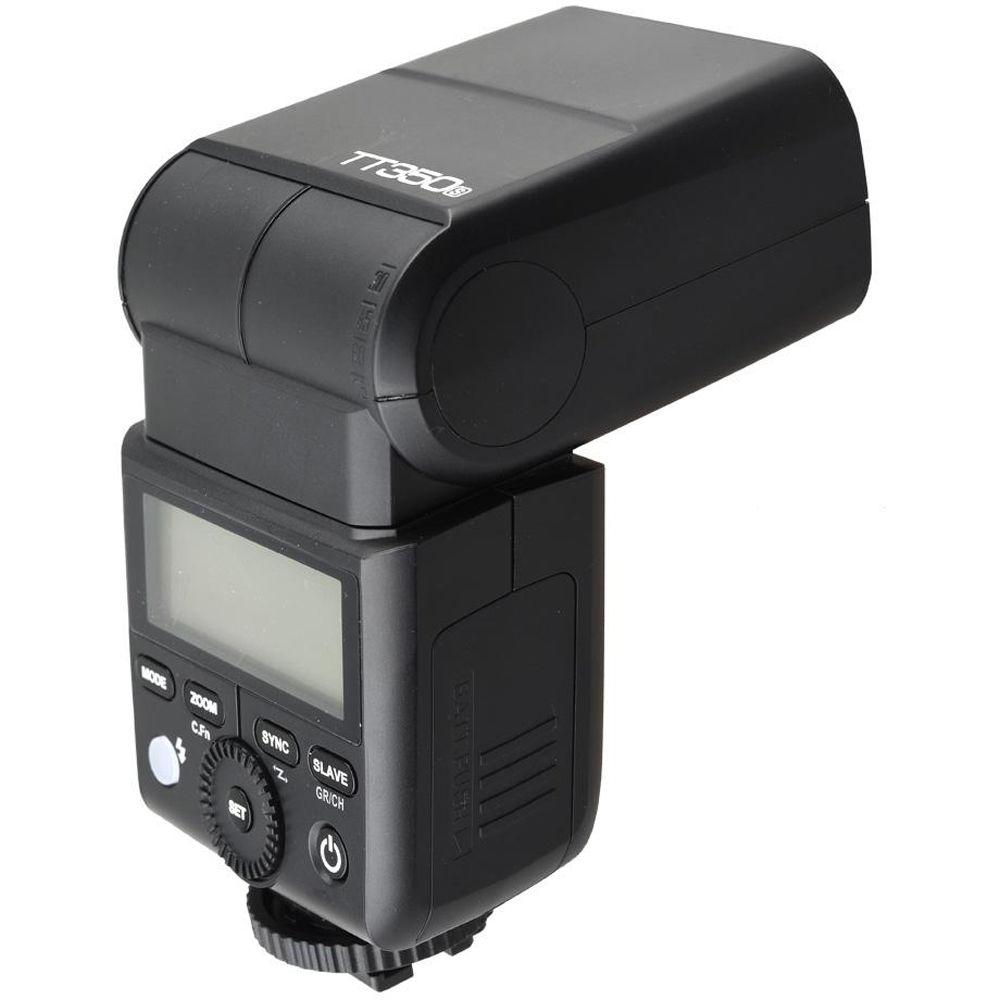

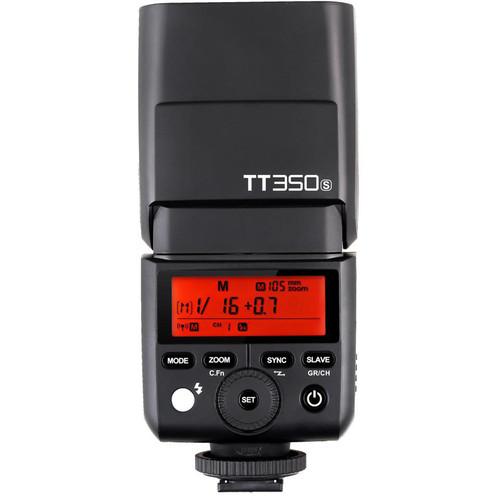

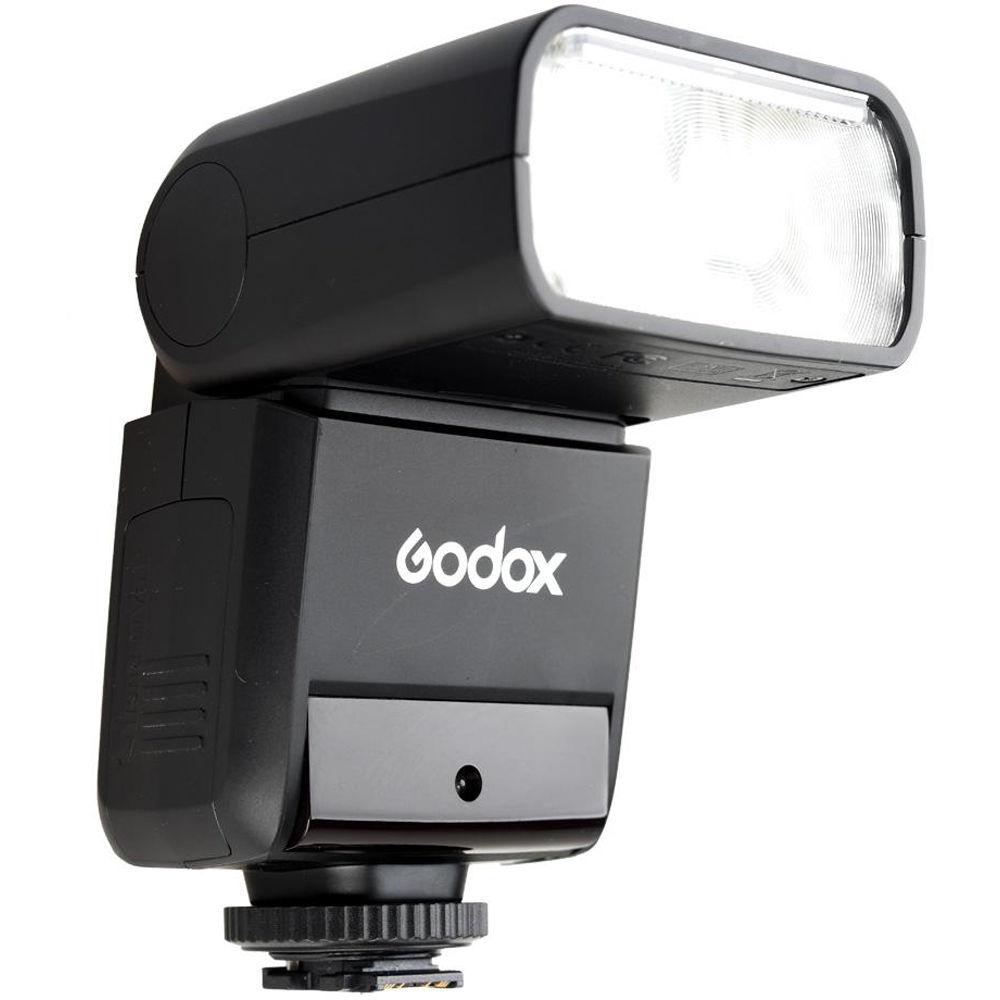

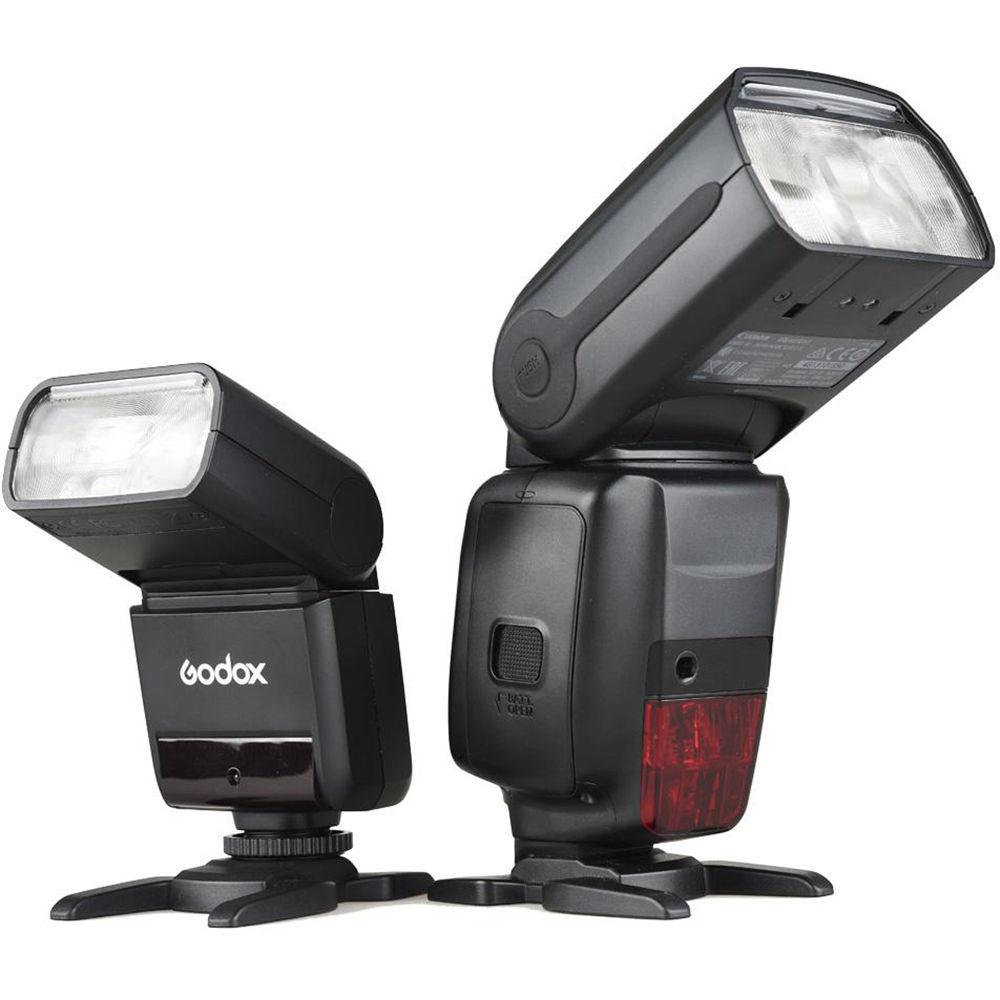

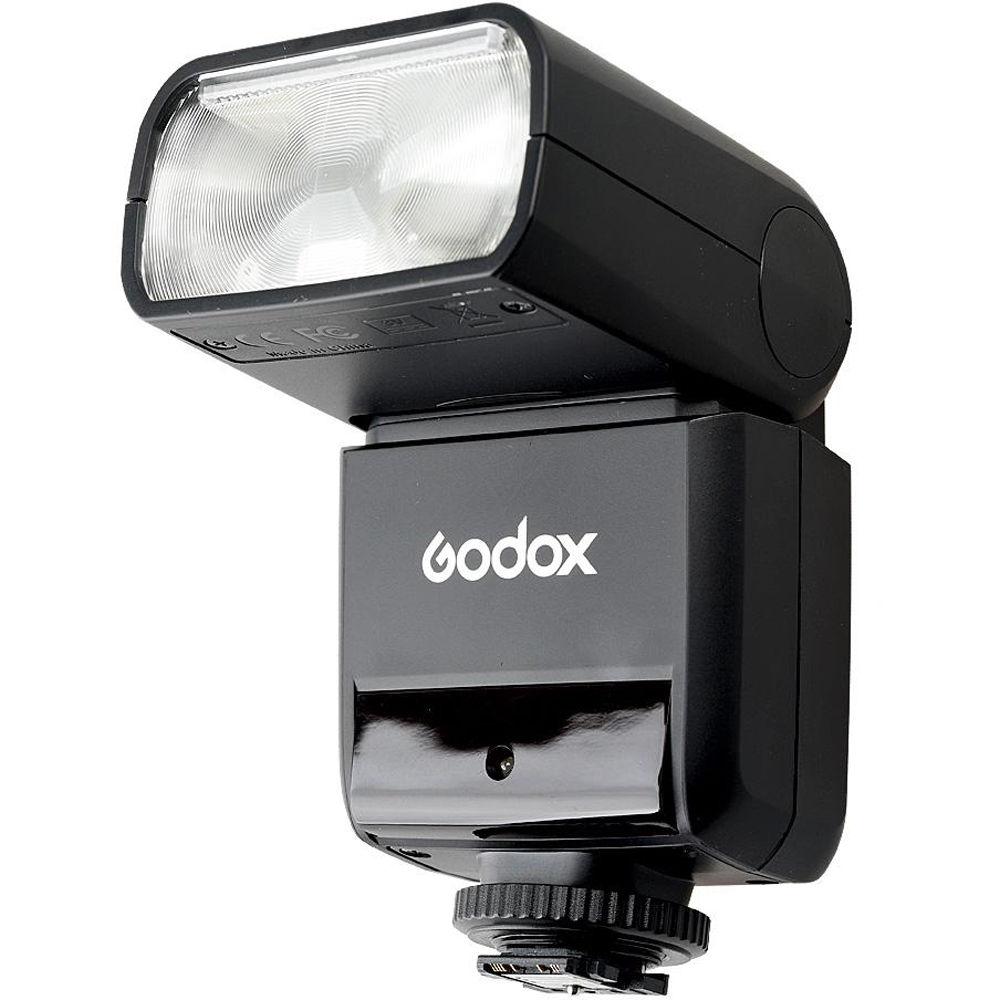

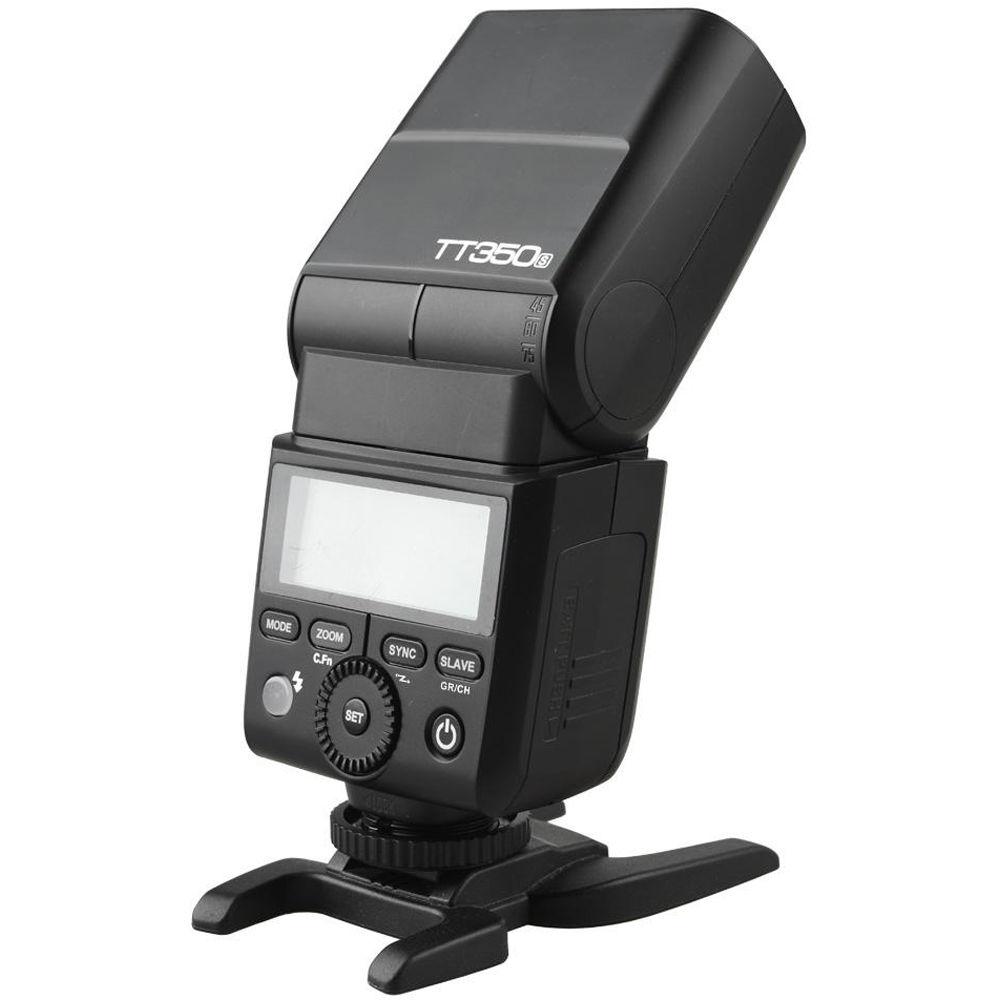

User Manual for Godox TT350S Mini Thinklite TTL Flash for Sony Cameras Click to enlarge the picture
Contents of the user manual for the Godox TT350S Mini Thinklite TTL Flash
- Product category: On Camera Flashes Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox On Camera Flashes
 |
User manual for the Godox TT350S Mini Thinklite TTL Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|
Product description A Guide to On-Camera Flash Read More With full support for Sony ADI / P-TTL, including high-speed sync, and a built-in 2.4GHz radio system, the compact Godox TT350S Mini Thinklite TTL Flash is an excellent everyday companion for your camera. With a lightweight design and guide number of 118' at ISO 100 and 105mm, the TT350S is useful for both on-camera and off-camera operation. Users can also use it as an optical slave in addition to use as a radio TTL master/slave unit. It is versatile as well with the ability to tilt from -7 to 90° and rotate 270°.
Multiple functions and features are built into the unit, including HSS, stroboscopic flash, 1st and 2nd curtain sync, and more. It is also easy to use with a rear LCD and it works quickly with a recycle time of 0.1-2.2 seconds. Additionally, it runs on just two AA batteries. - An integrated 2.4 GHz X radio system is incorporated into the TT350S for wireless triggering. Able to be set up as a master or slave, this flash will help you create a versatile lighting setup with a range of 328' and support for 16 channels and three groups. It can also work with an optional X series transmitter for creating more elaborate setups.
- Being compatible with Sony's ADI / P-TTL system, users will enjoy numerous automated flash settings and the ability to use functions such as high-speed sync.
- With a guide number of 118' at ISO 100 and 105mm the TT350S will illuminate most subjects. It also features a zoom head with a range of 24-105mm and a 14mm wide-angle panel for using a variety of different lenses.
- Manual power control from 1/1 to 1/128 in 1/3 EV steps.
- The flash head can be tilted from -7 to 90° and rotated a total of 270° for controlling bounce and where the light falls on the scene.
- Optical slave mode is available for working with other standard flashes.
- A 3.5mm sync port is available for setting up a wired connection to a camera or trigger.

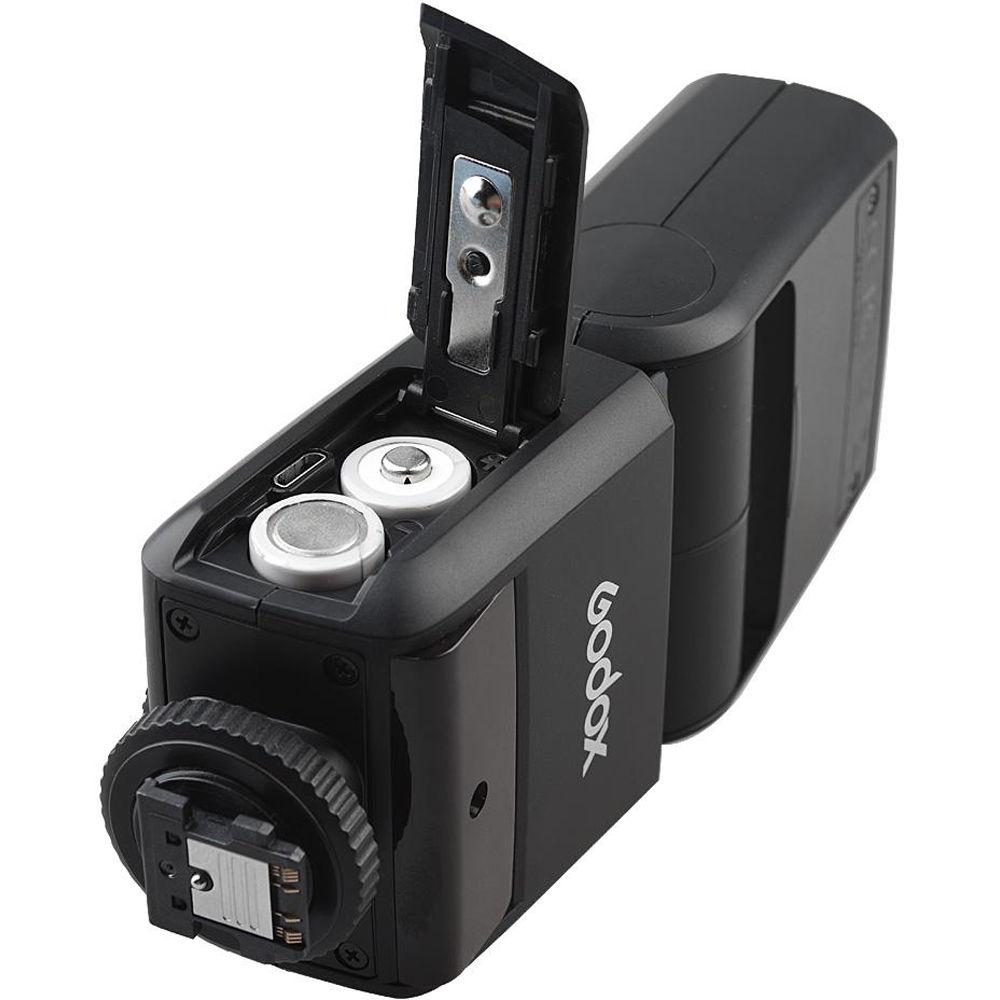

- This flash runs on two alkaline or NiMH AA batteries which help deliver about 210 full-power flashes and recycle times of 0.1-2.2 seconds.
- USB connection for installing future firmware updates.
In the Box Godox TT350S Mini Thinklite TTL Flash for Sony Cameras Diffuser Mini Stand Protective Case Limited 1-Year Warranty User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox TT350S Mini Thinklite TTL Flash for Sony Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox TT350S Specs | Mount | Shoe | | Guide No. | 118.11' / 36 m ISO 100 at 105 mm Position | | Exposure Control | ADI / P-TTL, Manual | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to 90° | | Swivel Head | 360° | | Coverage | 14 - 105 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 105 mm | | Off-Camera Terminal | None | | Recycle Time | Approximately 0.1 to 2.2 Seconds | | Flash Duration | 1/350 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: RF
Distance: Up to 98.43' / 30 m
Method: Optical Pulse
Distance: Up to 49.21' / 15 m
Mode: Master, Slave | | Wireless Communication Channels | 16 Channels | | Wireless Groups | 3 Groups | | Power Source | 2 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 5.5 x 2.4 x 1.5" / 140.0 x 62.0 x 38.0 mm | | Weight | 7.05 oz / 200 g without batteries | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.6 x 3.4 x 2.6" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
