User Manual for Godox TT600 Thinklite Flash Click to enlarge the picture
Contents of the user manual for the Godox TT600 Thinklite Flash
- Product category: On Camera Flashes Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox On Camera Flashes
 |
User manual for the Godox TT600 Thinklite Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

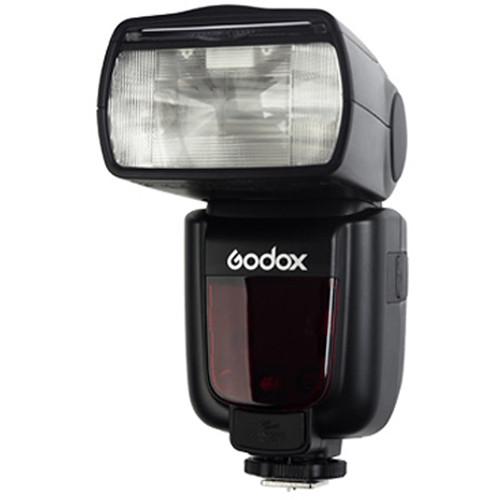

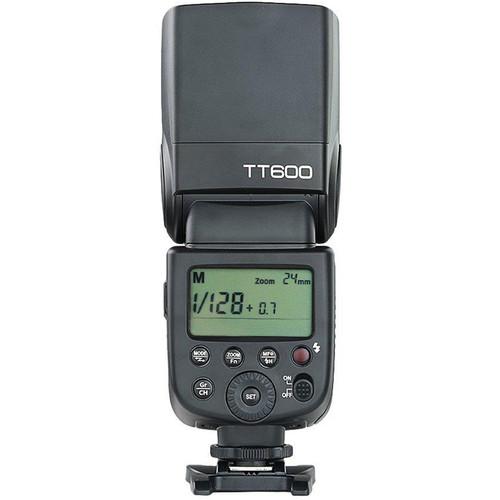

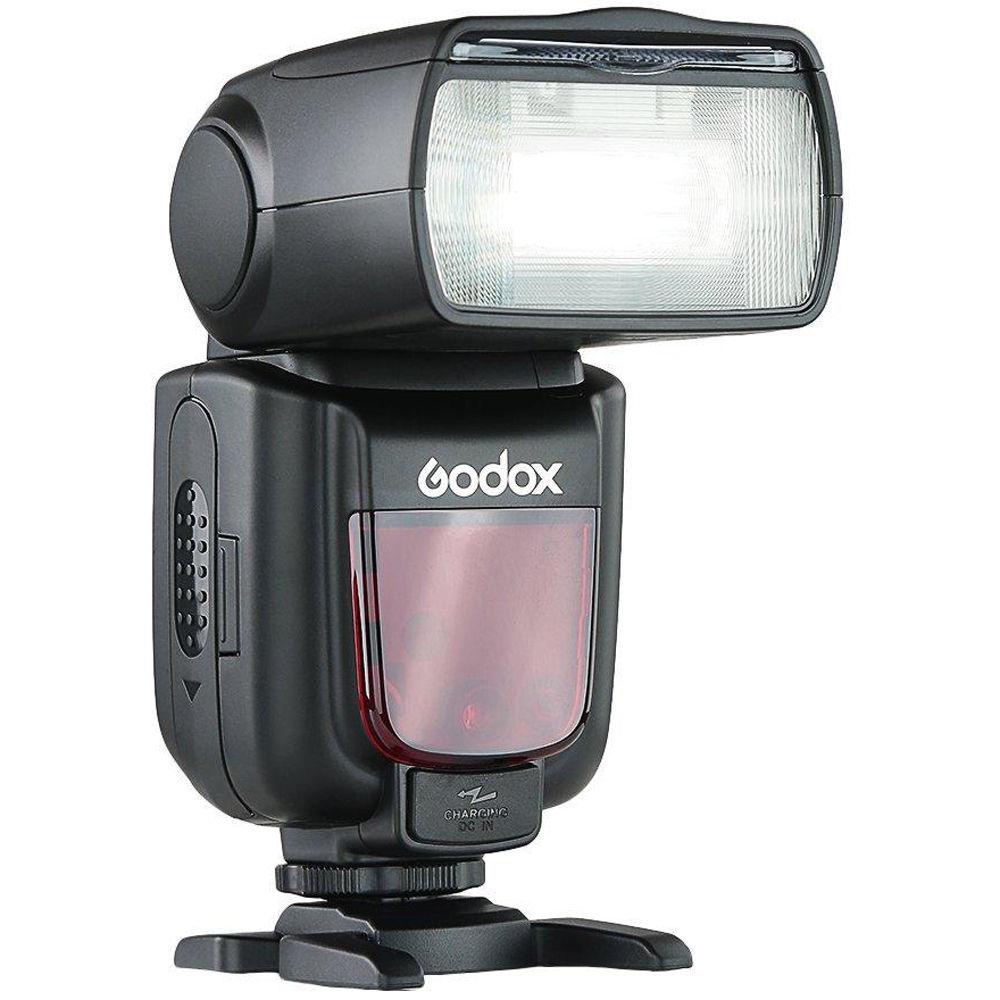

Product description A Guide to On-Camera Flash Read More Equipped with a built-in 2.4GHz X wireless radio system and a powerful guide number of 197' at ISO 100 and 200mm, the TT600 Thinklite Flash from Godox will help you create a versatile and effective lighting setup . The universal shoe-mounted flash features a zoom range of 24-200mm as well as a 14mm wide panel and offers manual power control from 1/1 to 1/128. Also, for bounce flash, the head can tilt from -7 to 90° and rotates left and right 180°.
In addition to radio, the TT600 sports optical wireless functionality. Also, it features a 3.5mm sync port along with a wireless control port for expanding your lighting setup and adding functions. It runs on four AA batteries which help produce a recycle time of 0.1-2.6 seconds. Additionally, through the use of an optional transmitter the TT600 can achieve high-speed sync with select camera systems. - An integrated 2.4GHz X radio system is incorporated into the TT600 for wireless triggering. Able to be set up as a master or slave, this flash will help you create a versatile lighting setup with a range of 328' and support for 32 channels and five groups. It can also support high-speed sync when used with an optional X series or Cells II transmitter.

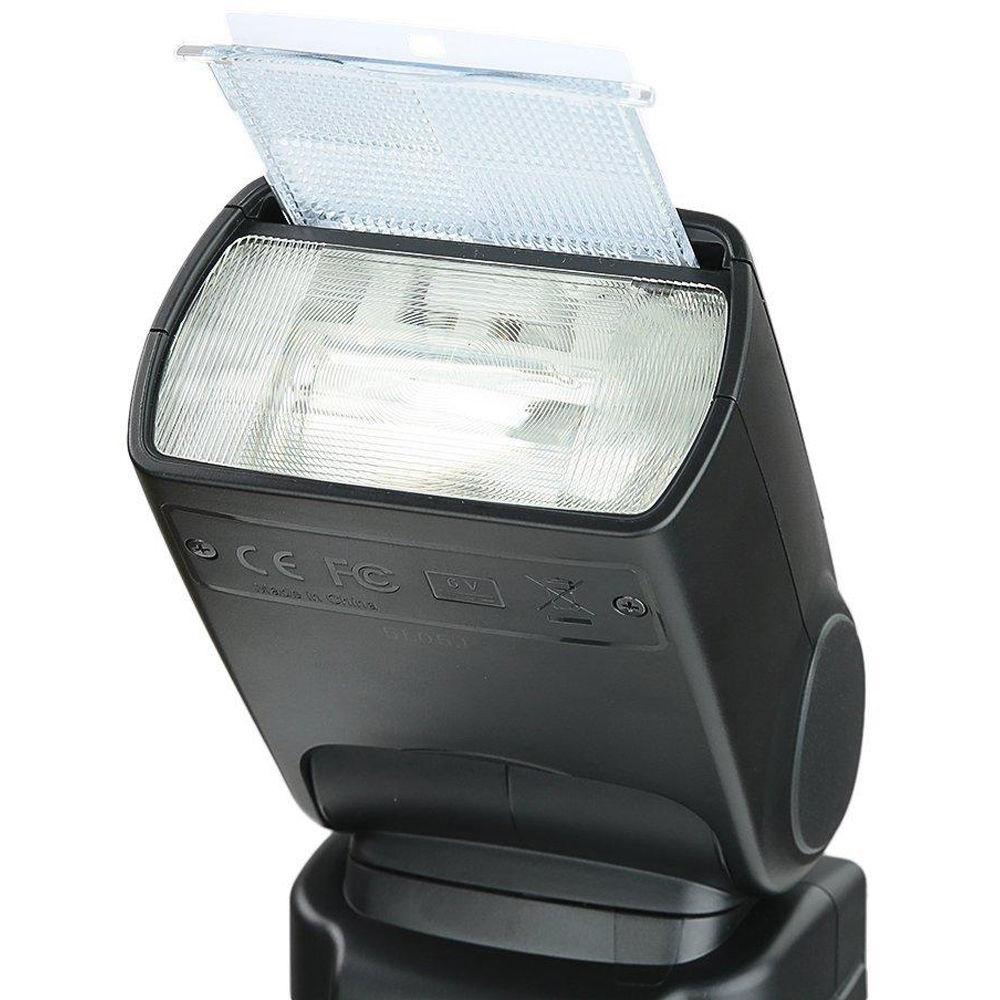

- With a guide number of 197' at ISO 100 and 200mm the TT600 will easily illuminate most subjects. It also features a zoom head with a range of 24-200mm and a 14mm wide-angle panel for using a variety of different lenses.

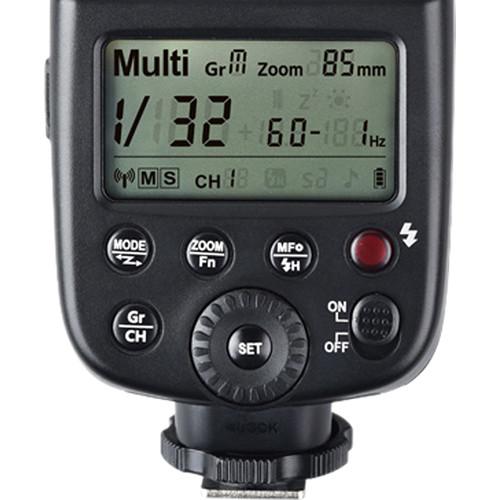

- Manual power control from 1/1 to 1/128 in 1/3 EV steps.

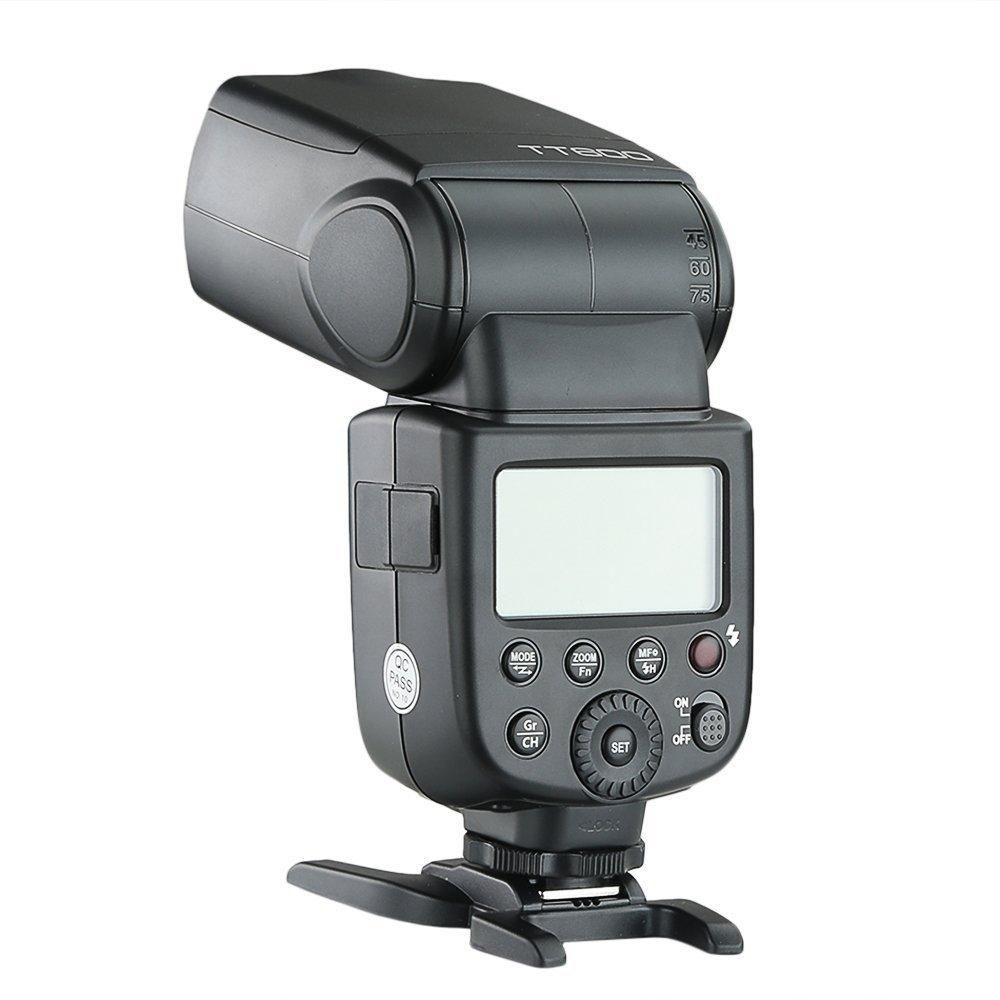

- The flash head can be tilted from -7 to 90° and rotated a total of 360° for controlling bounce and where the light falls on the scene.
- Optical master/slave transmission is available for working with other standard flashes.
- Using an optional FT series remote control set, users can connect to the wireless control port to gain wireless control over the flash's power settings.

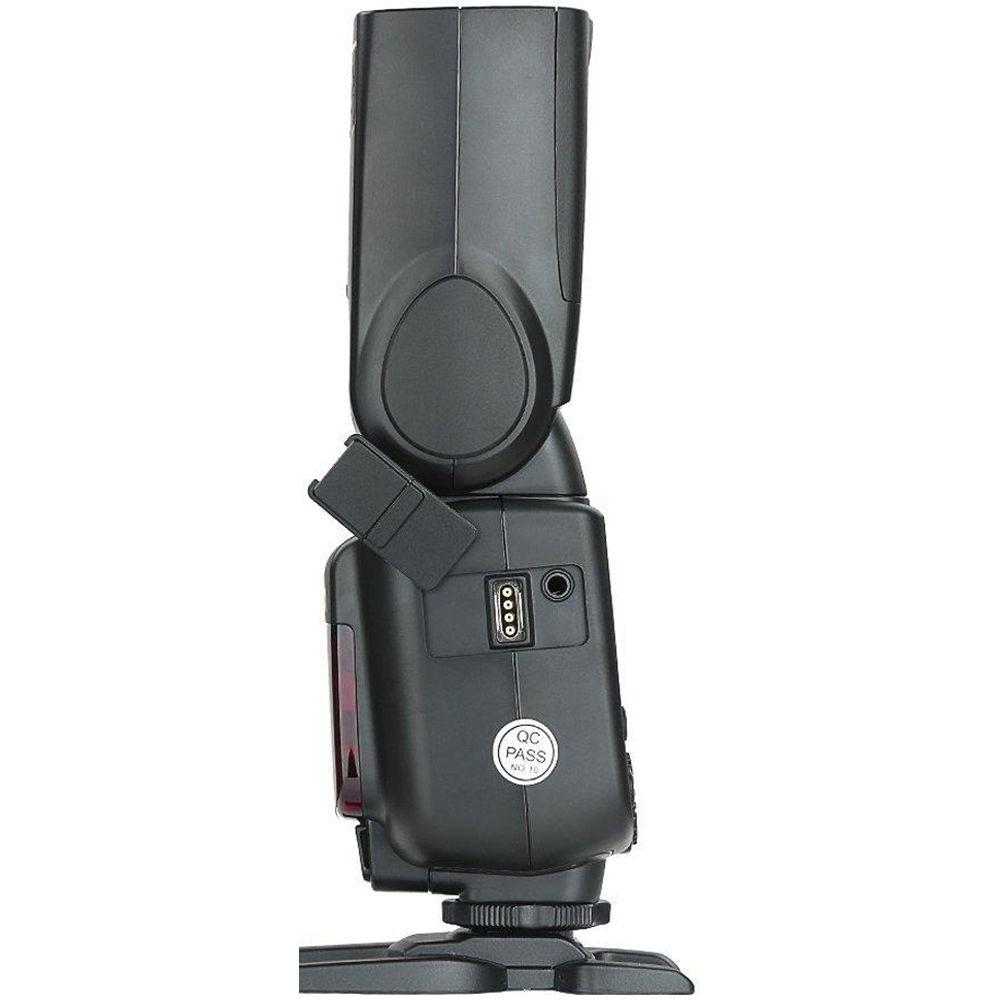

- A 3.5mm sync port is available for setting up a wired connection to a camera or trigger.
- This flash runs on four alkaline or NiMH AA batteries which help deliver about 230 full-power flashes and recycle times of 0.1-2.6 seconds.

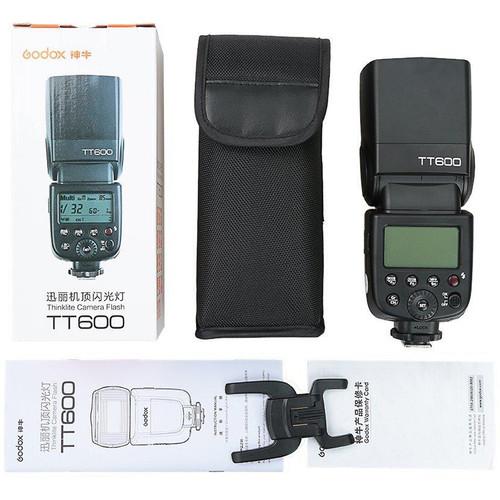

In the Box Godox TT600 Thinklite Flash Mini Stand Protective Case Limited 1-Year Warranty User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox TT600 Thinklite Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox TT600 Specs | Mount | Shoe | | Guide No. | 196.85' / 60 m ISO 100 at 200 mm Position | | Exposure Control | Manual | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to 90° | | Swivel Head | 360° | | Coverage | 14 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 200 mm | | Off-Camera Terminal | 3.5 mm | | Recycle Time | Approximately 0.1 to 2.6 Seconds | | Flash Duration | 1/300 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: RF
Distance: Up to 328.08' / 100 m
Mode: Master, Slave | | Wireless Communication Channels | 32 Channels | | Wireless Groups | 5 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.5 x 3.0 x 7.5" / 64.0 x 76.0 x 190.0 mm | | Weight | 14.11 oz / 400 g without batteries | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.8 x 3.6 x 3.2" |
