Godox TT685C Thinklite TTL Flash with

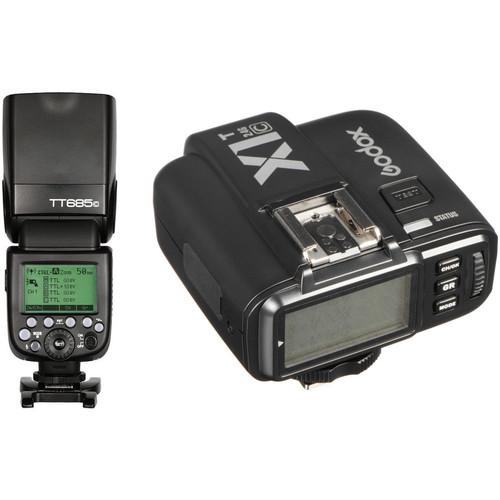

User Manual for Godox TT685C Thinklite TTL Flash with X1T-C Trigger Kit for Canon Cameras

• Product category: On Camera Flashes Godox
• Brand: Godox
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Godox On Camera Flashes

Product description

• Godox TT685C Thinklite TTL Flash for Canon Cameras With full support for Canon E-TTL / E-TTL II, including high-speed sync, and a built-in 2.4GHz radio system, the Godox TT685C Thinklite TTL Flash will make it easy to create both simple and elaborate lighting setups. When mounted on camera, it is an effective lighting tool with a powerful guide number of 197' at ISO 100 and 200mm, a zoom range of 20-200mm, and the ability to tilt from -7 to 90° and rotate 360°. As a TTL-capable unit, the TT685C can also operate as a full wireless master or slave unit with TTL functionality.

  Operation is intuitive with a rear LCD panel that shows settings. Also, the flash is equipped with a Wireless Control Port for attaching an optional remote control set and it has a 3.5mm sync port for basic wired connectivity. It runs on four AA batteries, which help provide a recycle time of 0.1-2.6 seconds.
  • An integrated 2.4GHz X radio system is incorporated into the TT685C for wireless triggering. Able to be set up as a master or slave, this flash will help you create a versatile lighting setup with a range of 328' and support for 32 channels and five groups. It can also work with an optional X series transmitter for creating more elaborate setups.
  • Being compatible with Canon's E-TTL / E-TTL II system, users will enjoy numerous automated flash settings and the ability to use functions such as high-speed sync.
  • With a guide number of 197' at ISO 100 and 200mm the TT685C will easily illuminate most subjects. It also features a zoom head with a range of 20-200mm and a 14mm wide-angle panel for using a variety of different lenses.
  • Manual power control from 1/1 to 1/128 in 1/3 EV steps.
  • The flash head can be tilted from -7 to 90° and rotated a total of 360° for controlling bounce and where the light falls on the scene.
  • Optical master/slave transmission is available for working with other standard flashes.
  • Using an optional FT series remote control set, users can connect to the wireless control port to gain wireless control over the flash's power settings.
  • A 3.5mm sync port is available for setting up a wired connection to a camera or trigger.
  • This flash runs on four alkaline or NiMH AA batteries which help deliver about 230 full-power flashes and recycle times of 0.1-2.6 seconds.
  • USB connection for installing future firmware updates.
• Godox X1T-C TTL Wireless Flash Trigger Transmitter for Canon Enjoy TTL-enabled and reliable wireless flash by picking up the X1T-C TTL Wireless Flash Trigger Transmitter from Godox. This 2.4 GHz X wireless system is compatible with Canon cameras and flashes that support E-TTL / E-TTL II for automatic exposure and metering, making it an excellent choice for shooters who need to work quickly. It also has an outstanding range of 328' and can be set to one of 32 channels for limiting interference with other nearby systems. Another huge benefit is the ability to control up to five groups at a time, or set the unit to ratio flash mode for three groups with varying power relative to one another.

  Users will have access to many settings through the backlit LCD and can make adjustments to settings such as sync delay and triggering modes. Also, through E-TTL / E-TTL II compatibility the system will support high-speed sync, flash exposure compensation, and flash exposure lock, among other settings. Beyond this, users will be able to easily mount their flash to the transmitter's top hot shoe, or you can connect a studio strobe via the PC sync terminal on the receiver or PC sync terminal on the transmitter. Additionally, it runs on two AA batteries and has a micro-USB port for firmware updates.

• TT685C Thinklite TTL Flash for Canon Cameras xyfzcqdqwaeueddzxbatdzvfss
• Mini Stand
• Protective Case
• Limited 1-Year Warranty

• X1T-C TTL Wireless Flash Trigger Transmitter for Canon

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Godox TT685C Thinklite TTL Flash for Canon Cameras

  Mount	Shoe
  Guide No.	196.85' / 60 m ISO 100 at 200 mm Position
  Exposure Control	E-TTL / E-TTL II, Manual
  Vari-Power	1/1 to 1/128
  Bounce Head	-7 to 90°
  Swivel Head	360°
  Coverage	14 - 200 mm (Full Frame)
  Zoom Head	Full Frame: 20 - 200 mm
  Off-Camera Terminal	3.5 mm
  Recycle Time	Approximately 0.1 to 2.6 Seconds
  Flash Duration	1/300 to 1/20000 sec
  Flash-Ready Indicator	Yes
  Compensation	-3 EV to +3 EV (in 1/3 EV steps)
  Slave Timing Modes	Instant Sync Skip Preflash
  Wireless Operation	Method: RF Distance: Up to 328.08' / 100 m Method: Optical Pulse Distance: Up to 49.21' / 15 m Mode: Master, Slave
  Wireless Communication Channels	32 Channels
  Wireless Groups	5 Groups
  Power Source	4 x AA Alkaline, Rechargeable NiMH Batteries
  Dimensions (W x H x D)	2.5 x 3.0 x 7.5" / 64.0 x 76.0 x 190.0 mm
  Weight	14.46 oz / 410 g without batteries

  Box Dimensions (LxWxH)	7.9 x 3.6 x 3.2"

• Godox X1T-C TTL Wireless Flash Trigger Transmitter for Canon

  Channels	32
  Groups	5
  Wireless Range	328' / 100 m
  Radio Frequency	2.4 GHz

  Control Modes	TTL
  Sync Speed	1/8000 Sec

  Ports	1 x PC Sync 1 x Micro-USB

  Bottom Mount	Hot Foot
  Top Mount	Hot Shoe

  Battery Type	2 x AA

  Dimensions	2.8 x 3 x 2" / 72 x 75 x 52 mm (Transmitter)
  Weight	3.5 oz / 99.2 g

  Box Dimensions (LxWxH)	4.4 x 4.3 x 2.2"
