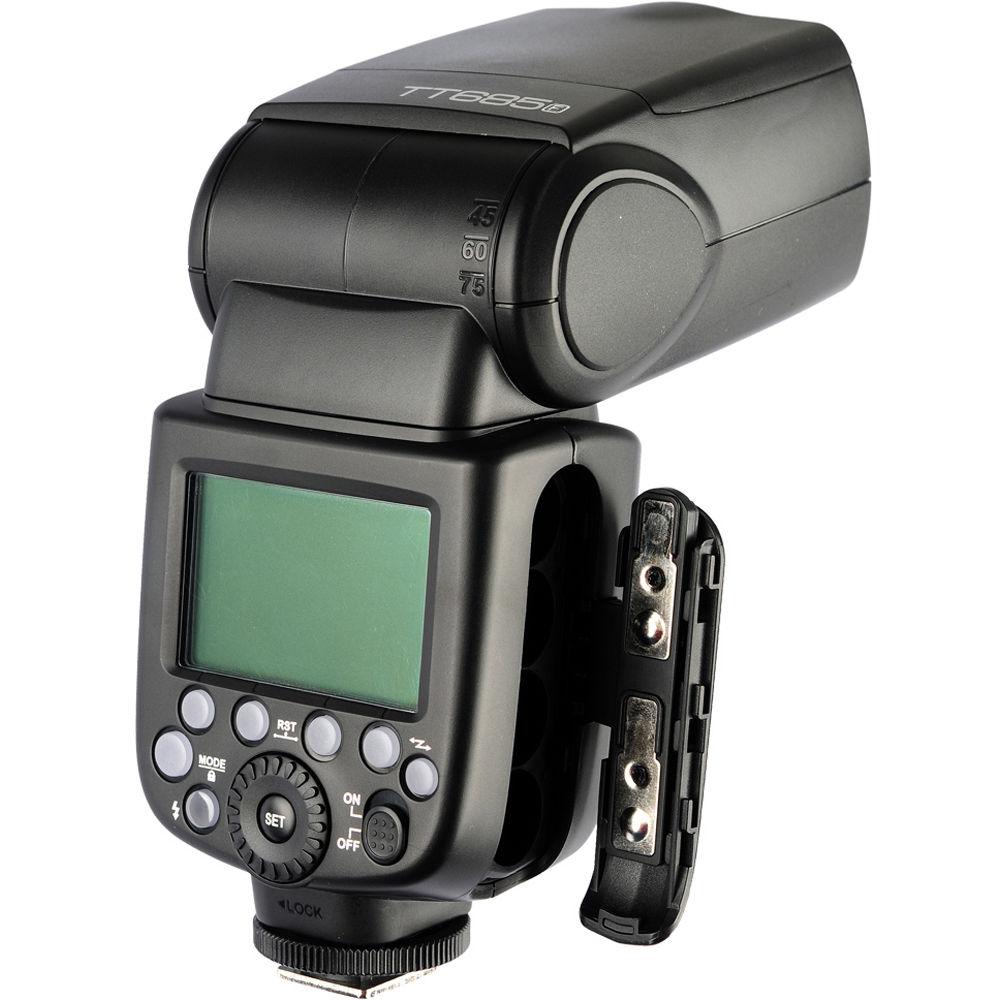

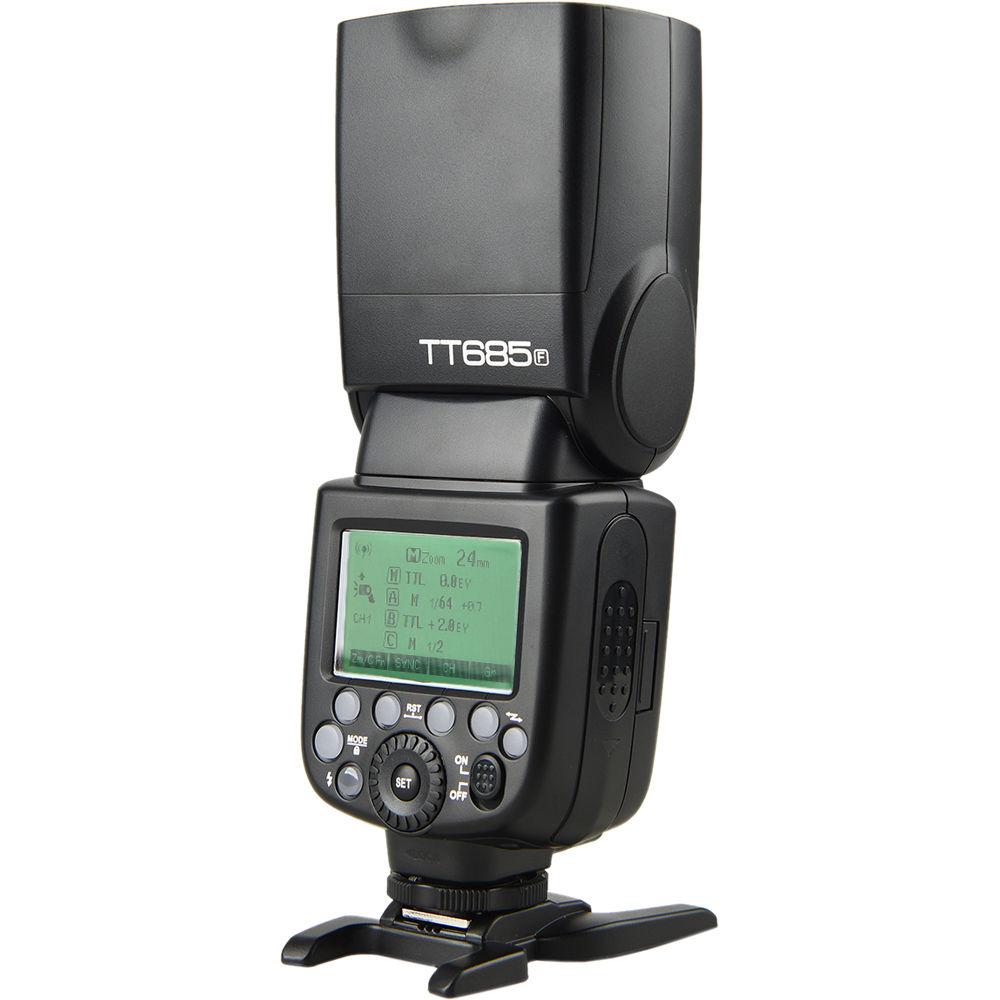

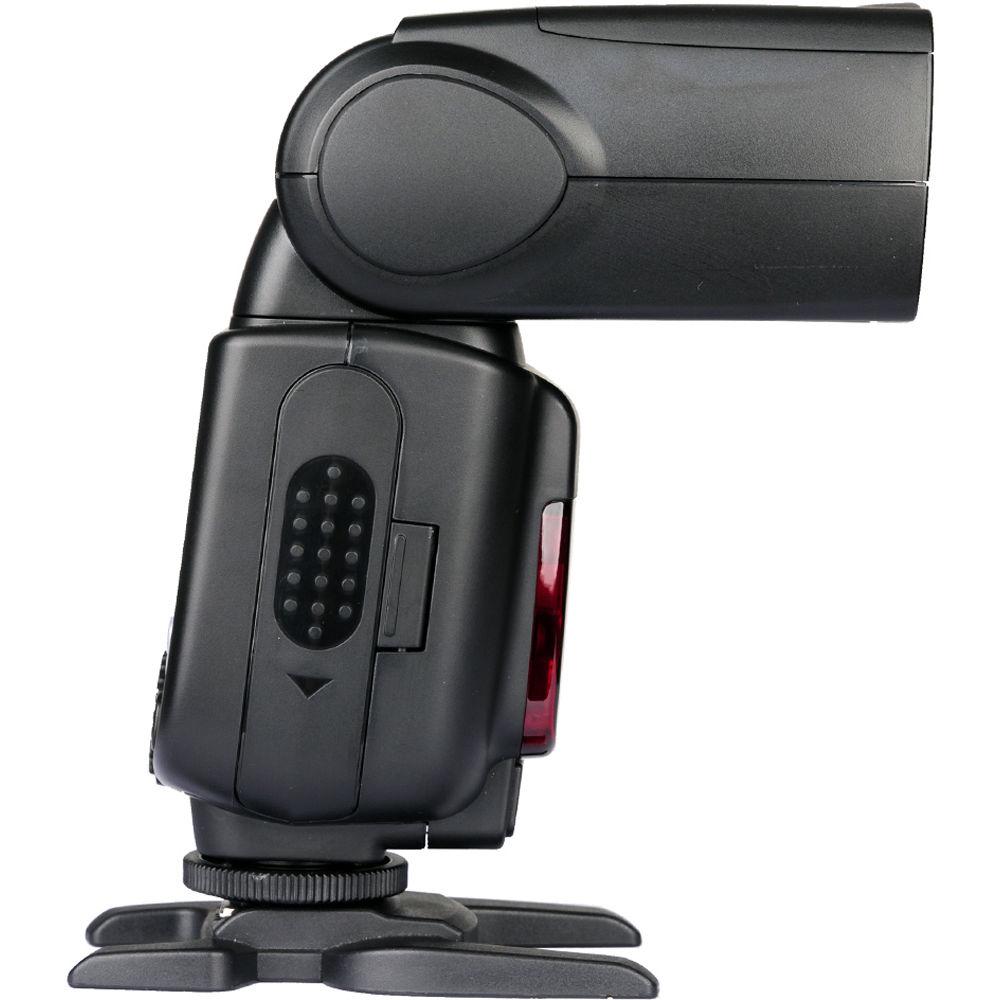

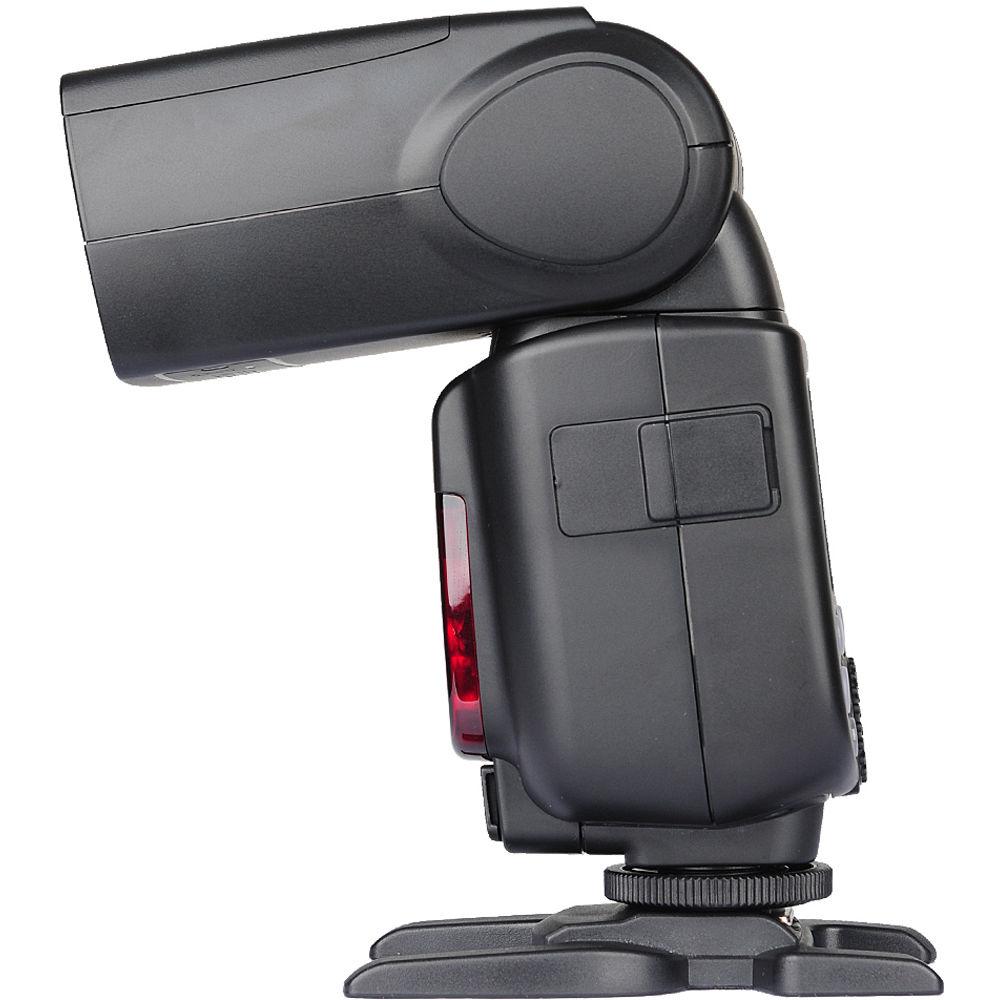

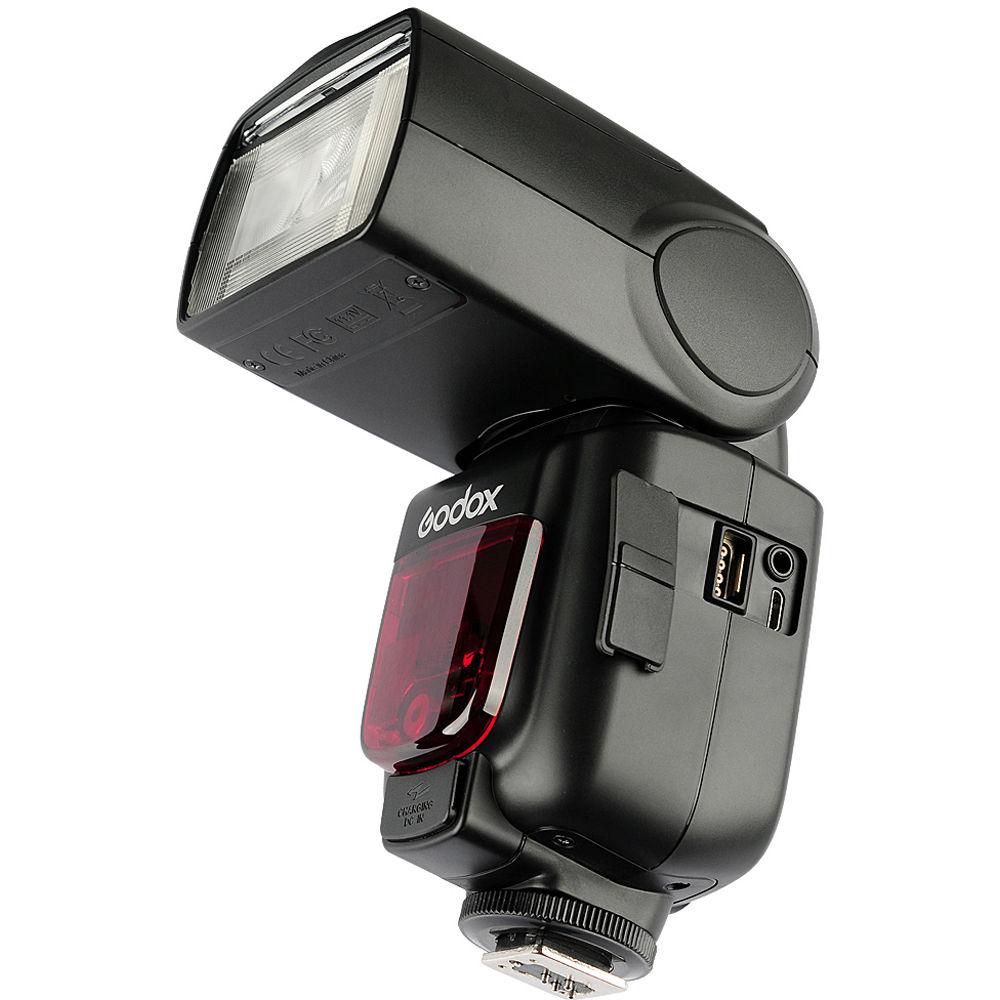

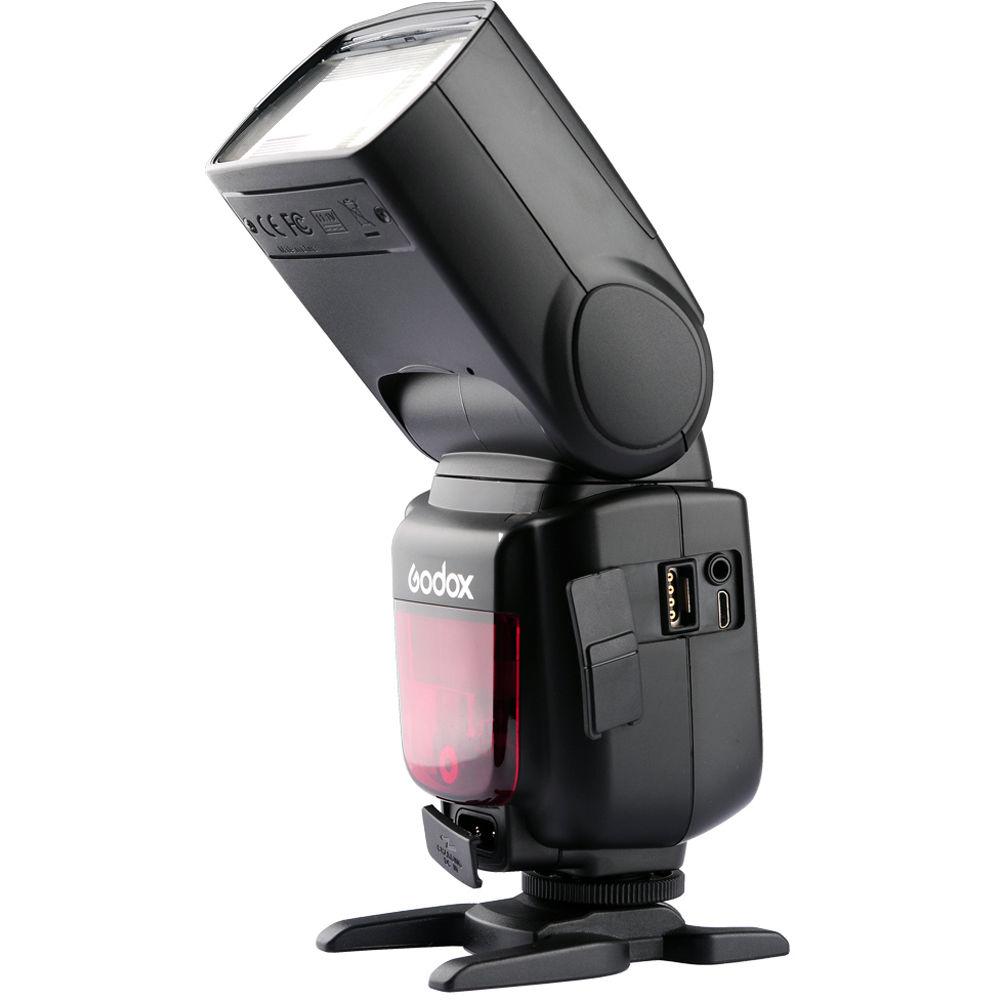

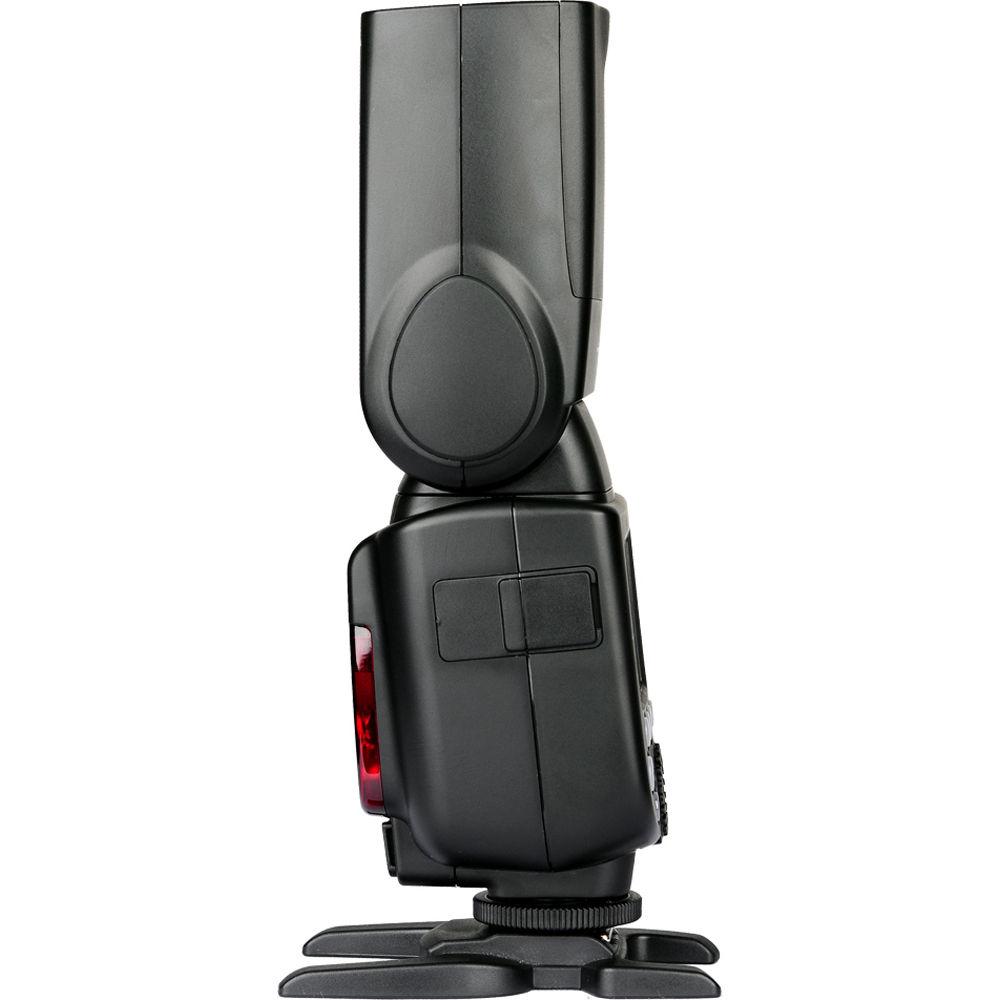

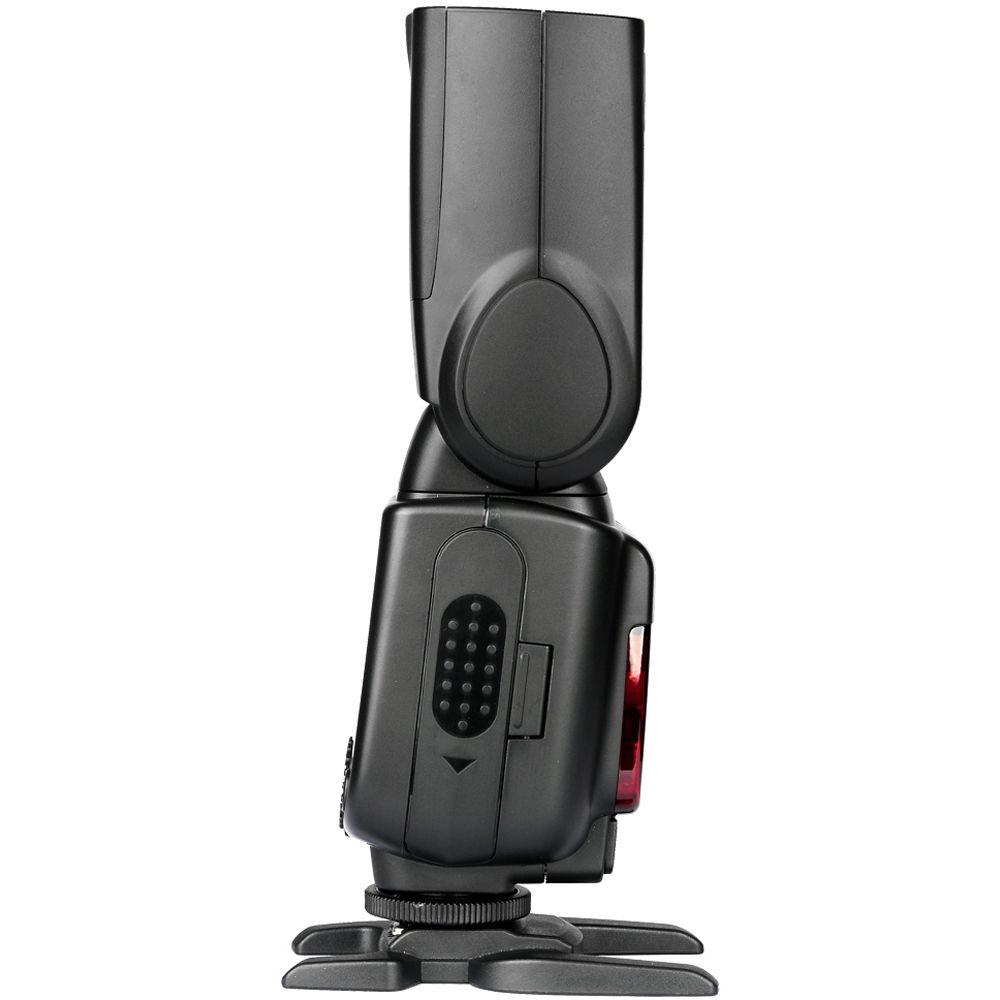

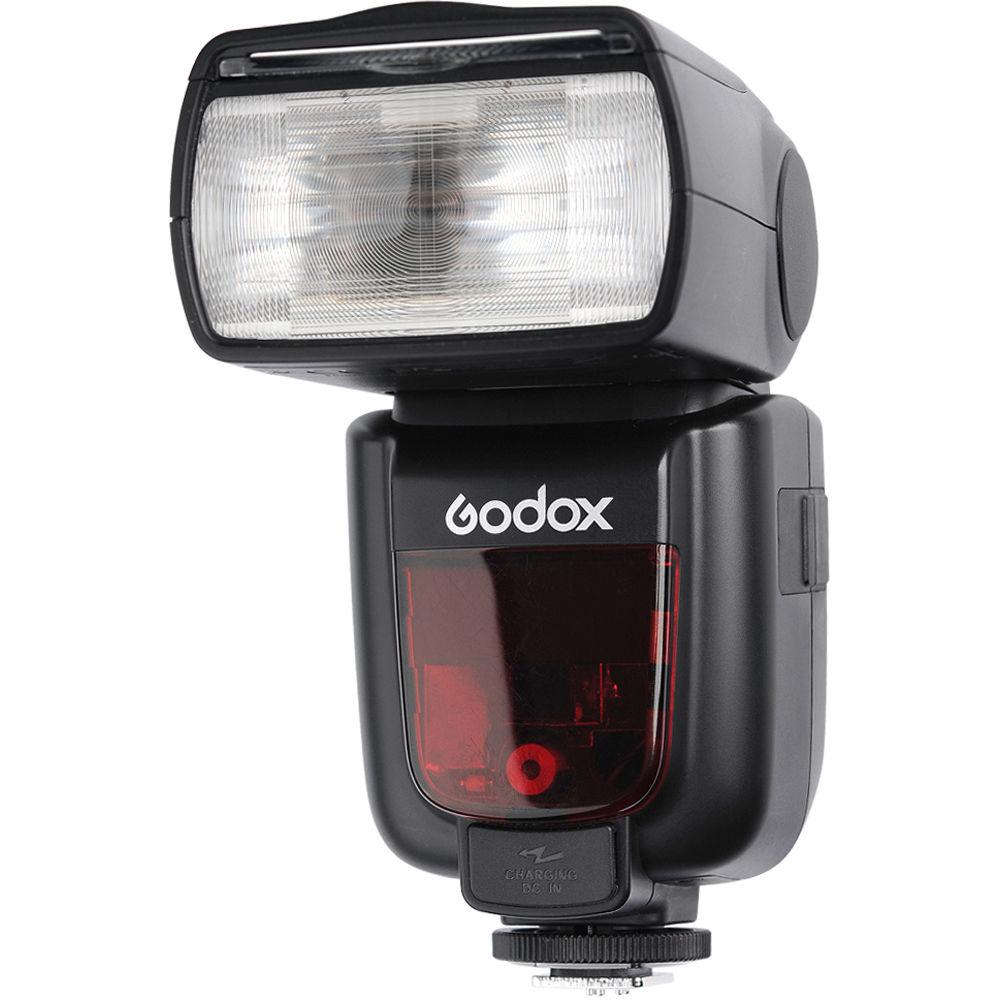

User Manual for Godox TT685F Thinklite TTL Flash for Fujifilm Cameras Click to enlarge the picture
Contents of the user manual for the Godox TT685F Thinklite TTL Flash for
- Product category: On Camera Flashes Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox On Camera Flashes
 |
User manual for the Godox TT685F Thinklite TTL Flash for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|
Product description A Guide to On-Camera Flash Read More With full support for Fujifilm TTL, including high-speed sync, and a built-in 2.4GHz radio system, the Godox TT685F Thinklite TTL Flash will make it easy to create both simple and elaborate lighting setups. When mounted on camera, it is an effective lighting tool with a powerful guide number of 197' at ISO 100 and 200mm, a zoom range of 20-200mm, and the ability to tilt from -7 to 90° and rotate 360°. As a TTL-capable unit, the TT685F can also operate as a full wireless master or slave unit with TTL functionality.

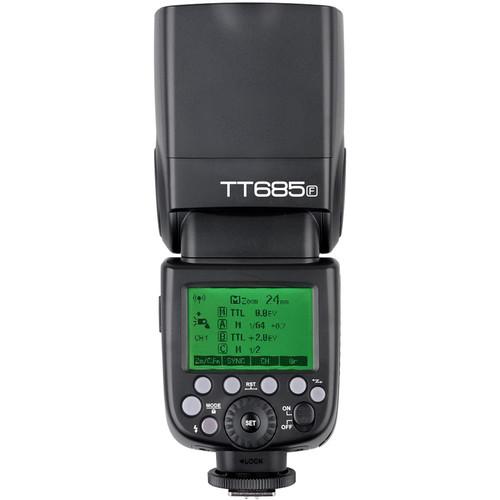

Operation is intuitive with a rear LCD panel that shows settings. Also, the flash is equipped with a Wireless Control Port for attaching an optional remote control set and it has a 3.5mm sync port for basic wired connectivity. It runs on four AA batteries, which help provide a recycle time of 0.1-2.6 seconds. - An integrated 2.4GHz X radio system is incorporated into the TT685F for wireless triggering. Able to be set up as a master or slave, this flash will help you create a versatile lighting setup with a range of 328' and support for 32 channels and three groups. It can also work with an optional X series transmitter for creating more elaborate setups.
- Being compatible with Fujifilm's TTL system, users will enjoy numerous automated flash settings and the ability to use functions such as high-speed sync.
- With a guide number of 197' at ISO 100 and 200mm the TT685F will easily illuminate most subjects. It also features a zoom head with a range of 20-200mm and a 14mm wide-angle panel for using a variety of different lenses.
- Manual power control from 1/1 to 1/128 in 1/3 EV steps.
- The flash head can be tilted from -7 to 90° and rotated a total of 360° for controlling bounce and where the light falls on the scene.
- Optical master/slave transmission is available for working with other standard flashes.
- Using an optional FT series remote control set, users can connect to the wireless control port to gain wireless control over the flash's power settings.
- A 3.5mm sync port is available for setting up a wired connection to a camera or trigger.
- This flash runs on four alkaline or NiMH AA batteries which help deliver about 230 full-power flashes and recycle times of 0.1-2.6 seconds.
- USB connection for installing future firmware updates.
In the Box Godox TT685F Thinklite TTL Flash for Fujifilm Cameras Mini Stand Protective Case Limited 1-Year Warranty User Manual PDF 6.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox TT685F Thinklite TTL Flash for Fujifilm Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox TT685F Specs | Mount | Shoe | | Guide No. | 196.85' / 60 m ISO 100 at 200 mm Position | | Exposure Control | Manual, TTL | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to 90° | | Swivel Head | 360° | | Coverage | 14 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 20 - 200 mm | | Off-Camera Terminal | 3.5 mm | | Recycle Time | Approximately 0.1 to 2.6 Seconds | | Flash Duration | 1/300 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: RF
Distance: Up to 328.08' / 100 m
Method: Optical Pulse
Distance: Up to 49.21' / 15 m
Mode: Master, Slave | | Wireless Communication Channels | 32 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.5 x 3.0 x 7.5" / 64.0 x 76.0 x 190.0 mm | | Weight | 14.46 oz / 410 g without batteries | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.9 x 3.6 x 3.2" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 00 owners. Add your rating and experience with the product.
