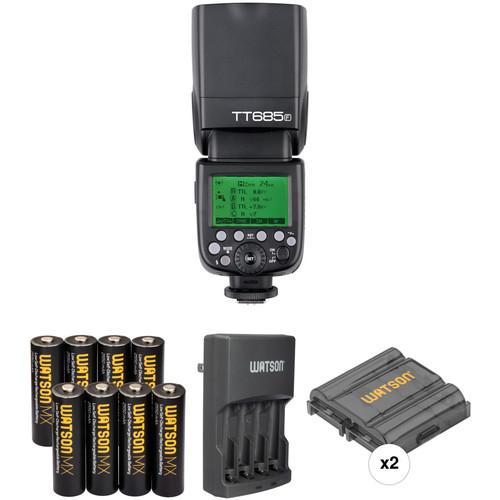

User Manual for Godox TT685F Thinklite TTL Flash with Accessories Kit for Fujifilm Cameras

• Product category: On Camera Flashes Godox
• Brand: Godox
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Godox On Camera Flashes

Product description

• Godox TT685F Thinklite TTL Flash for Fujifilm Cameras With full support for Fujifilm TTL, including high-speed sync, and a built-in 2.4GHz radio system, the Godox TT685F Thinklite TTL Flash will make it easy to create both simple and elaborate lighting setups. When mounted on camera, it is an effective lighting tool with a powerful guide number of 197' at ISO 100 and 200mm, a zoom range of 20-200mm, and the ability to tilt from -7 to 90° and rotate 360°. As a TTL-capable unit, the TT685F can also operate as a full wireless master or slave unit with TTL functionality.

  Operation is intuitive with a rear LCD panel that shows settings. Also, the flash is equipped with a Wireless Control Port for attaching an optional remote control set and it has a 3.5mm sync port for basic wired connectivity. It runs on four AA batteries, which help provide a recycle time of 0.1-2.6 seconds.
  • An integrated 2.4GHz X radio system is incorporated into the TT685F for wireless triggering. Able to be set up as a master or slave, this flash will help you create a versatile lighting setup with a range of 328' and support for 32 channels and three groups. It can also work with an optional X series transmitter for creating more elaborate setups.
  • Being compatible with Fujifilm's TTL system, users will enjoy numerous automated flash settings and the ability to use functions such as high-speed sync.
  • With a guide number of 197' at ISO 100 and 200mm the TT685F will easily illuminate most subjects. It also features a zoom head with a range of 20-200mm and a 14mm wide-angle panel for using a variety of different lenses.
  • Manual power control from 1/1 to 1/128 in 1/3 EV steps.
  • The flash head can be tilted from -7 to 90° and rotated a total of 360° for controlling bounce and where the light falls on the scene.
  • Optical master/slave transmission is available for working with other standard flashes.
  • Using an optional FT series remote control set, users can connect to the wireless control port to gain wireless control over the flash's power settings.
  • A 3.5mm sync port is available for setting up a wired connection to a camera or trigger.
  • This flash runs on four alkaline or NiMH AA batteries which help deliver about 230 full-power flashes and recycle times of 0.1-2.6 seconds.
  • USB connection for installing future firmware updates.
• Watson MX AA NiMH Batteries (8-Pack, 1.2V, 2550mAh) Power various electronics, including photo equipment, flashlights, gaming devices, and more, with this 8-pack of 1.2V MX AA NiMH Batteries from Watson. The Japanese-made cells come pre-charged and ready for use with a capacity of 2550mAh, making them ideal for use in high-drain devices. Thanks to their very low self-discharge rate, they are capable of retaining up to 85% of their capacity after 1 year in storage. The batteries can be recharged up to 500 times before their usable capacity starts to diminish. Additionally, they are durable enough to function in temperatures as low as -4°F. UPC: 847628596856
• Watson 4-Hour Rapid Charger for AA and AAA NiMH and NiCd Rechargeable Batteries The 4-Hour Rapid Charger for AA and AAA NiMH and NiCd Rechargeable Batteries from Watson charges two or four AA or AAA batteries (not included). It is compatible with both NiMH and NiCd batteries. Charging time varies from 100-280 minutes, depending upon battery quantity, size, and capacity.

  The charger's intelligent Negative Delta-V microprocessor doles out the full charge to each battery, while Zero Slope Detection prevents overcharging. The Safety Guard Timer automatically shuts off after 6 hours in cases where batteries are taking far longer than normal to charge, in order to prevent damage from excessive current.

  The charger has two charging level indicator lights to keep you apprised of battery status. Switching 100-240 VAC input power enables use all over the world. The charger's compact outlet prongs fold in, making the unit more compact for storage.
  • Will charge either 2 or 4 AA or AAA batteries (sold separately).
  • Works with batteries that have Nickel-Metal Hydride (NiMH) or Nickel-Cadmium (NiCd) chemistry.
  • Charging time varies based upon battery quantity, size, and capacity. Charging 2 AAA batteries will take about 100 minutes, while 4 AAA's will require about 200 minutes. Charging time for 2 AA batteries with a capacity of about 1800mAh will be roughly 110 minutes, while 4 AA batteries at that capacity will require about 220 minutes. For higher-capacity AA's in the 2400-2500mAh range, 2 batteries will charge in approximately 140 minutes, and 4 batteries will take about 280 minutes.
  • An intelligent Negative Delta-V microprocessor ensures that each battery is charged to its full capacity, while the Zero Slope Detection feature prevents overcharging.
  • Safety Guard Timer will automatically shut off after 6 hours. So in cases where batteries are taking far longer than normal to charge, they will not be exposed to excessive current that could cause damage.
  • Dual charging level indicator lights are red while batteries are charging and turn green when charging is complete. They will flash red if the batteries are not charging properly.
  • Switching 100-240 VAC input power allows you to use the charger all over the world.
  • The compact outlet prongs fold in and out to make the unit smaller for easier storage.
  UPC: 847628532953
• 2 x Watson Case for 4 AA or AAA Batteries (Black) This plastic Watson Battery Storage Case holds up to 4 AA or AAA batteries in dedicated slots. It has a compact form factor for easy storage in your pocket or a small compartment in your gear bag. The case has a snap closure and features an attachment point for connecting a second identical case, which could in turn be connected to another to create a chain, giving you an easy expansion option for storing more batteries. UPC: 847628006782

• TT685F Thinklite TTL Flash for Fujifilm Cameras
• Mini Stand
• Protective Case
• Limited 1-Year Warranty

• Watson - MX AA NiMH Batteries (8-Pack, 1.2V, 2550mAh)

• Watson - 4-Hour Rapid Charger for AA and AAA NiMH and NiCd Rechargeable Batteries

• 2 x Watson - Case for 4 AA or AAA Batteries (Black) bcaxtawbztuvxcexarxwwwdwd

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Godox TT685F Thinklite TTL Flash for Fujifilm Cameras

  Mount	Shoe
  Guide No.	196.85' / 60 m ISO 100 at 200 mm Position
  Exposure Control	Manual, TTL
  Vari-Power	1/1 to 1/128
  Bounce Head	-7 to 90°
  Swivel Head	360°
  Coverage	14 - 200 mm (Full Frame)
  Zoom Head	Full Frame: 20 - 200 mm
  Off-Camera Terminal	3.5 mm
  Recycle Time	Approximately 0.1 to 2.6 Seconds
  Flash Duration	1/300 to 1/20000 sec
  Flash-Ready Indicator	Yes
  Compensation	-3 EV to +3 EV (in 1/3 EV steps)
  Slave Timing Modes	Instant Sync Skip Preflash
  Wireless Operation	Method: RF Distance: Up to 328.08' / 100 m Method: Optical Pulse Distance: Up to 49.21' / 15 m Mode: Master, Slave
  Wireless Communication Channels	32 Channels
  Wireless Groups	3 Groups
  Power Source	4 x AA Alkaline, Rechargeable NiMH Batteries
  Dimensions (W x H x D)	2.5 x 3.0 x 7.5" / 64.0 x 76.0 x 190.0 mm
  Weight	14.46 oz / 410 g without batteries

  Box Dimensions (LxWxH)	7.9 x 3.6 x 3.2"

• Watson MX AA NiMH Batteries (8-Pack, 1.2V, 2550mAh)

  Battery Type	8 x AA
  Battery Chemistry	NiMH
  Battery Voltage	1.2 V
  Capacity (mAh)	2550 mAh

  Box Dimensions (LxWxH)	5.984 x 2.756 x 0.551"

• Watson 4-Hour Rapid Charger for AA and AAA NiMH and NiCd Rechargeable Batteries

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Consumption	10 W
  Charging Bays	4 x AA, AAA
  Supported Battery Chemistry	Ni-Cd, Ni-MH
  Charging Voltage	2.8 VDC
  Charging Amperage	500 mA
  Power Input	2-Prong US Plug
  Charger Dimensions	4.3 x 2.7 x 1.3" / 109.00 x 69.00 x 33.00 mm
  Charger Weight	2.8 oz / 79.4 g

  Operating Temperature	32 to 113°F / 0 to 45°C

  Box Dimensions (LxWxH)	5.3 x 4.0 x 1.4"

• 2 x Watson Case for 4 AA or AAA Batteries (Black)

  Battery Type	4 x AA, AAA
  Material	Plastic
  Closure Type	Snap Fastener
  Dimensions (W x H x D)	2.5 x 2.0 x 0.5" / 6.3 x 5.1 x 1.3 cm
  Weight	0.4 oz / 11 g

  Box Dimensions (LxWxH)	2.0 x 2.0 x 1.0"
