User manual
Godox TT685N Thinklite TTL Flash with

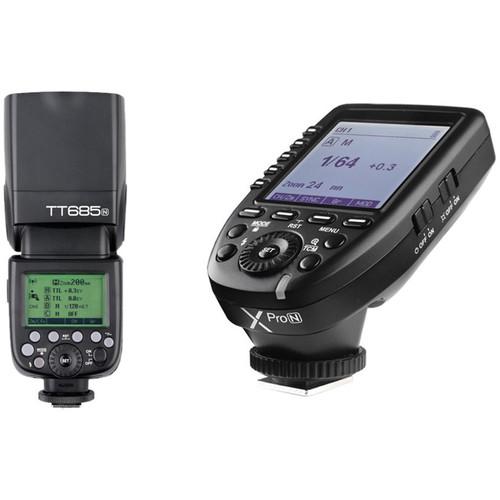

User Manual for Godox TT685N Thinklite TTL Flash with XProN Trigger Kit for Nikon Cameras

• Product category: On Camera Flashes Godox
• Brand: Godox
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Godox On Camera Flashes

Product description

• Godox TT685N Thinklite TTL Flash for Nikon Cameras With full support for Nikon i-TTL, including high-speed sync, and a built-in 2.4GHz radio system, the Godox TT685N Thinklite TTL Flash will make it easy to create both simple and elaborate lighting setups. When mounted on camera, it is an effective lighting tool with a powerful guide number of 197' at ISO 100 and 200mm, a zoom range of 20-200mm, and the ability to tilt from -7 to 90° and rotate 360°. As a TTL-capable unit, the TT685N can also operate as a full wireless master or slave unit with TTL functionality.

  Operation is intuitive with a rear LCD panel that shows settings. Also, the flash is equipped with a Wireless Control Port for attaching an optional remote control set and it has a 3.5mm sync port for basic wired connectivity. It runs on four AA batteries, which help provide a recycle time of 0.1-2.6 seconds.
  • An integrated 2.4GHz X radio system is incorporated into the TT685N for wireless triggering. Able to be set up as a master or slave, this flash will help you create a versatile lighting setup with a range of 328' and support for 32 channels and three groups. It can also work with an optional X series transmitter for creating more elaborate setups.
  • Being compatible with Nikon's i-TTL system, users will enjoy numerous automated flash settings and the ability to use functions such as high-speed sync.
  • With a guide number of 197' at ISO 100 and 200mm the TT685N will easily illuminate most subjects. It also features a zoom head with a range of 20-200mm and a 14mm wide-angle panel for using a variety of different lenses.
  • Manual power control from 1/1 to 1/128 in 1/3 EV steps.
  • The flash head can be tilted from -7 to 90° and rotated a total of 360° for controlling bounce and where the light falls on the scene.
  • Optical master/slave transmission is available for working with other standard flashes.
  • Using an optional FT series remote control set, users can connect to the wireless control port to gain wireless control over the flash's power settings.
  • A 3.5mm sync port is available for setting up a wired connection to a camera or trigger.
  • This flash runs on four alkaline or NiMH AA batteries which help deliver about 230 full-power flashes and recycle times of 0.1-2.6 seconds.
  • USB connection for installing future firmware updates.
• Godox XProN TTL Wireless Flash Trigger for Nikon Cameras Using the 2.4 GHz Godox X wireless radio system, the XProN TTL Wireless Flash Trigger can be used to effectively and reliably trigger flashes from up to 328' away, and when used with compatible flashes and receivers users will have the added benefit of remote power control. This model is compatible with Nikon's i-TTL system, including support for high-speed sync up to 1/8000 second, and offers advanced control options along with settings for working with system-specific features. For ensuring maximum reliability and control, users can set up 16 groups on one of 32 channels and can then access 99 wireless ID settings for limiting interference from other nearby systems.

  In addition to basic manual and TTL control modes, other settings are available, including stroboscopic flash and second-curtain sync. Users can adjust flash exposure compensation from -3 to +3 EV as well as wirelessly control the modeling light, zoom setting, and more. For using the XProN with other camera systems there is a 2.5mm sync port that supports triggering via a wired connection. Also, a USB Type-C port is present for firmware updates and the devices run on two AA batteries for convenience.

• TT685N Thinklite TTL Flash for Nikon Cameras xyfzcqdqwaeueddzxbatdzvfss
• Mini Stand
• Protective Case
• Limited 1-Year Warranty

• XProN TTL Wireless Flash Trigger for Nikon Cameras

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Godox TT685N Thinklite TTL Flash for Nikon Cameras

  Mount	Shoe
  Guide No.	196.85' / 60 m ISO 100 at 200 mm Position
  Exposure Control	Manual, i-TTL
  Vari-Power	1/1 to 1/128
  Bounce Head	-7 to 90°
  Swivel Head	360°
  Coverage	14 - 200 mm (Full Frame)
  Zoom Head	Full Frame: 20 - 200 mm
  Off-Camera Terminal	3.5 mm
  Recycle Time	Approximately 0.1 to 2.6 Seconds
  Flash Duration	1/300 to 1/20000 sec
  Flash-Ready Indicator	Yes
  Compensation	-3 EV to +3 EV (in 1/3 EV steps)
  Slave Timing Modes	Instant Sync Skip Preflash
  Wireless Operation	Method: RF Distance: Up to 328.08' / 100 m Method: Optical Pulse Distance: Up to 49.21' / 15 m Mode: Master, Slave
  Wireless Communication Channels	32 Channels
  Wireless Groups	3 Groups
  Power Source	4 x AA Alkaline, Rechargeable NiMH Batteries
  Dimensions (W x H x D)	2.5 x 3.0 x 7.5" / 64.0 x 76.0 x 190.0 mm
  Weight	14.46 oz / 410 g without batteries

  Box Dimensions (LxWxH)	7.9 x 3.6 x 3.2"

• Godox XProN TTL Wireless Flash Trigger for Nikon Cameras

  Channels	32
  Groups	16
  Wireless Range	328' / 100 m
  Radio Frequency	2.4 GHz

  Control Modes	Manual, TTL, i-TTL
