User manual

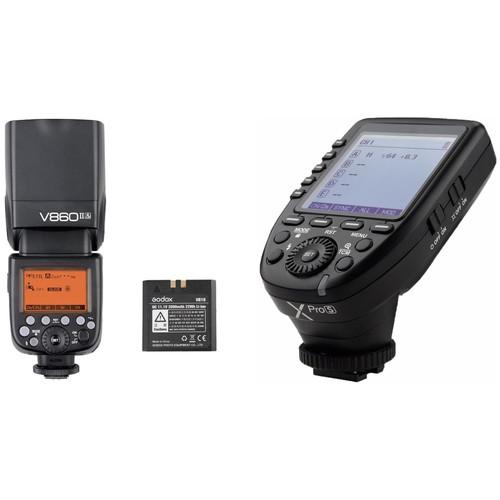

Godox VING V860II TTL Li-Ion Flash

User Manual for Godox VING V860II TTL Li-Ion Flash with XProS TTL Trigger Kit for Sony Cameras

• Product category: On Camera Flashes Godox
• Brand: Godox
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Godox On Camera Flashes

Product description

• Godox VING V860IIS TTL Li-Ion Flash Kit for Sony Cameras Power, speed, and integrated radio transmission make the VING V860IIS TTL Li-Ion Flash Kit from Godox a hard-to-beat option for your Sony cameras. Fully compatible with ADI / P-TTL systems, the V860IIS supports many advanced functions and features. Also, it features the Godox 2.4GHz X wireless radio system which provides both master and slave TTL functionality with a range of up to 328'. On top of this, the flash is powerful and versatile, featuring a guide number of 197' at ISO 100 and 200mm along with a zoom range of 20-200mm, which can be expanded to 14mm with the use of the pull-out panel. And, this flash runs off a rechargeable Li-ion battery pack, that ensures fast recharge and long-lasting shoots.

  For general operation, the V860IIS features full bounce flash capabilities, including tilting from -7 to 90° and rotation left and right 180°. As a ADI / P-TTL-compatible unit, this flash offers support for high-speed sync, flash exposure compensation, 1st and 2nd curtain sync, and much more. Additionally, it can function as an optical master or slave unit if needed.
  • The Godox 2.4GHz X wireless radio system has an impressive range of 328' along with the ability to choose between 32 channels and set up three groups. The system is compatible with Godox's X series or transmitters for more advanced functionality and setups.
  • A powerful guide number of 197' at ISO 100 and 200mm ensures your subjects are properly illuminated.
  • A zoom range of 20-200mm, as well as a wide-angle panel that supports 14mm, ensures maximum compatibility with a range of lenses and shooting styles.
  • The flash head can tilt from -7 to 90° and rotate 180° both left and right for full bounce capabilities.
  • Optical wireless transmission is available with access to four channels and two groups as well as a range of up to 49'.
  • An AF assist light is present with a range of 2-32.8'.
  • This flash supports various functions, including multi flash, high-speed sync, 1st and 2nd curtain sync, flash exposure compensation, and more.
  • The 11.1V, 2000mAh Li-ion polymer battery pack included with the flash will provide recharge times of faster than 1.5 seconds and approximately 650 full-power flashes.
  • In addition to the hot shoe and wireless triggering, the V860IIS offers a 2.5mm sync port for a wired connection to a camera or receiver.
  • A micro-USB port is available for installing firmware updates.
• Godox XProS TTL Wireless Flash Trigger for Sony Cameras Using the 2.4 GHz Godox X wireless radio system, the XProS TTL Wireless Flash Trigger can be used to effectively and reliably trigger flashes from up to 328' away, and when used with compatible flashes and receivers users will have the added benefit of remote power control. This model is compatible with Sony's ADI / P-TTL system, including support for high-speed sync up to 1/8000 second, and offers advanced control options along with settings for working with system-specific features. For ensuring maximum reliability and control, users can set up 16 groups on one of 32 channels and can then access 99 wireless ID settings for limiting interference from other nearby systems.

  In addition to basic manual and TTL control modes, other settings are available, including stroboscopic flash and second-curtain sync. Users can adjust flash exposure compensation from -3 to +3 EV as well as wirelessly control the modeling light, zoom setting, and more. For using the XProS with other camera systems there is a 2.5mm sync port that supports triggering via a wired connection. Also, a USB Type-C port is present for firmware updates and the devices run on two AA batteries for convenience.

• VING V860IIS TTL Li-Ion Flash Kit for Sony Cameras cysustqywwdfcyuqyxvfscsb
• VB-18 Li-Ion Battery Pack
• VC-18 Battery Charger and Cable
• Mini Stand
• Protective Case
• Limited 1-Year Warranty

• XProS TTL Wireless Flash Trigger for Sony Cameras

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Godox VING V860IIS TTL Li-Ion Flash Kit for Sony Cameras

  Mount	Shoe
  Guide No.	196.85' / 60 m ISO 100 at 200 mm Position
  Exposure Control	ADI / P-TTL, Manual
  Vari-Power	1/1 to 1/128
  Bounce Head	-7 to 90°
  Swivel Head	360°
  Coverage	14 - 200 mm (Full Frame)
  Zoom Head	Full Frame: 20 - 200 mm
  Off-Camera Terminal	2.5 mm
  Recycle Time	Approximately 0.1 to 1.5 Seconds
  Flash Duration	1/300 to 1/20000 sec
  Flash-Ready Indicator	Yes
  Compensation	-3 EV to +3 EV (in 1/3 EV steps)
  Wireless Operation	Method: Optical Pulse Distance: Up to 49.21' / 15 m Mode: Master, Slave Method: RF Distance: Up to 328.08' / 100 m Mode: Master, Slave
  Wireless Communication Channels	32 Channels
  Wireless Groups	2 Groups
  Power Source	1 x Proprietary Rechargeable Li-Ion Battery
  Dimensions (W x H x D)	2.5 x 3.0 x 7.5" / 64.0 x 76.0 x 190.0 mm
  Weight	15.17 oz / 430 g

  Box Dimensions (LxWxH)	9.1 x 8.1 x 3.1"

• Godox XProS TTL Wireless Flash Trigger for Sony Cameras

  Channels	32
  Groups	16
  Wireless Range	328' / 100 m
  Radio Frequency	2.4 GHz

  Control Modes	ADI, P-TTL
