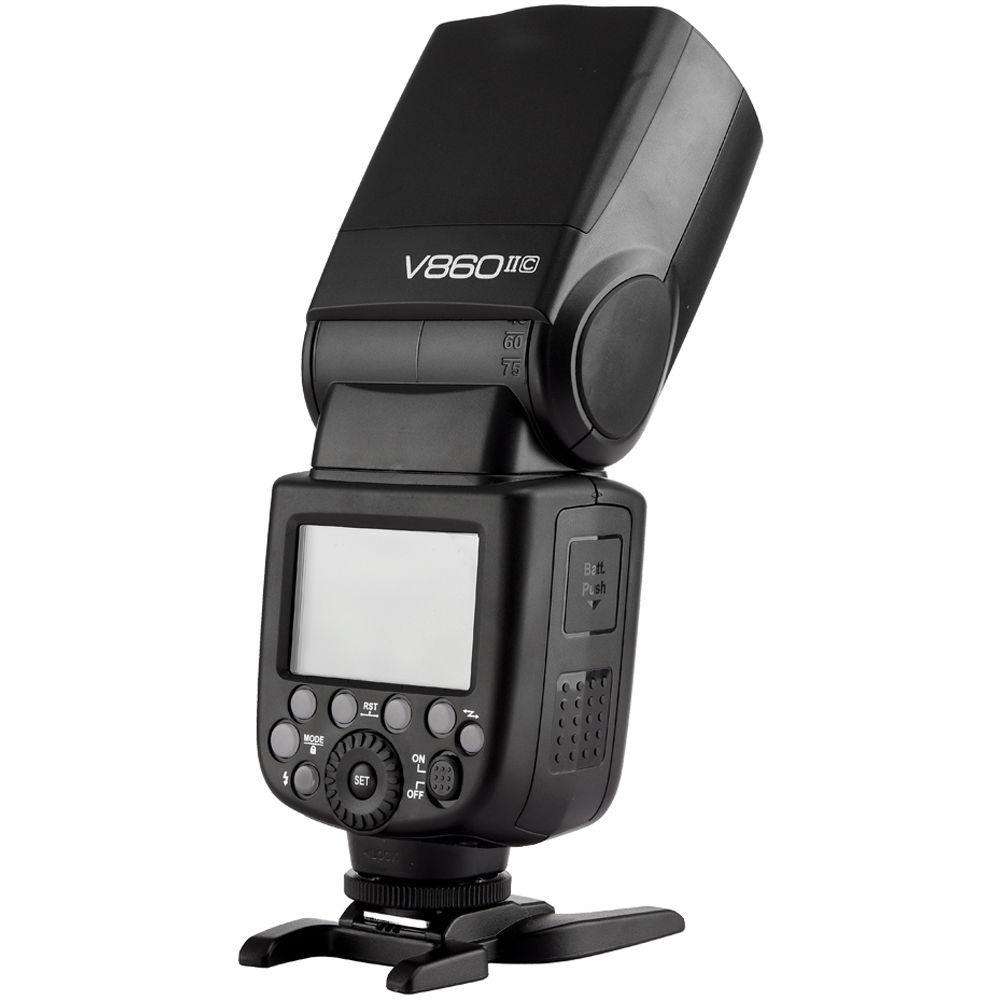

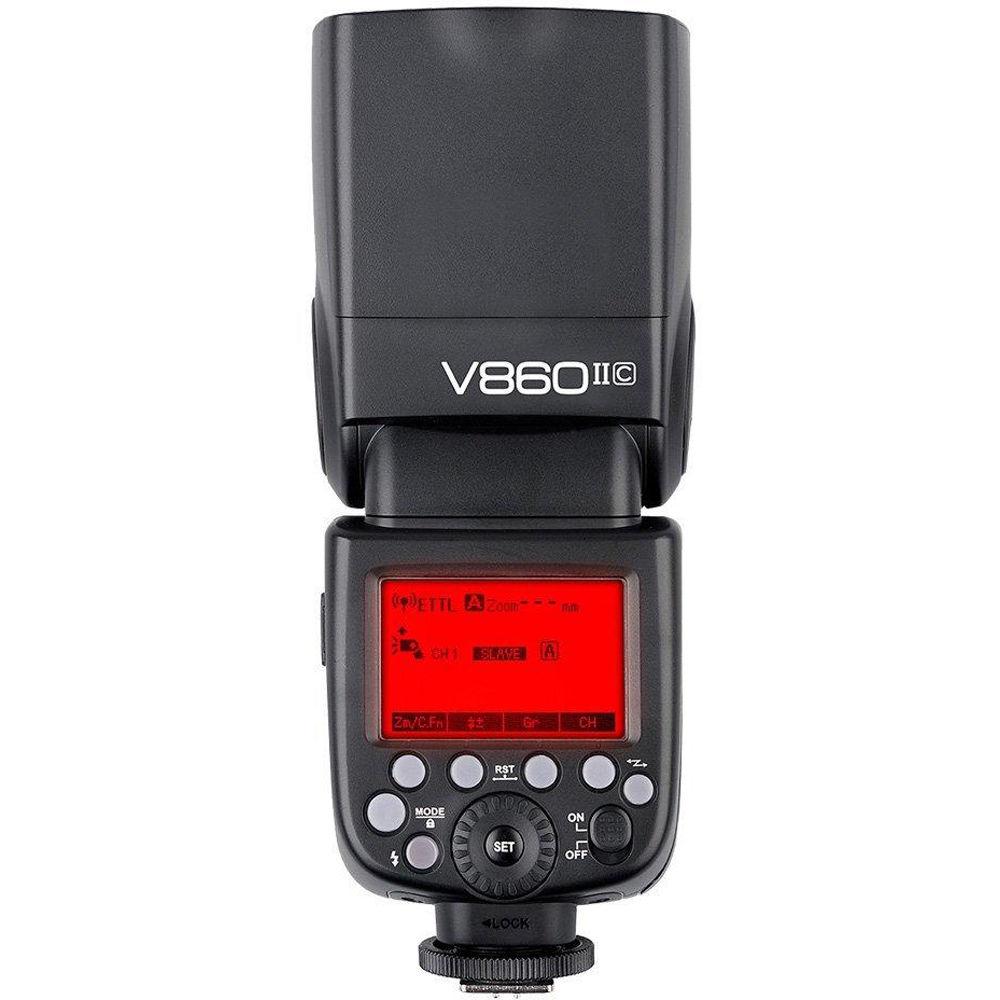

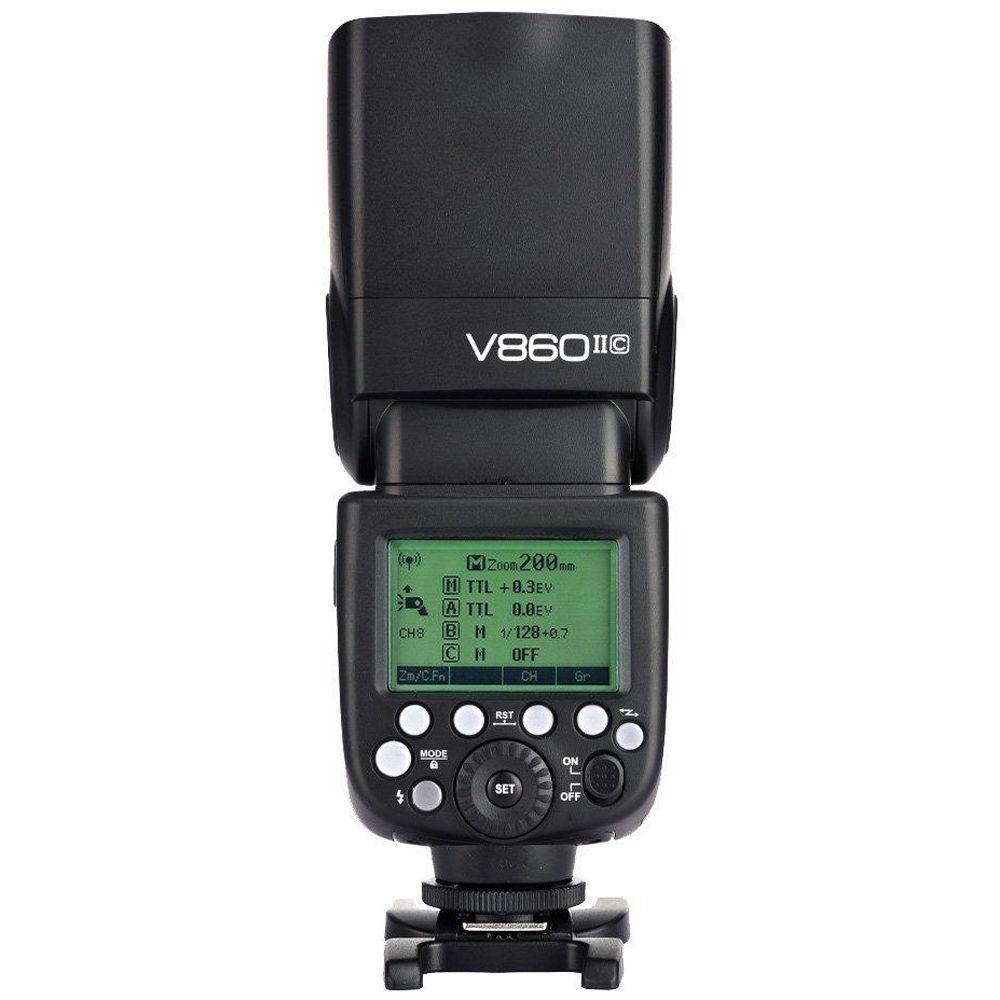

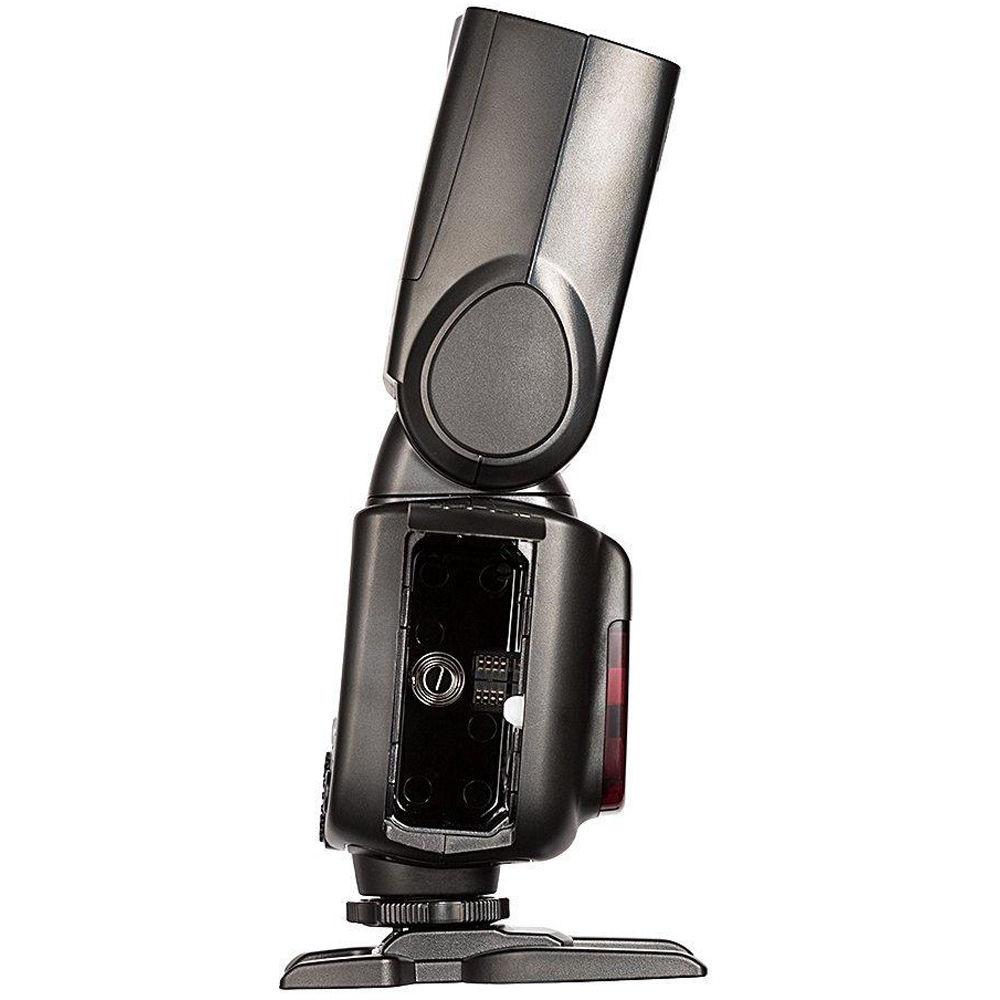

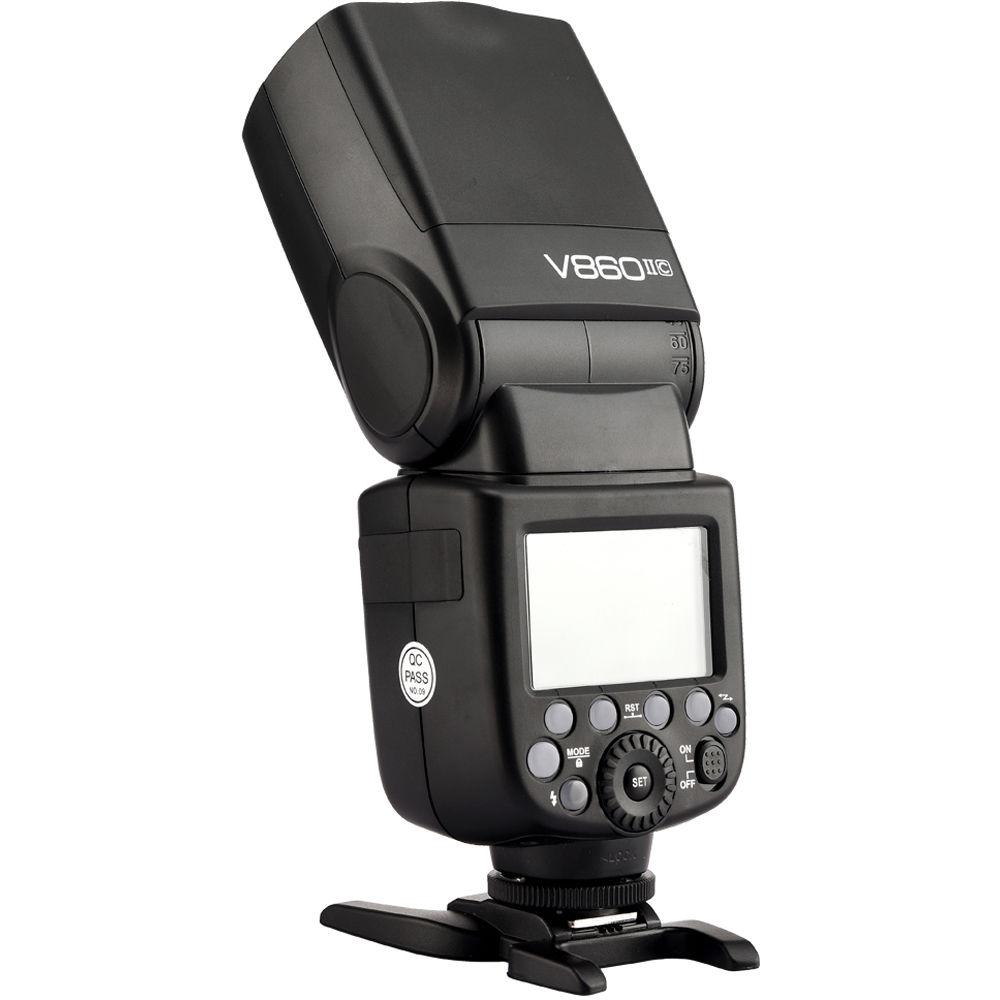

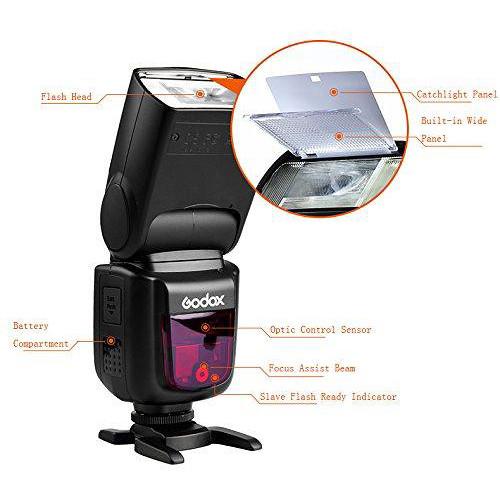

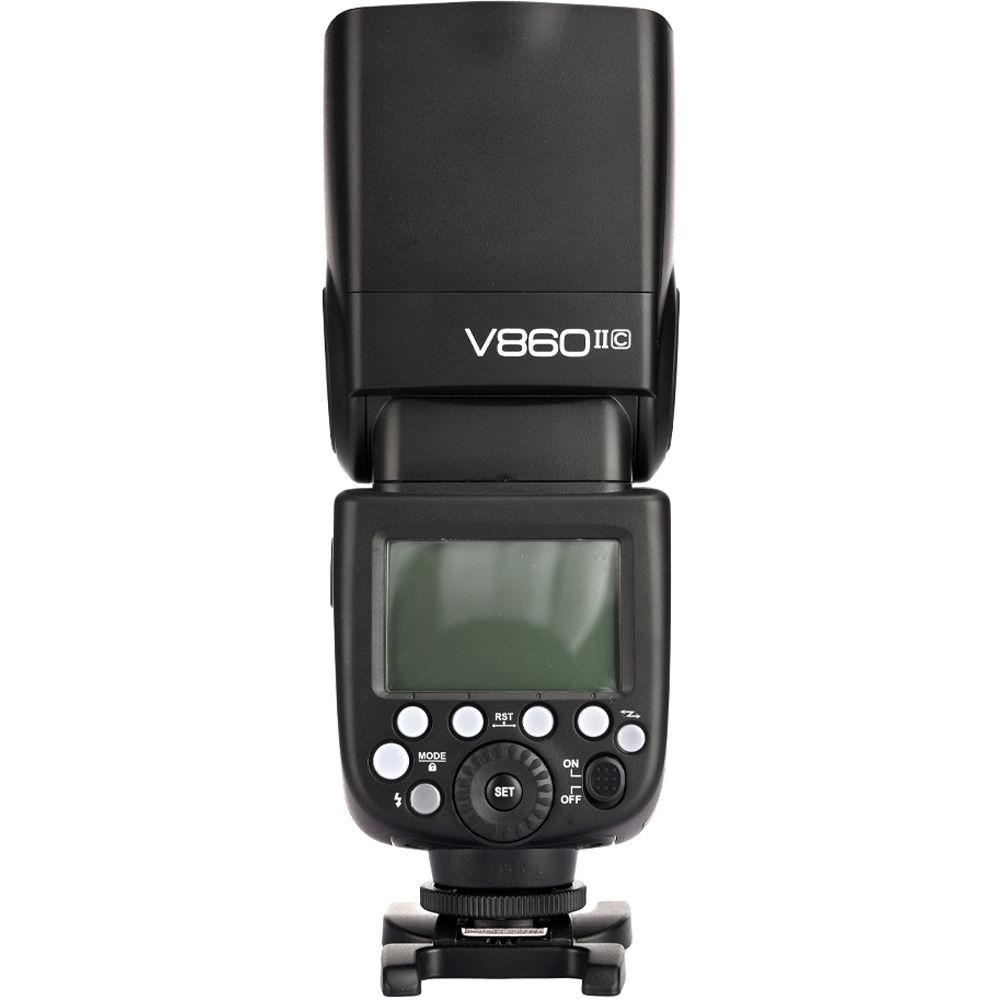

User Manual for Godox VING V860IIC TTL Li-Ion Flash Kit for Canon Cameras Click to enlarge the picture
Contents of the user manual for the Godox VING V860IIC TTL Li-Ion Flash
- Product category: On Camera Flashes Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox On Camera Flashes
 |
User manual for the Godox VING V860IIC TTL Li-Ion Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|
Product description A Guide to On-Camera Flash Read More szbtzxdudcqdzybzysbafxatyde Power, speed, and integrated radio transmission make the VING V860IIC TTL Li-Ion Flash Kit from Godox a hard-to-beat option for your Canon cameras. Fully compatible with E-TTL / E-TTL II systems, the V860IIC supports many advanced functions and features. Also, it features the Godox 2.4GHz X wireless radio system which provides both master and slave TTL functionality with a range of up to 328'. On top of this, the flash is powerful and versatile, featuring a guide number of 197' at ISO 100 and 200mm along with a zoom range of 20-200mm, which can be expanded to 14mm with the use of the pull-out panel. And, this flash runs off a rechargeable Li-ion battery pack, that ensures fast recharge and long-lasting shoots.

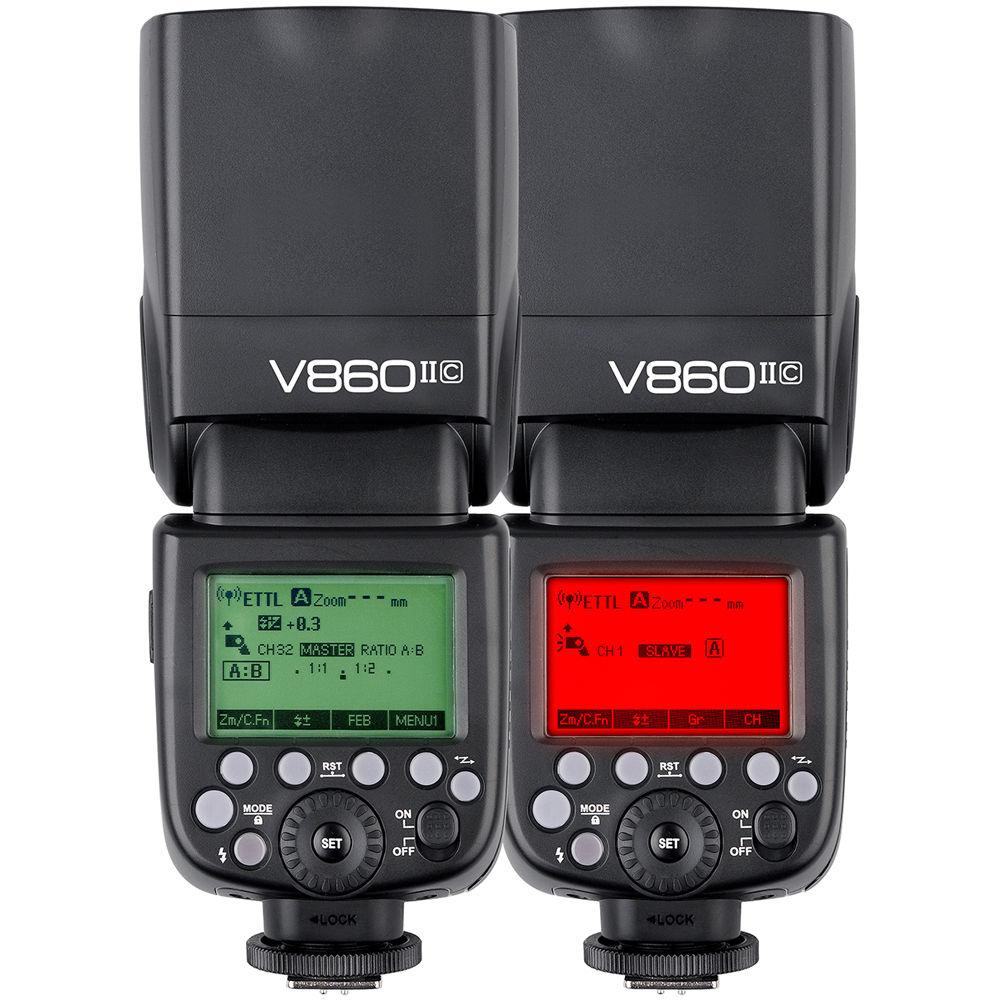

For general operation, the V860IIC features full bounce flash capabilities, including tilting from -7 to 90° and rotation left and right 180°. As a E-TTL / E-TTL II-compatible unit, this flash offers support for high-speed sync, flash exposure compensation, 1st and 2nd curtain sync, and much more. Additionally, it can function as an optical master or slave unit if needed. - The Godox 2.4GHz X wireless radio system has an impressive range of 328' along with the ability to choose between 32 channels and set up three groups. The system is compatible with Godox's X series or transmitters for more advanced functionality and setups.
- A powerful guide number of 197' at ISO 100 and 200mm ensures your subjects are properly illuminated.
- A zoom range of 20-200mm, as well as a wide-angle panel that supports 14mm, ensures maximum compatibility with a range of lenses and shooting styles.
- The flash head can tilt from -7 to 90° and rotate 180° both left and right for full bounce capabilities.
- Optical wireless transmission is available with access to four channels and three groups as well as a range of up to 49'.
- An AF assist light is present with a range of 2-32.8'.
- This flash supports various functions, including multi flash, high-speed sync, 1st and 2nd curtain sync, flash exposure compensation, and more.

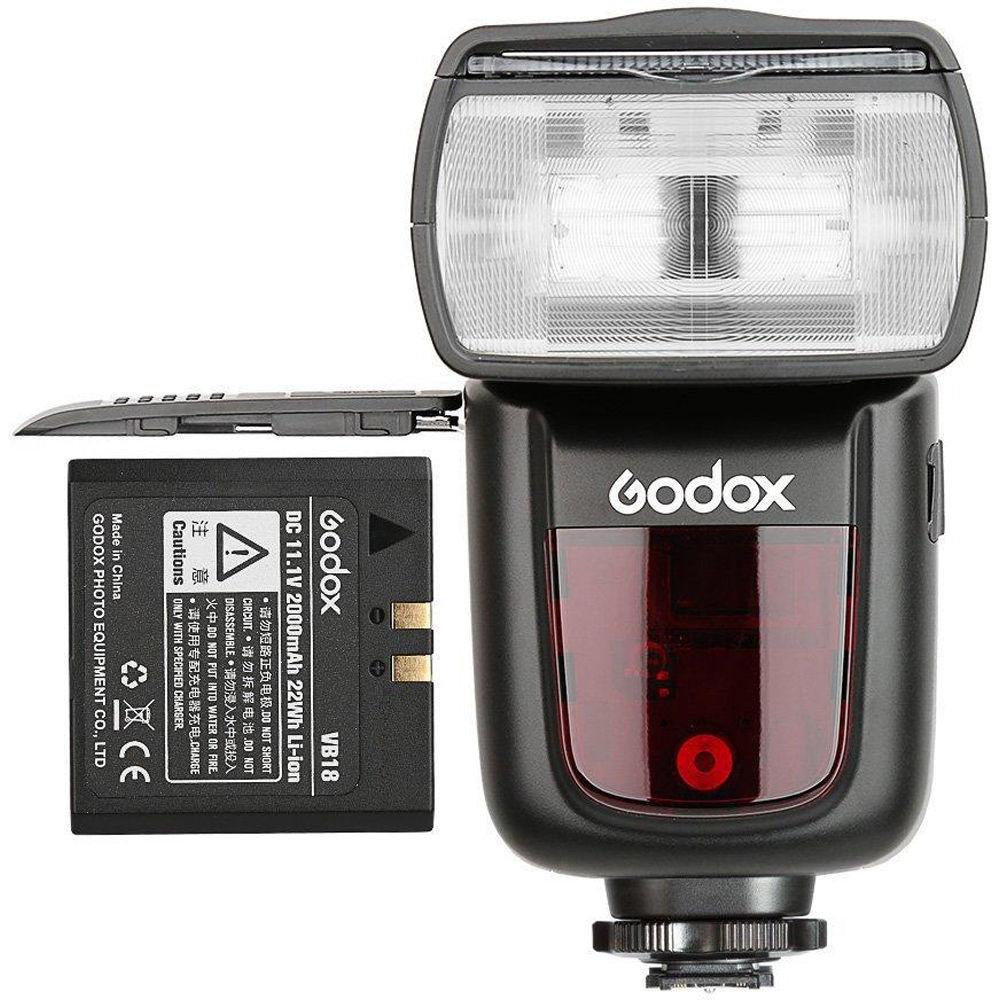

- The 11.1V, 2000mAh Li-ion polymer battery pack included with the flash will provide recharge times of faster than 1.5 seconds and approximately 650 full-power flashes.
- In addition to the hot shoe and wireless triggering, the V860IIC offers a 2.5mm sync port for a wired connection to a camera or receiver.
- A micro-USB port is available for installing firmware updates.

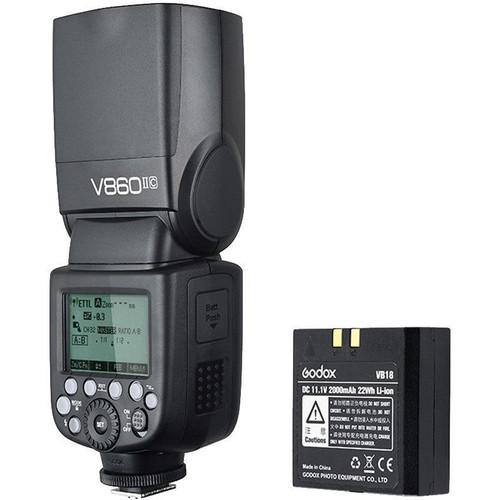

In the Box Godox VING V860IIC TTL Li-Ion Flash Kit for Canon Cameras VB-18 Li-Ion Battery Pack VC-18 Battery Charger and Cable Mini Stand Protective Case Limited 1-Year Warranty User Manual PDF 16.3mbszbtzxdudcqdzybzysbafxatyde Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox VING V860IIC TTL Li-Ion Flash Kit for Canon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox V860IIC Specs | Mount | Shoe | | Guide No. | 196.85' / 60 m ISO 100 at 200 mm Position | | Exposure Control | E-TTL / E-TTL II, Manual | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to 90° | | Swivel Head | 360° | | Coverage | 14 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 20 - 200 mm | | Off-Camera Terminal | 2.5 mm | | Recycle Time | Approximately 0.1 to 1.5 Seconds | | Flash Duration | 1/300 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Wireless Operation | Method: Optical Pulse
Distance: Up to 49.21' / 15 m
Mode: Master, Slave
Method: RF
Distance: Up to 328.08' / 100 m
Mode: Master, Slave | | Wireless Communication Channels | 32 Channels | | Wireless Groups | 3 Groups | | Power Source | 1 x Proprietary Rechargeable Li-Ion Battery | | Dimensions (W x H x D) | 2.5 x 3.0 x 7.5" / 64.0 x 76.0 x 190.0 mm | | Weight | 15.17 oz / 430 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 9.1 x 8.1 x 3.1" |
