Product description

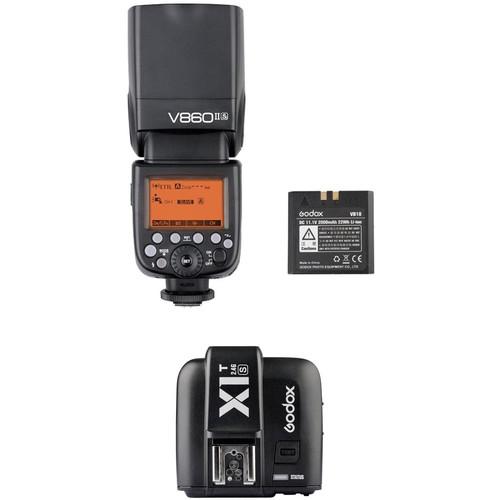

• Godox VING V860IIS TTL Li-Ion Flash Kit for Sony Cameras Power, speed, and integrated radio transmission make the VING V860IIS TTL Li-Ion Flash Kit from Godox a hard-to-beat option for your Sony cameras. Fully compatible with ADI / P-TTL systems, the V860IIS supports many advanced functions and features. Also, it features the Godox 2.4GHz X wireless radio system which provides both master and slave TTL functionality with a range of up to 328'. On top of this, the flash is powerful and versatile, featuring a guide number of 197' at ISO 100 and 200mm along with a zoom range of 20-200mm, which can be expanded to 14mm with the use of the pull-out panel. And, this flash runs off a rechargeable Li-ion battery pack, that ensures fast recharge and long-lasting shoots.

  For general operation, the V860IIS features full bounce flash capabilities, including tilting from -7 to 90° and rotation left and right 180°. As a ADI / P-TTL-compatible unit, this flash offers support for high-speed sync, flash exposure compensation, 1st and 2nd curtain sync, and much more. Additionally, it can function as an optical master or slave unit if needed.
  • The Godox 2.4GHz X wireless radio system has an impressive range of 328' along with the ability to choose between 32 channels and set up three groups. The system is compatible with Godox's X series or transmitters for more advanced functionality and setups.
  • A powerful guide number of 197' at ISO 100 and 200mm ensures your subjects are properly illuminated.
  • A zoom range of 20-200mm, as well as a wide-angle panel that supports 14mm, ensures maximum compatibility with a range of lenses and shooting styles.
  • The flash head can tilt from -7 to 90° and rotate 180° both left and right for full bounce capabilities.
  • Optical wireless transmission is available with access to four channels and two groups as well as a range of up to 49'.
  • An AF assist light is present with a range of 2-32.8'.
  • This flash supports various functions, including multi flash, high-speed sync, 1st and 2nd curtain sync, flash exposure compensation, and more.
  • The 11.1V, 2000mAh Li-ion polymer battery pack included with the flash will provide recharge times of faster than 1.5 seconds and approximately 650 full-power flashes.
  • In addition to the hot shoe and wireless triggering, the V860IIS offers a 2.5mm sync port for a wired connection to a camera or receiver.
  • A micro-USB port is available for installing firmware updates.
• Godox X1T-S TTL Wireless Flash Trigger Transmitter for Sony Enjoy TTL-enabled and reliable wireless flash by picking up the X1T-S TTL Wireless Flash Trigger Transmitter from Godox. This 2.4 GHz X wireless system is compatible with Sony cameras and flashes that support ADI / P-TTL for automatic exposure and metering, making it an excellent choice for shooters who need to work quickly. It also has an outstanding range of 328' and can be set to one of 32 channels for limiting interference with other nearby systems. Another huge benefit is the ability to control up to five groups at a time, or set the unit to ratio flash mode for three groups with varying power relative to one another.

  Users will have access to many settings through the backlit LCD and can make adjustments to settings such as sync delay and triggering modes. Also, through ADI / P-TTL compatibility the system will support high-speed sync, flash exposure compensation, and flash exposure lock, among other settings. Beyond this, users will be able to easily mount their flash to the transmitter's top hot shoe, or you can connect a studio strobe via the PC sync terminal on the receiver or PC sync terminal on the transmitter. Additionally, it runs on two AA batteries and has a micro-USB port for firmware updates.

• VING V860IIS TTL Li-Ion Flash Kit for Sony Cameras zwafrxsfaceryrbqxyvvvvccezrqrdbzrv
• VB-18 Li-Ion Battery Pack
• VC-18 Battery Charger and Cable
• Mini Stand
• Protective Case
• Limited 1-Year Warranty

• X1T-S TTL Wireless Flash Trigger Transmitter for Sony

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Godox VING V860IIS TTL Li-Ion Flash Kit for Sony Cameras

  Mount	Shoe
  Guide No.	196.85' / 60 m ISO 100 at 200 mm Position
  Exposure Control	ADI / P-TTL, Manual
  Vari-Power	1/1 to 1/128
  Bounce Head	-7 to 90°
  Swivel Head	360°
  Coverage	14 - 200 mm (Full Frame)
  Zoom Head	Full Frame: 20 - 200 mm
  Off-Camera Terminal	2.5 mm
  Recycle Time	Approximately 0.1 to 1.5 Seconds
  Flash Duration	1/300 to 1/20000 sec
  Flash-Ready Indicator	Yes
  Compensation	-3 EV to +3 EV (in 1/3 EV steps)
  Wireless Operation	Method: Optical Pulse Distance: Up to 49.21' / 15 m Mode: Master, Slave Method: RF Distance: Up to 328.08' / 100 m Mode: Master, Slave
  Wireless Communication Channels	32 Channels
  Wireless Groups	2 Groups
  Power Source	1 x Proprietary Rechargeable Li-Ion Battery
  Dimensions (W x H x D)	2.5 x 3.0 x 7.5" / 64.0 x 76.0 x 190.0 mm
  Weight	15.17 oz / 430 g

  Box Dimensions (LxWxH)	9.1 x 8.1 x 3.1"

• Godox X1T-S TTL Wireless Flash Trigger Transmitter for Sony

  Channels	32
  Groups	5
  Wireless Range	328' / 100 m
  Radio Frequency	2.4 GHz

  Control Modes	TTL
  Sync Speed	1/8000 Sec

  Ports	1 x PC Sync 1 x Micro-USB

  Bottom Mount	Hot Foot
  Top Mount	Hot Shoe

  Battery Type	2 x AA

  Dimensions	2.8 x 3 x 2" / 72 x 75 x 52 mm (Transmitter)
  Weight	3.5 oz / 99.2 g

  Box Dimensions (LxWxH)	4.4 x 4.4 x 2.3"
