User Manual for Godox Witstro Ring Flash AR400 Click to enlarge the picture
Contents of the user manual for the Godox Witstro Ring Flash AR400
- Product category: Macro & Ringlights Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox Macro & Ringlights
 |
User manual for the Godox Witstro Ring Flash AR400 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|

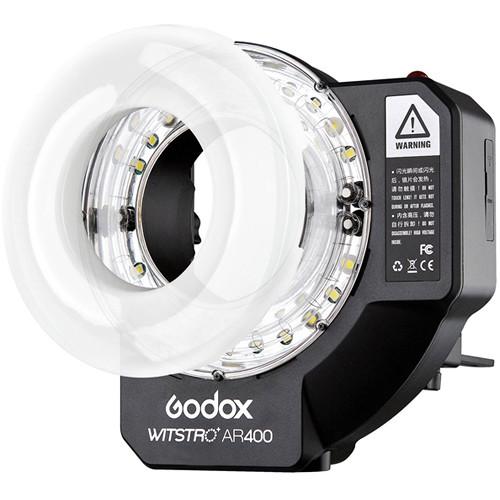

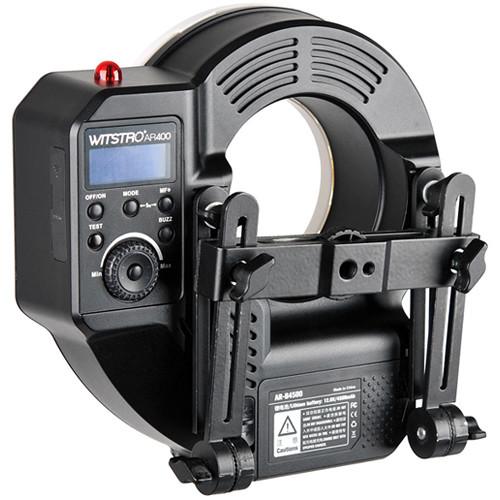

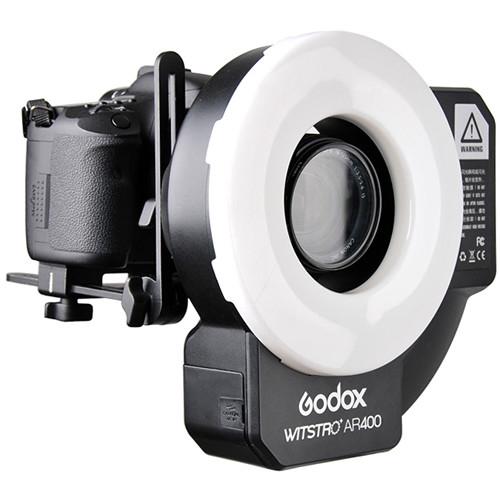

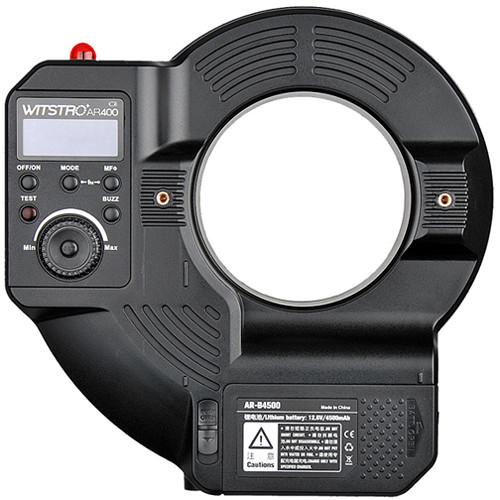

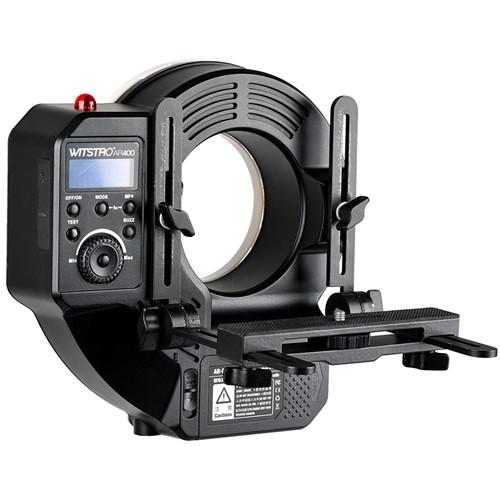

Product description A versatile lighting tool, the Godox Witstro Ring Flash AR400 is a distinctive light source with a signature near-shadowless look that is not only a flash unit but an LED light as well. The included camera mount allows you to position your DSLR's lens in the open center to take full advantage of the flash's effects. The AR400's diffusion cover is provided for those who want a softer rendition. As a ring flash, the AR400 has 400Ws of power with a guide number of 118, recycling in 0.05 to 2.8 seconds, and power that's variable from 1/1 to 1/128. Thanks to its integrated LEDs you can also use as a 5600K video light that has an output of 400 lux at 1.6'. Settings are displayed on the light's LCD control panel. The AD400 runs on an internal, lithium-ion battery that will give you up to 450 full power flashes on a full charge. An optional remote is available for wireless control. - Flash Head and LED Light Combination
- The AR400 is a shadow-free, open-center, ring-shaped flash head that you can shoot through with your DSLR's lens. It's also a dimmable video light thanks to its integrated LEDs.
- Power and Multi-Function Performance
- The 400W AR400 has 22 steps of power control (1/1 to 1/128). It supports S1/S2 slave triggering, RPT stroboscopic flash, and high-speed sync.
- Lithium Battery
- The AR400's 11.1V / 4500mAh lithium-ion battery provides 450 full power flashes with a recycle time of 0.05-2.8 seconds.

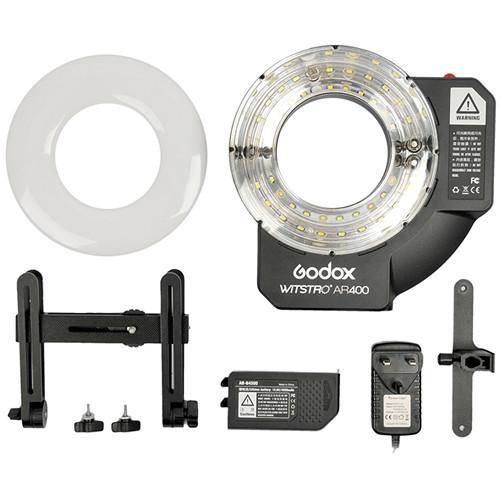

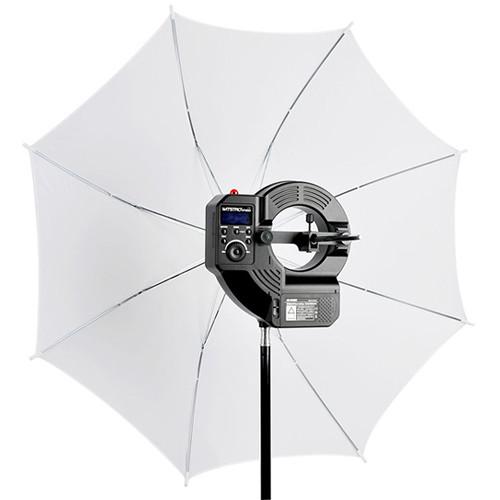

In the Box Godox Witstro Ring Flash AR400 Lithium-Ion Battery Battery Charger Folding Light Bracket Umbrella Bracket Diffusion Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox Witstro Ring Flash AR400 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox Witstro Specs | Type | Flash/LED | | Mount | Proprietary | | Guide No. | 118' / 35.97 m ISO 100 | | Constant Light Output | 37 fc / 400 Lux @ 1.6' / 0.5 m | | Modeling Light | No | | Vari-Power | Manual: 1/1 to 1/128 | | Color Temperature | 5600K | | Flash Duration | 1/300 - 10,000 sec | | TTL Dedication | No | | Off-Camera Terminal | 3.5 mm | | Recycle Time | Approximately 0.05 to 2.8 Seconds | | Flash-Ready Indicator | Yes | | Display | Yes | | Power Source | 1 x Proprietary Lithium Battery | | Ring Dimensions (WxHxD) | 8.9 x 9.1 x 2.8" / 22.5 x 23.0 x 7.0 cm | | Weight | 3.09 lb / 1.4 kg | | | | Package Weight | 5.365 lb | | Box Dimensions (LxWxH) | 15.2 x 11.8 x 11.4" |
