User Manual for Godox X1R-C TTL Wireless Flash Trigger Receiver for Canon Click to enlarge the picture
Contents of the user manual for the Godox X1R-C TTL Wireless Flash Trigger
- Product category: Radio & Infrared Transmitters Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox Radio & Infrared Transmitters
 |
User manual for the Godox X1R-C TTL Wireless Flash Trigger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|
Product description - Godox X1 Unboxing , Overview and Tests

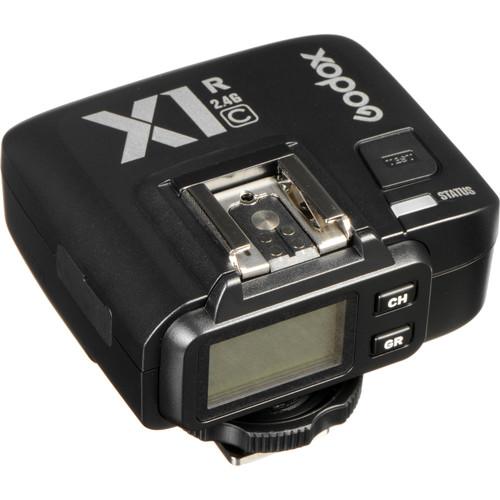

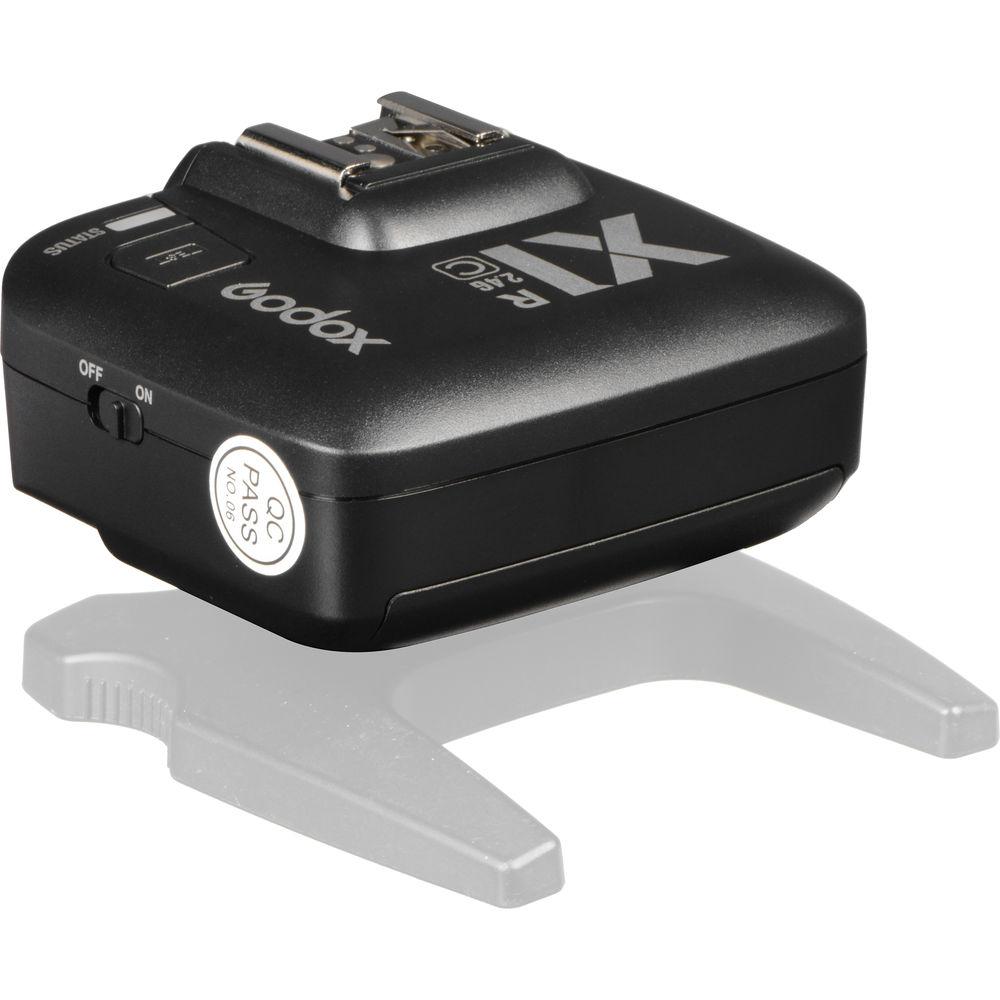

Expand your wireless flash system with this X1R-C TTL Wireless Flash Trigger Receiver from Godox. This 2.4 GHz system is compatible with Canon cameras and flashes that support E-TTL / E-TTL II for automatic exposure and metering, making it an excellent choice for shooters who need to work quickly. It also has an outstanding range of 328' and can be set to one of 32 channels for limiting interference with other nearby systems. Another huge benefit is the ability to control up to five groups at a time, or set the unit to ratio flash mode for three groups with varying power relative to one another.

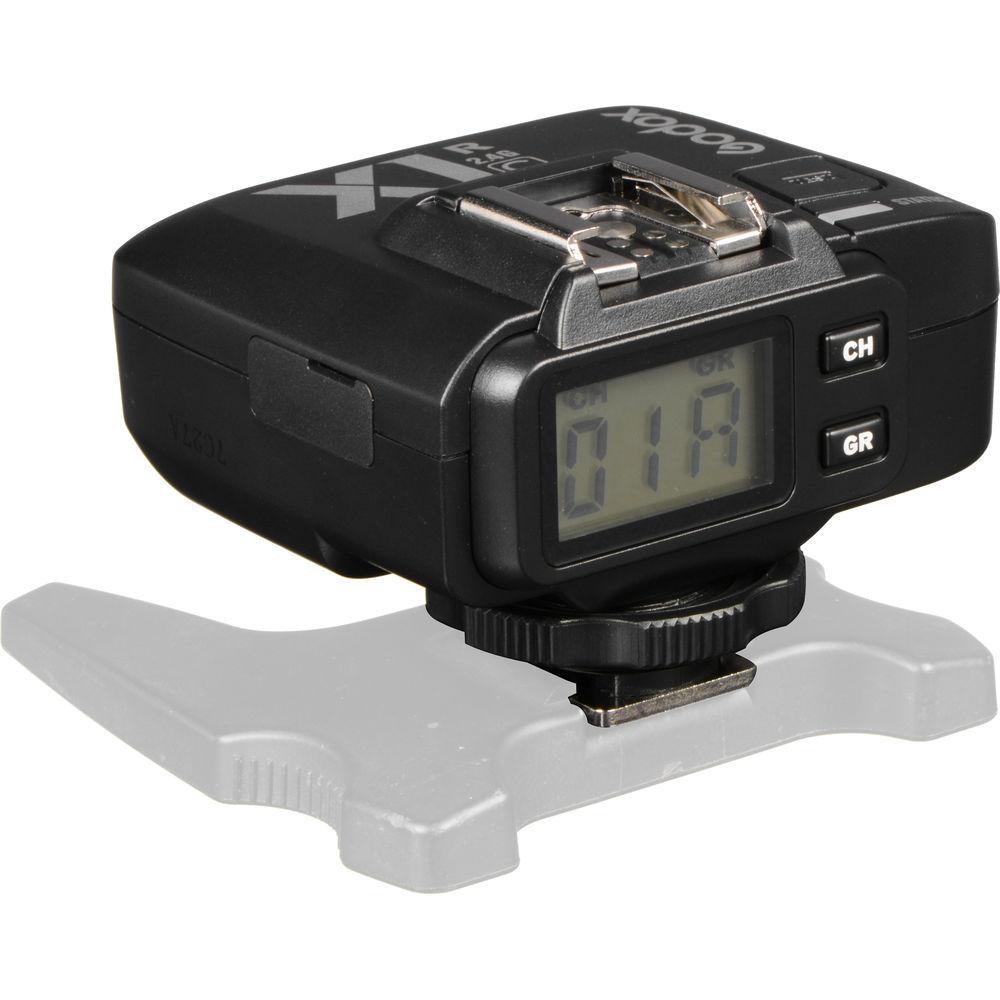

Users will have access to many settings through the backlit LCD found on the rear of the receiver. This enables the adjustment of settings such as sync delay and triggering modes. Also, through E-TTL / E-TTL II compatibility the receiver will support high-speed sync, flash exposure compensation, and flash exposure lock, among other settings. Beyond this, users will be able to easily mount their flash to the receiver's top hot shoe, or you can connect a camera or studio strobe via the 2.5mm sync terminal. Additionally, the receiver runs on two AA batteries and has a micro-USB port for firmware updates. In the Box Godox X1R-C TTL Wireless Flash Trigger Receiver for Canon C1 Camera Sync Cable C3 Camera Sync Cable 2.5mm to 1/4" Flash Sync Cable 3.5mm to 1/4" Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox X1R-C TTL Wireless Flash Trigger Receiver for Canon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox X1R-C Specs | | | Channels | 32 | | Groups | 5 | | Wireless Range | 328' / 100 m | | Radio Frequency | 2.4 GHz | | | | Control Modes | E-TTL/E-TTL II, Manual, TTL | | Sync Speed | 1/8000 Sec | | | | Ports | 1 x 2.5 mm (Flash)
1 x Micro-USB | | | | Bottom Mount | Cold Foot | | Top Mount | Hot Shoe | | | | Dimensions | 2.8 x 2.6 x 1.9" / 70 x 65 x 47 mm (Receiver) | | Weight | 2.5 oz / 70.9 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 4.4 x 4.4 x 2.3" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Godox X1R-C TTL Wireless Flash Trigger Receiver for Canon
| Subject: can't get x1rc to sync HSS | | Date: 15.08.2022 20:36:10 | Name: David Clark | Hello! I have a Canon 5d Markiii. I have a Godox Xpro(c) mounted on the hotshoe, a Godox x1rc mounted on a canon speedlite. I can't for the life of me get them to sync to hss. The hss icon won't "turn on" on the speedlite, unless I turn off the receiver and turn it on. Once I do this, as soon as I turn on the receiver again, it turns back off.
Will this system not synch to hss? What am I missing here?? | | Post reply |
