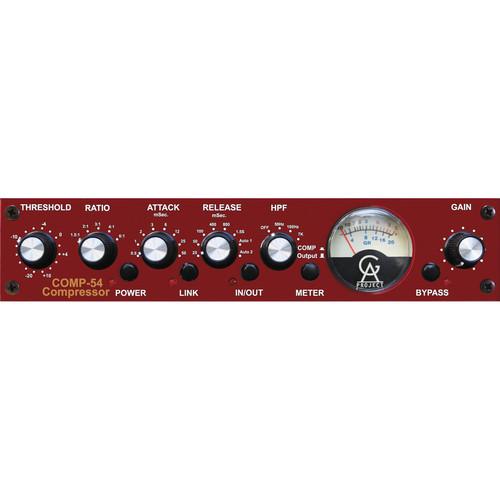

User Manual for Golden Age Project Comp-54 Vintage Style Compressor Click to enlarge the picture
Contents of the user manual for the Golden Age Project Comp-54 Vintage Style
- Product category: Dynamics Processors Golden Age Project
- Brand: Golden Age Project
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Golden Age Project Dynamics Processors
|
User manual for the Golden Age Project Comp-54 Vintage Style contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Golden Age Project product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Golden Age Project user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Golden Age Project product will considerably shorten its lifespan!
|
Product description The Golden Age Project Comp-54 Vintage Style Compressor is a Class A diode bridge circuit, built in the style of a Neve 2254. It incorporates all the warmth and coloration of a vintage dynamics processer with a few modern amenities.
The Comp-54 offers very tweakable controls. The threshold has a wide gain range, allowing you to find the ideal slope at all signal levels. The 5-position ratio selector starts at 1.5:1 soft knee compression and increases up to 6:1 limiting. The onboard VU meter can monitor the compressor's gain reduction as well as the overall output volume.
The Comp-54 has a fast attack, ranging from 0.5 to 50mS. The release can be set as fast as 25mS, but allows lengths up to 1.5 seconds. Two auto-release modes are also selectable for program-responsive behavior. A makeup gain stage is included at the end of the signal chain to add an extra boost where needed.
The signal path of the Comp-54 also includes a bypassable sidechain high pass filter, which makes the compressor ignore frequencies below 50Hz, 100Hz, or 7kHz. With the 7kHz sidechain high pass filter engaged, the Comp-54 will act as a de-esser.
The Comp-54 Vintage Style Compressor has all the tone and coloration that older designs are revered for, with added versatility found in today's signal processors. - Golden Age Project Comp-54 Vintage Style Compressor
-
- Based on the classic Neve diode bridge design
- Transformer balanced inputs and outputs
- Variable controls for ratio, attack and release
- Three selectable sidechain filter frequencies
- VU meter selectable between output and gain reduction
- Stereo-linkable with another Comp-54
- External power supply to avoid interaction with the audio circuitry and the transformers
In the Box Golden Age Project Comp-54 Vintage Style Compressor - 1-Year Limited Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Golden Age Project Comp-54 Vintage Style Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGolden Age Project COMP-54 Specs | | | Inputs | Balanced XLR x1
Balanced 1/4" TRS x1 | | Nominal Operating Level | +4 dBu | | Maximum Input Level | +26 dBu | | Maximum Output Level | +26 dBu with 600 ohm load | | Output Impedance | 600 Ohm; Selectable 600 ohm termination | | Outputs | Balanced XLR x1
Balanced 1/4" TRS x1 | | | | Threshold | -20 to +10 dB | | Attack Time | 0.5 - 50 mS | | Release Time | 25 mS - 1.5 seconds; two auto-release settings | | Make-up Gain | 0 - 20 dB | | Sidechain | HPF @ 50 Hz, 100 Hz, or 7 kHz. | | Bypass | Compressor bypass and true bypass | | Link Connector | 1/4" stereo-link bus | | VU Meter | Switchable: output level or gain reduction | | | | Frequency Response | +/- 0.5 dB, 20 Hz - 33 kHz relative to 1kHz, measured at +4 dBu | | Noise | - 75 dBu @ unity gain and no compression, input and output terminated with 600 ohm | | THD | 0.012% @ 1 kHz, +4 dBu in and out, 600 ohm load, no compression | | | | Power | 24 VAC external power supply | | Dimensions (W x H x D) | 8.5 x 1.75 x 11" (21.6 x 4.4 x 27.9 cm) | | Weight | 7.6 lbs (3.45 kg) shipping weight | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 14.3 x 12.8 x 3.8" |
