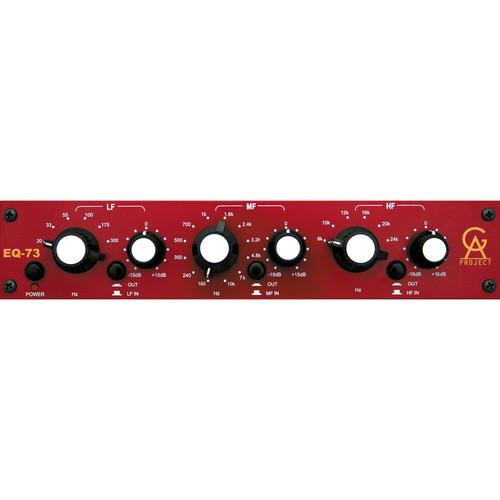

Product description The Golden Age Project EQ-73 is a surprisingly affordable, vintage-sounding equalizer with Class-A circuitry similar to that in the renowned 1073 module. The EQ-73 is equipped with three frequency bands, including a dual-inductor mid band. Each band offers a selection of fixed EQ points that can be boosted or cut by +/- 15 dB for the low and mid frequencies and +/- 18 dB for the high frequencies. Front-panel bypass switches allow you to turn each band on and off individually.
The solidly built, 1/2-rack size EQ-73 features a 1/4-inch insert jack as its sole I/O. The unit is designed to work in tandem with one of Golden Age Project's Pre-73 preamps, but is also compatible with any device that features a low-level insert jack. - Vintage-style electronics. No integrated circuits in the signal path
- 3-bands with a dual-inductor-based mid-frequency band
- Stepped frequency selection
- A wide selection of frequencies from 20 Hz to 24 kHz
- Control range up to +/- 18 dB
- Separate bypass switches for each band
- Tantalum capacitors in the signal path
- Made to be used together with one of the Golden Age Project Pre-73 models with an insert jack, and will work with any unit with a low-level insert
- TRS jack for in-and output connection, the nominal working level is around 18 dBu
- Selectable ground lift switch
- External power supply to avoid interaction with the audio circuits
- Great sound that suits most sound sources and genres
- A solid build quality that will last many years of normal use
In the Box Golden Age Project EQ-73 - Vintage Style Equalizer AC Power Supply One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Golden Age Project EQ-73 - Vintage Style Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGolden Age Project EQ-73 Specs | Number of Channels | Single | | Connectors | 1/4" TRS Insert | | Filter Type | Low Shelving
Mid Bell
High Shelving | | Frequency Bands | LF: 20, 33, 55, 100, 175, 300 Hz
MF: 160, 240, 350, 500, 700 Hz; 1, 1.6, 2.4, 3.2, 4.8, 7, 10 kHz
HF: 8, 10, 12, 16, 20, 24 kHz | | Range (Boost/Cut) | LF and MF: +/-15 dB HF: +/-18 dB | | Controls | 3 x Frequency-Selector knobs (stepped)
3 x Frequency Boost/Cut knobs
3 x EQ In/Out switches
1 x AC Power switch | | Dimensions | 9.5" (241 mm) x 1 RU | | Weight | Not Specified by Manufacturer | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 14.4 x 12.7 x 3.8" |
