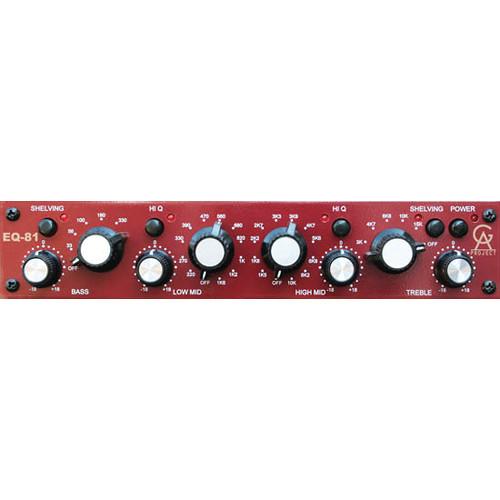

User Manual for Golden Age Project EQ-81 Vintage-Style Equalizer Click to enlarge the picture
Contents of the user manual for the Golden Age Project EQ-81 Vintage-Style Equalizer
- Product category: Equalizers Golden Age Project
- Brand: Golden Age Project
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Golden Age Project Equalizers
|
User manual for the Golden Age Project EQ-81 Vintage-Style Equalizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Golden Age Project product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Golden Age Project user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Golden Age Project product will considerably shorten its lifespan!
|
Product description The Golden Age Project EQ-81 Vintage-Style Equalizer uses vintage-style electronics with no integrated circuits and Tantalum capacitors in the signal path to deliver a classic tonality. It is designed to be used together with one of the Golden Age Project models that have an insert jack. It is not intended to be used as a standalone EQ. This equalizer can also be used with other products that have a low-level (from -18 to -10 dBu) unbalanced insert connector. The class-AB circuit used in the EQ-81 Equalizer is similar to the EQ section in the classical 1081 module, without the high and low pass filters to provide a sonic character is warm, punchy, sweet, and musical. These classic characteristics have been heard on countless recordings through the years and it is a versatile sound that works very well on most sound sources and in most genres. The EQ-81 Equalizer has stepped frequency controls that offers a wide selection of frequencies from 33 Hz to 15 kHz. The bass and treble frequency bands are switchable between shelving and bell, and the mid frequency band is of the bell type with a switchable Hi Q setting. The control range is ±18 dB. All the 4 bands can be set in an Off mode.Combining one PRE-73 Preamplifier unit and one EQ-81 Equalizer using a UNITE rack kit, creates a 19” 1081-style signal chain. - Vintage-style electronic Components
- Integrated circuit free signal path
- Four bands with inductor-based mid-frequency bands
- Stepped selection of frequency bands
- Frequency selections from 33 to 15,000 Hz
- Control range up to ±18 dB
- Each band has an Off mode
- Tantalum capacitors in the signal path
- Designed to work with Golden Age Project models that feature an insert jack
- TRS jack for input and output connections, the nominal working level is around -18 dBu
- Selectable ground lift switch
- External power supply helps avoid interaction with the audio circuits
- Suitable for a wide range of sources
In the Box Golden Age Project EQ-81 Vintage-Style Equalizer External Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Golden Age Project EQ-81 Vintage-Style Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGolden Age Project EQ-81 Specs | Frequency Range | 33 to 15,000 Hz | | Control Range | Up to ±18 dB | | Power | 230 V | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 14.2 x 12.6 x 3.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
