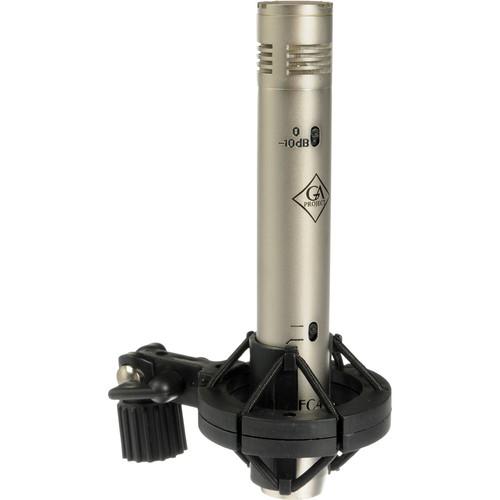

User Manual for Golden Age Project FC 4 MC Small-Capsule Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Golden Age Project FC 4 MC
- Product category: Small Diaphragm Condenser Golden Age Project
- Brand: Golden Age Project
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Golden Age Project Small Diaphragm Condenser
|
User manual for the Golden Age Project FC 4 MC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Golden Age Project product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Golden Age Project user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Golden Age Project product will considerably shorten its lifespan!
|
Product description The FC 4 MC from Golden Age Project is a low-cost, high-quality small-capsule condenser microphone that was inspired by classic microphone models. The FC 4 features a 20 mm, 3 um gold-sputtered, low-distortion dual capsule; discrete Class-A electronics; a heavy-duty brass body; and a high-pass filter and pad that are both externally switched. A shock mount is included in the package.
With a transparent sound, a wide frequency response, and a large dynamic range, the FC 4 offers excellent versatility. It's suitable for studio, stage, and broadcast applications.
The microphone is recommended for choirs, acoustic guitars, electric guitars, and other stringed instruments. It's also useful as a drum overhead on high hats, as a room microphone, or in any other situation where a small-capsule condenser is called for.
The FC 4 MC (Multi Capsule) is delivered with three capsule heads that will give you the choice between three polar patterns (cardioid, hypercardioid, and omnidirectional). - True condenser mic with 28 mm, 3 um gold-sputtered, low-distortion dual capsule mounted on an effective internal shock mount
- Low-noise F.E.T. used as first amplifying device
- Discrete Class-A electronics and transformerless, balanced output stage
- External switches for high-pass filter and pad
- Requires 48V phantom power
In the Box Golden Age Project FC 4 MC Small-Capsule Condenser Microphone (Multi-Capsule) Shockmount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Golden Age Project FC 4 MC Small-Capsule Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGolden Age Project FC 4 MC Specs | | | Diaphragm | 0.79" / 20 mm | | Polar Pattern | Cardioid, Hypercardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 17 dB A-Weighted | | Maximum SPL | 140 dB SPL | | Pad | -10 dB | | THD | < 1% | | Impedance | 250 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 14.5 mV/Pa | | | | Operating Current Consumption | 3 mA | | Operating Voltage | 48 V | | Length | 5.91" / 150 mm | | Diameter | 0.87" / 22 mm | | Weight | 1.03 lb / 470 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.9 x 6.3 x 2.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
