User Manual for Golden Age Project PRE-73 JR - 1073-Style Microphone Preamp Direct Box Click to enlarge the picture
Contents of the user manual for the Golden Age Project PRE-73 JR -
- Product category: Microphone Preamps Golden Age Project
- Brand: Golden Age Project
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Golden Age Project Microphone Preamps
 |
User manual for the Golden Age Project PRE-73 JR - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Golden Age Project product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Golden Age Project user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Golden Age Project product will considerably shorten its lifespan!
|

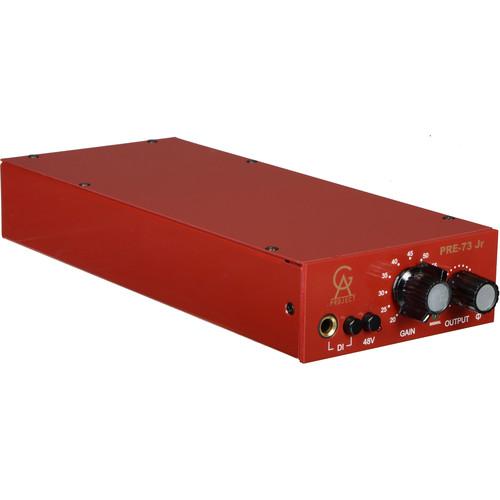

Product description The Golden Age Project PRE-73 JR 1073-Style Microphone Preamp/Direct Box is designed for professional recording applications. The combination microphone preamp and DI uses a discrete Class-A circuit design without any integrated circuits. It is ready for the optional Carnhill input transformer to be installed, which offers the sound of a classic 1073 but in a smaller and more cost-effective form factor. Up to four of the units can be mounted together in a single 19" rack space using an available rack kit.

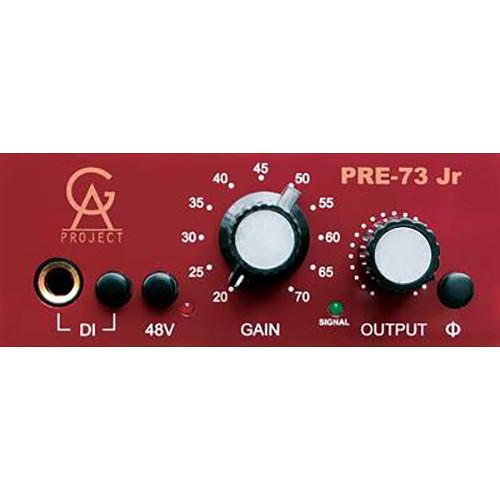

The unit's gain switch range spans from 20 to 70 dB with switchable +48V phantom power and absolute phase control. The front panel features a 1/4" input to connect a high-impedance instrument input for any sound module, electric guitar, or bass. A simple signal LED indicator provides visual feedback. The unit's output level control makes it possible to make fine adjustments, and also to overload the main gain stage for more character, and then lower the signal to a suitable level before the output stage.

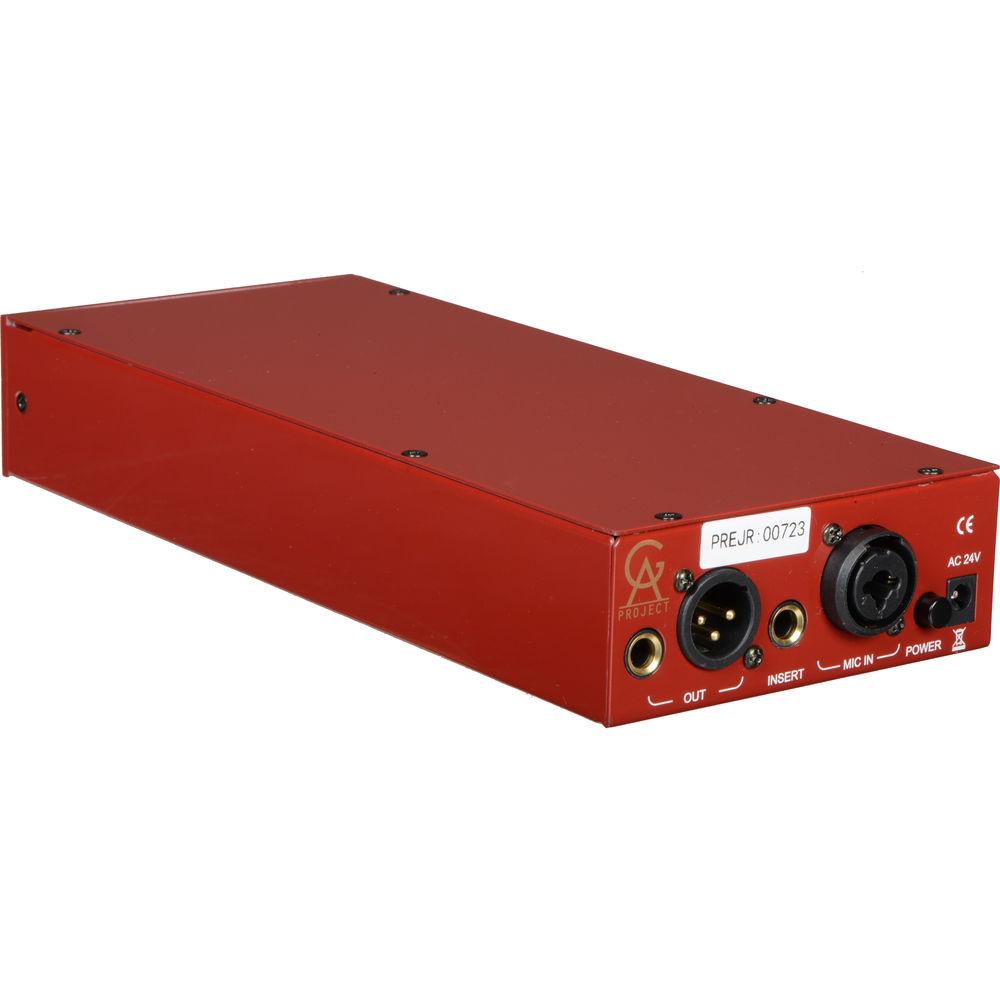

The rear panel features a combo XLR/TRS input jack, and separate output XLR and TRS jacks to make flexible connections. An insert jack for inserting EQs or other processing units is included. An external power supply helps to avoid interaction with the audio circuit and transformers of the device. Note: Note! This preamp does not include the Carnhill input transformer. The circuit board is prepared for the transformer to be installed. In the Box Golden Age Project PRE-73 JR - 1073-Style Microphone Preamp/Direct Box External Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Golden Age Project PRE-73 JR - 1073-Style Microphone Preamp Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGolden Age Project PRE73JR Specs | I/O | 1x rear panel XLR/TRS combo input
1x rear panel insert
1x front panel 1/4" (6.35 mm) TS DI input
1x XLR output
1x TRS output | | Circuit Design | Class-A | | Gain Range | 20 to 70 dB | | Phantom Power | Switchable | | Polarity Reverse | Absolute | | Rack Space | 1/4 RU | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 13.1 x 9.6 x 3.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
