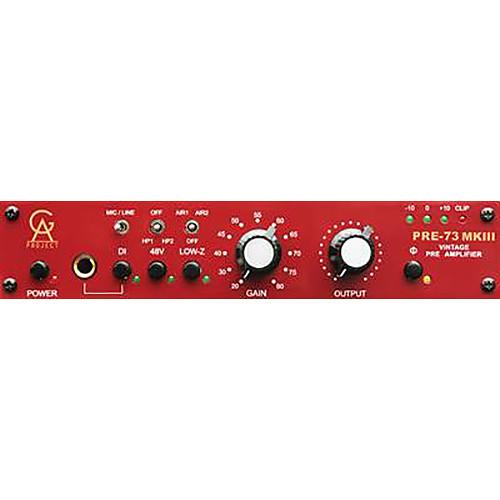

User Manual for Golden Age Project PRE-73 MKIII Click to enlarge the picture
Contents of the user manual for the Golden Age Project PRE-73 MKIII
- Product category: Microphone Preamps Golden Age Project
- Brand: Golden Age Project
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Golden Age Project Microphone Preamps
|
User manual for the Golden Age Project PRE-73 MKIII contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Golden Age Project product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Golden Age Project user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Golden Age Project product will considerably shorten its lifespan!
|
Product description The Golden Age Project PRE-73 MKIII is a one-channel vintage-style microphone, line, and instrument preamplifier. The signal path uses only discrete components such as resistors, capacitors, and transistors. The input and output stages of the pre are transformer balanced with each transformer optimized for its purpose.
The circuit in the unit is similar to the classic 1073 module with a corresponding sound character that is warm, punch, sweet, and musical. These characteristics have been heard on countless recordings through the years and are appropriate for a wide variety of sound sources and music genres. -
- Vintage Style electronics. No integrated circuits in the signal path
- Maximum gain in MIC mode is 80 dB, enough to handle passive ribbon mics with quiet sound sources
- GAIN switch range 20 to 80 dB. GAIN/LINE mode switch, gain is reduced by 30 dB in LINE mode
- Selectable two-position high-frequency AIR boost EQ, 3 or 6 dB at 30 kHz
- Selectable 6 dB/octave two-frequency high-pass filter at around 40 (HP1) and 170 Hz (HP2)
- Tantalum capacitors in the signal path
- Switchable impedance in MIC mode, 1200 or 300 ohms, will change the tone of most mics. The input impedance in LINE mode is 10 kOhms
- Switchable phantom power and absolute phase
- A high-impedance instrument input for any sound module, electric guitar or bass
- A simple but effective 4-step LED output level meter
- The output level control makes it possible to make fine gain adjustments and also to overload the main gain stage(s) for more character and then lower the signal to a suitable level before the output stage
- Combo XLR/TRS input jack and separate output XLR and TRS jacks for flexible connections
- Insert jack for inserting EQs and other units
- Selectable 600 ohm output termination
- External power supply to avoid interaction with the audio circuits and transformers
In the Box Golden Age Project PRE-73 MKIII Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Golden Age Project PRE-73 MKIII in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGolden Age Project PRE73MK3 Specs | I/O | 1x XLR/TRS combo input jack
1x XLR output
1x TRS output | | Gain | 80 dB | | Gain Range | 20 to 80 dB | | Boost Frequency | 3 or 6 dB at 30 kHz | | HPF | Selectable 6 dB/octave high pass filter at around 40 (HP1) and 170 Hz (HP2) | | Input Impedance | Mic: Switchable 1200 or 300 ohms in mic mode
Line: 10 kOhms | | Output Impedance | Selectable 600 ohm output termination | | LED | 4-step meter | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 7.05 lb | | Box Dimensions (LxWxH) | 14.2 x 12.8 x 3.7" |
