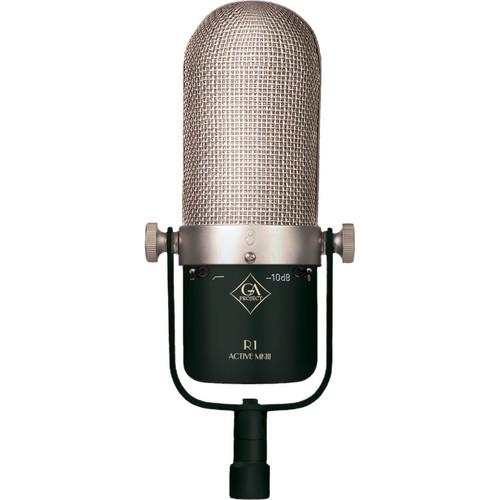

User Manual for Golden Age Project R1 Active MKIII Active Ribbon Microphone Click to enlarge the picture
Contents of the user manual for the Golden Age Project R1 Active MKIII
- Product category: Ribbon Microphones Golden Age Project
- Brand: Golden Age Project
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Golden Age Project Ribbon Microphones
|
User manual for the Golden Age Project R1 Active MKIII contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Golden Age Project product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Golden Age Project user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Golden Age Project product will considerably shorten its lifespan!
|
Product description The R1 Active MKIII Active Ribbon Microphone from Golden Age Project offers the smooth high end and extended lows that make ribbon mics so popular with recording engineers and producers. Thanks to its active circuitry, which includes a bipolar/FET discrete low-noise amplifier, it offers higher-than-expected output for a ribbon mic.
The ribbon in the R1 Active MKIII is 50mm long and 2 microns thick. The mic is designed to provide fast and life-like transient reproduction, and can handle sound pressure levels up to 160 dB SPL.
As is typical for a ribbon mic, it has a figure-8 polar pattern, which means it picks up primarily from the front and rear of the capsule and rejects sounds coming from the sides. You can use this to your advantage in the studio to help minimize bleed when two or more sources are recording in the same room. The R1 Active MKIII is well-suited for electric guitar, vocals, strings, horns, acoustic instruments, orchestras, choral groups, and many live-sound applications.
A carry-bag and an XLR mic cable are included. - Offers the natural and musical sound of a classic ribbon microphone
- Ultra-realistic reproduction
- Fast and life-like transient response
- Provides the characteristic large-and-mellow ribbon-mic sound quality, featuring a very smooth top end and an extended low end
- A Bipolar/FET, discrete, low-noise amplifier with a low-impedance transformerless output stage. Powered by standard 48V phantom power, it raises the output level and isolates the ribbon and gain-make-up transformer from the outside world
- The Figure-8 polar pattern offers wide sweet spots both in the front and in the back of the microphone, and rejection on the sides
- A ribbon that's 50mm long and made of 2-micron-thick aluminum foil
- An internal shock mount for the ribbon and magnet assembly
- Aluminum flight case and XLR mic cable included
- Manufactured from the finest materials for great performance and long-term reliability
- Can be used with any standard mixer or preamp, preferably with a balanced input, which can supply 48V phantom power
In the Box Golden Age Project R1 Active MKIII Active Ribbon Microphone Carry-Bag XLR Microphone Cable Limited 1-Year Warranty User Manual PDF 4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Golden Age Project R1 Active MKIII Active Ribbon Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGolden Age Project R1 Active MKIII Specs | | | Transducer | Ribbon | | Polar Pattern | Figure-8 | | Frequency Range | 30 Hz to 18 kHz | | Equivalent Noise Level | 18 dB A-Weighted | | Maximum SPL | 160 dB SPL | | Pad | -10 dB | | THD | < 1% | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | -42 dB at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4 mA | | Length | 7.28" / 185 mm | | Diameter | 2.72" / 69 mm | | Weight | 3.20 lb / 1.45 kg | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 14.7 x 8.1 x 5.8" |
