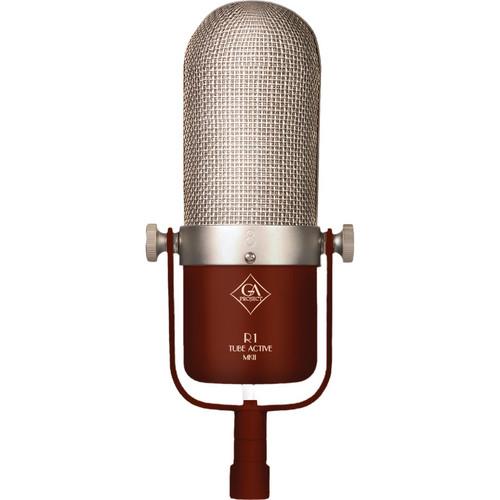

User Manual for Golden Age Project R1 Tube Active Ribbon Microphone Click to enlarge the picture
Contents of the user manual for the Golden Age Project R1 Tube Active
- Product category: Ribbon Microphones Golden Age Project
- Brand: Golden Age Project
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Golden Age Project Ribbon Microphones
|
User manual for the Golden Age Project R1 Tube Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Golden Age Project product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Golden Age Project user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Golden Age Project product will considerably shorten its lifespan!
|
Product description The R1 Tube Active from Golden Age Project is vintage-style ribbon mic with active tube electronics. It combines the mellow sound of a ribbon mic with the warmth of a tube mic.
The mic offers fast transient response for ultra-realistic reproduction, and its active circuitry, based around a 12AX7 tube amplifier, gives it enough output to use with a standard mic preamp. The R1 Tube Active can handle a whopping 165 dB SPL, making it compatible with the loudest of sources.
As is typical for a ribbon mic, it has a figure 8 polar pattern, which means it picks up primarily from the front and rear of the capsule and rejects sounds coming from the sides. You can use this to your advantage in the studio to help minimize bleed when two or more sources are recording in the same room. The R1 MKII is well-suited for electric guitar, vocals, strings, horns, acoustic instruments, orchestras, choral groups, and many live-sound applications.
The R1 Tube Active is recommended for electric guitar, vocals, strings, horns, acoustic instruments, orchestras, choral groups, and many live-sound applications.
The mic comes with an aluminum flight case, an external power supply, and a 10-foot cable to connect the mic and power supply. - The natural and musical sound of a classic ribbon mic combined with the consistent sound-quality you get from active electronics
- A low-noise 12AX7 tube amplifier that isolates the ribbon and gain make-up transformer from the outside world, and gives you higher output than a normal ribbon mic
- Ultra-realistic reproduction
- Characteristic large-and-mellow ribbon sound quality with a very smooth top and an extended low end
- Fast and life-like transient reproduction
- Ultra-high SPL capability: 165 dB SPL (1% THD @ 1000 Hz)
- Very high sensitivity for a ribbon microphone, similar to many condenser mics
- The figure-8 polar pattern offers wide sweet spots both in the front and in the back of the microphone, and rejection on the sides
- A 50mm long ribbon made of 2 microns thick aluminum foil
- An internal shock mount for the ribbon and magnet assembly
- A removable microphone cable and an aluminum flight case
- Manufactured from the finest materials for great performance and long-term reliability
- Can be used with any standard mixer or preamp, preferably with a balanced input
In the Box Golden Age Project R1 Tube Active Ribbon Microphone Aluminum Flight Case Microphone Cable Limited 1-Year Warranty User Manual PDF 2.4mbvadzvawxay Table of Contents
|
Upload User Manual
Have you got an user manual for the Golden Age Project R1 Tube Active Ribbon Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGolden Age Project R1 Tube Active Specs | | | Transducer | Ribbon | | Polar Pattern | Figure-8 | | Frequency Range | 30 Hz to 18 kHz | | Equivalent Noise Level | 16 dB A-Weighted | | Maximum SPL | 165 dB SPL | | THD | < 1% | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | -40 dB at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 7.28" / 185 mm | | Diameter | 2.72" / 69 mm | | Weight | 3.31 lb / 1.5 kg | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 17.2 x 12.9 x 5.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
