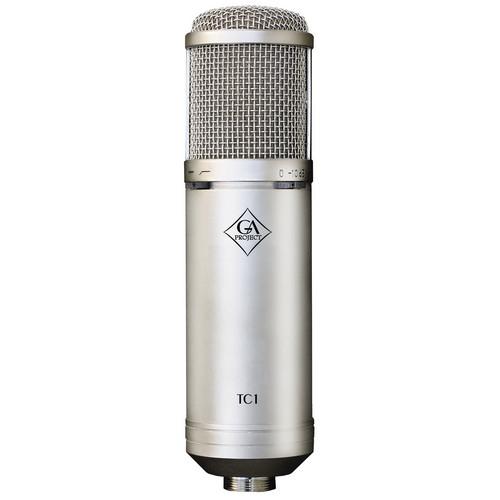

User Manual for Golden Age Project TC1 Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Golden Age Project TC1 Tube Condenser
- Product category: Tube Microphones Golden Age Project
- Brand: Golden Age Project
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Golden Age Project Tube Microphones
|
User manual for the Golden Age Project TC1 Tube Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Golden Age Project product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Golden Age Project user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Golden Age Project product will considerably shorten its lifespan!
|
Product description The TC1 Tube Condenser Microphone from Golden Age Project is a multi-pattern tube condenser mic that was inspired by classic models. It offers warm sound and high-end features at a surprisingly low cost. The mic is equipped with a selected, low-noise 6072/12AT7 vacuum tube, and features discrete, Class-A electronics, vintage-style EQ, and a transformer-balanced output stage.
You can choose between cardioid, omni, figure-8, and six intermediate polar patterns, giving you a huge range of sound-pickup options. The TC1 also features a wide frequency response and a large dynamic range. All told, it's an incredibly versatile microphone, and can be used in a variety of applications in the studio, onstage, or for broadcast.
The TC1 is recommended for lead and background vocals, choirs, acoustic guitars, electric guitars, and other fretted instruments. It also works great as a drum overhead or room mic, or in other situations where a vintage-sounding tube mic is called for.
An included external power supply provides juice for the TC1, and it houses the polar pattern selector. The mic also comes with a sturdy aluminum flight case and a power supply connection cable. - True condenser mic with 26mm/3 µm, gold-sputtered, low-distortion dual capsule
- Mounted on an effective internal shockmount (included)
- Equipped with a selected low-noise 6072/12AT7 vacuum tube
- Discrete, Class-A tube electronics with vintage-style EQ and transformer-balanced output stage
- Nine polar patterns including cardioid, omni, figure-8, and six intermediate stages, give you many ways to model the sound. The room pickup, proximity effect, and tonal response change with the different patterns
- External switches for high-pass filter and pad
- External power supply with polar pattern selector
In the Box Golden Age Project TC1 Tube Condenser Microphone External Power Supply with Cable Aluminum Flight Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Golden Age Project TC1 Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGolden Age Project TC 1 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.02" / 26 mm | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 18 dB | | Maximum SPL | 140 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | -36 dB at 1 kHz | | Low-Cut Filter | 3 dB/Octave @ 100 Hz | | | | Length | 7.60" / 193 mm | | Diameter | 2.05" / 52 mm | | Weight | 1.10 lb / 0.5 kg | | | | Package Weight | 12.9 lb | | Box Dimensions (LxWxH) | 17.1 x 12.6 x 6.4" |
