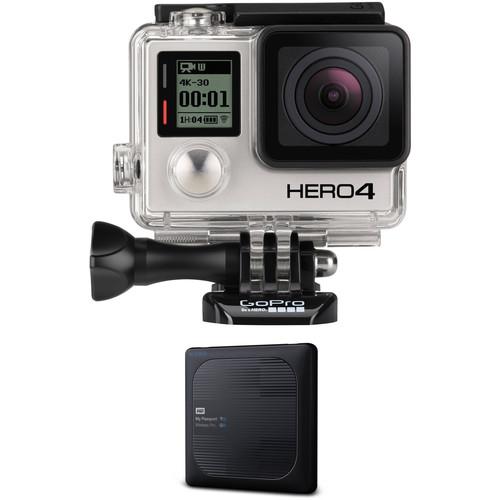

User Manual for GoPro HERO4 Black and WD 2TB My Passport Wireless Kit

• Product category: Sports & Action Cameras GoPro
• Brand: GoPro
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for GoPro Sports & Action Cameras

Product description

• GoPro HERO4 Black
  • GoPro: Dual Double Backflips
  • GoPro: Danny MacAskill - Cascadia
  With the ability to capture 4K at 30 fps (4K30), the GoPro HERO4 Black allows you to move beyond HD when recording POV style footage either wearing the camera or mounting it in a number of creative ways. On top of 4K, the camera shoots 2.7K at up to 60 fps, Full HD (1080p) at up to 120 fps for high definition slow motion, WVGA (848 x 480) for upload-friendly files, and more. Plus, with the SuperView mode enabled, the camera maximizes its sensor area to give you an ultra-wide angle of view to enhance the POV feel of footage while encompassing as much of the scene as possible. The HERO4 Black's capabilities don't end with video, though. It can take 12-megapixel stills as individual shots, in intervals for stitching together time-lapse movies, or in momentary bursts of up to 30 photos per second - the latter helping ensure you catch fast action at just the right moment.

  For remote monitoring and operation, the camera is equipped with Wi-Fi and Bluetooth connectivity, letting you pair it with a mobile device or the separately available Smart Remote. There is also a USB port for file transfer, charging, or to connect the optional 3.5mm mic adapter. Further promoting its take-anywhere claim, the 131' Standard Housing is included, and not only keeps the camera dry, it adds an extra layer of protection. In addition to the bundled flat and adhesive mounts, the camera is also adaptable to a wide range of separately available mounts from GoPro and third-parties - with options to accommodate just about any scenario imaginable.
  2x Faster Processor than HERO3+ Black Edition
  • The redesigned processor is twice as fast as the one in the HERO3+ Black Edition. This enables 4K30 recording as well as 2.7K recording at up to 60 fps, 1080p slow-motion recording at 120 fps, and 720p slow-motion at 240 fps

    Note: Please ensure your camera is updated to the latest firmware to take advantage of all of these frame rates
  Built-In Wi-Fi and Bluetooth
  • Allows you to pair the HERO4 with a mobile device running the GoPro App, or use the separately available Smart Remote. With the app you can preview, playback, and share your favorite shots via email, text, Facebook, Instagram, and more. With the Smart Remote, it is possible to control of up to 50 cameras from distances of up to 600' line-of-sight. The advantage of using Bluetooth instead of Wi-Fi - where supported - is reduced power consumption
  GoPro App and Studio Software
  • Expand your GoPro experience with the free GoPro App and GoPro Studio software. The GoPro App allows you to control your camera remotely using your phone or tablet, view and share your content, and watch "best of" videos on the GoPro Channel. Use GoPro Studio to create your own engaging GoPro-style videos to share with the world
  Up to 12-Megapixel Photos
  • While in the 12-megapixel photo mode it is possible to record a high-speed burst at up 30 fps, helping you capture action stills at just the right moment. The following photo settings are available:
    • 12MP (Default): Wide; 4000 x 3000
    • 7MP: Wide, Medium; 3000 x 2250
    • 5MP: Medium; 2560 x 1920
  Simultaneous Video and Photo
  • Record video and capture Time Lapse photos at the same time. Available intervals are 5, 10, 30 and 60 seconds. The following settings are supported:
    • 1440p: 24; Ultra Wide, Medium
    • 1080p: 30, 25, 24; Ultra Wide, Medium, Narrow
    • 1080p SuperView: 30, 25, 24; Ultra Wide, Medium, Narrow
    • 720p: 60, 50, 30, 25; Ultra Wide1, Medium, Narrow
    • 720p SuperView: 60, 50; Ultra Wide, Medium, Narrow
  Continuous Photo (Up to 30 Seconds)
  • Hold down the shutter button to continuously capture a series of photos until shutter button is released

    Continuous Interval
    • 3 photos/1 second (Default)
    • 5 photos/1 second
    • 10 photos/1 second
  Photo Bursts
  • Capture up to 30 photos per second. The following settings are available:
    • 30 photos/1 second (default), 30 photos/2 seconds, 30 photos/3 seconds
    • 10 photos/1 second, 10 photos/2 seconds, 10 photos/3 seconds
    • 5 photos/1 second
    • 3 photos/1 second
  Video Time-Lapse
  • Rather than having to stitch together JPEG images in post, this mode automatically creates video from frames captured at set intervals. This mode is exclusively available in 4K and 2.7K 4:3 resolutions

    Note: Please ensure you are updated to the latest firmware to use this feature
  Night Photo and Night Lapse
  • Take photos at user-defined intervals to use in time-lapse videos. It is also possible to set an exposure time of up to 30 seconds per shot - whether in time-lapse or single shot - which is ideal for outdoor nighttime work. The following Night Lapse interval settings are available:
    • 15, 20, 30, and 60 seconds
    • 2, 5, 30, and 60 minutes
  SuperView
  • An ultra-wide lens designed to give your footage an immersive POV feel as well as capture nearly everything happening in front of the lens. SuperView is available with the following settings:
    • 4K SuperView: 3840 x 2160
    • 2.7K SuperView: 2704 x 1520
    • 1080p SuperView: 1920 x 1080
    • 720p SuperView: 1280 x 720
  Protune for Photo and Video
  • Protune unlocks the camera's full potential, delivering minimally compressed video optimized for professional productions, with advanced manual controls for photos and video. Flex your creativity with customizable settings for color, ISO limit, white balance, sharpness and exposure. Protune is available for all video and photo resolutions
  HiLight Tag
  • HiLight Tag enables you to mark key moments while recording so you can locate your favorite clips later for convenient playback, editing, or sharing using the GoPro App or GoPro Studio. Just press the dedicated button on the camera or Smart Remote, or use the GoPro App to tag your highlights
  QuikCapture
  • This mode turns the GoPro into a one-button camera, allowing you to power on and start recording automatically with the press of a single button. Press once to record video, press and hold for two seconds to capture Time Lapse photos
  Selectable FOV
  • Three field of view settings are offered: Ultra Wide, Medium, and Narrow. These help you choose the preferred perspective, be it wide-angle and inclusive, medium for a bit of focus, or close-up
  Audio Acquisition
  • There is an internal mono mic and it is possible to record from an external source using a separately available 3.5mm mic adapter. An integrated ADC (analog-to-digital converter) in the HERO4 Black enables compatibility with a wider variety of professional, low-sensitivity external mics for immersive stereo audio capture and enhanced performance - whether recording voices, an acoustic jam session, or a live show
  Dedicated Settings Button
  • A single button provides direct access to the camera settings. In addition, the menu has been redesigned from the HERO3+ Edition to make navigation simpler
  Looping
  • Record a continuous video loop that overwrites itself until you press the shutter button to stop it and save
  Auto Low Light
  • Automatically adjusts the frame rate for optimal performance under low-light conditions
  UPC: 818279012767
• WD 2TB My Passport Wireless Pro USB 3.0 External Hard Drive
  • GoPro: Dual Double Backflips
  • GoPro: Danny MacAskill - Cascadia
  Offload memory cards in the field with up to 2TB of portable, wireless storage with the My Passport Wireless Pro from WD. With a built-in card reader, you can easily back up photos and videos from SD memory cards, coming from digital cameras, GoPros, and other recording devices, to the My Passport Wireless Pro without the need for a computer. WD has armed the My Passport Wireless Pro with an 802.11ac Wi-Fi module along with a hard drive so you can access and share up to 2TB of content wirelessly with tablets, computers, digital cameras, and other wireless devices. The My Passport Wireless Pro lets you stream up to 8 HD videos simultaneously and is formatted in exFAT, delivering compatibility with Windows, Mac, and other systems. Moreover, you can set up the My Passport Wireless Pro as a hotspot to share Internet connectivity with other devices.

  Aside from wireless connectivity, the My Passport Wireless Pro comes equipped with an internal 6400 mAh battery, which provides it with all-day power (up to 10 hours), and a USB 2.0 port for recharging mobile devices. The USB 2.0 port can also be used to transfer data from thumb-sized USB drives and other external USB storage drives to the My Passport Wireless Pro. In addition, a USB 3.0 connection is available to recharge its internal battery as well as quickly transfer multimedia content to a computer system without Wi-Fi abilities.
  Wireless Storage
  • Built with 802.11ac technology, the My Passport Wireless Pro is able to deliver fast data transfers and smooth HD media streaming capabilities. Wirelessly transfer images you capture in the field via FTP Mode with your compatible DSLR camera to the drive, where the content can be backed up, viewed, and edited using a connected tablet or laptop.
  SD Card Reader
  • The integrated SD 3.0 card reader delivers fast media transfers while you're out of the office. You can move or copy high-resolution photos and Full HD videos from your camera's SD card to this high-capacity drive.
  Battery Life
  • Take the My Passport on a long trip to continuously stream videos while on the road. It lasts up to 10 hours while streaming a 720p, 3 Mb/s video to one device over Wi-Fi 2.4 GHz. Actual battery life depends on file size, type, format, bitrate, devices connected, Wi-Fi connectivity, settings, and other factors.
  Built-in Power Bank
  • You can charge your smartphone, tablet, and other USB devices on the go via an integrated USB 2.0 port on the 6400 mAh power bank.
  USB Technology
  • The two built-in USB ports quickly transfer a large amount of RAW images or Full-HD vides to or from your computer.
  Plex
  • Plex organizes your entire media collection with one simple interface and visually enhances it by adding descriptions, plot summaries, posters, and album covers. Wirelessly stream media stored on your My Passport Wireless Pro to all your devices, including your PC and Mac computers, smartphones, tablets, Smart TVs, and more.
  Access Files from Anywhere
  • Wirelessly connect the My Passport Wireless Pro to your mobile devices using the My Cloud mobile app so you can view, organize, edit, and share your media files from anywhere with your tablet and smartphone.
  Adobe Creative Cloud Connected
  • Adobe Creative Cloud equips you with the tools you need to turn your ideas into creative masterpieces. Since My Passport Wireless Pro is Creative Cloud connected through the My Cloud mobile app, you can quickly get your photos and videos from your camera to your drive and into the Creative Cloud ecosystem. With just a few clicks on your tablet, you can open, edit, and save files wherever you are.
  External USB Storage Device Support
  • When you connect an optional external USB storage device to your My Passport Wireless Pro, you'll be able to wirelessly access content on that external device using your computer, tablet, and smartphone using the My Cloud app. It becomes a network share on your My Passport Wireless Pro, so you have access to your data.
  Windows and Mac Compatible
  • The My Passport is formatted in exFAT, which eliminates the need to reformat the drive.
  Safeguard Captured Moments
  • Wi-Fi password protection helps keep your photography, videography, music, and important files safe from unauthorized wireless access. Set up Drive Lock in the device dashboard to prevent USB access to your content in the unlikely event it is lost or stolen.
  Internet Hotspot
  • Use the My Passport Wireless Pro as a Wi-Fi hub to share an Internet connection with up to eight devices.
  Stream up to 8 HD Videos Simultaneously
  • Connect multiple devices to your My Passport Wireless Pro and simultaneously stream up to 8 HD videos (3 Mb/s HD MP4 streams).
  Dual Wireless Band Support
  • My Passport Wireless Pro is equipped with two different wireless bands: 5 GHz 802.11ac band for faster performance on compatible wireless AC devices and 2.4 GHz 802.11n band for better long-range performance for wireless AC and N devices.
  UPC: 718037839288

• HERO4 Black uxwbtcqvstuxxubwxbcysxuzyfsccsayw
• Rechargeable Battery for HERO4
• Standard Housing
• Curved Adhesive Mount
• Flat Adhesive Mount
• 2 x Quick Release Buckle
• 3-Way Pivot Arm
• USB Cable
• Limited 1-Year Warranty

• WD - 2TB My Passport Wireless Pro USB 3.0 External Hard Drive

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• GoPro HERO4 Black

  System	NTSC/PAL
  Recording Media	x microSD/HC/XC (128 GB Maximum) Class 10 or UHS-1 rating required. See GoPro website for list of latest recommended cards.
  Video Format	3840 x 2160p at 24/25/30 fps (H.264) 2704 x 2028p at 25/30 fps (H.264) 2704 x 1520p at 24/25/30/48/50/60 fps (H.264) 1920 x 1440p at 24/25/30/48/50/60/80 fps (H.264) 1920 x 1080p at 24/25/30/48/50/60/80/90/120 fps (H.264) 1280 x 960p at 50/60/120 fps 1280 x 720p at 25/30/50/60/120/240 fps (H.264) 848 x 480p at 240 fps (H.264)
  Aspect Ratio	16:9 4:3
  Still Image Resolution	JPEG: 12 Megapixel, 4000 x 3000 (4:3) JPEG: 7 Megapixel, 3000 x 2250 (4:3) JPEG: 5 Megapixel, 2560 x 1920 (4:3)
  Channels	1.0-Channel Mono Mono built-in mic; stereo recording possible with separately available external microphone and adapter
  Audio Format	AAC with AGC

  Interval Recording	.5 Second 1 Second 2 Second 5 Second 10 Second 30 Second 60 Second

  Waterproof Depth Rating	131.0' / 40.0 m (Waterproof Housing)

  Outputs	1 x Mini-USB 1 x Micro-HDMI (Type D) USB port also serves as mic input using separately available 3.5mm adapter. Also supports composite output using a separately available A/V cable.

  Battery	Rechargeable Lithium-Ion Battery Pack, 3.8 VDC, 1160 mAh Max Runtime: 1.5 Hours per Charge
  Charging Method	USB
  Weight	3.10 oz / 88 g camera only 5.36 oz / 152 g with housing

  Box Dimensions (LxWxH)	9.95 x 4.1 x 4.1"

• WD 2TB My Passport Wireless Pro USB 3.0 External Hard Drive

  System Requirements	Windows 10, 8, or 7 Mac OS X El Capitan, Yosemite, Mavericks, or Mountain Lion DLNA/UPnP or Plex-enable devices for streaming
  Drive	256 MB of cache memory 2 TB capacity
  Interfaces	1 x USB 2.0 (host port) 1 x USB 3.0 1 x SD card slot Integrated 1x1 Wireless-AC
  Data Transfer Rate	USB 3.0: up to 800 Mb/s USB 2.0: up to 480 Mb/s SD 3.0: up to 100 MB/s 802.11ac: up to 433 Mb/s
  Memory	512 MB
  Processor	RealTek RTD1195PN
  Temperature	Operating: 32 to 95°F / 0 to 35°C Storage: -4 to 140°F / -20 to 60°C
  Battery Capacity	6400 mAh
  Power	90 to 260 VAC, 47/63 Hz
  Dimensions (L x W x H)	5.0 x 5.0 x 0.9" / 12.7 x 12.7 x 2.3 cm
  Weight	1.0 lb / 0.5 kg

  Box Dimensions (LxWxH)	7.7 x 6.1 x 2.2"
