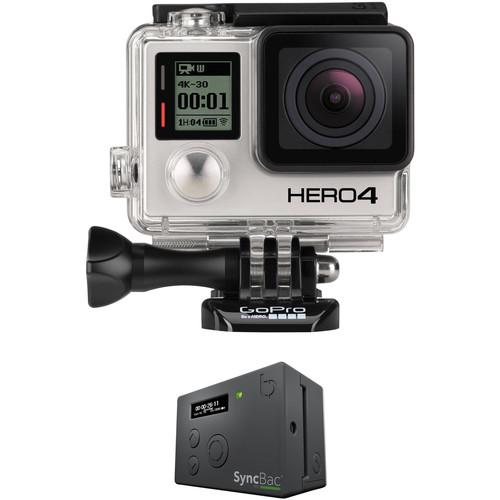

User Manual for GoPro HERO4 Black SyncBac PRO Timecode Kit Click to enlarge the picture
Contents of the user manual for the GoPro HERO4 Black SyncBac PRO Timecode
- Product category: Sports & Action Cameras GoPro
- Brand: GoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GoPro Sports & Action Cameras
|
User manual for the GoPro HERO4 Black SyncBac PRO Timecode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GoPro product will considerably shorten its lifespan!
|
Product description Pairing the GoPro HERO4 Black with the SyncBac PRO Timecode System, this Kit allows you to embed timecode into the metadata of your HERO4 Black footage.
The SyncBac PRO enables the GoPro to generate its own frame-accurate timecode, providing it with the capability to wirelessly timecode-sync multiple GoPros as well as GoPros with pro cameras and pro audio devices. The SyncBac PRO attaches directly to the back of the GoPro, neatly connecting into the camera's HERO Bus 30-pin port, and adds only a little to the rear of the camera in size, and it's fully compatible with GoPro BacPac backdoor housings.
The HERO4 Black captures Ultra HD 4K video at up to 30 fps, 2.7K at up to 60 fps, and 1080p at up to 120 fps. - GoPro HERO4 Black
- GoPro: Tour de France 2015 - Best of Stages 1-7
With the ability to capture 4K at 30 fps (4K30), the GoPro HERO4 Black allows you to move beyond HD when recording POV style footage either wearing the camera or mounting it in a number of creative ways. On top of 4K, the camera shoots 2.7K at up to 60 fps, Full HD (1080p) at up to 120 fps for high definition slow motion, WVGA (848 x 480) for upload-friendly files, and more. Plus, with the SuperView mode enabled, the camera maximizes its sensor area to give you an ultra-wide angle of view to enhance the POV feel of footage while encompassing as much of the scene as possible. The HERO4 Black's capabilities don't end with video, though. It can take 12-megapixel stills as individual shots, in intervals for stitching together time-lapse movies, or in momentary bursts of up to 30 photos per second - the latter helping ensure you catch fast action at just the right moment.
For remote monitoring and operation, the camera is equipped with Wi-Fi and Bluetooth connectivity, letting you pair it with a mobile device or the separately available Smart Remote. There is also a USB port for file transfer, charging, or to connect the optional 3.5mm mic adapter. Further promoting its take-anywhere claim, the 131' Standard Housing is included, and not only keeps the camera dry, it adds an extra layer of protection. In addition to the bundled flat and adhesive mounts, the camera is also adaptable to a wide range of separately available mounts from GoPro and third-parties - with options to accommodate just about any scenario imaginable. - 2x Faster Processor than HERO3+ Black Edition
- The redesigned processor is twice as fast as the one in the HERO3+ Black Edition. This enables 4K30 recording as well as 2.7K recording at up to 60 fps, 1080p slow-motion recording at 120 fps, and 720p slow-motion at 240 fps
Note: Please ensure your camera is updated to the latest firmware to take advantage of all of these frame rates - Built-In Wi-Fi and Bluetooth
- Allows you to pair the HERO4 with a mobile device running the GoPro App, or use the separately available Smart Remote. With the app you can preview, playback, and share your favorite shots via email, text, Facebook, Instagram, and more. With the Smart Remote, it is possible to control of up to 50 cameras from distances of up to 600' line-of-sight. The advantage of using Bluetooth instead of Wi-Fi - where supported - is reduced power consumption
- GoPro App and Studio Software
- Expand your GoPro experience with the free GoPro App and GoPro Studio software. The GoPro App allows you to control your camera remotely using your phone or tablet, view and share your content, and watch "best of" videos on the GoPro Channel. Use GoPro Studio to create your own engaging GoPro-style videos to share with the world
- Up to 12-Megapixel Photos
- While in the 12-megapixel photo mode it is possible to record a high-speed burst at up 30 fps, helping you capture action stills at just the right moment. The following photo settings are available:
- 12MP (Default): Wide; 4000 x 3000
- 7MP: Wide, Medium; 3000 x 2250
- 5MP: Medium; 2560 x 1920
- Simultaneous Video and Photo
- Record video and capture Time Lapse photos at the same time. Available intervals are 5, 10, 30 and 60 seconds. The following settings are supported:
- 1440p: 24; Ultra Wide, Medium
- 1080p: 30, 25, 24; Ultra Wide, Medium, Narrow
- 1080p SuperView: 30, 25, 24; Ultra Wide, Medium, Narrow
- 720p: 60, 50, 30, 25; Ultra Wide1, Medium, Narrow
- 720p SuperView: 60, 50; Ultra Wide, Medium, Narrow
- Continuous Photo (Up to 30 Seconds)
- Hold down the shutter button to continuously capture a series of photos until shutter button is released
Continuous Interval - 3 photos/1 second (Default)
- 5 photos/1 second
- 10 photos/1 second
- Photo Bursts
- Capture up to 30 photos per second. The following settings are available:
- 30 photos/1 second (default), 30 photos/2 seconds, 30 photos/3 seconds
- 10 photos/1 second, 10 photos/2 seconds, 10 photos/3 seconds
- 5 photos/1 second
- 3 photos/1 second
- Video Time-Lapse
- Rather than having to stitch together JPEG images in post, this mode automatically creates video from frames captured at set intervals. This mode is exclusively available in 4K and 2.7K 4:3 resolutions
Note: Please ensure you are updated to the latest firmware to use this feature - Night Photo and Night Lapse
- Take photos at user-defined intervals to use in time-lapse videos. It is also possible to set an exposure time of up to 30 seconds per shot - whether in time-lapse or single shot - which is ideal for outdoor nighttime work. The following Night Lapse interval settings are available:
- 15, 20, 30, and 60 seconds
- 2, 5, 30, and 60 minutes
- SuperView
- An ultra-wide lens designed to give your footage an immersive POV feel as well as capture nearly everything happening in front of the lens. SuperView is available with the following settings:
- 4K SuperView: 3840 x 2160
- 2.7K SuperView: 2704 x 1520
- 1080p SuperView: 1920 x 1080
- 720p SuperView: 1280 x 720
- Protune for Photo and Video
- Protune unlocks the camera's full potential, delivering minimally compressed video optimized for professional productions, with advanced manual controls for photos and video. Flex your creativity with customizable settings for color, ISO limit, white balance, sharpness and exposure. Protune is available for all video and photo resolutions
- HiLight Tag
- HiLight Tag enables you to mark key moments while recording so you can locate your favorite clips later for convenient playback, editing, or sharing using the GoPro App or GoPro Studio. Just press the dedicated button on the camera or Smart Remote, or use the GoPro App to tag your highlights
- QuikCapture
- This mode turns the GoPro into a one-button camera, allowing you to power on and start recording automatically with the press of a single button. Press once to record video, press and hold for two seconds to capture Time Lapse photos
- Selectable FOV
- Three field of view settings are offered: Ultra Wide, Medium, and Narrow. These help you choose the preferred perspective, be it wide-angle and inclusive, medium for a bit of focus, or close-up
- Audio Acquisition
- There is an internal mono mic and it is possible to record from an external source using a separately available 3.5mm mic adapter. An integrated ADC (analog-to-digital converter) in the HERO4 Black enables compatibility with a wider variety of professional, low-sensitivity external mics for immersive stereo audio capture and enhanced performance - whether recording voices, an acoustic jam session, or a live show
- Dedicated Settings Button
- A single button provides direct access to the camera settings. In addition, the menu has been redesigned from the HERO3+ Edition to make navigation simpler
- Looping
- Record a continuous video loop that overwrites itself until you press the shutter button to stop it and save
- Auto Low Light
- Automatically adjusts the frame rate for optimal performance under low-light conditions
UPC: 818279012767 - Timecode Systems SyncBac PRO Timecode Sync System for GoPro HERO4 Black/Silver
- GoPro: Tour de France 2015 - Best of Stages 1-7
Timecode Systems SyncBac PRO Timecode Sync System for GoPro HERO4 connects to the HERO4 Bus of your HERO4 Black or HERO4 Silver and allows you to embed timecode into the metadata of your GoPro footage. You can outfit multiple GoPros each with their own SyncBack Pro, and wirelessly sync the timecode between them over the 865 to 923 MHz frequency band.
The SyncBack PRO connects directly to your camera via the HERO Bus 30-pin connector port so there are no cables to lose and the small size allows you to use standard HERO4 BacPac backdoor housings (housings not included). Utilizing optional accessories allows you a variety of options to control your GoPro camera and integrate it into a professional multi-camera shoot without requiring slating for sync. - Timecode Sync Multiple GoPros
- Mounting one SyncBac PRO onto each HERO4 allows you to timecode sync multiple cameras via long range wireless RF. Choose one GoPro/SyncBac Pro to be the master unit and timecode sync unlimited GoPro slaves.
- Timecode Sync with Pro Cameras & Pro Audio Devices
- The SyncBac PRO enables your HERO4 Black/Silver to integrate into a Timecode Systems production workflow. This means they can wirelessly timecode sync with any professional camera and audio equipment using a :pulse, :wave or :minitrx+ unit for timecode.
- Wireless Monitoring and Control
- B:LINK Hub is integrated into the :pulse (not included). SyncBac PRO users can remotely control and monitor multiple HERO4 cameras from any smartphone (iOS or Android), tablet, Mac, or PC when connected to the B:LINK Hub dashboard via a :pulse.
- The SyncBack PRO uses long range 865 to 923 MHz RF for communication and control.
- It incorporates an internal battery that will last approximately 12 hours of use per charge.
- The form fitting design matches your GoPro for a seamless appearance that allows you to use standard GoPro BacPac housings.
In the Box - HERO4 Black azzeavfaecsswetddwtsyywze
- Rechargeable Battery for HERO4
- Standard Housing
- Curved Adhesive Mount
- Flat Adhesive Mount
- 2 x Quick Release Buckle
- 3-Way Pivot Arm
- USB Cable
- Limited 1-Year Warranty
- Timecode Systems - SyncBac PRO Timecode Sync System for GoPro HERO4 Black/Silver
Table of Contents
|
Upload User Manual
Have you got an user manual for the GoPro HERO4 Black SyncBac PRO Timecode Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - GoPro HERO4 Black
| System | NTSC/PAL | Recording Media | x microSD/HC/XC (128 GB Maximum) Class 10 or UHS-1 rating required. See GoPro website for list of latest recommended cards. | Video Format | 3840 x 2160p at 24/25/30 fps (H.264) 2704 x 2028p at 25/30 fps (H.264) 2704 x 1520p at 24/25/30/48/50/60 fps (H.264) 1920 x 1440p at 24/25/30/48/50/60/80 fps (H.264) 1920 x 1080p at 24/25/30/48/50/60/80/90/120 fps (H.264) 1280 x 960p at 50/60/120 fps 1280 x 720p at 25/30/50/60/120/240 fps (H.264) 848 x 480p at 240 fps (H.264) | Aspect Ratio | 16:9 4:3 | Still Image Resolution | JPEG: 12 Megapixel, 4000 x 3000 (4:3) JPEG: 7 Megapixel, 3000 x 2250 (4:3) JPEG: 5 Megapixel, 2560 x 1920 (4:3) | Channels | 1.0-Channel Mono Mono built-in mic; stereo recording possible with separately available external microphone and adapter | Audio Format | AAC with AGC | | Interval Recording | .5 Second 1 Second 2 Second 5 Second 10 Second 30 Second 60 Second | | Waterproof Depth Rating | 131.0' / 40.0 m (Waterproof Housing) | | Outputs | 1 x Mini-USB 1 x Micro-HDMI (Type D) USB port also serves as mic input using separately available 3.5mm adapter. Also supports composite output using a separately available A/V cable. | | Battery | Rechargeable Lithium-Ion Battery Pack, 3.8 VDC, 1160 mAh Max Runtime: 1.5 Hours per Charge | Charging Method | USB | Weight | 3.10 oz / 88 g camera only 5.36 oz / 152 g with housing | | Box Dimensions (LxWxH) | 9.95 x 4.1 x 4.1" | - Timecode Systems SyncBac PRO Timecode Sync System for GoPro HERO4 Black/Silver
Wireless Frequency | 865 to 923 MHz | Power | Integrated battery with up to 12 hour run time | Connectors | 30-Pin HERO Bus | | Box Dimensions (LxWxH) | 7.1 x 4.2 x 1.5" |
