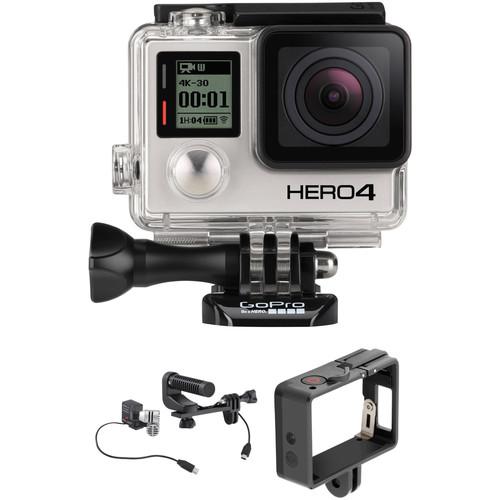

GoPro HERO4 Black with QR Frame

User Manual for GoPro HERO4 Black with QR Frame and Production Microphone Kit

• Product category: Sports & Action Cameras GoPro
• Brand: GoPro
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for GoPro Sports & Action Cameras

Product description

• GoPro HERO4 Black
  • GoPro: Tour de France 2015 - Best of Stages 1-7
  With the ability to capture 4K at 30 fps (4K30), the GoPro HERO4 Black allows you to move beyond HD when recording POV style footage either wearing the camera or mounting it in a number of creative ways. On top of 4K, the camera shoots 2.7K at up to 60 fps, Full HD (1080p) at up to 120 fps for high definition slow motion, WVGA (848 x 480) for upload-friendly files, and more. Plus, with the SuperView mode enabled, the camera maximizes its sensor area to give you an ultra-wide angle of view to enhance the POV feel of footage while encompassing as much of the scene as possible. The HERO4 Black's capabilities don't end with video, though. It can take 12-megapixel stills as individual shots, in intervals for stitching together time-lapse movies, or in momentary bursts of up to 30 photos per second - the latter helping ensure you catch fast action at just the right moment.

  For remote monitoring and operation, the camera is equipped with Wi-Fi and Bluetooth connectivity, letting you pair it with a mobile device or the separately available Smart Remote. There is also a USB port for file transfer, charging, or to connect the optional 3.5mm mic adapter. Further promoting its take-anywhere claim, the 131' Standard Housing is included, and not only keeps the camera dry, it adds an extra layer of protection. In addition to the bundled flat and adhesive mounts, the camera is also adaptable to a wide range of separately available mounts from GoPro and third-parties - with options to accommodate just about any scenario imaginable.
  2x Faster Processor than HERO3+ Black Edition
  • The redesigned processor is twice as fast as the one in the HERO3+ Black Edition. This enables 4K30 recording as well as 2.7K recording at up to 60 fps, 1080p slow-motion recording at 120 fps, and 720p slow-motion at 240 fps

    Note: Please ensure your camera is updated to the latest firmware to take advantage of all of these frame rates
  Built-In Wi-Fi and Bluetooth
  • Allows you to pair the HERO4 with a mobile device running the GoPro App, or use the separately available Smart Remote. With the app you can preview, playback, and share your favorite shots via email, text, Facebook, Instagram, and more. With the Smart Remote, it is possible to control of up to 50 cameras from distances of up to 600' line-of-sight. The advantage of using Bluetooth instead of Wi-Fi - where supported - is reduced power consumption
  GoPro App and Studio Software
  • Expand your GoPro experience with the free GoPro App and GoPro Studio software. The GoPro App allows you to control your camera remotely using your phone or tablet, view and share your content, and watch "best of" videos on the GoPro Channel. Use GoPro Studio to create your own engaging GoPro-style videos to share with the world
  Up to 12-Megapixel Photos
  • While in the 12-megapixel photo mode it is possible to record a high-speed burst at up 30 fps, helping you capture action stills at just the right moment. The following photo settings are available:
    • 12MP (Default): Wide; 4000 x 3000
    • 7MP: Wide, Medium; 3000 x 2250
    • 5MP: Medium; 2560 x 1920
  Simultaneous Video and Photo
  • Record video and capture Time Lapse photos at the same time. Available intervals are 5, 10, 30 and 60 seconds. The following settings are supported:
    • 1440p: 24; Ultra Wide, Medium
    • 1080p: 30, 25, 24; Ultra Wide, Medium, Narrow
    • 1080p SuperView: 30, 25, 24; Ultra Wide, Medium, Narrow
    • 720p: 60, 50, 30, 25; Ultra Wide1, Medium, Narrow
    • 720p SuperView: 60, 50; Ultra Wide, Medium, Narrow
  Continuous Photo (Up to 30 Seconds)
  • Hold down the shutter button to continuously capture a series of photos until shutter button is released

    Continuous Interval
    • 3 photos/1 second (Default)
    • 5 photos/1 second
    • 10 photos/1 second
  Photo Bursts
  • Capture up to 30 photos per second. The following settings are available:
    • 30 photos/1 second (default), 30 photos/2 seconds, 30 photos/3 seconds
    • 10 photos/1 second, 10 photos/2 seconds, 10 photos/3 seconds
    • 5 photos/1 second
    • 3 photos/1 second
  Video Time-Lapse
  • Rather than having to stitch together JPEG images in post, this mode automatically creates video from frames captured at set intervals. This mode is exclusively available in 4K and 2.7K 4:3 resolutions

    Note: Please ensure you are updated to the latest firmware to use this feature
  Night Photo and Night Lapse
  • Take photos at user-defined intervals to use in time-lapse videos. It is also possible to set an exposure time of up to 30 seconds per shot - whether in time-lapse or single shot - which is ideal for outdoor nighttime work. The following Night Lapse interval settings are available:
    • 15, 20, 30, and 60 seconds
    • 2, 5, 30, and 60 minutes
  SuperView
  • An ultra-wide lens designed to give your footage an immersive POV feel as well as capture nearly everything happening in front of the lens. SuperView is available with the following settings:
    • 4K SuperView: 3840 x 2160
    • 2.7K SuperView: 2704 x 1520
    • 1080p SuperView: 1920 x 1080
    • 720p SuperView: 1280 x 720
  Protune for Photo and Video
  • Protune unlocks the camera's full potential, delivering minimally compressed video optimized for professional productions, with advanced manual controls for photos and video. Flex your creativity with customizable settings for color, ISO limit, white balance, sharpness and exposure. Protune is available for all video and photo resolutions
  HiLight Tag
  • HiLight Tag enables you to mark key moments while recording so you can locate your favorite clips later for convenient playback, editing, or sharing using the GoPro App or GoPro Studio. Just press the dedicated button on the camera or Smart Remote, or use the GoPro App to tag your highlights
  QuikCapture
  • This mode turns the GoPro into a one-button camera, allowing you to power on and start recording automatically with the press of a single button. Press once to record video, press and hold for two seconds to capture Time Lapse photos
  Selectable FOV
  • Three field of view settings are offered: Ultra Wide, Medium, and Narrow. These help you choose the preferred perspective, be it wide-angle and inclusive, medium for a bit of focus, or close-up
  Audio Acquisition
  • There is an internal mono mic and it is possible to record from an external source using a separately available 3.5mm mic adapter. An integrated ADC (analog-to-digital converter) in the HERO4 Black enables compatibility with a wider variety of professional, low-sensitivity external mics for immersive stereo audio capture and enhanced performance - whether recording voices, an acoustic jam session, or a live show
  Dedicated Settings Button
  • A single button provides direct access to the camera settings. In addition, the menu has been redesigned from the HERO3+ Edition to make navigation simpler
  Looping
  • Record a continuous video loop that overwrites itself until you press the shutter button to stop it and save
  Auto Low Light
  • Automatically adjusts the frame rate for optimal performance under low-light conditions
  UPC: 818279012767
• Polsen GPMK-22 GoPro Production Microphone Kit
  • GoPro: Tour de France 2015 - Best of Stages 1-7
  The Polsen GPMK-22 is an audio production kit that is made specifically for the GoPro HERO4, HERO3+, and HERO3 cameras. The kit includes a stereo microphone and a shotgun microphone, which attach to the GoPro when used with the Revo Quick-Release Frame (sold separately). These two microphones provide superior sound capturing capabilities compared to the omnidirectional microphones built into GoPros. They offer numerous creative options for delivering superb audio to any production.The supercardioid shotgun microphone is optimized to focus on the sound directly in front of it while rejecting off-axis sound. This provides great clarity and focus when recording dialog or voices. The stereo microphone features two condenser capsules arranged in an X/Y pattern. Ideal for recording live action, dialog, or soundscapes, it delivers wide sonic imaging and a natural stereo sound. For extra control when capturing a quiet or distant subject, or when recording in a high-noise environment, this microphone includes a high/low gain sensitivity selector to further ensure proper recording levels for professional-quality sound.No external power or batteries are necessary for operation. Both microphones are powered by the GoPro camera via the Mini-USB cable. The production kit includes an adjustable bracket that easily attaches directly to the three-prong GoPro mount. These lightweight and compact microphones will not weigh down your setup or extend out into the picture frame.
  Includes Stereo Mic
  • X/Y stereo microphone provides wide sonic imaging, natural stereo sound, and features a switchable gain selector for varying sound pressures levels
  Includes Shotgun Mic
  • Supercardioid shotgun microphone provides focus and clarity while rejecting off-axis sound
  Requires Revo Quick-Release Frame for GoPro
  • Attach to the GoPro camera using the Revo Quick-Release Frame (sold separately)
  No External Power Needed
  • Receives power directly from your GoPro camera via the Mini-USB cable
  Adjustable Bracket
  • Allows for precise positioning of the microphone
  Compact and Lightweight
  • The microphones won't weight down your rig or extend into the picture frame
  Easy to Attach
  • The microphone holder attaches directly to a GoPro camera mount with the included hardware
  Foam Windscreens
  • Included foam windscreens for both mics to minimize noise from wind or moving air
  UPC: 847628589551
• Revo Quick Release Frame for GoPro HERO3, HERO3+, and HERO4
  • GoPro: Tour de France 2015 - Best of Stages 1-7
  The Revo Quick Release Frame for GoPro is a lightweight and simple solution for mounting your GoPro HERO3, HERO3+, or HERO4 camera without the restrictions associated with a full enclosure. A quick release latch makes it easy to install and remove your camera from the frame, and an integrated two-prong mounting interface allows it to be mounted on most accessories designed for the GoPro. With the camera installed in the frame, you still have access to all camera buttons as well as the HDMI or USB ports for live video output, battery charging, or connecting an external microphone for improved audio recording.

  In addition to button and port access, the open-air design helps keep your GoPro cool during extended periods of use and allows for unimpeded audio capture with the camera's built-in microphones. Further benefiting audio capture, a thin windscreen covers the microphone opening. The open design also lets you attach an optional LCD Touch BacPac or Battery BacPac, with a swing-out bracket provided to help ensure the accessory stays attached during your shots.
  Key Features
  • • Fits around your GoPro HERO4, HERO3+, or HERO3 like a bumper case, securely holding the camera's edges using internal rubber grips
    • Quick release latch for fast install and removal of your camera
    • Integrated two-prong mount for use with GoPro accessories
    • Enables access to the camera's microSD, HDMI, and USB ports for live video output, connecting an external microphone, charging, and offloading
    • Unimpeded audio capture with the camera's built-in microphone
    • Windscreen covers microphone opening
    • Open-air design helps keep your GoPro cool during long periods of use
    • Swing-out accessory bracket securely holes an LCD Touch BacPac or Battery BacPac in place while shooting
  UPC: 847628587649

• HERO4 Black dubzzdufyftasfax
• Rechargeable Battery for HERO4
• Standard Housing
• Curved Adhesive Mount
• Flat Adhesive Mount
• 2 x Quick Release Buckle
• 3-Way Pivot Arm
• USB Cable
• Limited 1-Year Warranty

• Polsen - GPMK-22 GoPro Production Microphone Kit

• Revo - Quick Release Frame for GoPro HERO3, HERO3+, and HERO4

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• GoPro HERO4 Black

  System	NTSC/PAL
  Recording Media	x microSD/HC/XC (128 GB Maximum) Class 10 or UHS-1 rating required. See GoPro website for list of latest recommended cards.
  Video Format	3840 x 2160p at 24/25/30 fps (H.264) 2704 x 2028p at 25/30 fps (H.264) 2704 x 1520p at 24/25/30/48/50/60 fps (H.264) 1920 x 1440p at 24/25/30/48/50/60/80 fps (H.264) 1920 x 1080p at 24/25/30/48/50/60/80/90/120 fps (H.264) 1280 x 960p at 50/60/120 fps 1280 x 720p at 25/30/50/60/120/240 fps (H.264) 848 x 480p at 240 fps (H.264)
  Aspect Ratio	16:9 4:3
  Still Image Resolution	JPEG: 12 Megapixel, 4000 x 3000 (4:3) JPEG: 7 Megapixel, 3000 x 2250 (4:3) JPEG: 5 Megapixel, 2560 x 1920 (4:3)
  Channels	1.0-Channel Mono Mono built-in mic; stereo recording possible with separately available external microphone and adapter
  Audio Format	AAC with AGC

  Interval Recording	.5 Second 1 Second 2 Second 5 Second 10 Second 30 Second 60 Second

  Waterproof Depth Rating	131.0' / 40.0 m (Waterproof Housing)

  Outputs	1 x Mini-USB 1 x Micro-HDMI (Type D) USB port also serves as mic input using separately available 3.5mm adapter. Also supports composite output using a separately available A/V cable.

  Battery	Rechargeable Lithium-Ion Battery Pack, 3.8 VDC, 1160 mAh Max Runtime: 1.5 Hours per Charge
  Charging Method	USB
  Weight	3.10 oz / 88 g camera only 5.36 oz / 152 g with housing

  Box Dimensions (LxWxH)	9.95 x 4.1 x 4.1"

• Polsen GPMK-22 GoPro Production Microphone Kit

  Pattern	Cardioid
  Frequency Response	20 Hz to 20 kHz
  Sensitivity	Hi: -34 ± 3 dB (0 dB = 1V / Pa @ 1 kHz) Lo: -39 ± 3 dB (0 dB = 1V / Pa @ 1 kHz)
  Output Impedance	1200 Ohms ± 30%
  Power Requirement	4 VDC
  Output Connector	Mini-B USB
  Cable Length	5.9" (15 cm)

  Pattern	Supercardioid
  Frequency Response	20 Hz to 20 kHz
  Sensitivity	-39 dB ± 3 dB (0 dB = 1V / Pa @ 1 kHz)
  Output Impedance	1000 Ohms ± 30%
  Power Requirement	4 VDC
  Output Connector	Mini-B USB
  Cable Length	5.1" (13 cm)

  Box Dimensions (LxWxH)	8.8 x 5.0 x 2.7"

• Revo Quick Release Frame for GoPro HERO3, HERO3+, and HERO4

  Dimensions	2.5 x 2.5 x 0.75" / 6.35 x 6.35 x 1.9 cm
  Weight	0.6 oz / 16 g

  Box Dimensions (LxWxH)	4.0 x 4.0 x 1.0"
