Product description
GoPro VR: Introducing Omni
GoPro VR: Skydiving with GoPro Bombsquad - A Virtual Reality Experience
GoPro VR: Land, Air and Sea
GoPro VR: Indycars over the Golden Gate Bridge
GoPro VR: Tahiti Surf with Anthony Walsh and Matahi Drollet
GoPro VR: Inside The Kitchen with Joshua Skenes
GoPro VR: Sand Dune Jumping with Ronnie Renner
GoPro: Introducing Omni
Introduction | Omni The Full Workflow
Part 1 - Unboxing / Updating | Omni The Full Workflow
Part 2 - Shooting on Location | Omni The Full Workflow
Part 3 - Omni Importer | Omni The Full Workflow
Part 4 - Discovering Kolor Software | Omni The Full Workflow
Get started producing high-resolution 360° spherical video content with the GoPro Omni. Included with the rig is everything you need for footage capture, ingest, and processing packed into a convenient waterproof storage case. Six included GoPro HERO4 Black cameras record up to 8K spherical footage when housed inside the Omni rig. The six 32GB memory cards included with the Omni can be read simultaneously using the included card readers and USB hub. Kolor Autopano and Giga software programs are provided for post processing. Instead of relying on the GoPro cameras' internal batteries, a Core SWX HyperCore V-Mount battery and D-tap cable are also part of the kit. A charger and plate for the battery are also included. When you're ready to begin, just give the wireless remote a click, and you'll be on your way.
Omni Rig
The Omni rig is compact and sturdy, and it can be easily handheld if an optional handgrip is connected to one of the integrated 1/4"-20 threaded holes. This design enables you to take a spherical video rig with you on your adventures and travels and capture your experiences in a unique way. In order to overcome the issues of syncing multiple discrete cameras, GoPro has integrated pixel-level syncing of the 6-camera array in order to minimize motion artifacting, even in high-motion situations.
Kolor Software
This all-inclusive kit comes with Kolor Autopano Video Pro and Giga software.
Video Pro takes the video from the 6 HERO4 Black cameras and stitches it into a single video covering up to 360 x 180°. The process is straightforward: just import your videos using an easy-to-use drag-and-drop interface, select a stitching template or launch a detection from scratch, and then the stitching process is automatic.
Giga is another stitching software, which can seamlessly stitch together multiple frames to create faithful panoramas, as well as intelligently remove unwanted transparent artifacts caused by moving and overlapping subjects. Manual control is also possible, through the use of a Mask tool that lets you decide which portions of an image to include or discard from overlapping sections.
Core SWX HyperCore Battery
Along with the D-tap cable, this battery will power the entire Omni rig without having to resort to multiple GoPro batteries. An on-board fuel computer samples capacity and charge or discharge load and then recomputes and refreshes the LCD display every five seconds, so you'll always know how much time you have left on your charge before you have to swap batteries. A V-mount plate and charger are also part of this kit.
Media
Six 32GB cards are included, so you can have all the cameras at the ready when you want to start shooting. Readers for each card are also included, along with a 7-port USB hub, so you can ingest footage from all cards simultaneously.
Other Essential Accessories

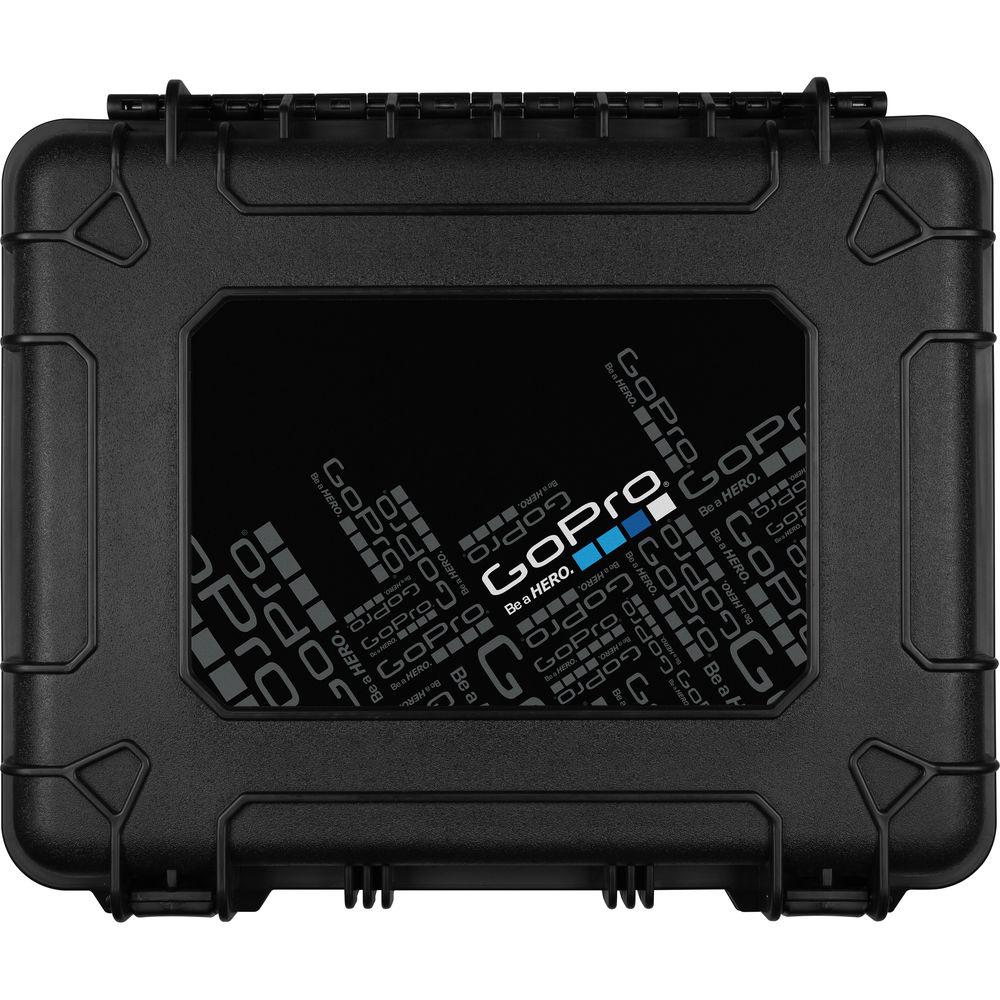

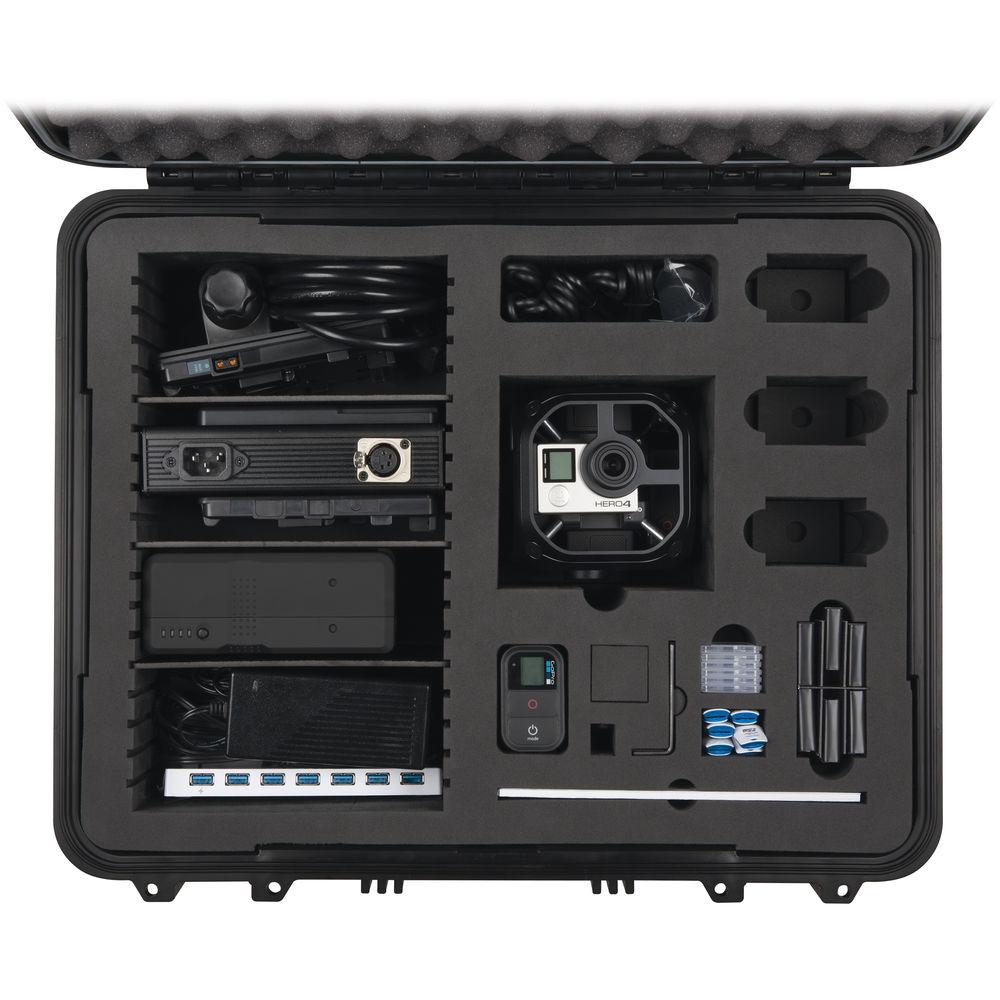

Plastic tweezers for reaching into difficult spaces, a 3.5mm hex key, and a microfiber bag are included with the Omni, and everything packs away into a waterproof storage case with custom-cut foam.
UPC: 818279016017 In the Box GoPro Omni (All Inclusive)
Omni (Rig Only)
Kolor Autopano Video Pro 2 (Download Info Emailed within 1-3 Business Days)
Kolor Autopano Giga 4 (Download Info Emailed within 1-3 Business Days)

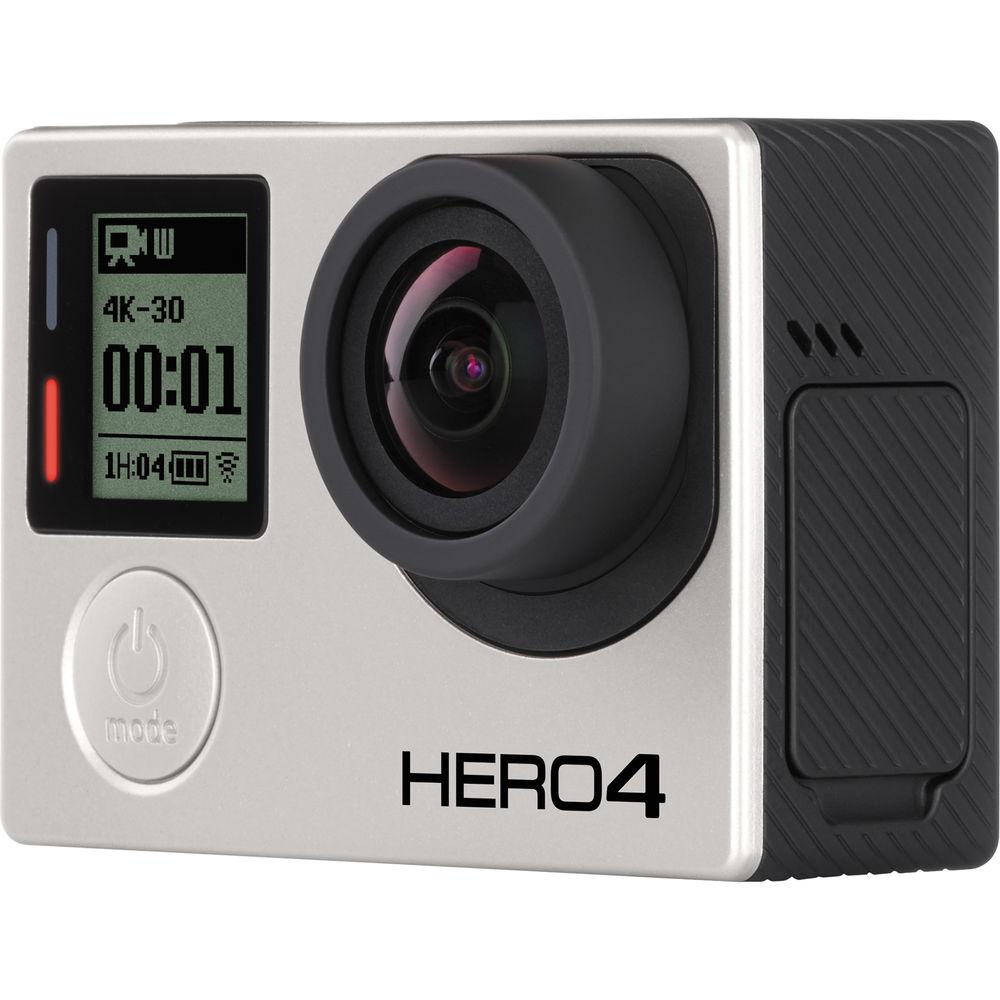

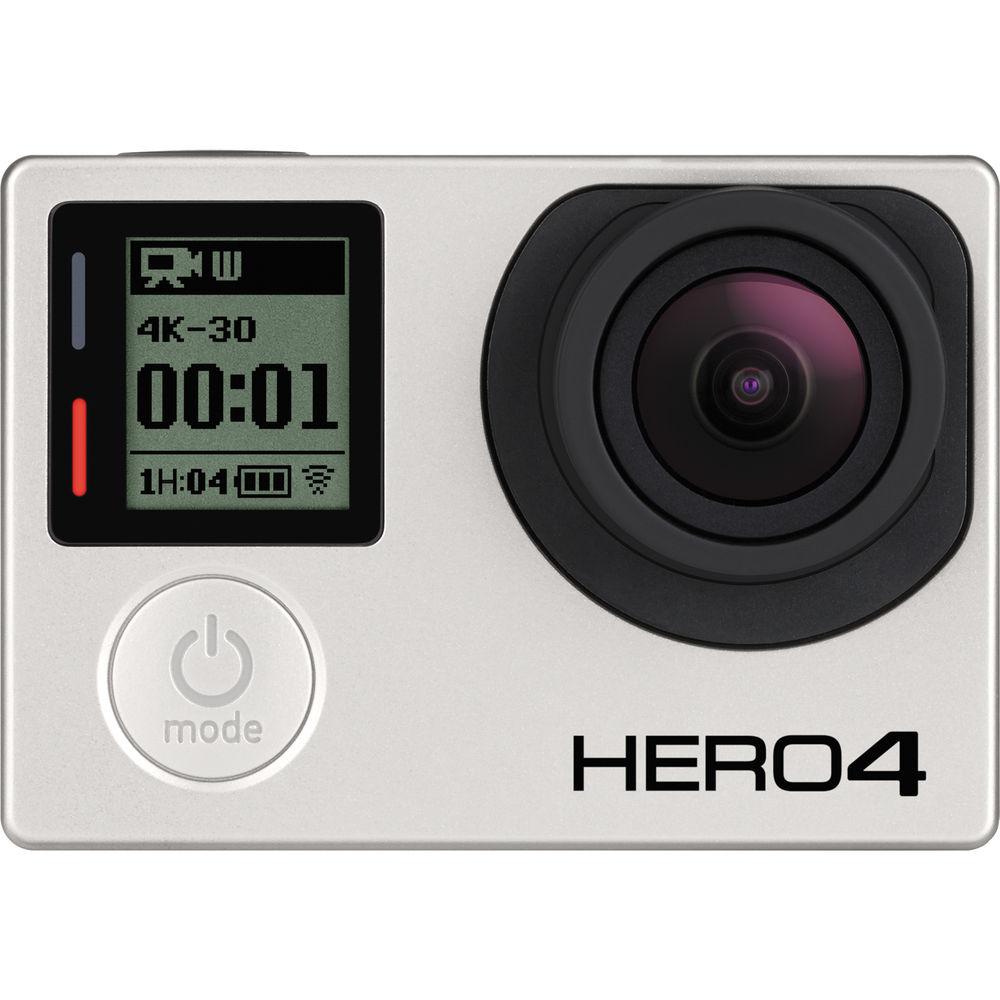

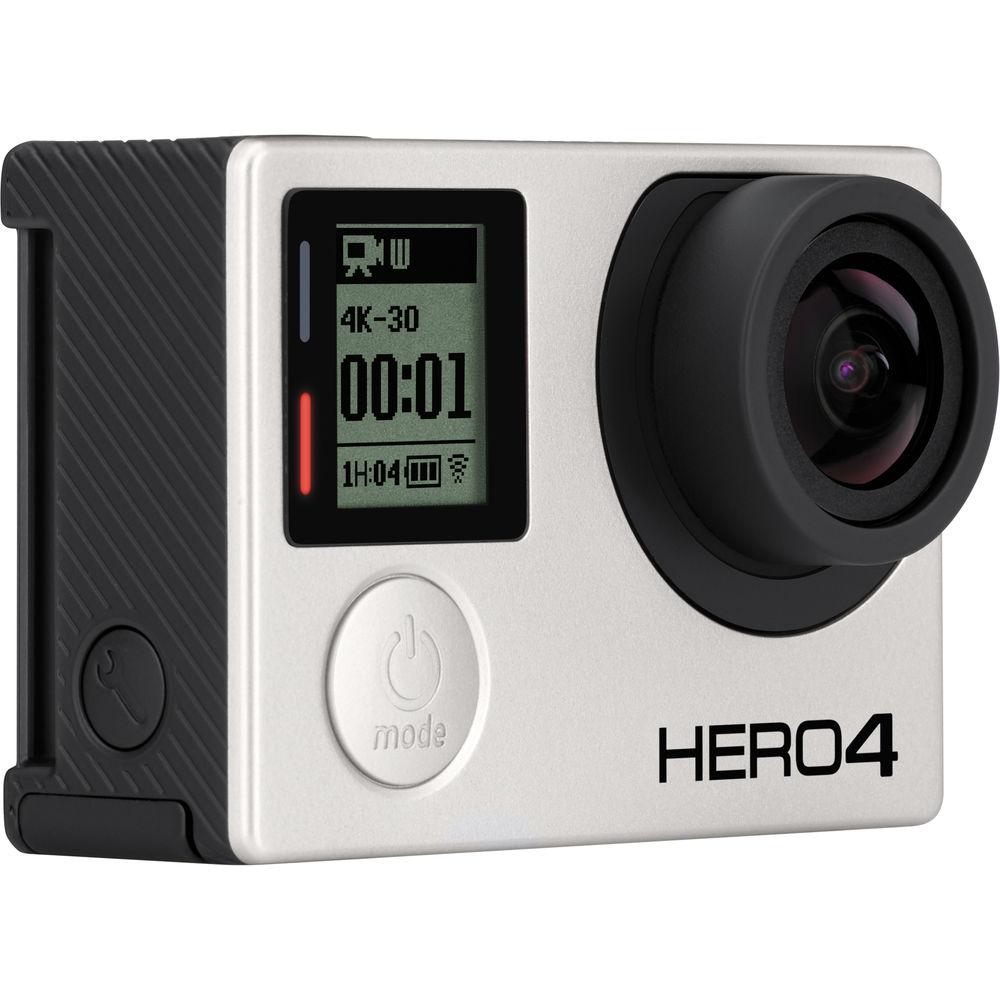

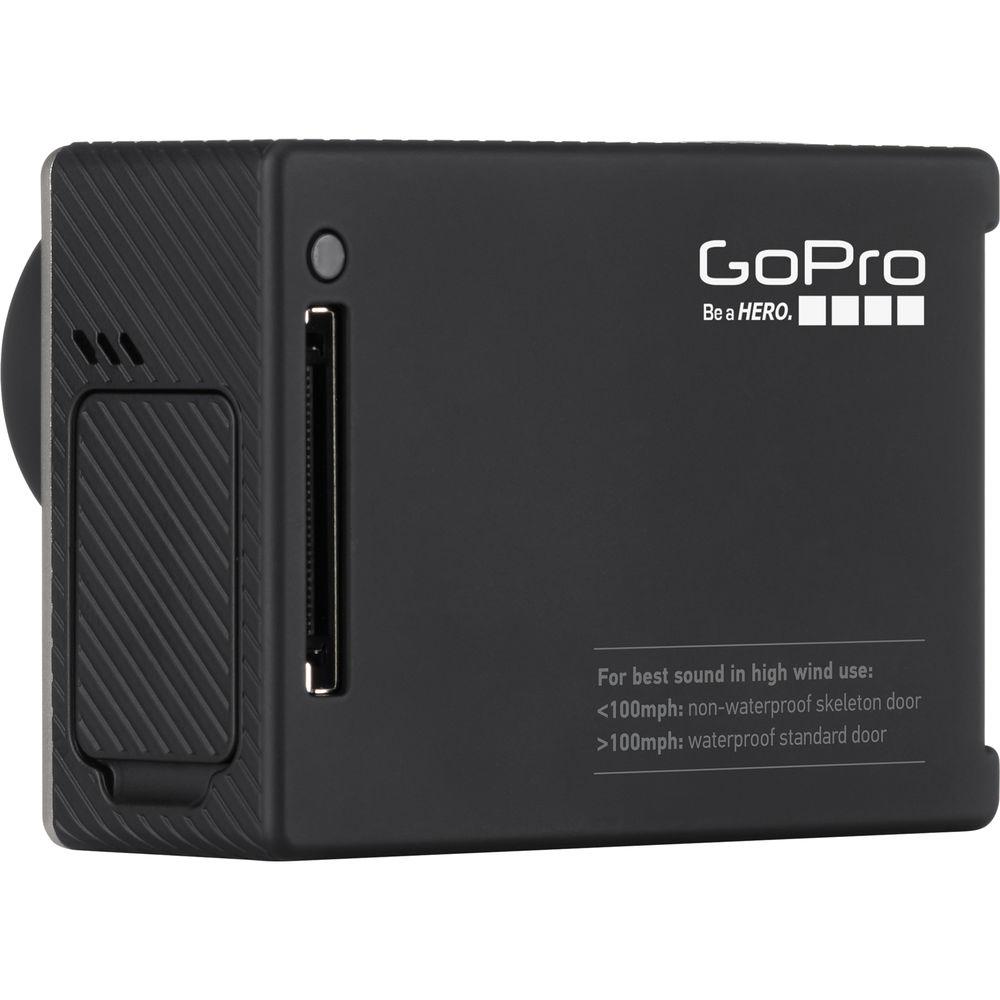

6 x HERO4 Black
6 x GoPro Lens Covers
6 x 32GB microSD Cards
6 x USB microSD Card Readers
Smart Remote
7-Port USB Hub
HyperCore 98Wh 14.8V V-Mount Battery
GP-S V-Mount Plate with Clamp for Monopods, Tripods, Light Stands
GP-LS Single Position Charger
Regulation Power Cable for GoPro Omni (10 ft)
Waterproof Shipping Case
Plastic Tweezers
Microfiber Bag
2.5mm Hex Key
Limited 1-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the GoPro Omni in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
GoPro Omni Specs
Resolution Support
Individual Camera Resolution: 2.7K25/30 1440p50/60
Spherical Resolution 2.7K - 7940 x 3970 1440p - 5638 x 2819

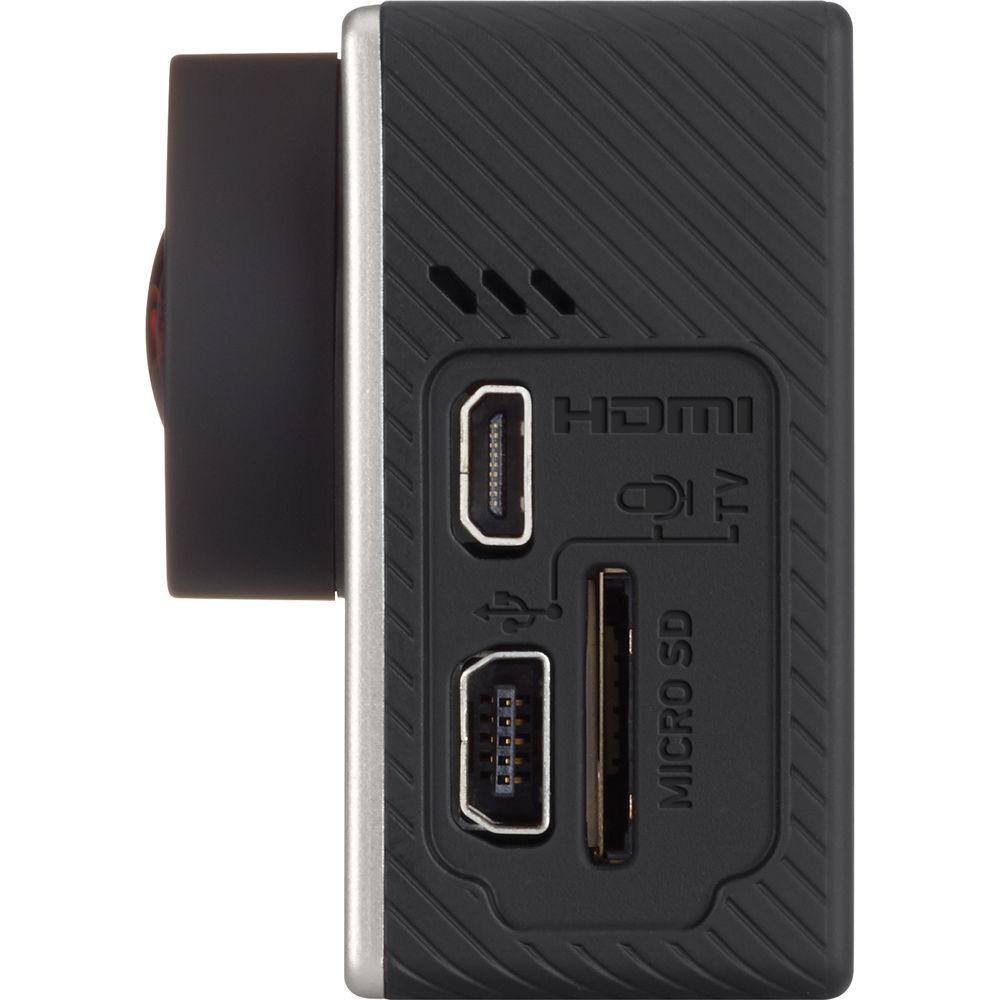

6 x mini-USB (for camera charging and data offload) 1 x wireless remote control
Power
6 x Rechargeable lithium-ion batteries, 1160 mAh, 3.8 V, 4.4 Wh 1 x 12 VDC, 7 A, 2.5 x 5.5 mm input
Dimensions
Omni rig unit: 4.7 x 4.7 x 4.7" / 120 x 120 x 120 mm
Package Weight
24.0 lb
Box Dimensions (LxWxH)
26.0 x 17.5 x 9.0"
