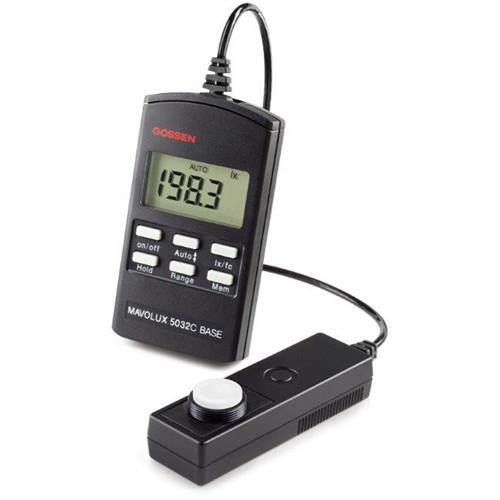

User Manual for Gossen Mavolux 5032C Base Light Meter Click to enlarge the picture
Contents of the user manual for the Gossen Mavolux 5032C Base Light Meter
- Product category: Light Meters Gossen
- Brand: Gossen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gossen Light Meters
 |
User manual for the Gossen Mavolux 5032C Base Light Meter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gossen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gossen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gossen product will considerably shorten its lifespan!
|
Product description Classified as a class C measurement device for reliable and accurate measure in lux or fc, this Mavolux 5032C Base Light Meter from Gossen is a trustworthy tool for checking illuminance in a variety of situations. It has a wide measurement range, with the silicon photo diode spanning from 0.1 to 199,900 lux or 0.01 to 19,900 fc with an accuracy of ±3% ±1 digit of reading. The device features an easy-to-read 2.2" LCD screen and has non-volatile memory for up to 100 measurements. Additionally, the measuring head is connected to the main device with a 4.9' attached connector cable for easy placement and viewing. It runs on one AA battery. - As an option, the accredited GOSSEN Light Lab can issue a factory or a DAkkS calibration certificate for measuring equipment monitoring in accordance with DIN EN ISO 9011:2008
- V(λ) matching ensures the spectral sensitivity of the silicon photo diode is color corrected and corresponds to the spectral brightness sensitivity of the human eye
- Cosine correction takes into account the fact that the luminosity of a flat measuring surface is proportional to the cosine of the incident angle of light
- Female 1/4"-20 thread on base of measurement part for placement on a light stand or tripod

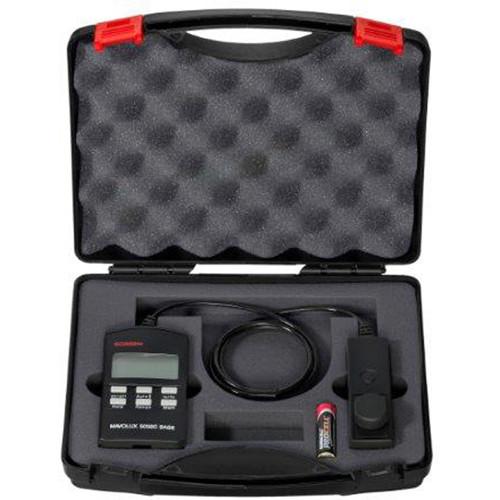

UPC: 719821397229 In the Box Gossen Mavolux 5032C Base Light Meter AA Battery Light Proof Protective Cover Limited 2-Year Warranty User Manual PDF 565.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Gossen Mavolux 5032C Base Light Meter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGossen 5032C Specs | Sensor | Silicon photo diode with V (λ) filter with 0.8" (20 mm) diameter light sensitive surface | | Classification | Class C according DIN 5032-7 / EN 13032-1 appendix B / CIE 69 | | Accuracy | ±3% ±1 digit of reading | | Measurement | 2 measurements per second | | Display | 2.2" (5.6 cm) LCD | | Memory | 100 values | | Battery | 1 x AA battery | | Battery Life | Approximately 45 hours | | Construction | Plastic | | Cable Length | 4.9' (1.5 m) | | Operating Conditions | 32 to 122°F (0 to 50°C) | | Dimensions | Display Unit: 4.6 x 4.7 x 0.8" (65 x 120 x 19 mm)
Photometer Head: 1.2 x 4.1 x 1.2" (31 x 105 x 30 mm) | | Weight | 7 oz (200 g) without battery | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 7.0 x 4.6 x 2.2" |
