User Manual for Gossen MAVOSPEC BASE Industrial Light Meter Click to enlarge the picture
Contents of the user manual for the Gossen MAVOSPEC BASE Industrial Light Meter
- Product category: Light Meters Gossen
- Brand: Gossen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gossen Light Meters
 |
User manual for the Gossen MAVOSPEC BASE Industrial Light Meter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gossen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gossen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gossen product will considerably shorten its lifespan!
|

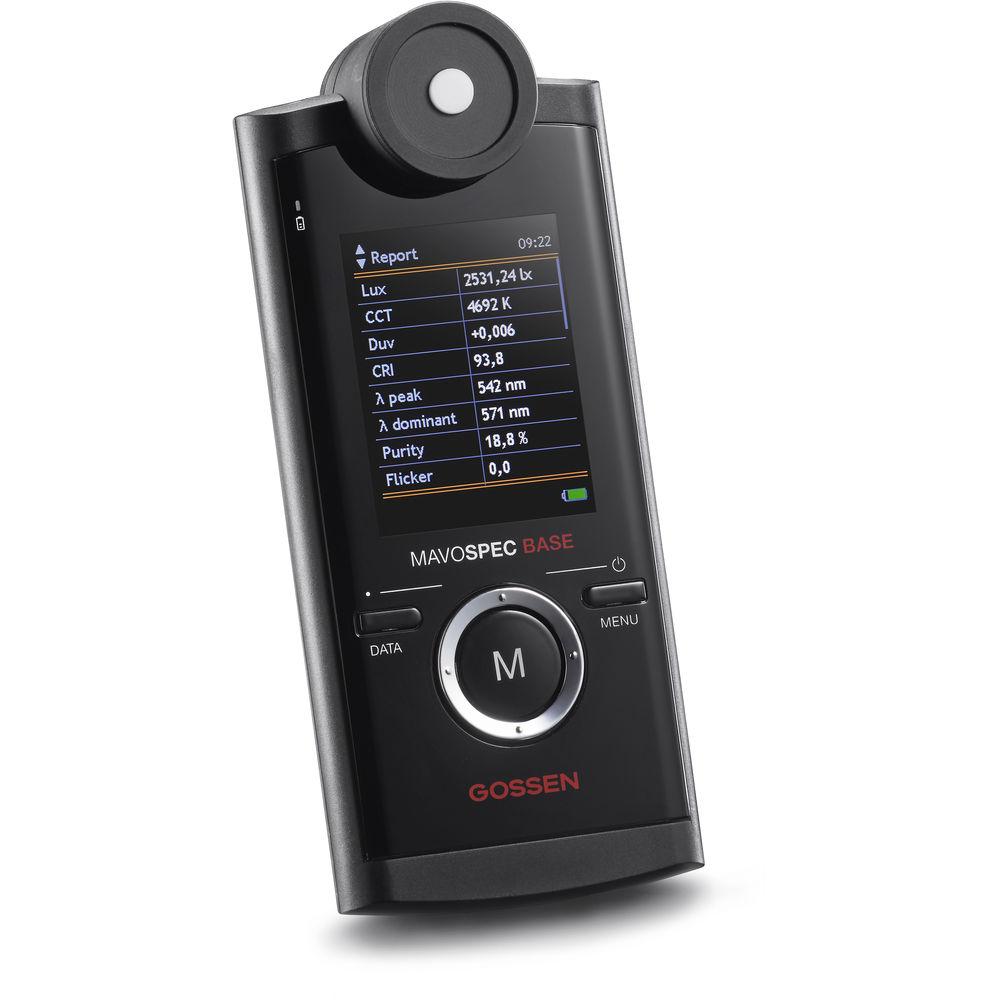

Product description Accurately measure the quality of your lights with this MAVOSPEC BASE Industrial Light Meter from Gossen. This spectrometer uses incident metering to measure light from 10-100,000 lux as well as in the visible light spectrum of 380-780nm. Also, it works with a variety of different types of lighting, including LEDs, fluorescent lights, halogen lamps, and natural daylight. It offers a variety of measurement options as well, including CRI, CCT, peak wavelength, color purity Duv, chromaticity, and flicker measurement. This meter even supports the TM-30-15 color rendering measurement of Rf and Rg as established by IES. The device is optimized for one-handed operation and has a 2.1" color 320 x 240 TFT display for viewing and changing settings. It can save readings to an included 4GB microSD card using a CSV format and runs on a rechargeable lithium-ion battery pack. Additionally, it has a USB port for firmware updates. - Supports TM-30-15 color rendering measurement method as established by the North American Illuminating Engineering Society (IES), which delivers more accurate measurement of both color fidelity and color saturation values
- Measuring range of 10-100,000 lux
- Spectral power distribution measurements of light between 380-780nm with the ability to determine peak and dominant wavelengths

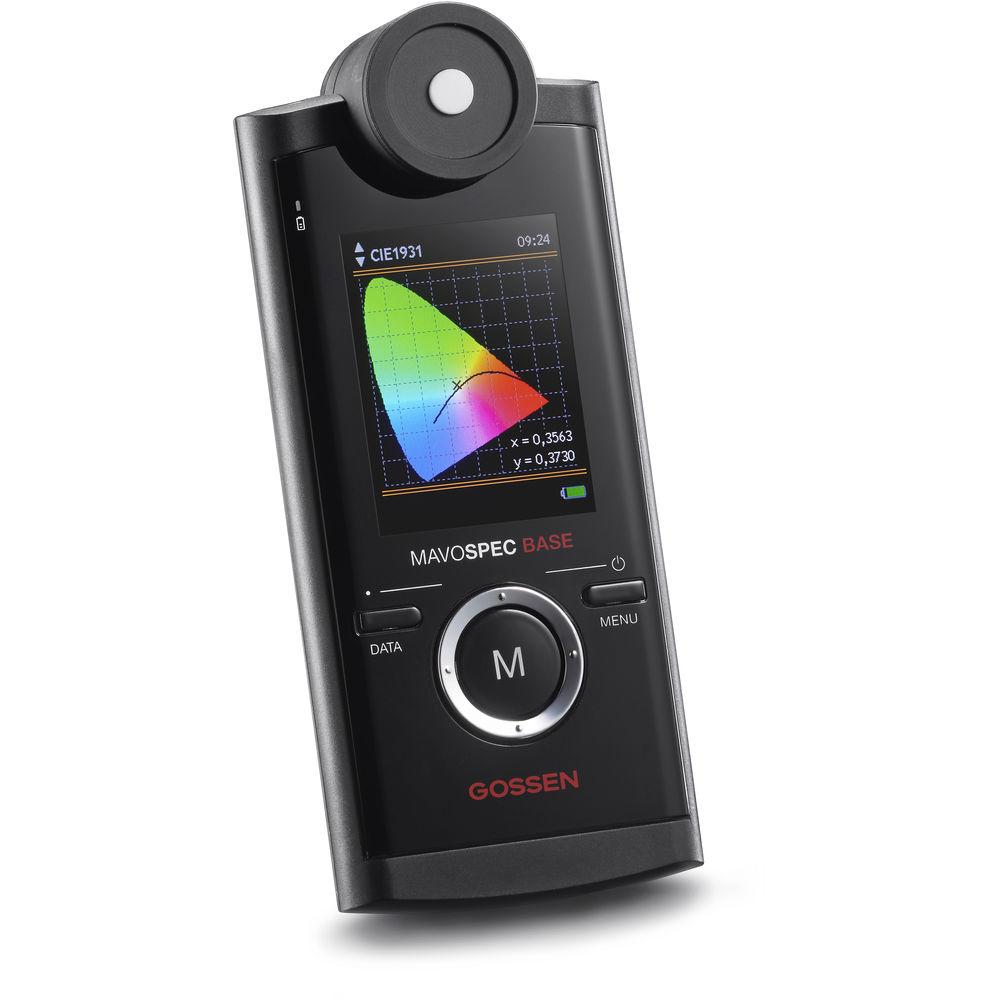

- Measures chromaticity and color coordinates with CIE 1931 [x,y], CIE 1960 [u,v], and CIE 1976 [u',v'] and display of the CIE standard color table

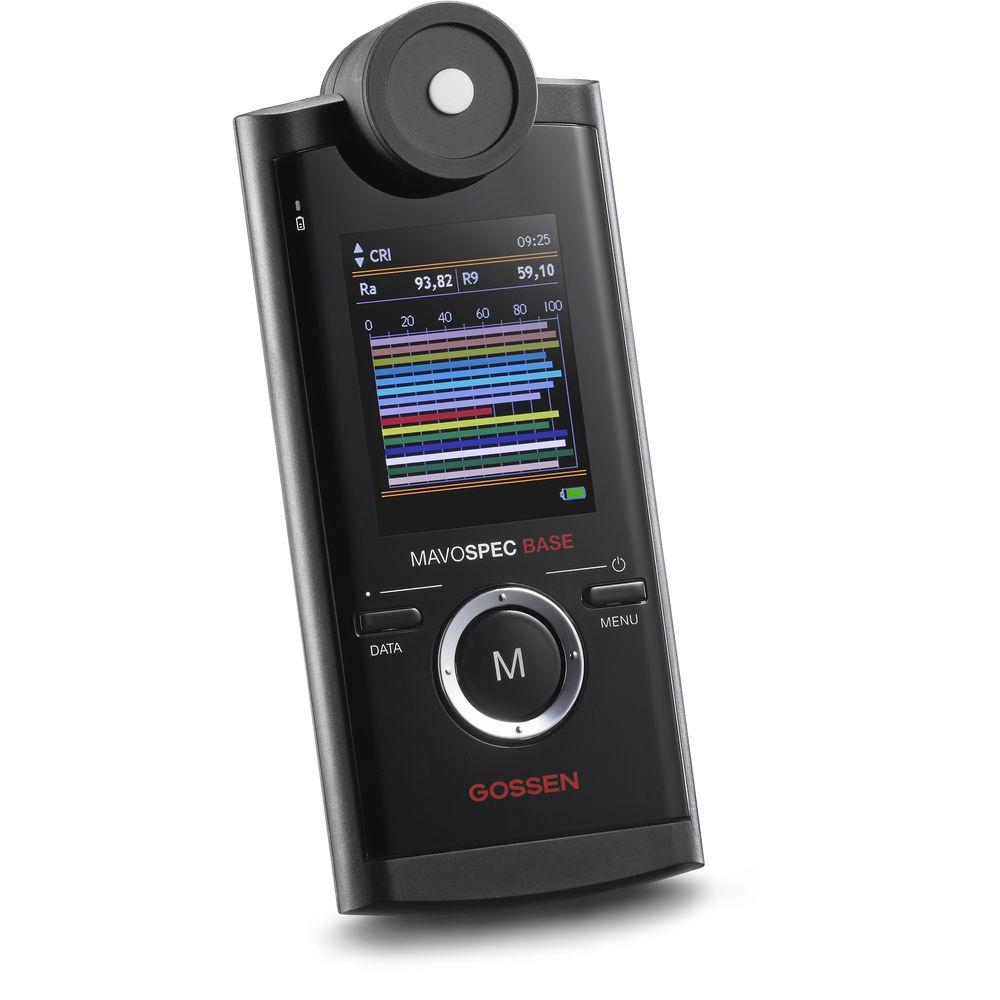

- Can measure correlated color temperature as well as color rendering index Ra, as well as R1 through R15 values
- Can measure flicker as an index, percentage, and frequency
- Temperature sensor will help compensate for measurement changes throughout a wide temperature range
- One-handed operation is made easy with a ring controller and keys alongside a 2.1" color TFT display
- USB port for data transfer from the included 4GB microSD card as well as for future firmware updates
- Can run for 8 hours continuously on a single charged battery or from an AC adapter.
UPC: 719821413837 In the Box Gossen MAVOSPEC BASE Industrial Light Meter Rechargeable Battery 4GB microSD Card USB Cable Aluminum Case Wallet Power Pack Carrying Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gossen MAVOSPEC BASE Industrial Light Meter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGossen Mavospec Base Specs | | | Light Reading Method | Incident | | Measuring Range | 10 to 100,000 lux / 0.9 to 9290 fc | | Spectral Wavelength Range | 380 to 780 nm | | | | Receptor Element | CMOS | | Display | 2.1" / 5.3 cm Color LCD | | Interface | USB 2.0 Port | | Memory Card Slots | 1 x microSD (Unspecified Type) | | Tripod Mounting Thread | None | | | | Battery | 1 x Rechargeable | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.15 A | | Wireless Connectivity | None | | Dimensions | 5.5 x 2.4 x 1.2" / 139 x 60 x 30 mm | | Weight | 7.0 oz / 200.0 g | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 12.4 x 10.7 x 4.4" |
