User Manual for Gra-Vue 1 Input 4 Output 3G HD SD-SDI Video Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Gra-Vue 1 Input 4 Output 3G
- Product category: Distribution Amplifiers (DA's) Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Distribution Amplifiers (DA's)
 |
User manual for the Gra-Vue 1 Input 4 Output 3G contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|

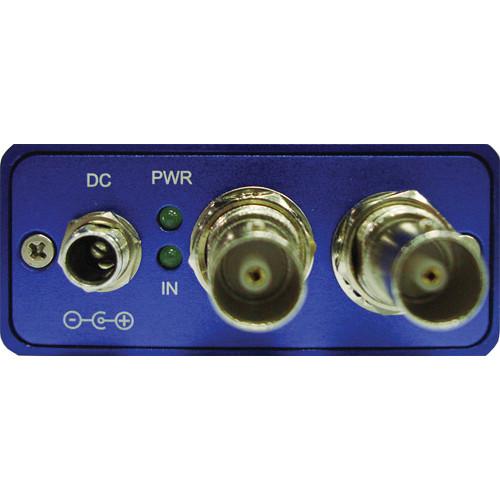

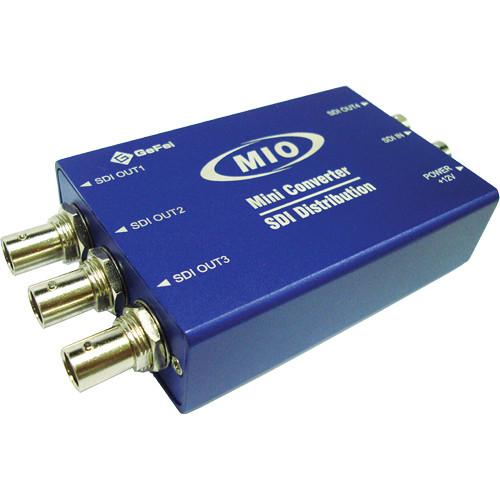

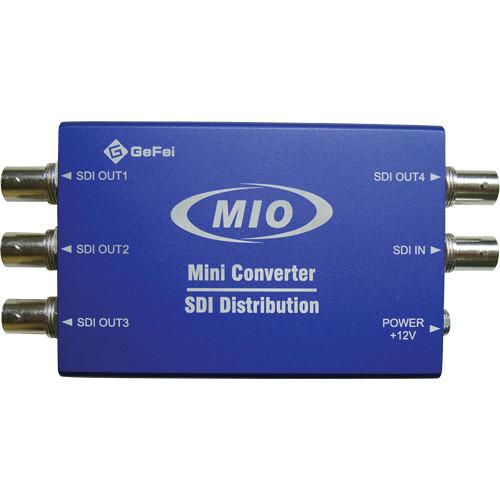

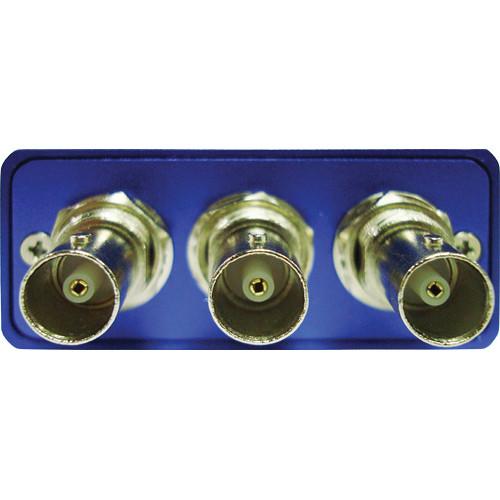

Product description The MIO VSD-HD HD/SD-SDI Video Distribution Amplifier from Gra-Vue distributes 1 HD / SD-SDI signal across 4 outputs with reclocking. This amplifier supports HD / SD-SDI input signals with embedded audio and automatic input detection of 525i 60, 625i 50, 720p, 1080i, and 1080p formats.
It provides automatic signal equalization for up to 328' with Belden 1694A low loss serial digital coax cable (featuring an 18 AWG solid .040" bare copper conductor construction), thereby improving signal quality and reducing signal loss caused by long distance transmission of input sources. The LED lights on the Mini box indicate the status of input signal and power supply, in order to let the user know the status immediately. Its compact structure enables wide usage in a variety of environments, like TV program post production, studio, and broadcast. - One HD / SD-SDI signal input and four HD / SD-SDI signal outputs with re-clocking
- Supports automatic input detection of 525i 60, 625i 50, 720p, 1080i, and 1080p formats
- Supports HD / SD-SDI signals with embedded audio
- Adopts reclocking of video signals to provide an additional level of signal integrity in long cable length applications
- Provides signal equalization to improve the signal quality and reduces signal loss caused by long-distance transmission of input source
- LED lights on the mini box indicate the status of input signal and power supply
- Mini box structure enables easy installation inside frame racks, video walls, and other structures and devices
- Widely used in broadcasting systems, studios, and other professional fields
In the Box Gra-Vue 1 Input / 4 Output 3G/HD/SD-SDI Video Distribution Amplifier Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue 1 Input 4 Output 3G HD SD-SDI Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MMIO VSD-HD Specs | | | Interface | Input: 1 x HD / SD-SDI BNC | | Impedance | 75 Ω | | Format | 525i 60, 625i 50
720p 50 / 60
1080i 50 / 59.94 / 60
1080p 30 / 29.97 / 25 / 24 / 23.98
1080p 50 / 59.94 / 60 | | Length | >328' (100 m) | | | | Output Interface | 4 x HD / SD-SDI, BNC | | Impedance | 75 Ω | | Format | SMPTE-259M-C 270 Mb/s
SMPTE-292M 1.485 Gb/s
SMPTE-425 2.970 Gb/s | | | | Level | 800 mV, ±10% | | Jitter | <0.2 UI (100 kHz) | | Status Indicator | Input signal status indicator
Power indicator (indicated by the green LED) | | Power | 12 VDC, 1 A | | Dimensions | 5.0 x 4.0 x 1.1" ( 123.0 x 92.0 x 29.0 mm) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 7.5 x 4.5 x 2.9" |
