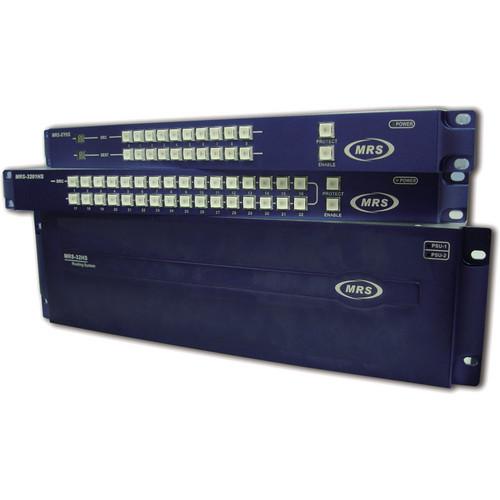

User Manual for Gra-Vue 32 x 32 HD & SD Router with X Y Remote Control Panel Click to enlarge the picture
Contents of the user manual for the Gra-Vue 32 x 32 HD &
- Product category: Routers & Switchers Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Routers & Switchers
|
User manual for the Gra-Vue 32 x 32 HD & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The Gra-Vue 32 x 32 HD & SD Router is a digital signal switcher suitable for middle to small sized broadcasting system designed by Gefei Technology. The switching system adopts field blank switching and supplies independent external synchronization interface.
The separation of the host and remote control panel makes it convenient to use. The host is 1U chassis, with dual power, supports simultaneous control by 2 remote control panels; through RS-232, you can control the host by professional software on a PC. - 20-bit digitization processing, high quality, high stability ensures the safety and reliability of broadcasting
- Supports independent 32-channel bus outputs, and SD/HD inputs auto sensing
- Supports external BB using field vanishing, switching, processing to ensure the switching without flicker and noise
- The host can be configured to support simultaneously, controlled by 2 RCP through RS-485
- Convenient to control through RS-232 with software
- 3U chassis, with dual power
In the Box Gra-Vue 32 x 32 HD & SD Router with X+Y Remote Control Panel X+Y Remote Control Panel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue 32 x 32 HD & SD Router with X Y Remote Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MRS 3232-HS Specs | | | Input | 32SD / HD-SDI | | Format | 525i30 625i25 720P50 720P60 720P60/M 1080i50
1080i60 1080i60/M 1080sf24 1080sf24/M
1080P241080P24/M 1080P25 1080P30 | | | | Output | 32SD / HD-SDI | | Amplitude | 800 ±5% | | Jitter | <0.2 UI | | | | Connector | 1 x RS-232 DB9 male
4 x RS-485 BNC | | Power | 2 x 120 W | | Dimensions | Size: 1.73 x 51.96 x 3.14" (44.00 x 1,320.00 x 80.00 mm) | | | | Connector | 2 x RS-485 BNC | | Power | 1 x 2.5 W | | Dimensions | Size: 1.73 x 17.32 x 3.14" (44.00 x 440.00 x 80.00 mm) | | | | Package Weight | 30.86 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 12.0" |
