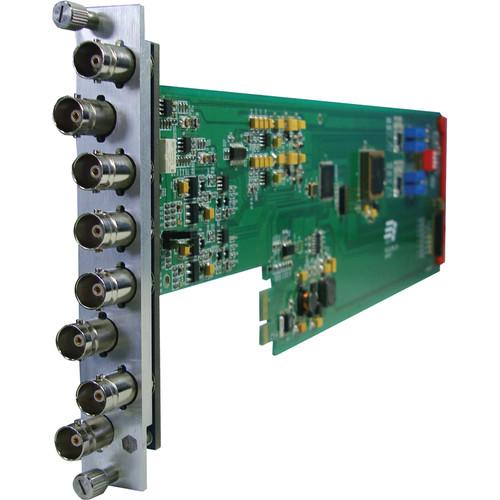

User Manual for Gra-Vue Composite BNC 1 x 7 Video Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Gra-Vue Composite BNC 1 x 7
- Product category: Distribution Amplifiers (DA's) Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Distribution Amplifiers (DA's)
|
User manual for the Gra-Vue Composite BNC 1 x 7 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The Gra-Vue Composite BNC 1 x 7 Video Distribution Amplifier, in a 3RU version, includes a Composite BNC 1 input / 7 output analog video DA card and 3RU interface panel. The interface panel installs the DA card in a rack in a vertical position.
An integrated independent output driver supports adjustable gain from -6dB to +6dB, and automatic signal equalization strengthens signals up to 300 ft over Belden 8281 cables. Gain and other adjustments can be made via a dip switch on the front side of the card or using an optional Gra-Vue XIO NET Network Management Module via an Ethernet-connected PC. LED indicators display input signal status and output signal status. The card supports NTSC and PAL standards. - Features
-
- Composite BNC 1 input / 7 output analog video DA card
- 3RU interface panel installs the DA card vertically
- Signal gain adjustable from -6dB to +6dB via dip switch
- Real-time monitoring and adjustments by dip switch or optional XIO NET module via Ethernet-connected PC
- Automatic signal equalization strengthens signals up to 300 ft
- Hot swappable with other cards
- Supports NTSC and PAL standards
In the Box Gra-Vue Composite BNC 1 x 7 Video Distribution Amplifier (3RU) 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue Composite BNC 1 x 7 Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9000VDA-3U Specs | Input | 1x Composite BNC connector | | Output | 7x Composite BNC connectors | | Standards | NTSC/PAL | | Gain | -6 dB to +6 dB | | Impedance | 75 ohms | | Return Loss | >40 dB - 5.8 MHz | | Maximum Cable Length Supported | 300 ft (100 m) | | Signal Level | 1 Vpp | | Frequency Response | -0.6 dB to 5.8 MHz | | Differential Phase | 0.54 | | K Factor | < 0.5 % | | Random S/N | -79.5 dB | | Differential Gain | 0.14 % | | Power Consumption | 2-3 W | | Operating Temperature | 32 to 104°F (0 to 40°C) |
