User Manual for Gra-Vue Dual Channel HD SD-SDI Keyer Remote Control Panel Click to enlarge the picture
Contents of the user manual for the Gra-Vue Dual Channel HD SD-SDI Keyer
- Product category: Accessories Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Accessories
|
User manual for the Gra-Vue Dual Channel HD SD-SDI Keyer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|

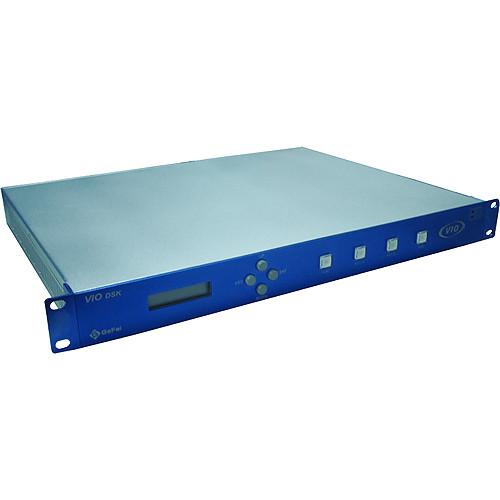

Product description The Gra-Vue VIO DSK-HD Dual Channel HD / SD-SDI Keyer is a high-definition downstream keyer to mix the serial component digital key and fill HD signals from logo generators or / and character generator machines in an HD living program. It incorporates the requisite technology to provide a fully digital keyer.It provides an SDI output for preview, 2 SDI program outputs, where 1 is a bypass output without power supply. You can control the keys down or up freely and easily. It is suitable for the on-air environment. The SNMP (Simple Network Management Protocol) and RS-232 control protocol are built-in the machine. The configuration and operation can be done in 3 ways, which are MCU (Multipoint Control Unit) on the front panel, IE on the PC, and the remote control panel. - Program output bypass protected for on-air applications
- Supply clean output and preview output
- Support tri-level and / or NTSC / PAL bi-level synchronization
- Auto-timing key, fill, and background inputs (up to 1 line)
- Supply GPI and RS-232 / 422 control interface
- Supply RCP for remote control
- Full control and status is provided from the front panel display
- Redundant PSU unites and fans
In the Box Gra-Vue Dual Channel HD/SD-SDI Keyer Remote Control Panel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue Dual Channel HD SD-SDI Keyer Remote Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue VIO DSK-RCP Specs | | | Signal | Style: Tri-level or NTSC / PAL bi-level synchronization | | Input | Interface: 1x BNC, 75 Ω | | Output Interface | 1x BNC loop output | | | | Input | PGM:
Interface: 1x HD / SD-SDI, BNC, 75 Ω | | | | Output | Interface: 4x HD / SD-SDI, BNC, 75 Ω
(2x PGM output, 1 is bypass)
(1x clean output and 1x preview output) | | | | Input | Interface:
FILL: 2x HD / SD-SDI, BNC, 75 Ω
KEY: 2x HD / SD-SDI, BNC, 75 Ω | | Video Format | SMPTE 259M 270 Mb/s
SMPTE 292M; 1.485 Gb/s | | | | Interface | Network: 1x RJ45 1000M Ethernet
GPI: 2x GPI
Serial: 1x DB15 RS232
LTC: 1x XLR Power 2x 120 W, 100 to 256 VAC, 50 to 60 Hz | | Power | 2x 120 W, 100 to 256 VAC, 50 to 60 Hz | | Dimensions | 17.32 x 19.01 x 1.77" (440.00 × 483.00 × 45.00 mm) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 19.0 x 2.0 x 1.0" |
