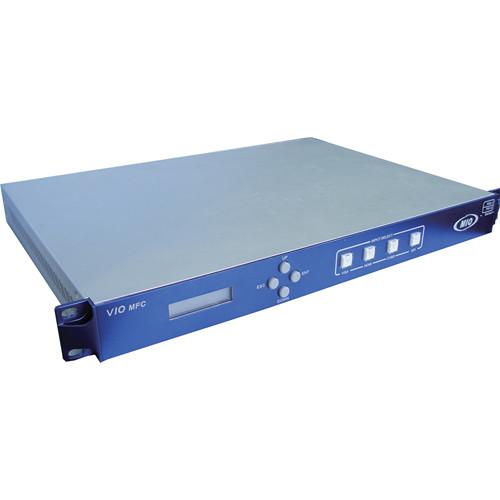

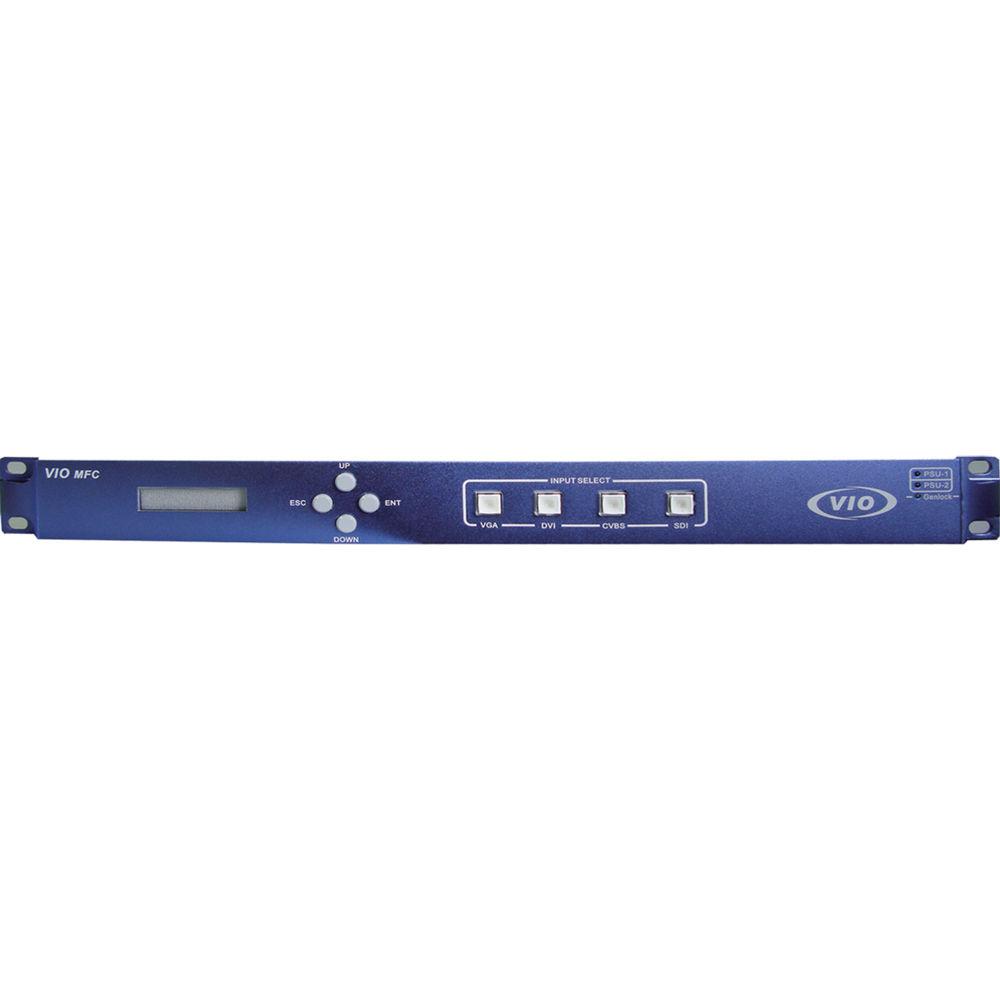

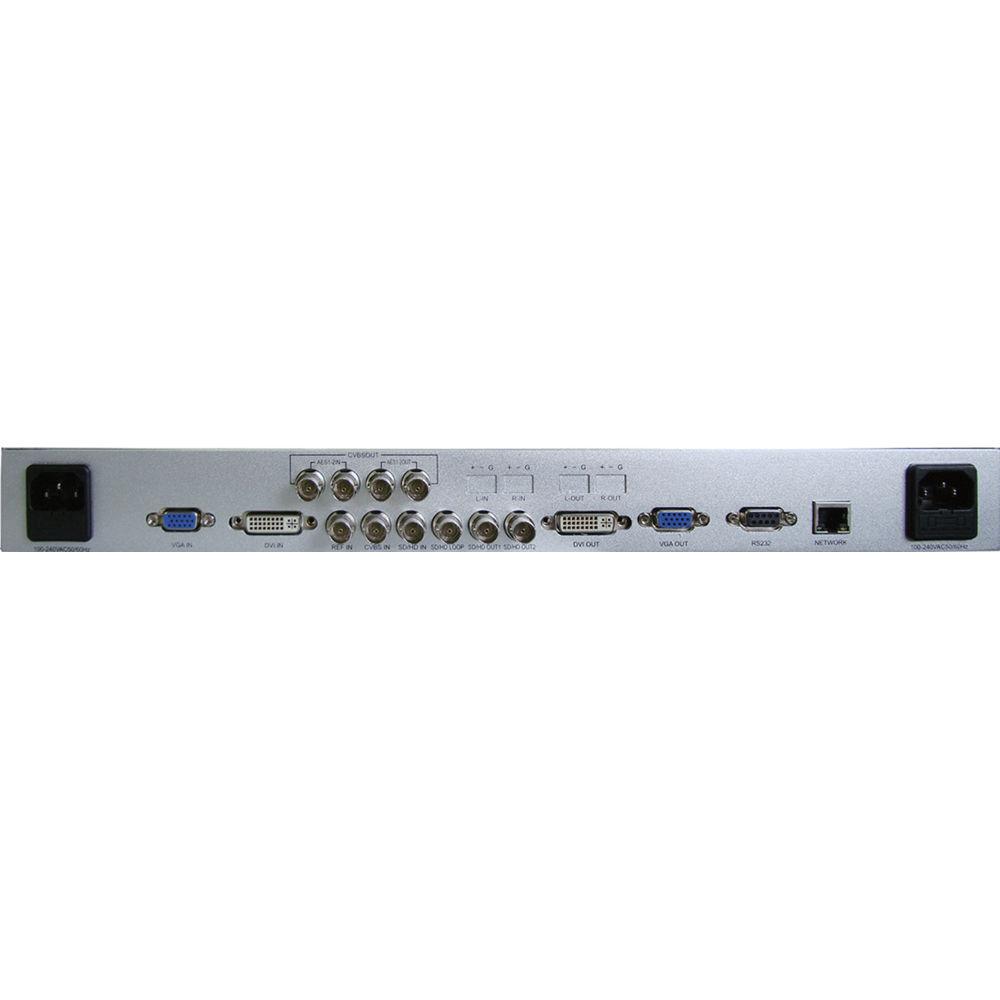

Product description The Gra-Vue DVI / HDMI / VGA Signal to HD / SD-SDI Converter with Genlock is VIO MFC series format converter based on 1RU chassis. It is a bridge between broadcasting and the IT area. It supports the LCD menu, control button, and LED indication on the front panel. The CVBS output and audio input / output are sold separately. - Support various formats for VGA and DVI (HDMI) input. Up to 1920 x 1080 for DVI (HDMI) input and 1600 x 1200 for VGA input
- Besides inner sync, genlock with full phasing control for V-phase and H-phase, locks HD / SD-SDI output to black burst
- For up / down conversion, adopt AFD auto-sensing or manual setting (crop / bar / stretch)
- Magnify the selected image area though the Web server
- Support moving and adjusting the magnifying area, pixel by pixel
- Provide flexible adjustment for luminance, saturation, contrast, detail, and denoise
- Preset layouts for all parameter settings
In the Box Gra-Vue DVI / HDMI / VGA Signal to HD / SD-SDI Converter with Genlock Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue DVI HDMI VGA Signal to HD SD-SDI Converter with Genlock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue VIO MFC-HDMI-HD Specs | Input | Input:
VGA input number: 1
Connector: DB15 Female
Resolution: 640 x 480 / 60 / 75, 800 x 600 / 60 / 75, 1024 x 768 / 60 / 75, 1152 x 864 / 60 / 75, 1280 x 768 / 60, 1280 x 800 / 60, 1280 x 960 / 60, 1280 x 1024 / 60, 1360 x 768 / 60, 1440 x 900 / 60, 1600 x 900 / 60, 1600 x 1200 / 60
DVI / HDMI Input Number: 1
Connector: DB24 Female
Resolution: 720p 50 / 59.94 / 60, 1080i 50 / 59.94 / 60, 1080p 30 / 29.97 / 25 / 24/ 23.98, 1080p 50 / 59.94 / 60, 800 x 600 x 60, 1024 x 768 x 60, 1280 x 720 x 50 / 60, 1280 x 768 x 60, 1280 x 800 x 601, 280 x 960 x 60, 1280 x 1024 x 60, 366 x 768 x 60, 920 x 1080 x 60 / 50 | | Output | HD / SD-SDI Output Number: 2
Connector: BNC 75 Ω
Format: SMPTE 292M, 1.48 Gb/s
SMPTE 259M-C 270 Mb/s 625i 50, 525i 59.94, 720p 50 / 59.94 / 60,1080i 50 / 59.94 / 60,1080p 25 / 30 Return Loss: ±15dB
Signal Level: 800 mV ±10%
Overshoot: ±80 mV
Jitter: ±0.2 UI
Rise and Fall Time: ±500/sec
DC Offset: 0 V ±500 mV
Analog Video Output Interface (Sold Separately)
Number :4x CVBS BNC 75 Ω
Audio Input / Output Interface (Sold Separately)
Digital Input Number: 2
Connector: BNC 75 Ω unbalanced
Format: AES-3 SMTPE 276M
Analog Input NumberL : 2
Connector: 3-pin 600 Ω Balanced
Analog Output NumberL: 2
Connector: 3-pin 600 Ω Balanced | | Genlock | 1x BB In, BNC SMPTE 259M-C 270 Mb/s, 625i / 50, 525i 59.94 | | Control Interface | 1x RJ45 10 / 100 / 1000M auto-adapting | | Power | 2x 120 W, 100 to 256 VAC, & 50 to 60 Hz | | Dimensions | 17.32 x 19.01 x 1.77" (440.00 × 483.00 × 45.00 mm) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 8.0" |
