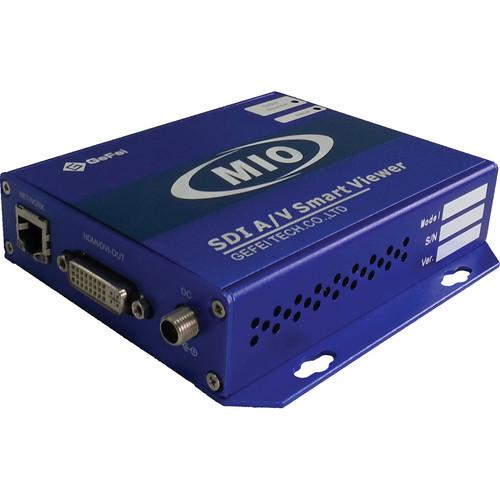

Product description The Gra-Vue Mini HD (3G)/SD-SDI to DVI Video Scaling Converter features real-time video/audio quality assurance watch dog function. It supports a variety of video input resolutions, including 525i, 625i, 720p, 1080i, and 1080p with automatic video input format detection. The watch dog function provides real-time video/audio survey and alarm. The scaling converter also provides an aspect ratio marker, waveform analyzer, AFD, dynamic UMD, Tally, and an 8-channel audio VU meter. The built-in Web server allows easy remote control of the unit via a Web browser, and it fully supports the SNMP protocols for remote monitoring. The MIO Viewer is used for setting up video/audio monitoring and display systems. It is suitable for many broadcasting and professional A/V monitoring applications such as control rooms, mobile trucks, production, post-production, and playout. - Supports 525i, 625i, 720p, 1080i, 1080p input video formats with auto detection
- DVI/HDMI output resolutions up to 1920 x 1080p 1
Please Note: HDMI output requires DVI to HDMI adapter (not included). close - Audio and video monitoring and alarm for signal loss, signal freeze, black field, and more
- Real-time video waveform analyzer
- Dynamic UMD and static programmable bi-color UMD
- Active Format Description (AFD)
- 8-channel audio VU meter display
- Selectable 4:3, 16:9, & full screen display
- Customized aspect ratio with 4:3 or 16:9 safe marker
- Built-in Web server allows easy remote control via a Web browser
- SMNP & Tally protocol support
- LED lights for input signal status and power status
- Quick key to change output display resolution
In the Box Gra-Vue Mini HD (3G)/SD-SDI to DVI Video Scaling Converter with A/V Watch Dog Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue Mini HD SD-SDI to DVI Video Scaling Converter with A V Watch Dog in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

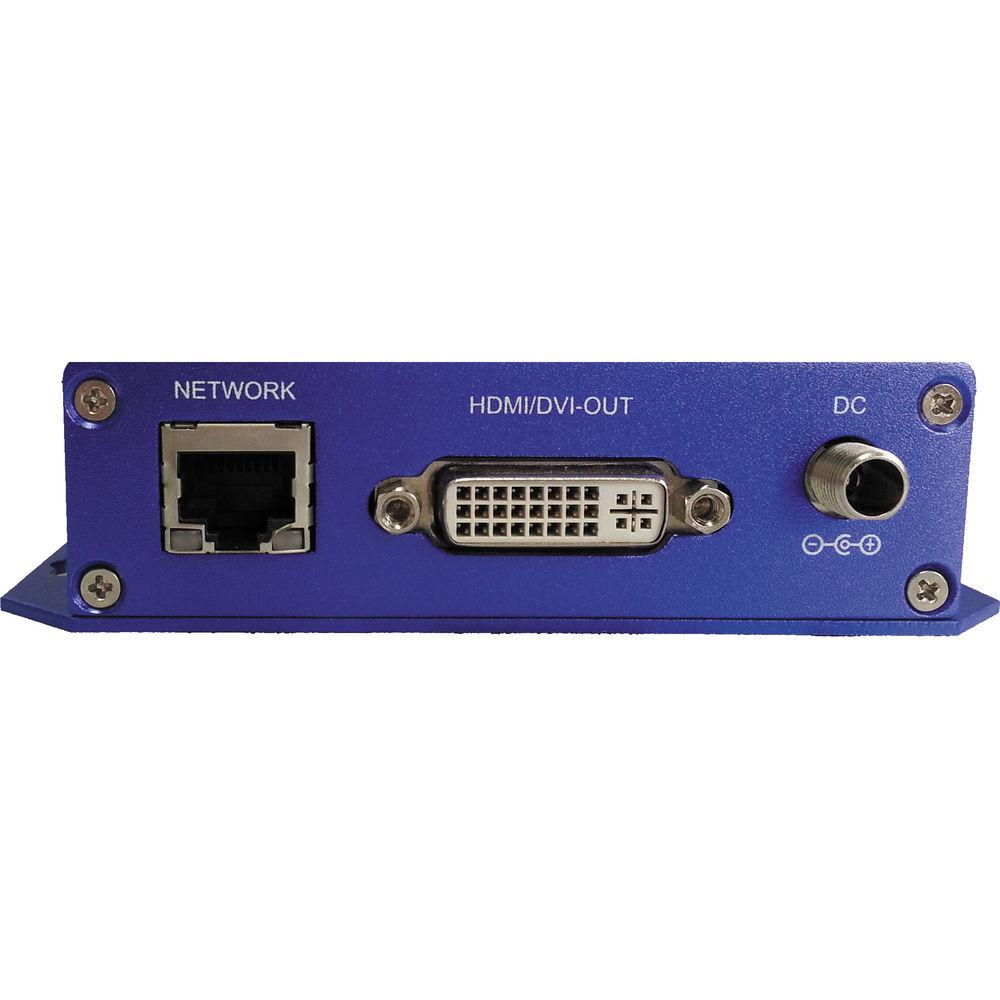

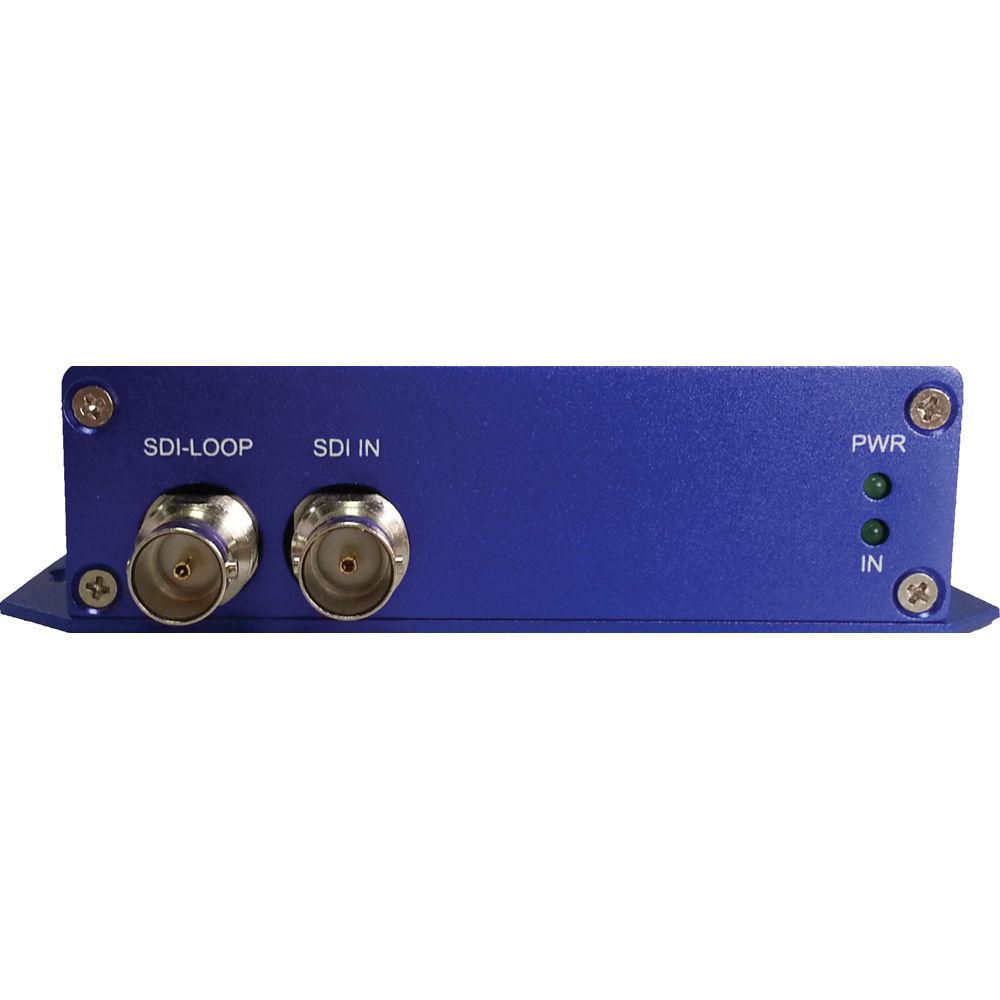

Technical parametersGra-Vue MIO SDI-AVIEWER Specs | Video Input | 1 x BNC, 75 ohms, HD (3G)/SD-SDI | | Input Format | SDI: 480i, 576i, 720p, 1080i, 1080p | | Video Output | 1 x DVI-I, female, supports HDMI protocol (separately available DVI to HDMI adapter required to connect to HDMI display)
1 x BNC, 75 ohms, SDI loopthrough | | Output Resolution | 1024 x 768, 1280 x 720, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 900, 1680 x 1050, 1600 x 1200, 1920 x 1080 | | Control | 1 x RJ-45 Ethernet for built-in Web server, TSL SMNP protocol
RS-232 (via RJ-45 to DB15 adapter; not included) for TSL protocol, GPI for Tally and dynamic UMD | | LED | Power status and input signal locking | | Power | 12 VDC, 1 A | | Working Temperature | 41 to 77°F (5 to 25°C) | | Storage Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 4.8 x 3.6 x 1.1" (12.3 x 9.2 x 2.9 cm) | | Weight | 11.5 oz (326 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 11.0 x 6.7 x 3.2" |
